Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | LKS |
Certification: | CCS,ISO9001 |
Model Number: | 8x26WS |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1mtrs |
Price: | USD1800/tons |
Packaging Details: | Standard Seaworthy Packing or as request |
Delivery Time: | 15 days after the order confirmation |
Payment Terms: | L/C, T/T |
Supply Ability: | 100tons monthly |
Detail Information |
|||
Core: | Fiber | Processing: | Compacted |
---|---|---|---|
Tensile Strength: | 1770N/mm2,1870N/mm2,1960N/mm2 | Diameter: | 16mm-36mm |
Material: | Steel | Surface: | Galvanized Or Ungalvanized |
Length: | 500mtrs/1000mtrs/2000mtrs Available | Packing: | Wooden Reel |
High Light: |
wire rope cable,steel rope cable |
Product Description
The steel wire rope structure for port crane must be of high quality structure, similar to wire contact wire rope, surface contact wire rope and forging wire rope, the strength of steel wire rope generally chooses 1670MPa/1770MPa/1870MPa, and the common wire rope specifications are 26mm, 28mm, 30mm, 32mm until 52mm; the port crane steel wire rope is working. The environment is very bad, the wire rope must withstand the cold and resist the high temperature, so it is necessary to improve the lubrication condition of the wire rope, and the wire rope structure can choose 6*36WS+IWRC or 8*26WS+IWRC.
Special Features
Technical Table
Dia.(mm) |
Weight(kg/m) |
MBL(kN) |
||||||
FC |
I |
1770MPA |
1960MPA |
2160MPA |
||||
FC |
IWR |
FC |
IWR |
FC |
IWR |
|||
10 |
0.35 |
0.446 |
52.0 |
63.0 |
57.0 |
69.8 |
62.8 |
76.9 |
11 |
0.42 |
0.540 |
62.0 |
76.2 |
69.0 |
84.4 |
76.0 |
93.0 |
12 |
0.5 |
0.642 |
74 |
91 |
82 |
100 |
90 |
111 |
13 |
0.59 |
0.754 |
87 |
106 |
97 |
118 |
108 |
130 |
14 |
0.68 |
0.874 |
102 |
124 |
112 |
137 |
123 |
151 |
16 |
0.89 |
1.142 |
133 |
161 |
147 |
179 |
162 |
197 |
18 |
1.12 |
1.445 |
168 |
204 |
186 |
226 |
205 |
249 |
19 |
1.25 |
1.610 |
187 |
227 |
207 |
252 |
228 |
278 |
20 |
1.39 |
1.784 |
207 |
252 |
230 |
279 |
254 |
308 |
22 |
1.68 |
2.159 |
251 |
305 |
278 |
338 |
307 |
372 |
24 |
1.99 |
2.569 |
299 |
363 |
331 |
402 |
364 |
443 |
26 |
2.34 |
3.015 |
351 |
426 |
388 |
472 |
428 |
520 |
28 |
2.71 |
3.497 |
407 |
494 |
450 |
547 |
496 |
603 |
32 |
3.55 |
4.567 |
531 |
645 |
588 |
715 |
648 |
787 |
36 |
4.49 |
5.780 |
672 |
817 |
744 |
904 |
819 |
997 |
40 |
5.54 |
7.136 |
830 |
1,008 |
919 |
1,116 |
1,014 |
1,230 |
44 |
6.7 |
8.635 |
1,000 |
1,220 |
1,110 |
1,351 |
1,223 |
1,489 |
48 |
7.98 |
10.276 |
1,190 |
1,452 |
1,320 |
1,608 |
1,455 |
1,772 |
52 |
9.36 |
12.060 |
1,397 |
1,704 |
1,549 |
1,887 |
1,707 |
2,079 |
56 |
10.86 |
13.987 |
1,620 |
1,976 |
1,797 |
2,188 |
1,980 |
2,411 |
60 |
12.47 |
16.056 |
1,860 |
2,268 |
2,063 |
2,512 |
2,273 |
2,768 |

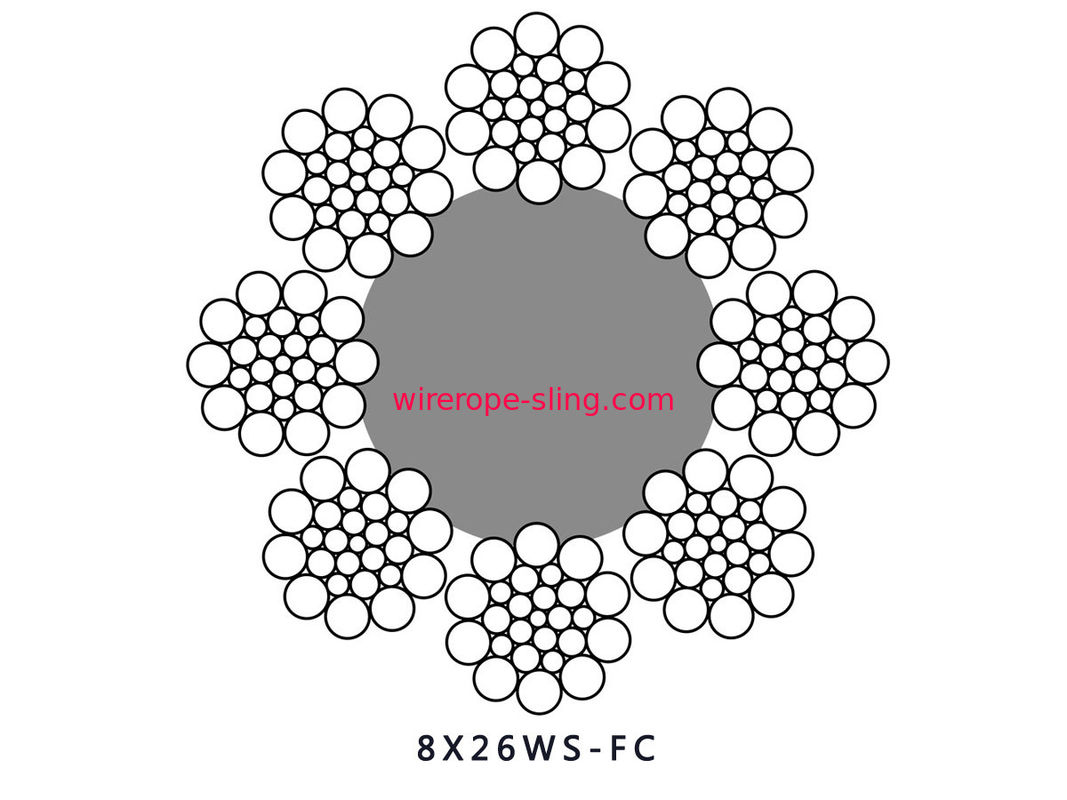

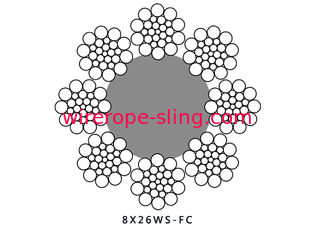

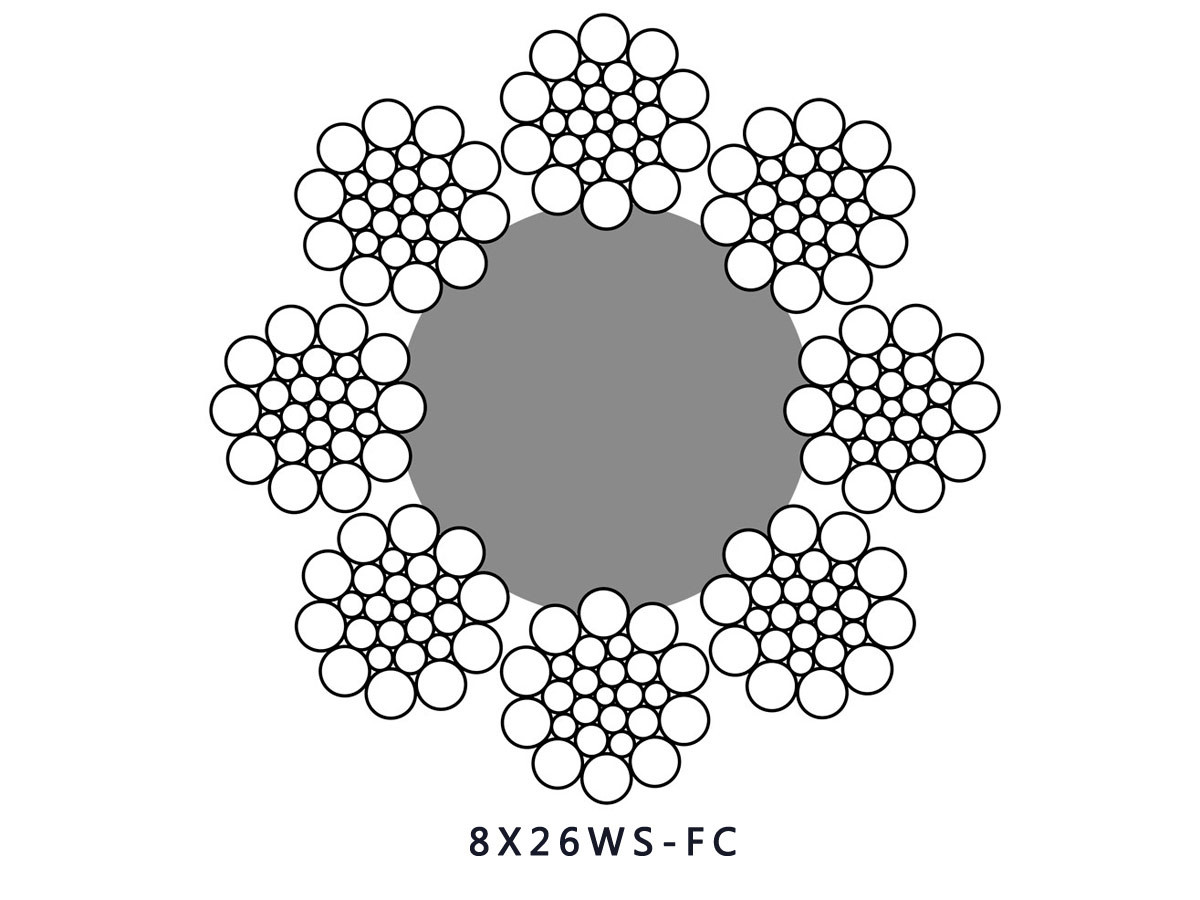

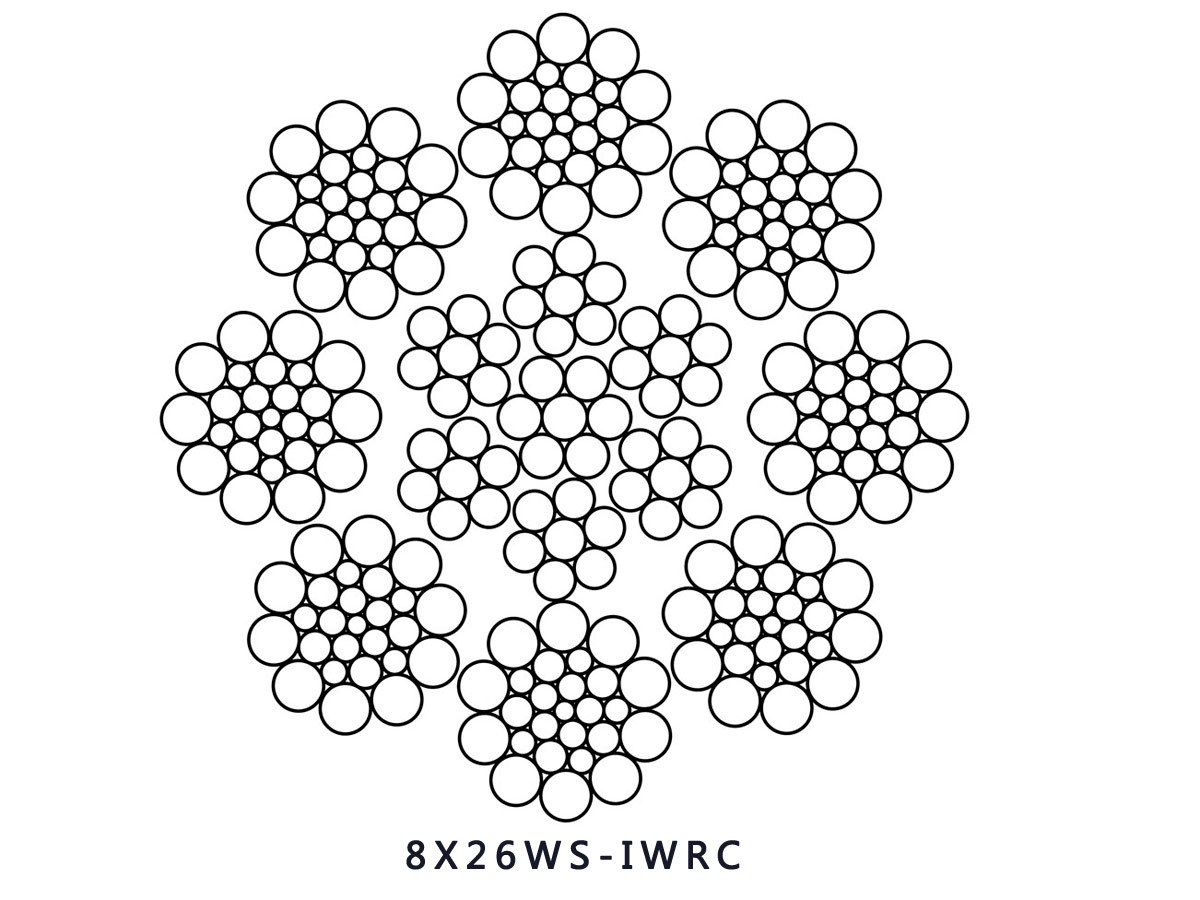

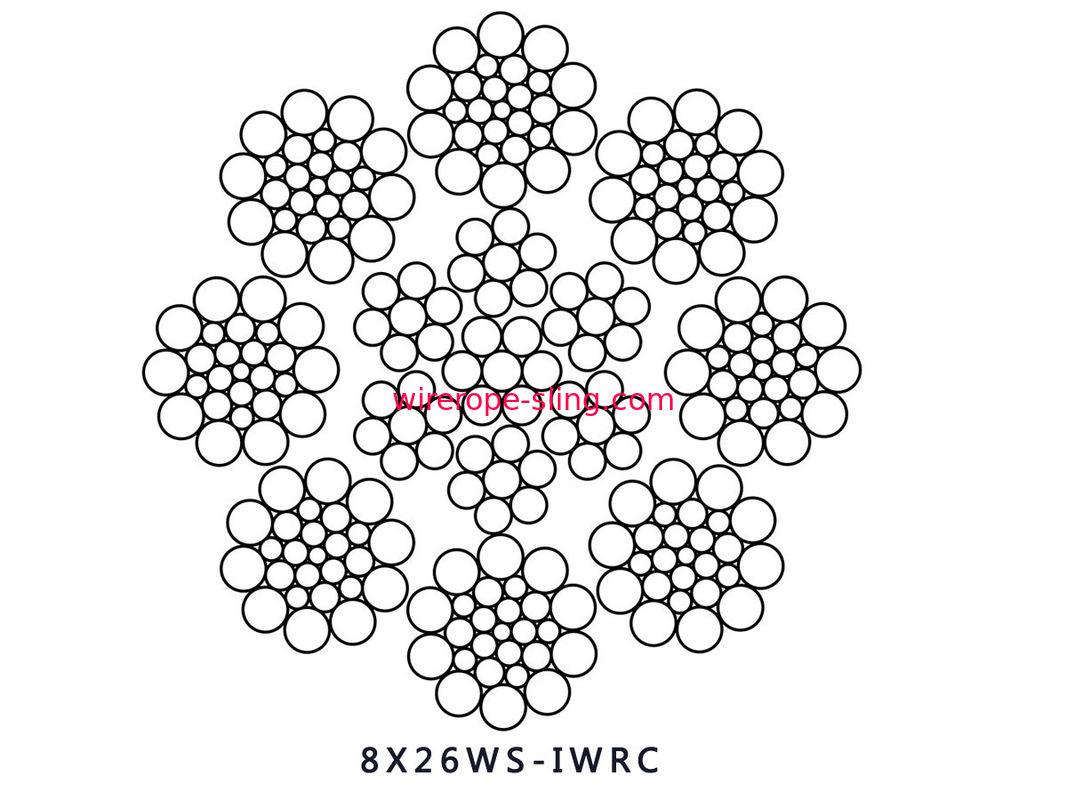

Wire Rope Cross Section;
