8xK26WS Wire Rope Cable , Steel Rope Cable Wear Resistance For Barge Anchored Line

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,ISO9001
Model Number: 8xK26WS+IWRC
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1800/tons
Packaging Details: Standard Seaworthy Packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Tensile Strength:1770N/mm2,1870N/mm2,1960N/mm2Surface:Galvanized Or Ungalvanized
Material:SteelDiameter:10mm-60mm
Core:Fiber/IWRCProcessing:Compacted
Length:500mtrs/1000mtrs/2000mtrs AvailablePacking:Wooden Reel
High Light:

wire rope cable

,

steel rope cable

Product Description

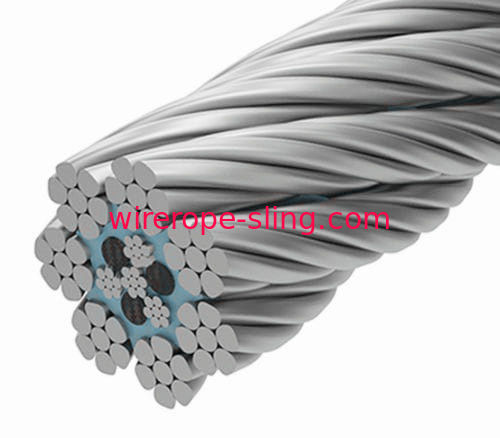

8xK26WS+IWRC High performance Compacted Steel Wire Rope for Barge anchored Line

In recent years, the technical level of Shanghai wire rope has been improved, more and more special wire ropes manufacturers can be produced, and the structure of wire rope is becoming more and more diversified, forming a situation of bloom. But the manufacturers of forging wire rope can produce in Shanghai are not many, LKS and steel wire technology department talks about the advantages of forging wire rope. Point, as a reference:
First, the forging wire rope is a series of surface contact wire rope, which is divided into online forging and off-line forging. After the forging, the wire rope is more dense and has good anti wear and corrosion resistance. The density coefficient of the wire rope is greater, and the broken tensile force of the wire rope can be greatly improved, and the surface of the wire rope is even more flat. The contact between the wheel grooves or the drum grooves is larger, and the wire rope structure is stable in the multi-layer winding drum equipment. Forged wire rope structures are common: DD6*36WS+IWRC, DD6*26WS+IWRC, DD8*26WS+IWRC, DD6*31WS+IWRC, DD6*19S+FC, DD6*29Fi+IWRC, DD6*25Fi+IWRC and so on.



The following is the comparison between the contact lines of wire contact wire rope, compacted strand wire rope, forging wire rope and wheel groove.



8xK26WS Wire Rope Cable , Steel Rope Cable Wear Resistance For Barge Anchored Line 0



8xK26WS Wire Rope Cable , Steel Rope Cable Wear Resistance For Barge Anchored Line 1





Special Features



  • Compared with class 8X19 Liner Steel Wire Rope, it has higher tensile strength and better performance.
  • Excellent wear resistance and extrusion resistance.
  • Provide longer service life
  • With smooth outer surface and larger contact area, it can reduce wear between steel rope and pulley and drum.


Technical Table



Dia.(mm) Weight(kg/m) MBL(kN)
1960 MPA 2160 MPA
10 0.491 85.3 91.5
11 0.594 98.1 113
12 0.706 114 127
13 0.829 147 157
14 0.961 169 183
16 1.256 217 228
18 1.590 275 298
19 1.771 302 323
20 1.962 333 355
22 2.375 398 423
24 2.826 487 518
26 3.317 576 610
28 3.847 655 700
32 5.024 844 914
36 6.358 1,060 1,120
40 7.850 1,290 1,320
44 9.499 1,500 1,590
48 11.304 1,880 1,890
52 13.266 2,130 2,220
56 15.386 2,470 2,574

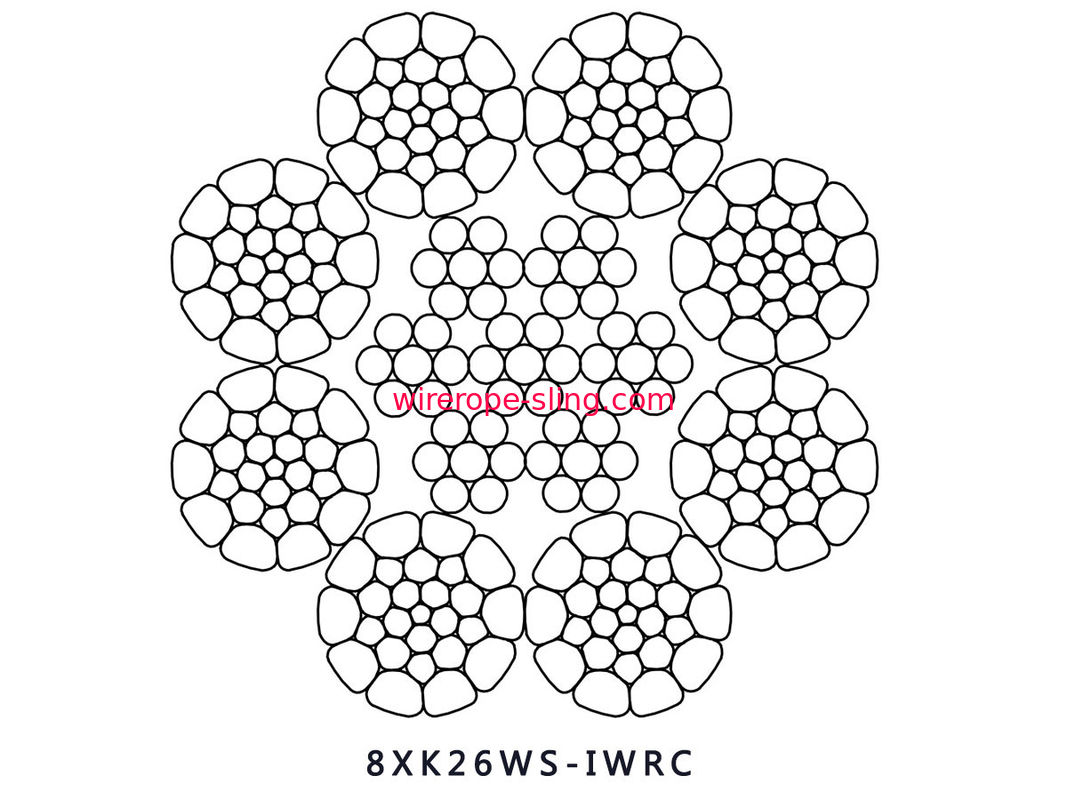

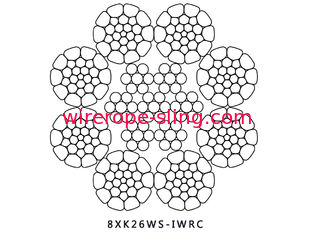

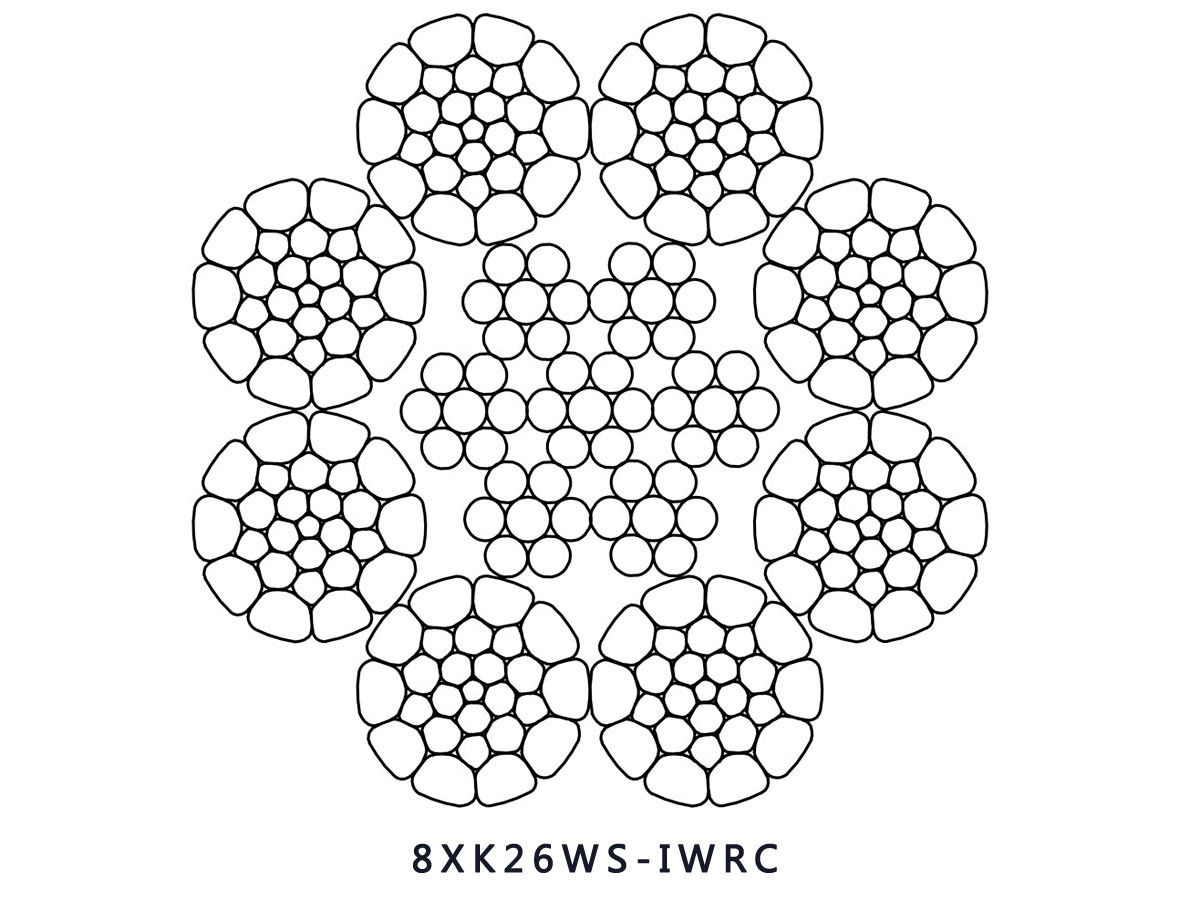

Wire Rope Cross Section;



8xK26WS Wire Rope Cable , Steel Rope Cable Wear Resistance For Barge Anchored Line 2
