Liner Steel Wire Rope 8x41WS IWRC High Performance Compacted For Dock Crane

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,ISO9001
Model Number: 8x41WS
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1800/tons
Packaging Details: Standard Seaworthy Packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Material:SteelCore:Fiber/IWRC
Tensile Strength:1770N/mm2,1870N/mm2,1960N/mm2Diameter:10mm-60mm
Surface:Galvanized Or UngalvanizedProcessing:Compacted
Length:500mtrs/1000mtrs/2000mtrs AvailablePacking:Wooden Reel
High Light:

wire rope cable

,

steel rope cable

Product Description



8x41WS+IWRC High performance Liner Steel Wire Rope for dock crane



(At the port or wharf, we often see dock crane (dock crane) loading and unloading operation. Wharf hoists are usually used for hook or grab, the selection of the type of steel wire rope for wharf crane, the recommended use line of large steel rope to contact wire ropes 6*19W+FC, 6*25Fi+FC, 6*26WS+FC, 6*29Fi+FC, 6*31WS+FC, 6*36WS+FC, 6*41WS+FC, 6*19W+IWRC, 6*25Fi+IWRC, 6* 26WS+IWRC, 6*29Fi+IWRC, 6*29Fi+IWRC, etc. +IWRC or 6*41WS+IWRC can also choose not to rotate the wire rope structure 18*7+FC or 35W*7; the wire rope specifications are mostly concentrated in 13mm, 14mm, 15mm, 16mm.







Liner Steel Wire Rope 8x41WS IWRC High Performance Compacted For Dock Crane 0





Special Features



  • Compared with class 8X19 Liner Steel Wire Rope, it has higher tensile strength and better performance.
  • Excellent wear resistance and extrusion resistance.
  • Provide longer service life
  • With smooth outer surface and larger contact area, it can reduce wear between steel rope and pulley and drum.


Technical Table



Dia.(mm) Weight(kg/m) MBL(kN)
1960 MPA 2160 MPA
10 0.491 85.3 91.5
11 0.594 98.1 113
12 0.706 114 127
13 0.829 147 157
14 0.961 169 183
16 1.256 217 228
18 1.590 275 298
19 1.771 302 323
20 1.962 333 355
22 2.375 398 423
24 2.826 487 518
26 3.317 576 610
28 3.847 655 700
32 5.024 844 914
36 6.358 1,060 1,120
40 7.850 1,290 1,320
44 9.499 1,500 1,590
48 11.304 1,880 1,890
52 13.266 2,130 2,220
56 15.386 2,470 2,574

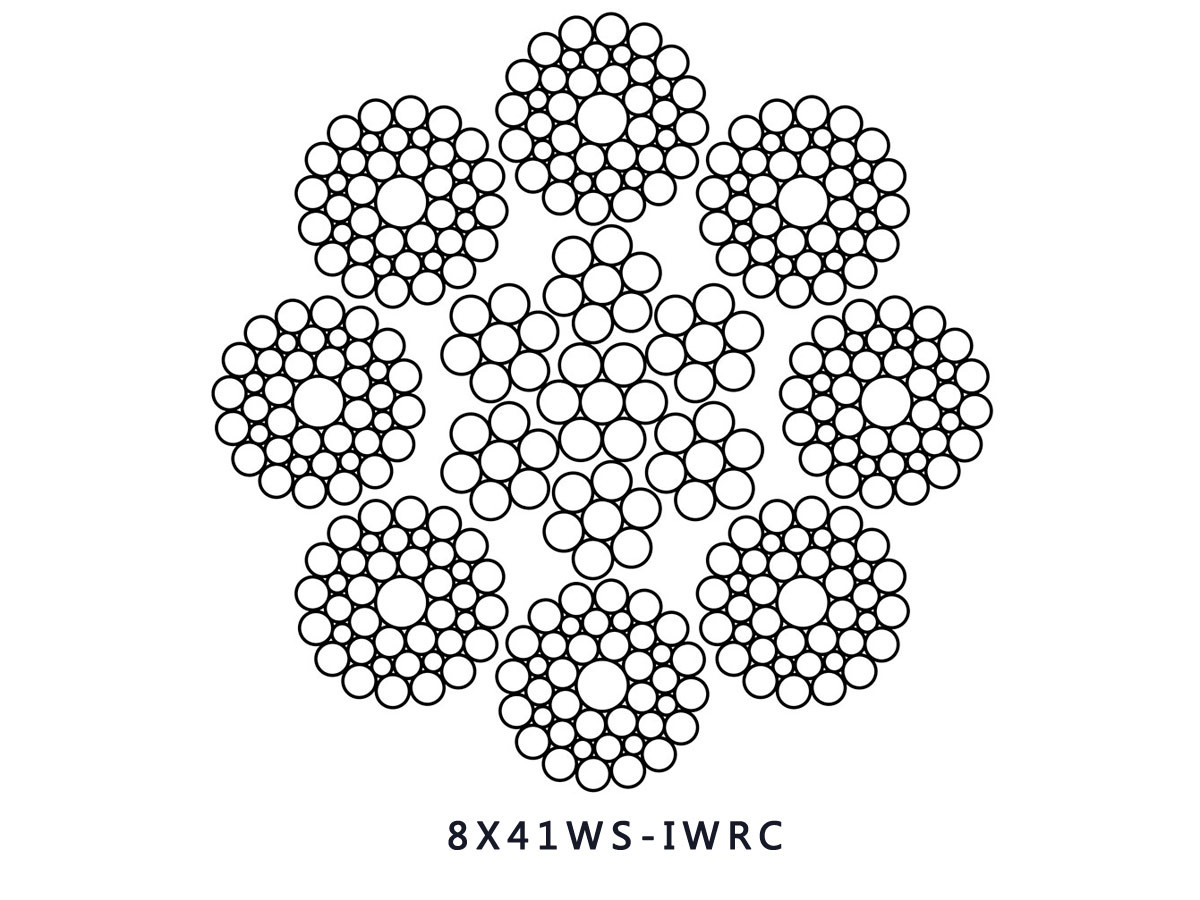

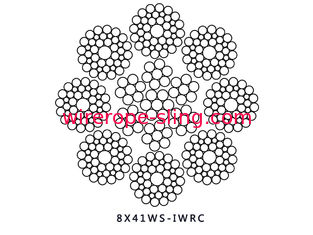

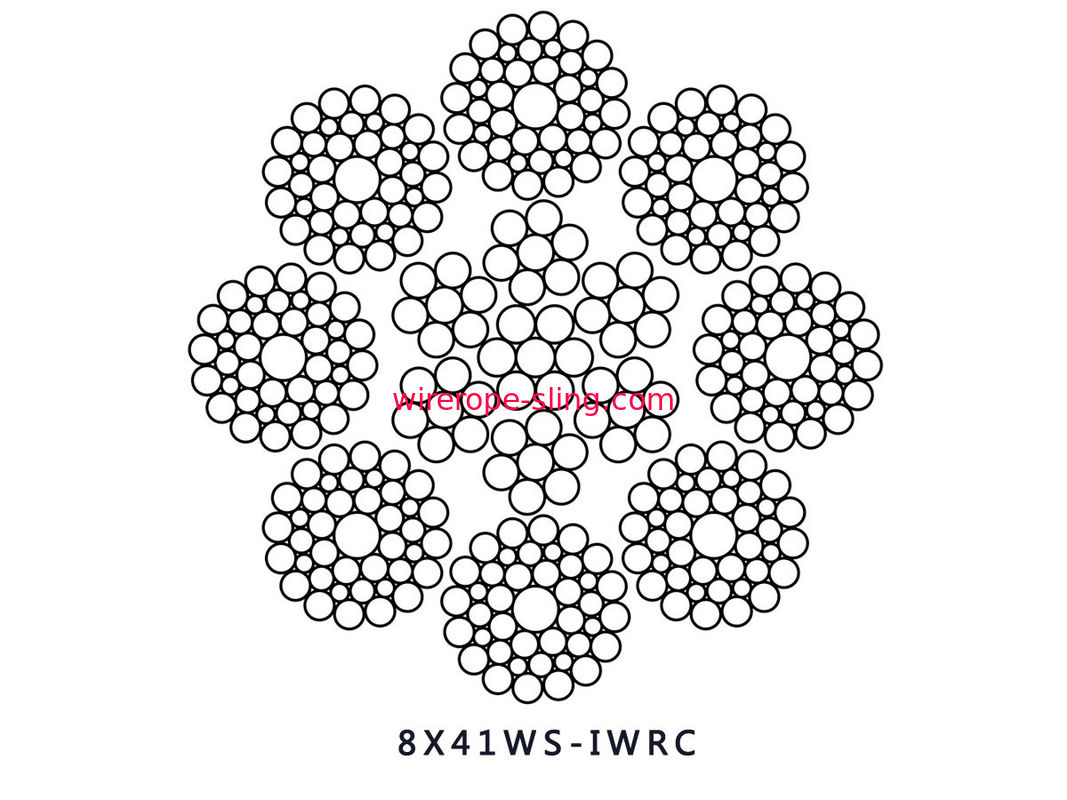

Wire Rope Cross Section;



Liner Steel Wire Rope 8x41WS IWRC High Performance Compacted For Dock Crane 1
