IWRC Steel Wire Cable , Steel Lifting Cables 8x29Fi For Double Beam Crane

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,ISO9001
Model Number: 8x29Fi
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1800/tons
Packaging Details: Standard Seaworthy Packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Packing:Wooden ReelSurface:Galvanized Or Ungalvanized
Tensile Strength:1770N/mm2,1870N/mm2,1960N/mm2Diameter:10mm-56mm
Core:Fiber/IWRCProcessing:Compacted
Length:500mtrs/1000mtrs/2000mtrs AvailableMaterial:Steel
High Light:

wire rope cable

,

steel rope cable

Product Description

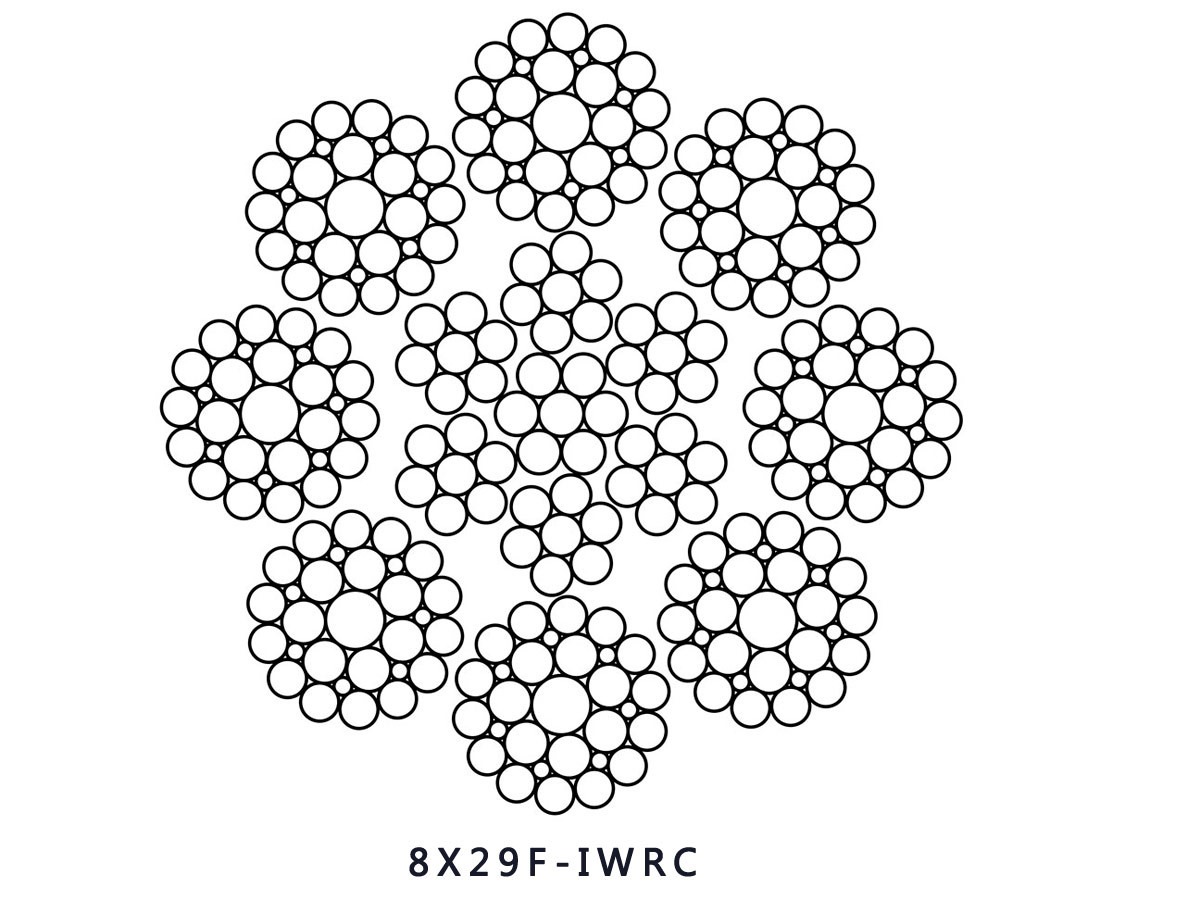

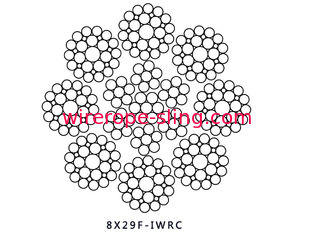

8x29Fi+IWRC Super Flexible Lifting Steel Wire Rope for double beam crane

LKING STEEL LIMITED specializes in the production and sale of crane wire rope: crane steel wire rope, wharf gantry crane wire rope, bridge type crane wire rope. Crane includes single beam, double beam, monorail, double track, and omni-directional crane. This kind of equipment is very high required for wire rope. 6*19S, 6*19W, 6*25Fi, 6*29Fi, 6*36SW, 18*7,35W*7, 8*19S, 8*19W, 8*25Fi, 8*29Fi, 8*36SW, line contact wire rope or multi-layer non rotating wire rope, if the crane is in the steel mill. In the high temperature environment of the boiler, please select the steel wire rope of steel core crane. If it is in the ambient temperature environment, it is suggested to use the wire rope of the hemp core crane, because the core can lock the oil, and the oil has the ability of anticorrosion and rust prevention.







IWRC Steel Wire Cable , Steel Lifting Cables 8x29Fi For Double Beam Crane 0





Special Features



  • Compared with class 8X19 Liner Steel Wire Rope, it has higher tensile strength and better performance.
  • Excellent wear resistance and extrusion resistance.
  • Provide longer service life
  • With smooth outer surface and larger contact area, it can reduce wear between steel rope and pulley and drum.


Technical Table



Dia.(mm) Weight(kg/m) MBL(kN)
1960 MPA 2160 MPA
10 0.491 85.3 91.5
11 0.594 98.1 113
12 0.706 114 127
13 0.829 147 157
14 0.961 169 183
16 1.256 217 228
18 1.590 275 298
19 1.771 302 323
20 1.962 333 355
22 2.375 398 423
24 2.826 487 518
26 3.317 576 610
28 3.847 655 700
32 5.024 844 914
36 6.358 1,060 1,120
40 7.850 1,290 1,320
44 9.499 1,500 1,590
48 11.304 1,880 1,890
52 13.266 2,130 2,220
56 15.386 2,470 2,574
