China Wire Rope Sling manufacturer

Nub & Nub Skidder Choker Cables , Wire Rope Logging Chokers Non - Alloy

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE / ISO 9001
Model Number: WRALL
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1600/ton
Packaging Details: Wood Reels
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Diameter:3/4"Type:Skidding Chokers
Length (ft):40Breaking Load:41,000lbs
Weight:47.2lbsOEM/ODM:Available
Alloy Or Not:Non-alloyHS Code:73121000
High Light:

steel wire rope fittings

,

wire cable assemblies

Product Description

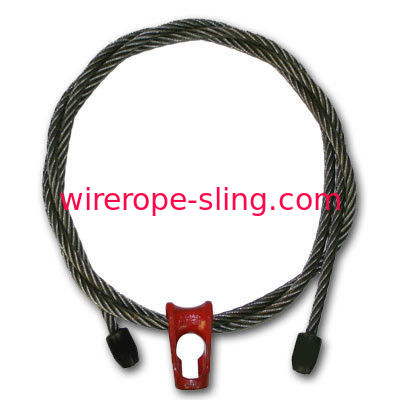

3/4" x 40 ft Wire Rope Logging Chokers Nub & Nub Skidder Choker Cables



Skidding Chokers feature a nub on each end with a sliding choker hook in the middle. These are slightly less popular than Cat Chokers, yet are still sold to many farmers, ranchers and property owners for land clearing. To use them properly you typically connect them straight to your drum line (aka winch line) with sliding choker hooks already in place (we have New Choker Hooks if you need them). Most will run anywhere from 3-4 chokers off one drum line, but it depends on the size of your drum line, the size of your chokers and the size of the logs you're trying to skid. The bigger sizes we offer are really yarder chokers used for high lead logging (this method keeps the lines high off the ground near the landing to avoid extra drag and snags, and also uses butt rigging). This type of logging is a little less common today, but we still have many customers with this type of setup.





3/4" x 40 ft Logging Choker - Nub & Nub Skidding-Style - 41000 lbs Breaking Strength



  • Made from 6x19 class wire rope, IWRC EIPS specification
  • End fittings are professionally swaged (aka pressed) according to industry standards
  • Includes a Bantam choker hook
  • Place nub into choker bell which creates a choking action around the log
  • Ideal for skidding / moving logs
  • NOT FOR OVERHEAD LIFTING



Specifications



Wire Rope Size 3/4"
Type Skidding Chokers
Construction 6x19 Class
Length (ft) 40
Choker WLL (lbs) 8,200
Breaking Strength (lbs) 41,000
Approx. Weight (lbs) 47.2



Technical Table



Wire Rope Size Construction Length (ft) Choker WLL (lbs) Breaking Strength (lbs) Approx. Weight (lbs)
3/8" 6x19 Class 6 2,200 11,000 3.1
3/8" 6x19 Class 8 2,200 11,000 3.6
3/8" 6x19 Class 10 2,200 11,000 4.1
3/8" 6x19 Class 12 2,200 11,000 4.6
3/8" 6x19 Class 15 2,200 11,000 5.4
3/8" 6x19 Class 20 2,200 11,000 6.7

1/2" 6x19 Class 6 3,800 19,000 5
1/2" 6x19 Class 8 3,800 19,000 5.9
1/2" 6x19 Class 10 3,800 19,000 6.8
1/2" 6x19 Class 12 3,800 19,000 7.7
1/2" 6x19 Class 15 3,800 19,000 9.1
1/2" 6x19 Class 20 3,800 19,000 11.4

9/16" 6x19 Class 8 4,800 24,000 6.9
9/16" 6x19 Class 10 4,800 24,000 8.1
9/16" 6x19 Class 12 4,800 24,000 9.3
9/16" 6x19 Class 15 4,800 24,000 11
9/16" 6x19 Class 20 4,800 24,000 14

5/8" 6x19 Class 12 5,800 29,000 12.8
5/8" 6x19 Class 15 5,800 29,000 15
5/8" 6x19 Class 20 5,800 29,000 18.6
5/8" 6x19 Class 25 5,800 29,000 22.2
5/8" 6x19 Class 30 5,800 29,000 25.8

3/4" 6x19 Class 15 8,200 41,000 21.2
3/4" 6x19 Class 20 8,200 41,000 26.4
3/4" 6x19 Class 25 8,200 41,000 31.6
3/4" 6x19 Class 30 8,200 41,000 36.8
3/4" 6x19 Class 35 8,200 41,000 42
3/4" 6x19 Class 40 8,200 41,000 47.2



Nub & Nub Skidder Choker Cables , Wire Rope Logging Chokers Non - Alloy 0
