Architectural Ss Wire Rope Assemblies Marine Grade With Adjuster Fork

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE / ISO 9001
Model Number: WRALL
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1600/ton
Packaging Details: Wood Reels
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Material:StainlessType:Wire Rope Assemblies
Grade:Marine GradeVinyl Coated:Available
Choker WLL:2,200lbsAdjustable:Available
Alloy Or Not:Non-alloyHS Code:73121000
High Light:

steel wire rope fittings

,

wire cable assemblies

Product Description

Architectural 316 Stainless Steel Wire Rope Cable Assemblies with Adjuster Fork



Options Thread
(UNF)
P
(mm)
T
(mm)
C
(mm)
F
(mm)
ADJ
(mm)
O/D
(mm)
L
(mm)
Fork System 3mm 1/4 6.4 7 15 8 24 16 55
Fork System 4mm 5/16 8 8.5 16 10 32 19 70
Fork System 5mm 3/8 9.5 10 20 12 40 22.2 88
Fork System 6mm 7/16 11 11 23 15 44 28.6 98
Fork System 7mm 1/2 13 13 30 18 48 32 120
Fork System 8mm DS 1/2 13 13 30 18 48 32 120
Fork System 8mm 5/8 16 16 32 20 64 38 142
Fork System 10mm 5/8 16 16 32 20 64 38 142
Fork System 12mm 3/4 19 19 40 24 72 51 160
Fork System 14mm 7/8 22.2 22 45 26 80 57 179
Fork System 16mm 1 25 25 52 32 90 63.5 207

NB: Price displayed in the table includes 1 metre of wire. Please use the calculator (above right) to work out the cost to your specific dimensions.



Each wire rope assembly is made to your dimensions and consists of:

  • One length of 1x19 stainless steel wire rope
  • Two architectural adjuster forks - one right hand and one left
  • Two double headed clevis pins
  • Two architectural lock nuts - one right hand and one left

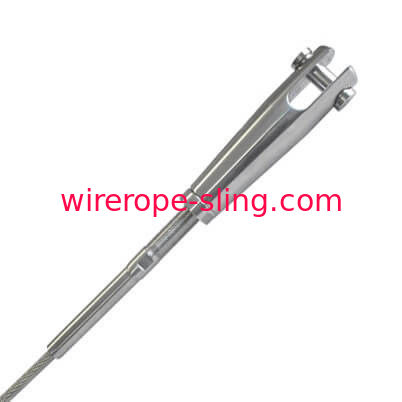

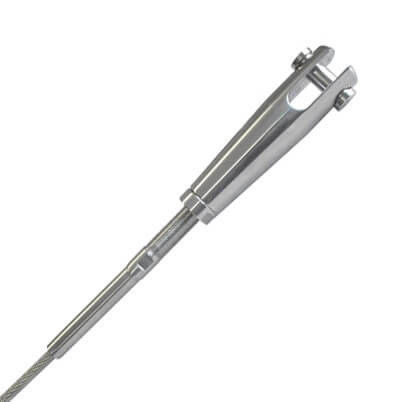

Architectural Ss Wire Rope Assemblies Marine Grade With Adjuster Fork 0

Handmade

Handmade To Order

Please allow 3 to 5 working days from order for manufacture and delivery.

Made In China

High quality stainless steel architectural adjuster fork system engineered and manufactured in the China.





Measuring

How to measure your wire rope assembly:

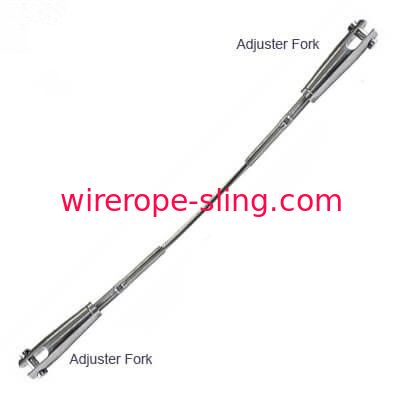

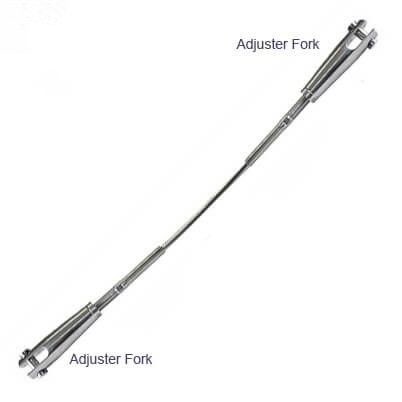

Architectural Ss Wire Rope Assemblies Marine Grade With Adjuster Fork 2

Please provide us with the PIN CENTRE to PIN CENTRE cable assembly measurements.


Technical

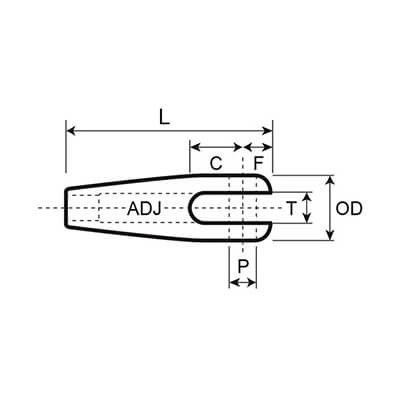

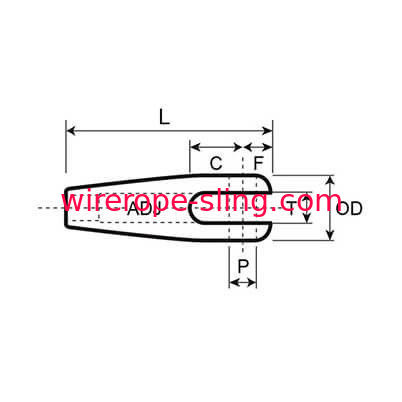

Architectural Adjuster Fork

Dimensions for the fork ends can be found in the table above.

You may need these dimensions to aid in specifying the type of eye or lug attachment.

Architectural Ss Wire Rope Assemblies Marine Grade With Adjuster Fork 3

Manufactured from A4 316 (Marine) Grade stainless steel.

All threads are precision forged or cut to BS3643 part 1 & 2 and BS1580 part 1 & 2.

Free from structural welds which may reduce the strength and integrity of the product.

Adjuster forks from size 5/8" unf have Aluminium Bronze threads to prevent threads seizing during operation.

Larger sizes and metric threads available by request.
