Fork Tensioner Steel Wire Rope Cable Assemblies , Rigging Assemblies - 316 Grade Ss



Custom wire rope assemblies examples designed and manufactured by The Cable Connection to the customer‘s specifications. Our capabilities include electric fuse cutting, rotary swaging, impact swaging, hydraulic swaging, cnc lathe and mill machining and wire rope load testing and pre-stretching.



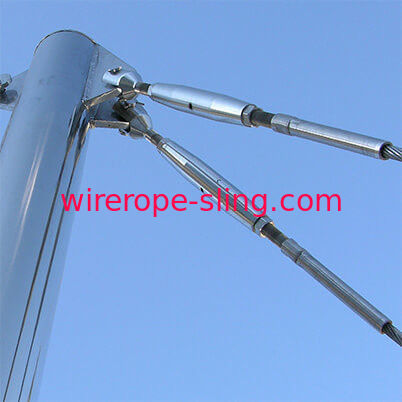

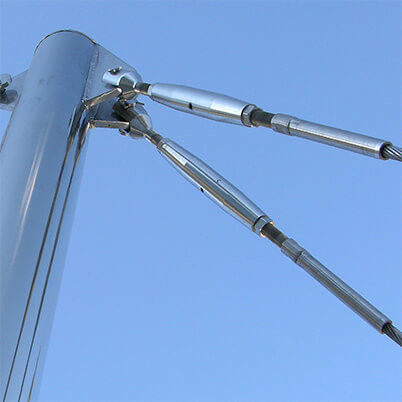

Fork Tensioner Wire Rope Assemblies



Options Wire Ø
(mm)
Pin Diameter
(mm)
Jaw Width
(mm)
Adjustment
(mm)
3mm Fork Assembly 3 6 6.3 70
4mm Fork Assembly 4 8 8 75
5mm Fork Assembly 5 9.5 10 95
6mm Fork Assembly 6 11 11 110
8mm Fork Assembly 8 14.3 14 155
10mm Fork Assembly 10 16 16 155

NB: Price displayed in the table includes 1 metre of wire. Please use the calculator (above right) to work out the cost to your specific dimensions.



Each wire rope assembly is made to your dimensions and consists of:

  • One length of stainless steel rope - please specify

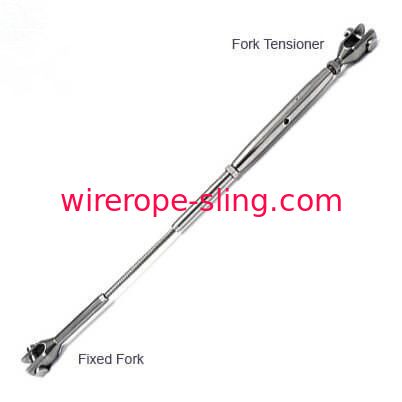

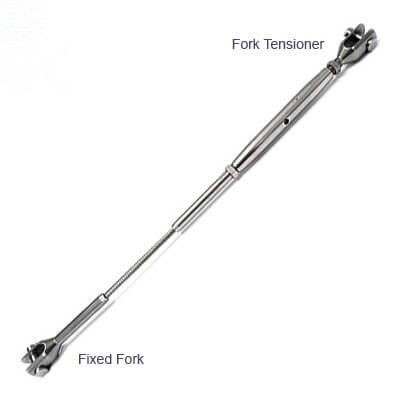

  • One fixed swage fork at one end, with clevis pin
  • One swage fork rigging screw tensioner at the other, with clevis pin
  • Tensioner supplied 1/3 engaged to provide maximum adjustment

Please choose either 7x7 Strand wire rope or 1x19 Strand wire rope

  • 7x7 = more flexible, less strength.
  • 1x19 = less flexible, more strength.

Tension on the wire is achieved by rotating the fork tensioner. The wire remains static and will not turn.

Fork Tensioner Steel Wire Rope Assemblies 1 X 19 Strand Wire Rope 0


Measuring

Fork Tensioner Steel Wire Rope Assemblies 1 X 19 Strand Wire Rope 1



How to measure your wire rope assembly:



Fork Tensioner Steel Wire Rope Assemblies 1 X 19 Strand Wire Rope 2

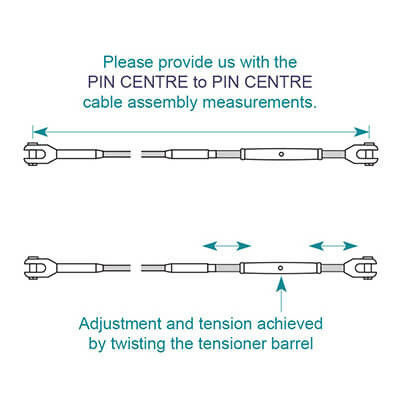

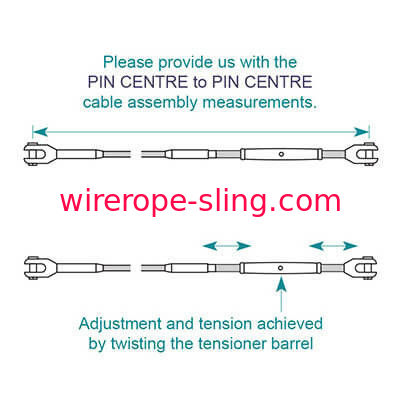

Please provide us with the pin centre to pin centre cable assembly measurements.


Adjustment and tension:

Fork Tensioner Steel Wire Rope Assemblies 1 X 19 Strand Wire Rope 3

Adjustment and tension is achieved by twisting the tensioner barrel.


Technical

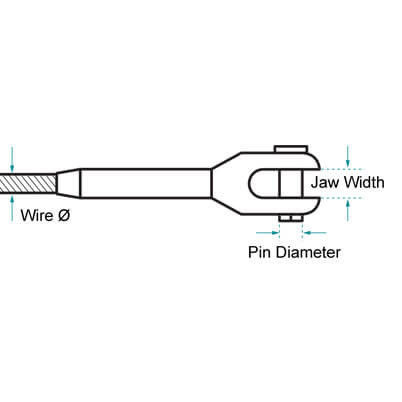

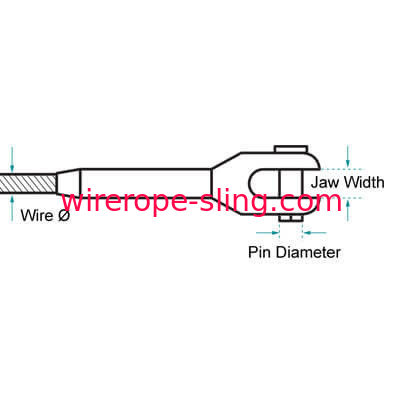

Fork Dimensions

Dimensions of the forks for each end of the wire rope assembly. You may need these dimensions to aid in specifying the type of eye or lug attachment.

All in 316 Marine Grade stainless steel.

Fork Tensioner Steel Wire Rope Assemblies 1 X 19 Strand Wire Rope 4



W (Wire Rope) C (mm) P (mm) T (mm) OD (mm)
3mm 13 6 6.3 14.3
4mm 16 8 8 18
5mm 19 9.5 10 22.2
6mm 22 11 11 25.4
8mm 28 14 14 34.9
10mm 32 16 16 38.1


Safe Working Loads for Wire Rope Assemblies

All wire rope assemblies are manufactured to achieve the safe working load of the wire type and diameter specified.

Please refer to the wire rope safe working loads as follows:

7x7 Strand Wire Rope

1x19 Strand Wire Rope
