China Wire Rope Sling manufacturer

Large Safety Factor Hose Safety Cable High Strength Whipcheck / Whipblock

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE / ISO 9001
Model Number: WRAHSC
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1600/ton
Packaging Details: Wood Reels
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Material:Stainless/Galvanized/Coated CablesType:Wire Rope Assemblies
Grade:CommercialStandard:GB,ASTM,JIS
Rope:7x7 Or 1x19 Strand Wire RopeApplications:Industrial
Alloy Or Not:Non-alloyHS Code:73121000
High Light:

steel wire rope fittings

,

wire cable assemblies

Product Description



Hose Safety Cables Wire Rope Cable Assemblies Whipcheck / Whipblock available



LKS supply two different designs of hose safety cables. 'Whipcheck' Safety Cables have been used for many years on air compressor hoses to prevent hose ends from 'whipping' if the coupling blows out of the hose. The all new 'Whipblock' Safety Cables are a new alternative to 'Whipchecks' They have a dual layered coating of Kevlar and Polyester and this along with its new design makes it safer and stronger than a traditional 'Whipcheck'.

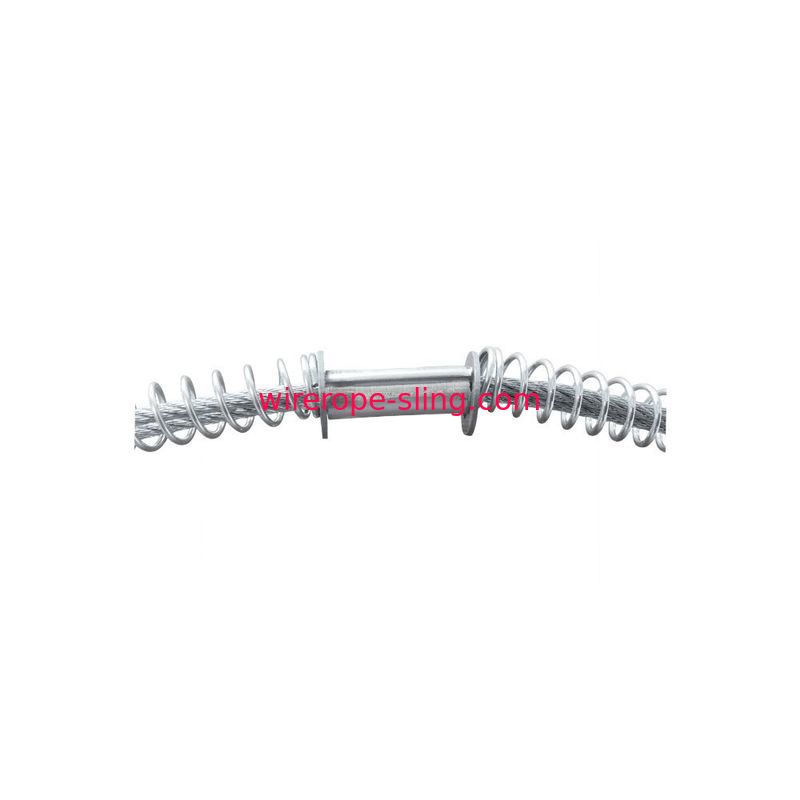

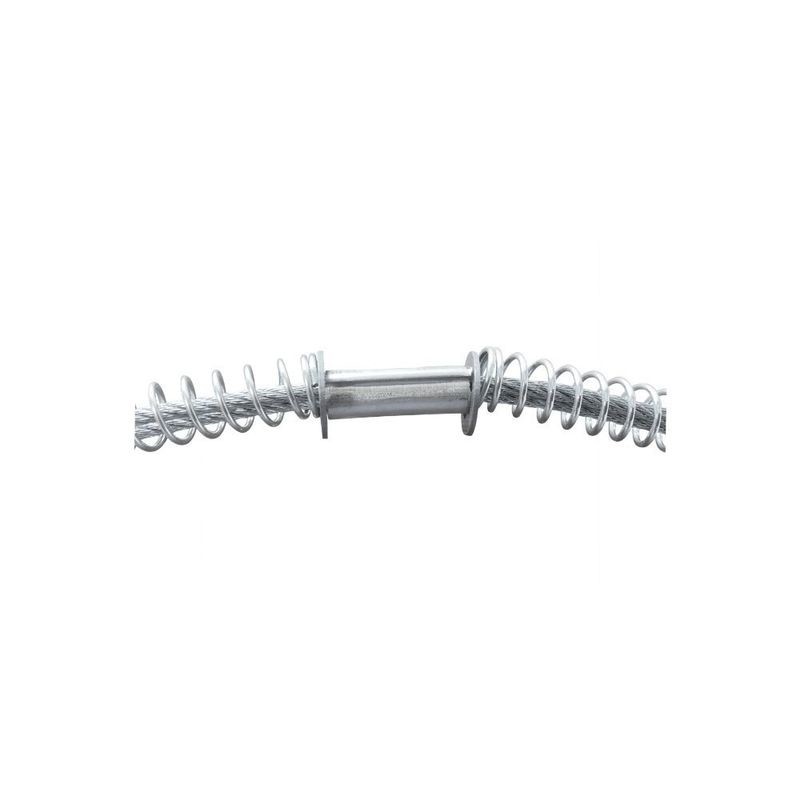

A traditional 'Whipcheck' is constructed of steel wire rope and plated springs, with aluminium ferrules standard for hose to hose 'Whipchecks'. The new design of a Whipblock is constructed using steel wire rope that is coated in Kevlar and Polyester. Its choke system does not rely on springs under constant tension which can lead to the loop loosening. If you have bespoke requirements, please contact our team and we will be happy to help. If you have bespoke requirements, please contact our team and we will be happy to help.

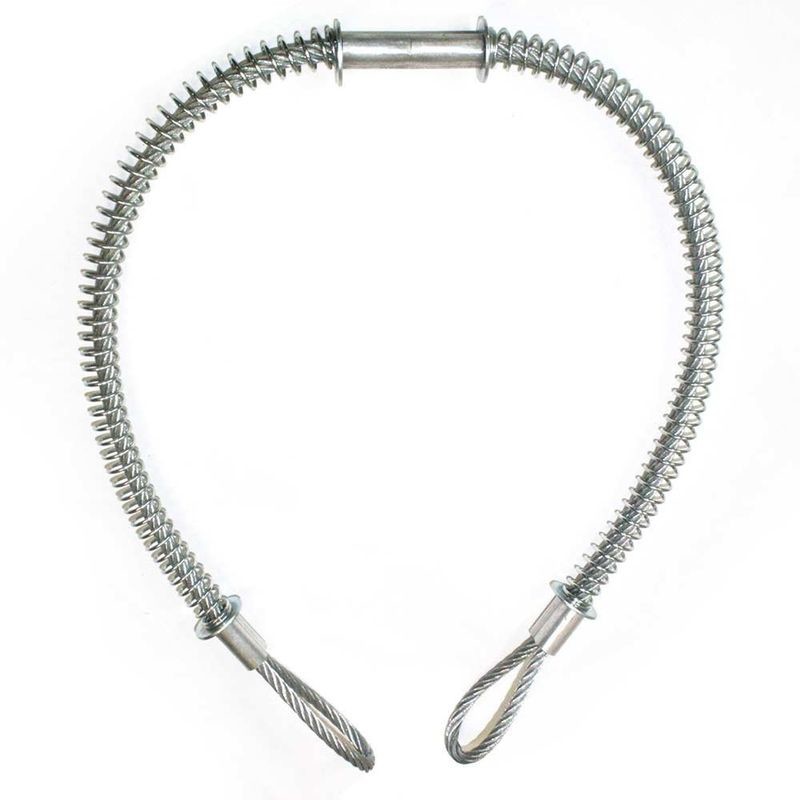

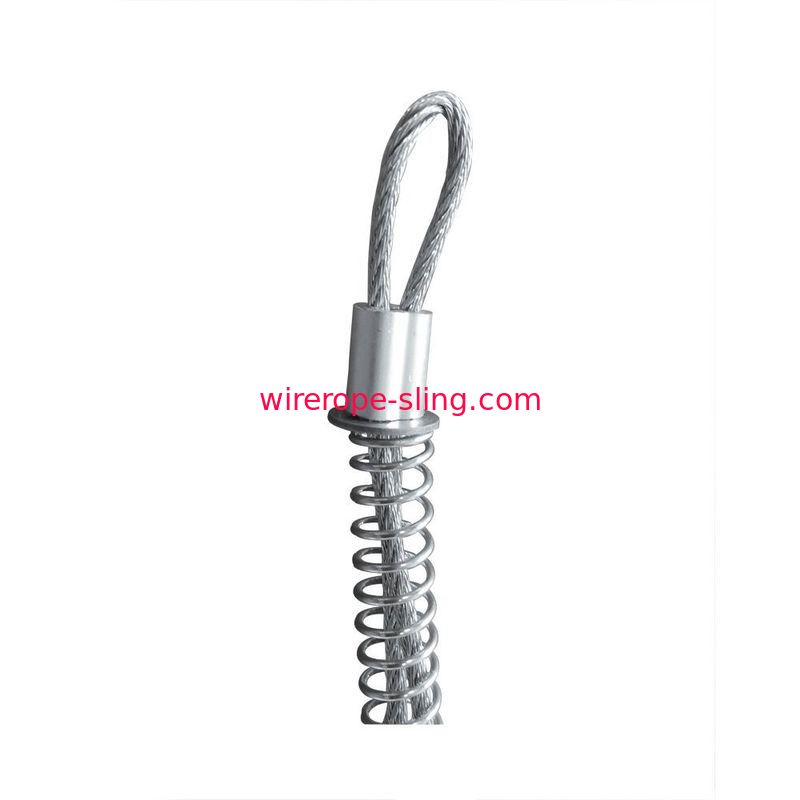

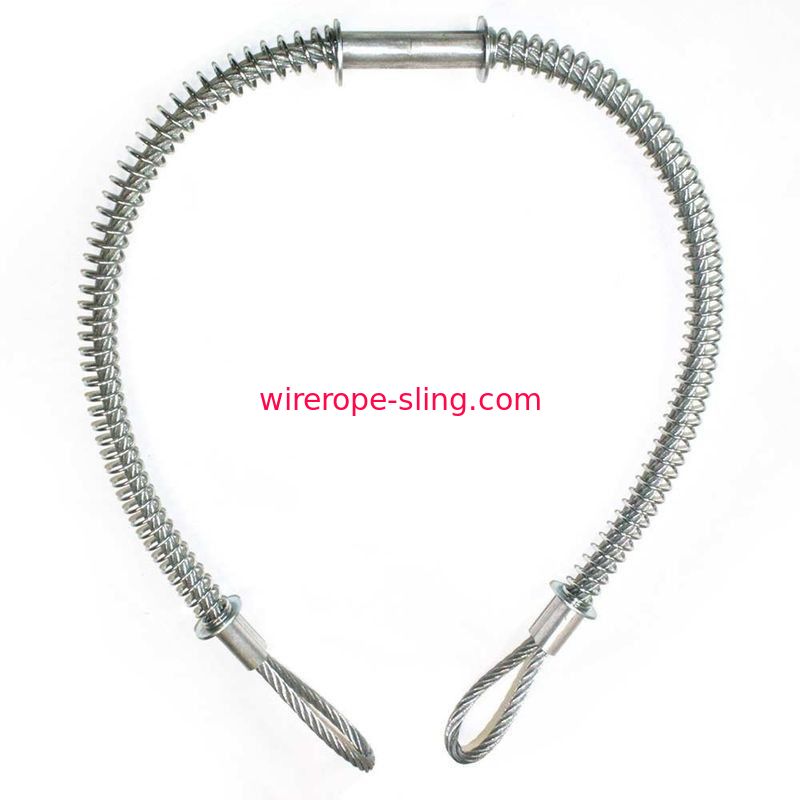

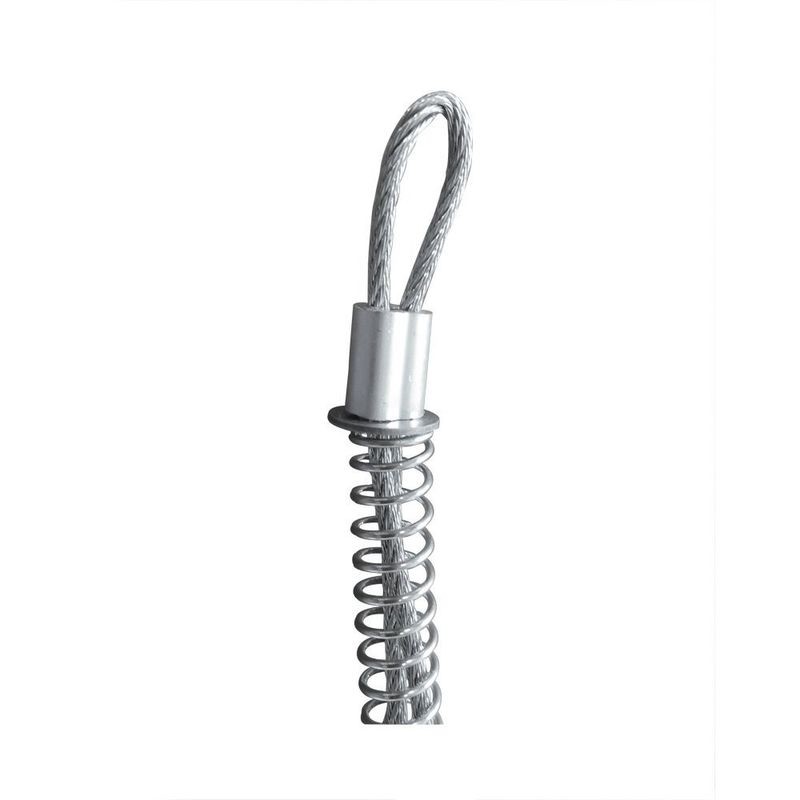

Hose Safety Cables Wire Rope Cable Assemblies Whipcheck



Large Safety Factor Hose Safety Cable High Strength Whipcheck / Whipblock 0

Specification



Item Dia. Hose Diameters Minimum Breaking Load Length
Whipcheck 3mm 12mm to 32mm 588kg 545mm
Whipcheck 6mm 38mm to 76mm 2350kg 970mm

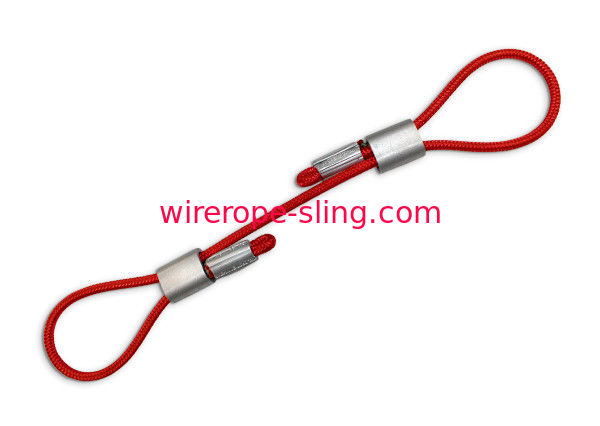

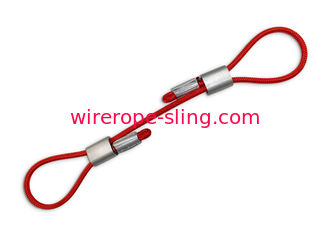

Hose Safety Cables Wire Rope Cable Assemblies Whipblock



Large Safety Factor Hose Safety Cable High Strength Whipcheck / Whipblock 1





Specification



Item Dia. Hose Diameters Minimum Breaking Load Length Steel Wire Rope Kevlar Coating Polyester Coating
Whipblock 4-6mm ¼” to 2” 1000kg 500mm 4mm 1.0mm 1.0mm
Whipblock 6-9mm ½” to 3” 2600kg 950mm 6mm 1.5mm 1.5mm
Whipblock 7-10mm ½” to 3” 3600kg 950mm 7mm 1.5mm 1.5mm

Large Safety Factor Hose Safety Cable High Strength Whipcheck / Whipblock 2
