Gym Wire Rope Assemblies 3.2mm Diameter 7 X 19 Galvanised Steel Rope

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE / ISO 9001
Model Number: GYMCA
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1600/ton
Packaging Details: Wood Reels
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Diameter:1/8”Type:7X19
Length (ft):12HS Code:73121000
Standard:GB,ASTM,DINOEM/ODM:Available
Finish:Zinc PlatedMaterial:Steel
High Light:

steel wire rope fittings

,

wire cable assemblies

Product Description



Gym Wire Rope Cable Assemblies 3.2mm diameter 7 x 19 Galvanised Steel Rope





You send us your worn or broken cable and we send you a new replacement manufactured to your pattern within 72 hours.
Our wire rope gym cables are available in three sizes:

  • 3.2mm diameter 7 x 19 galvanized wire rope, covered with clear Nylon 11 to 5mm overall diameter
  • 4.0mm diameter 7 x 19 galvanized wire rope, covered with clear Nylon 11 to 5mm overall diameter
  • 5.0mm diameter 7 x 19 galvanized wire rope, covered with clear Nylon 11 to 6.35mm overall diameter

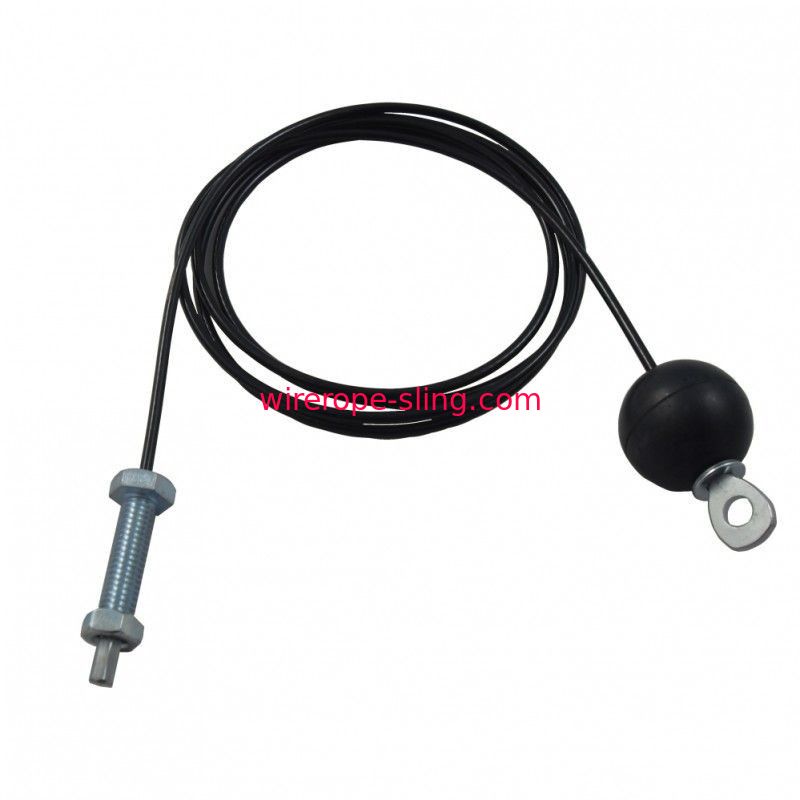

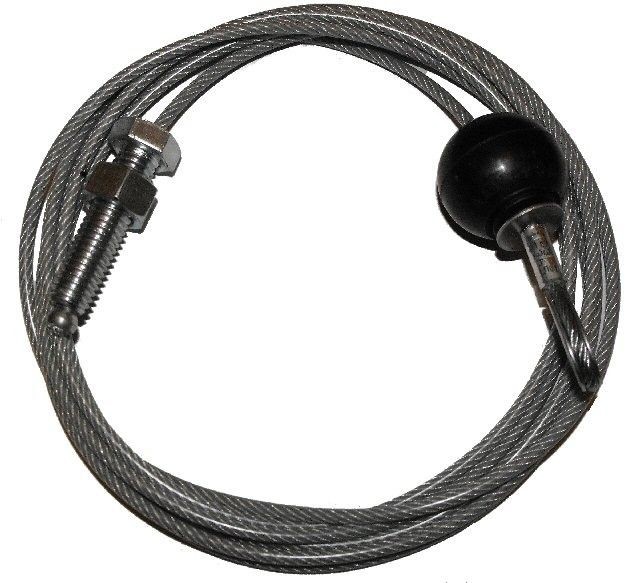

Ropes are made to precise lengths to suit your apparatus with appropriate end fittings, such as soft loop, thimble (eyelet), swaged eye terminal, threaded adjuster, shock balls etc.

In Stock and Ready to Dispatch

LKS manufacture and stock a comprehensive range of nylon coated cables and fittings to suit the major types of gymnasium equipment in China. We can supply both single domestic orders and large commercial orders at very competitive prices.

Bespoke Gym Cable Service

Our in-house wire rope assembly team can produce bespoke cables to order if you would like to receive a quote please either use the online cable configurator below or contact us and we will be happy to help.


Wire Rope

Recommended Wire Rope

LKS recommend using a 4mm 7×19 Galvanised Wire Rope coated to 5mm in Clear Nylon.
Please note that all gym cables have a tolerance of +/- 15mm

Why This Cable?

For no additional cost we can guarantee a Safety Working Load of 209kg, compared to 117kg that you get from the standard 3mm equivalent – that’s 80% higher for the same overall diameter.
Other wire ropes and coatings are available on request.

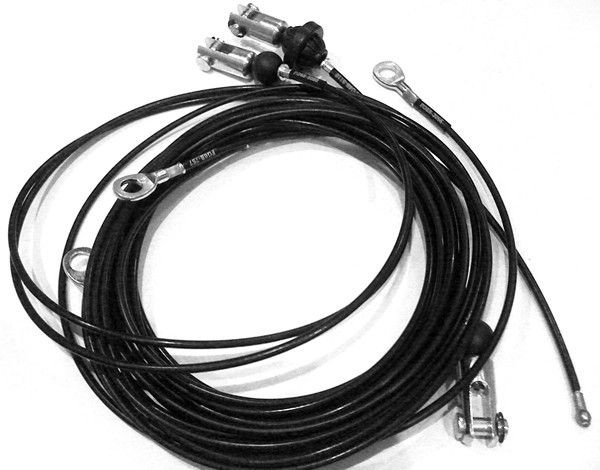

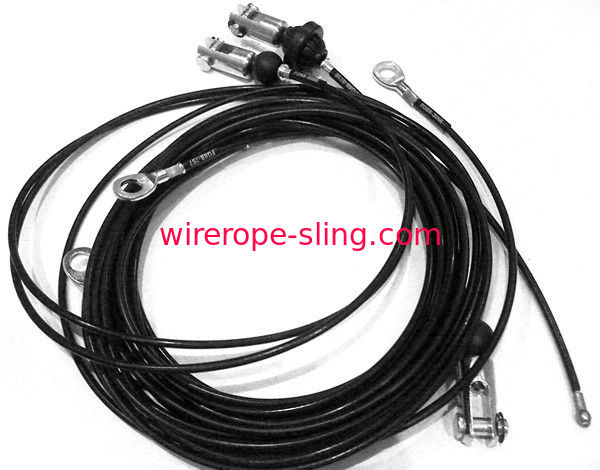

cable assembly for fitness equipment/nylon gym cable

1.Diameter 1.0mm,1.5mm or other Custom-made available
2.construction 7X19,etc
3.material stainless steel or galvanized steel
4.MOQ 500pcs
5.length 1.5m-5m
6.place of origin china
7.coating



as requirement
8.end parts of fittings

shrank the ball
eyelet terminals
hooks
nylon ball
handlebar


9.Lead time 7days if there were enough material in stock
10.sample Free sample available if all of the dimensions same as our existing one, if not, contact me, to get a cost-efficient solution.
application

Lighting, Machinery, Medical, Security, Sporting Goods, Toys, Window, Lawn & Garden
Etc. When designing a cable assembly, a number of factors need to be considered such as workload, abrasion, cycle life, and flexibility, environment, cost, safety .etc. the larger the diameter, the greater the workload capacity and the less flexible it will be.
WARNING: Breaking strength should never be considered the rope's working load, safety factor 5:1 , Coating must be removed from installation area when attaching fittings

specification

Refer to the drawing as below:
All of specification custom-made available. the tighter tolerance, the higher the cost of the cost.




Diameter construction weight(100m) Minimum Breaking load(N)
1.0mm 1*19 0.495 950(95kg)
  7*7 0.393 650 (65kg)
1.2mm 1*19 0.713 1440(144kg)
  7*7 0.566 950(95kg)
1.5mm 1*19 1.114 2200(220kg)
  7*7 0.884 1500(150kg)
1.8mm 1*19 1.604 3200(320kg)
  7*7 1.273 2100(210kg)
2.0mm 1*19 1.98 3900(390kg)
  7*7 1.527 2650(265kg)
2.4mm 1*19 2.851 5650(565kg)
  7*7 2.264 3800(380)kg
2.5mm 1*19 3.094 6100(610kg)
  7*7 2.381 4100(410kg)
3.2mm 7*7 4.024 6850(685kg)
  7*19 3.901 6800(680kg)
3.8mm 7*19 5.675 9650(965kg)
  7*7 5.502 9600(960kg)
4.0mm 7*19 6.609 12500(1250kg)
4.2mm 7*7 6.933 13000(1300kg)
4.5mm 7*7 7.958 13500(1350kg)
4.8mm 7*19 8.778 15300(1530kg)
6.0mm 7*19 8.716 23900(2390kg)



how to choose material:1stain1.1.1.
1.stainless steel :
providing good corrosion resistance and strength comparable to galvanized carbon steel grades.
2.galvanized steel:
Zinc coated carbon steel offers some corrosion resistance. It remains ductile over long periods of working. Usually higher break strengths than stainless steels.

Diameter construction weight(100m) Minimum Breaking load(N)
1.0mm 1*19 0.495 950(95kg)
  7*7 0.393 650 (65kg)
1.2mm 1*19 0.713 1440(144kg)
  7*7 0.566 950(95kg)
1.5mm 1*19 1.114 2200(220kg)
  7*7 0.884 1500(150kg)
1.8mm 1*19 1.604 3200(320kg)
  7*7 1.273 2100(210kg)
2.0mm 1*19 1.98 3900(390kg)
  7*7 1.527 2650(265kg)
2.4mm 1*19 2.851 5650(565kg)
  7*7 2.264 3800(380)kg
2.5mm 1*19 3.094 6100(610kg)
  7*7 2.381 4100(410kg)
3.2mm 7*7 4.024 6850(685kg)
  7*19 3.901 6800(680kg)
3.8mm 7*19 5.675 9650(965kg)
  7*7 5.502 9600(960kg)
4.0mm 7*19 6.609 12500(1250kg)
4.2mm 7*7 6.933 13000(1300kg)
4.5mm 7*7 7.958 13500(1350kg)
4.8mm 7*19 8.778 15300(1530kg)
6.0mm 7*19 8.716

23900(2390kg)





The Manufacturers

Compatibility

The cables and fittings we supply can be used on all the leading Gym Equipment Manufacturers including Best Fitness, Body-solid, BodyCraft, Bodymax, Bowflex, CV Fitness, Golds Gym, Kettler, Life Fitness, Marcy, Matrix, Powerline, Powersport, Technogym, Vision, Weider, and York.

Gym Wire Rope Assemblies 3.2mm Diameter 7 X 19 Galvanised Steel Rope 0

Requirements Not Listed Above?

LKS produces a wide range of wire rope assemblies in all diameters and constructions with a multitude of fittings to choose from. If your requirements are not shown above, please contact us and we will be happy to assist.Gym Wire Rope Assemblies 3.2mm Diameter 7 X 19 Galvanised Steel Rope 1
