China Wire Rope Sling manufacturer

Galvanized Wire Cable Assemblies , Wire Rope Sling With Soft Eye 316 Grade Stainless Steel

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE / ISO 9001
Model Number: SSWRCA
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1600/ton
Packaging Details: Wood Reels
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Diameter:1.5mm To 8.0mmType:7X19,7x7,1x7,1x19
Length (ft):As RequestHS Code:73121000
Alloy Or Not:Non-alloyOEM/ODM:Available
Finish:Zinc PlatedMaterial:AISI 316 STEEL
High Light:

steel wire rope fittings

,

wire cable assemblies

Product Description

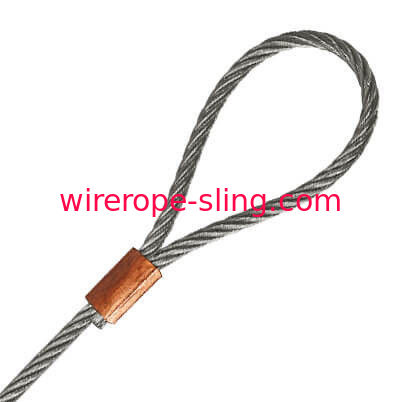

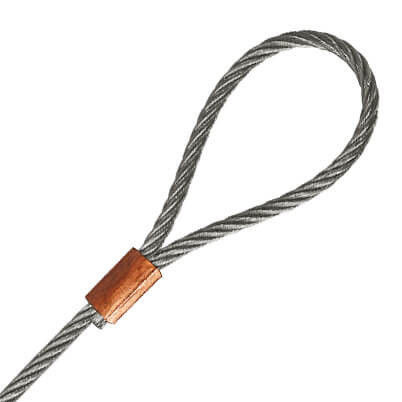

Made to Measure Wire Rope Assemblies with Soft Eye Loops , 316 Grade Stainless Steel



Wire Rope Assemblies – Wire-rope slings in any configuration, trailer ropes, soft eye ropes, special ropes with any configuration of end fittings, and fuse and tapered ropes, lift ropes, winch cables, gym cables and crane ropes are just some of the products we can make up to perfectly suit your intended application.



Wire rope assembly with eye to eye loops, each cable is made to measure using 7x19 strand marine grade stainless steel.





Wire Rope Sling with Soft Eye

Options Wire
(mm)
SWL
(Kg)
H
(mm)
1.5mm Sling 1.5 17.04 20
2mm Sling 2 28 30
3mm Sling 3 64 45
4mm Sling 4 112.8 45
5mm Sling 5 176.8 75
6mm Sling 6 256 90
8mm Sling 8 454.4 120

NB: Price displayed in the table includes 1 meter of wire. Please use the calculator (above right) to work out the cost of your specific dimensions.

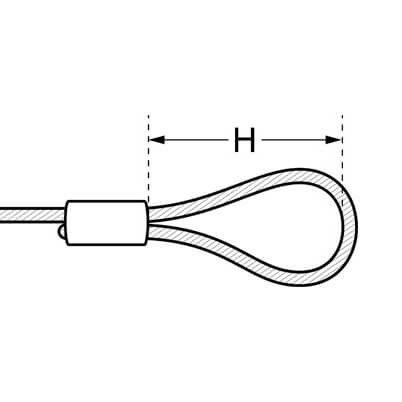

Please Note: Loop height (H) has a tolerance of +/- 1mm.



Each wire rope assembly is made to your dimensions and consists of:

  • One length of 7x19 strand - A4 316 grade stainless steel wire rope
  • A soft eye loop termination with copper ferrule at each end

"Soft Eye" refers to the fact that the wire forms a natural loop. A "hard eye" would include a wire rope thimble within the eye.



How to Measure



Galvanized Wire Cable Assemblies , Wire Rope Sling With Soft Eye 316 Grade Stainless Steel 0



Please provide us with the BEARING SURFACE to BEARING SURFACE cable assembly measurements.



ALWAYS:

• Ensure the operator is properly trained to use wire rope slings.

• Store and handle wire rope slings correctly.

• Inspect wire rope slings and accessories before use and before placing into storage.

• Follow safe slinging practices, as given overleaf.

• Fit slings carefully, protect them from sharp edges and position hooks to face outwards from the load.

• Apply the correct mode factor for the slinging arrangement.

• Back hook free legs to the master link.



NEVER:

• Attempt to shorten, knot or tie wire rope slings.

• Force, hammer or wedge slings or their fittings into position.

• Lift on the point of the hook.

• Expose wire rope slings to chemicals, particularly acidic or strong alkali conditions without consulting the supplier.

• Use wire rope slings at temperatures above 100°C or below minus 40°C without consulting the supplier.

• Shock load wire rope slings
