Hard Wire Rope Thimble , Wire Cable Assemblies 316 Grade Stainless Steel

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE / ISO 9001
Model Number: SSWRCA
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1600/ton
Packaging Details: Wood Reels
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Diameter:1.5mm To 8.0mmType:7X19,7x7,1x7,1x19
Length (ft):As RequestHS Code:73121000
Alloy Or Not:Non-alloyOEM/ODM:Available
Finish:Zinc PlatedMaterial:AISI 316 STEEL
High Light:

steel wire rope fittings

,

wire cable assemblies

Product Description

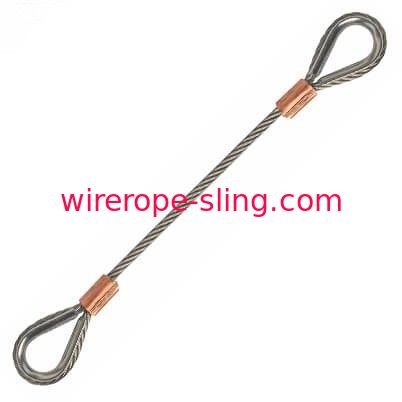

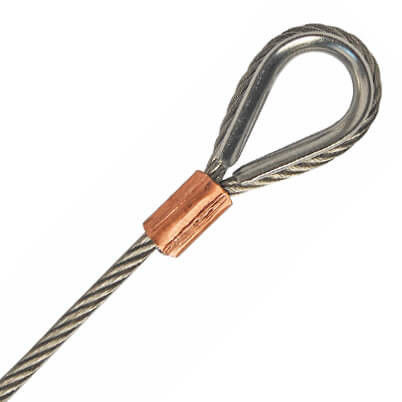

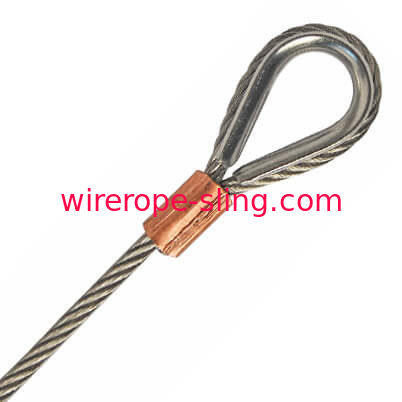

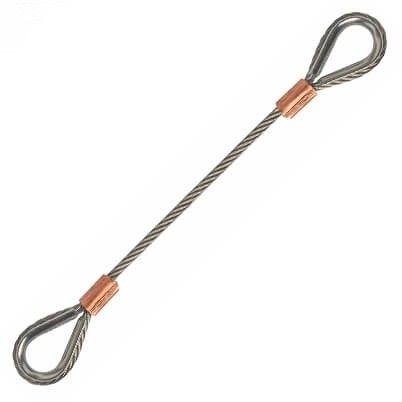

316 Grade Stainless Steel Wire Rope Cable Assemblies with Hard Thimble Eye Loops



Wire rope assembly with hard eye thimble loops, thimbles reinforce and retain the eye shape and protects the inside of the loop from damage, each cable is made to measure using 7x19 strand marine grade stainless steel.





Wire Rope Sling with Hard Eye

Options Wire
(mm)
SWL
(Kg)
W
(mm)
H
(mm)
1.5mm Sling 1.5 17.04 7 13
2mm Sling 2 28 7 13
3mm Sling 3 64 10 17
4mm Sling 4 112.8 11 18
5mm Sling 5 176.8 13 23
6mm Sling 6 256 15 27
8mm Sling 8 454.4 18 33

NB: Price displayed in the table includes 1 metre of wire. Please use the calculator (above right) to work out the cost to your specific dimensions.



Each wire rope assembly is made to your dimensions and consists of:

  • One length of 7x19 strand stainless steel wire rope
  • Hard eye stainless steel thimble loops
  • Copper ferrule termination at each end



How to Measure Your Wire Rope Sling



Hard Wire Rope Thimble , Wire Cable Assemblies 316 Grade Stainless Steel 0



Please provide us with the BEARING SURFACE to BEARING SURFACE cable assembly measurements.



Using Wire Rope Slings Safely

Do not attempt lifting operations unless you understand the use of the equipment, the slinging procedures and the mode factors to be applied,

Do not use defective slings or accessories.

Do not force, hammer or wedge slings or fittings into position.

They must fit freely.

Check to ensure correct engagement of fittings and appliances.

Position hooks of multi-leg slings facing outward from the load.

Do not lift on the point of a hook.

Ensure that the wire rope is not twisted or knotted.

Ensure the effective diameter of pins, hooks etc. upon which soft eyes fit is at least 2 x the wire rope diameter.

Position the splices of endless slings in the standing part of the sling away from the hooks and fittings. Never join wire rope slings made from different lays of rope together as this will cause them to un-lay thus seriously affecting their capacity.

Back hook free legs to the master link to avoid lashing legs which might accidentally become engaged or otherwise become a hazard.

Take the load steadily and avoid shock loads.

Do not leave suspended loads unattended. In an emergency cordon off the area.

Hard Wire Rope Thimble , Wire Cable Assemblies 316 Grade Stainless Steel 1
