Fixed Fork Wire Rope End Fittings , 316 Grade Flexible Wire Rope Accessories

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE / ISO 9001
Model Number: FFWRA
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1600/ton
Packaging Details: Wood Reels
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Material:StainlessType:Wire Rope Assemblies
Grade:CommercialSteel Grade:AISI316
Rope:7x7 Or 1x19 Strand Wire RopeEnds:Fork And Fork
Alloy Or Not:Non-alloyHS Code:73121000
High Light:

steel wire rope fittings

,

wire cable assemblies

Product Description

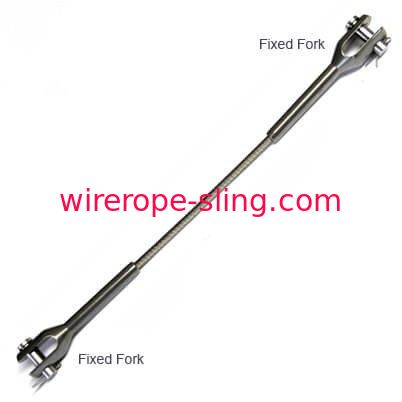

316 Grade Stainless Steel Fork and Fork Steel Wire Rope Cable Assemblies



Wire rope rigging assembly with fixed fork end fittings, in a choice of 7x7 and 1x19 strand wire rope, each cable is made to measure with all components produced from marine grade stainless steel.



Custom wire rope assemblies examples designed and manufactured by The Cable Connection to the customer‘s specifications. Our capabilities include electric fuse cutting, rotary swaging, impact swaging, hydraulic swaging, cnc lathe and mill machining and wire rope load testing and pre-stretching.



Fork and Fork Wire Rope Assembly

Options Wire Ø
(mm)
Pin Diameter
(mm)
Jaw Width
(mm)
3mm Fork Assembly 3 6 6.3
4mm Fork Assembly 4 8 8
5mm Fork Assembly 5 9.5 10
6mm Fork Assembly 6 11 11
8mm DS Fork Assembly 8 12 12.7
8mm Fork Assembly 8 14.3 14
10mm Fork Assembly 10 16 16
12mm Fork Assembly 12 19 19

NB: Price displayed in the table includes 1 metre of wire. Please use the calculator (above right) to work out the cost to your specific dimensions.



Each wire rope assembly is made to your dimensions and consists of:

  • One length of stainless steel rope - please specify
  • One stainless steel swage fork with clevis pin at each end

Please choose either 7x7 Strand wire rope or 1x19 Strand wire rope

  • 7x7 = more flexible, less strength
  • 1x19 = less flexible, more strength



Fixed Fork Wire Rope End Fittings , 316 Grade Flexible Wire Rope Accessories 0



Measuring

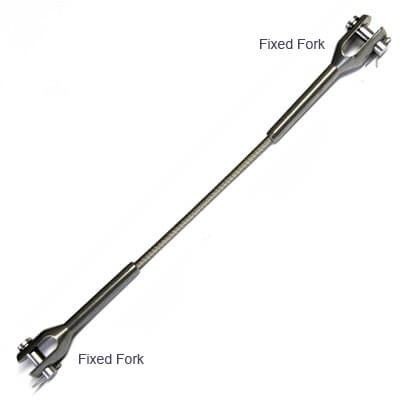

How to measure your wire rope assembly:





Fixed Fork Wire Rope End Fittings , 316 Grade Flexible Wire Rope Accessories 1



Please provide us with the PIN CENTRE to PIN CENTRE cable assembly measurements.

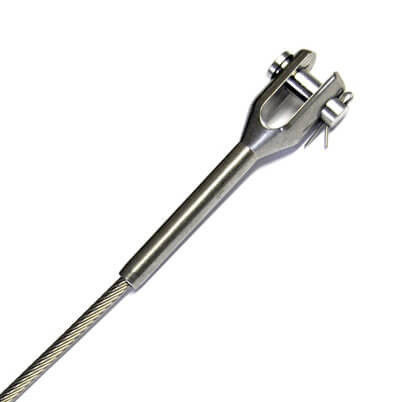

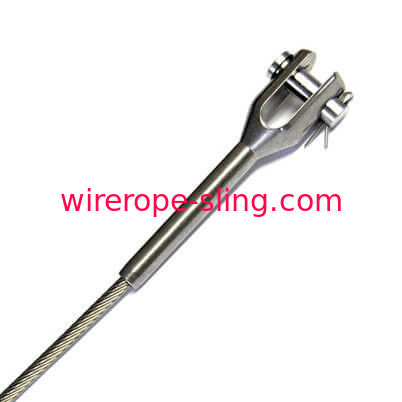

Fork Dimensions



Dimensions of the forks for each end of the wire rope assembly. You may need these dimensions to aid in specifying the type of eye or lug attachment.

Manufactured from A4 316 (Marine) Grade stainless steel.
