Stainless Steel Wire Rope Assemblies Eye To Eye Rope High Intensity

Product Description

Eye To Eye Wire Rope Assemblies, Stainless Steel wire rope cable assemblies

LKING STEEL LIMITED with 7 presses and 2 swage machines, has the facility to manufacture a wide range of custom-made wire rope assemblies in a variety of wire rope constructions including Galvanised, Galvanised Black, PVC coated and Stainless Steel wire rope.

Wire rope rigging assembly with fixed eye end fittings, in a choice of 7x7 and 1x19 strand wire rope, each cable is made to measure with all components produced from marine grade stainless steel.

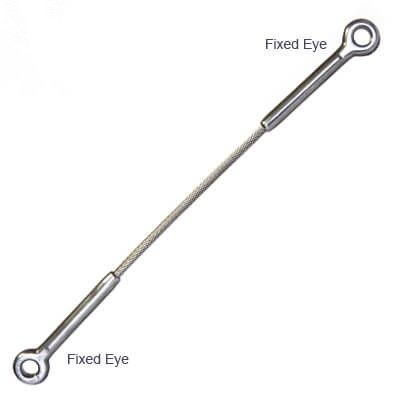

Eye and Eye Wire Rope Assembly

NB: Price displayed in the table includes 1 meter of wire. Please use the calculator (above right) to work out the cost of your specific dimensions.

Each wire rope assembly is made to your dimensions and consists of:

• One length of stainless steel rope - please specify
• Stainless steel swage eye at each end

Please choose either 7x7 Strand wire rope or 1x19 Strand wire rope

• 7x7 = more flexible, less strength
• 1x19 = less flexible, more strength

Measuring

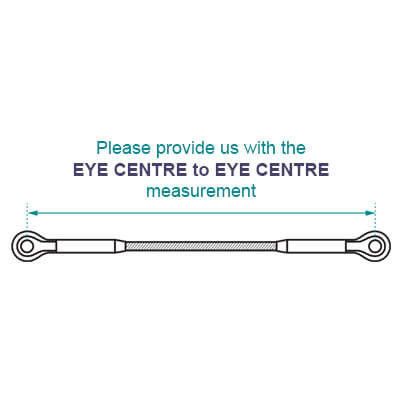

How to measure your eye-eye wire cable assembly:

Please provide us with the center eye to center eye cable assembly measurements.

General Information:

Our swage eyes are manufactured by electrical upset forging.

This ensures a smooth grain flow within the material and lower stress levels than other cold forging methods, leading to reduced fatigue failure.

Our swage terminals are manufactured from 316 marine grade stainless steel for maximum corrosion resistance.

Loading

Safe Working Loads for Wire Rope Assemblies

All wire rope assemblies are manufactured to achieve the safe working load of the wire type and diameter specified.

Please refer to the wire rope safe working loads as follows:

7x7 Strand Wire Rope

1x19 Strand Wire Rope
