Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | LKS |
Certification: | CCS,ISO9001 |
Model Number: | 6x24W+7FC |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1mtrs |
Price: | USD1800/tons |
Packaging Details: | Standard Seaworthy Packing or as request |
Delivery Time: | 15 days after the order confirmation |
Payment Terms: | L/C, T/T |
Supply Ability: | 100tons monthly |
Detail Information |
|||
Material: | Steel | Surface: | Galvanized |
---|---|---|---|
Length: | 500mtrs/1000mtrs/2000mtrs Available | Diameter: | 10mm-80mm |
Core: | 7FC | HS Code: | 73121000 |
Standard: | GB/DIN/BS/JIS/ASTM/RR-W-410/API/ISO | Packing: | Wooden Reel |
High Light: |
wire rope cable,steel rope cable |
Product Description
Mooring Line Round Stranded Steel Wire Ropes Warrington Type
Tips
The broken wire of wire rope refers to the phenomenon that the individual steel wires in the new wire rope are disconnected from the stock.
Most of the wire broken wire of the new steel wire rope occurs in the process operation of twisting or closing the rope, such as the blind shaft when twisting the strand, the wire is broken, the wire is twisted on the shaft, the shaft wheel is firmly stuck in the basket, the steel wire is brittle and the electric connection is bad.
Joints are inevitable during the production of wire rope, especially in the process of stranding, and are clearly stipulated in the domestic wire rope standards.
The joint in the wire rope should be avoided as much as possible, because it will directly affect the quality of the wire rope, such as the thick steel wire or pimple in the welding place, which will cause the protruding of the rope and cause the local wear in the use, such as the thin steel wire in the welding place, often forming the stress concentration so that the steel wire is broken prematurely, such as the toughness of the welding place. Too low or embrittlement will lead to premature fatigue fracture. Therefore, in order to ensure the quality of the manufacturing plants must strictly control the broken wire, wire rope detection is not allowed in the acceptance of the wire, especially the important use of the mine wire rope.
About Wire Rope
Wire rope is a machine with dozens–even hundreds– of individual wires which are formed and fabricated to move or operate at close tolerances to one another. When a wire rope bends, each of its many wires slides and adjusts to accommodate the differences in length between the inside and outside of the bend. The sharper the bend, the greater the movement.
Every wire has three basic components: the wires, strands and core. The core may be either fiber (FC) such as sisal, manila or jute, or an Independent Wire Rope Core (IWRC), which is actually a smaller wire rope within the strands of the outer wire rope.
The wires are predominantly constructed from high-carbon steel, but may also be formed from various metals such as iron, stainless steel, monel or bronze. Carbon steel wire rope is manufactured in various grades, including Improved Plow Steel (IPS), Extra Improved Plow Steel (EIPS) and Extra Extra Improved Plow Steel (EEIPS), which designate the nominal strength of the wire rope. EIPS is the most commonly used and manufactured grade today.
Wire rope generally comes with a "bright" or uncoated finish but several other options are available. A galvanized, zinc coating, a tin coating or a synthetic coating such as vinyl or nylon may also be applied to the rope's surface. Ropes with plastic coatings and plastic-filled interiors are also obtainable. It should be understood that these coatings can affect the characteristics and breaking strength of the wire rope.
Wire ropes are identified by classifications based upon the number of strands and nominal number of wires in each strand. A 6 x 19 classification for example, includes six strands with each strand consisting of 15-26 individual wires. The six strands of a 6 x 37 class wire rope are constructed of 27-49 individual wires. Other popular classifications include 19 x 7, 7 x 19 and 8 x 19.
Why LKS?
As a professional wholesaler and manufacturer for wire rope slings and assemblies, LKS has been the No.1 wire rope and sling supplier in Shanghai area. Our customers include ship building, military, construction and lifting service providers. With swaging machine up to size 120mm and experienced splicing workers, we provide strongest and safest wire rope slings. Also our sales staffs are professional with lifting equipment, and could provide with customer correct wire rope and slings for their equipment or lifting requirements.
Features

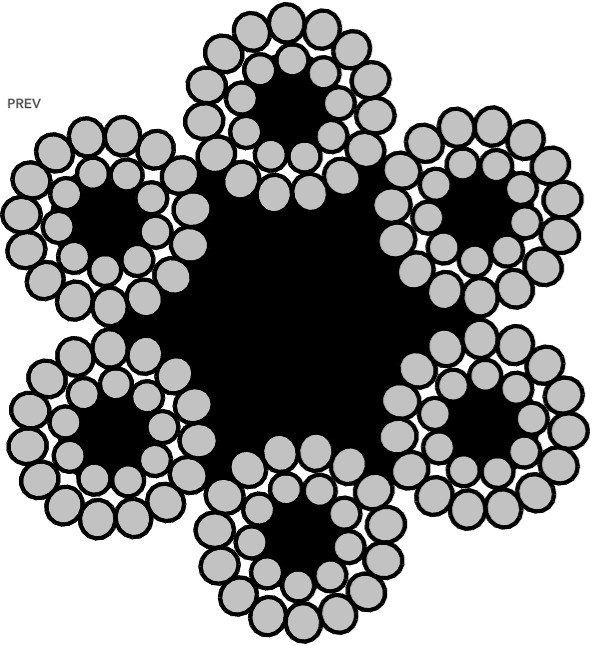

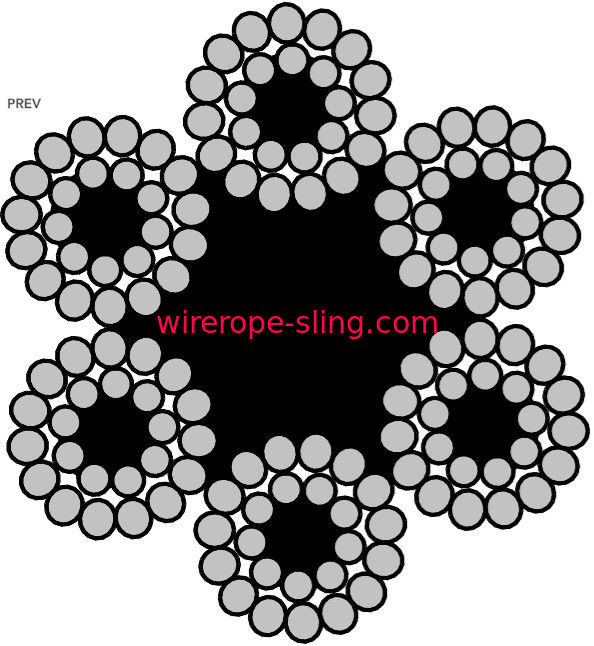

6x24 (Fiber Core), Right Regular Lay, Extra Improved Plow Steel, Drawn Galvanized, Fiber Core
Usually used as fishing and mooring line.
Specifications
Nominal Diameter | Approx.Weight(kg/100m) | Nominal Tensile Strenght of Rope (Mpa) | |||||
NF | SF | 1470 | 1570 | 1670 | 1770 | 1870 | |
D/mm | Minimun Breaking Load of Rope(KN) | ||||||
10 | 33.1 | 31.6 | 42.8 | 45.7 | 48.6 | 51.5 | 54.5 |
11 | 40 | 38.3 | 51.8 | 55.3 | 58.8 | 62.4 | 65.9 |
12 | 47.6 | 45.5 | 61.6 | 65.8 | 70 | 74.2 | 78.4 |
13 | 55.9 | 53.4 | 72.3 | 77.3 | 82.2 | 8731 | 92 |
14 | 64.8 | 62 | 83.9 | 89.6 | 95.3 | 101 | 107 |
16 | 84.7 | 80.9 | 110 | 117 | 124 | 132 | 139 |
18 | 107 | 102 | 139 | 148 | 158 | 167 | 176 |
20 | 132 | 126 | 171 | 183 | 195 | 206 | 218 |
22 | 160 | 153 | 207 | 221 | 235 | 249 | 264 |
24 | 190 | 182 | 247 | 263 | 280 | 297 | 314 |
26 | 224 | 214 | 289 | 309 | 329 | 348 | 368 |
28 | 259 | 248 | 336 | 358 | 381 | 404 | 427 |
30 | 298 | 285 | 385 | 411 | 438 | 464 | 490 |
32 | 339 | 324 | 438 | 468 | 498 | 528 | 558 |
34 | 382 | 365 | 495 | 529 | 562 | 596 | 629 |
36 | 429 | 410 | 555 | 593 | 630 | 668 | 706 |
38 | 478 | 457 | 618 | 660 | 702 | 744 | 786 |
40 | 529 | 506 | 685 | 731 | 778 | 825 | 871 |
42 | 583 | 558 | 755 | 806 | 858 | 909 | 961 |
44 | 640 | 612 | 829 | 885 | 941 | 998 | 1050 |
46 | 700 | 669 | 906 | 967 | 1030 | 1090 | 1150 |
48 | 762 | 728 | 986 | 1050 | 1120 | 1190 | 1150 |
50 | 827 | 790 | 1070 | 1140 | 1220 | 1290 | 1360 |
52 | 894 | 855 | 1160 | 1240 | 1310 | 1390 | 1470 |
54 | 864 | 922 | 1250 | 1330 | 1420 | 1500 | 1590 |
56 | 1040 | 991 | 1340 | 1430 | 1530 | 1620 | 1710 |
58 | 1110 | 1060 | 1440 | 1540 | 1640 | 1730 | 1830 |
60 | 1190 | 1140 | 1540 | 1650 | 1750 | 1860 | 1960 |
62 | 1270 | 1220 | 1650 | 1760 | 1870 | 1980 | 2090 |
64 | 1350 | 1290 | 1750 | 1870 | 1990 | 2110 | 2230 |
66 | 1440 | 1380 | 1860 | 1990 | 2120 | 2250 | 2370 |
68 | 1530 | 1460 | 1980 | 2110 | 2250 | 2380 | 2520 |
70 | 1620 | 1550 | 2100 | 2240 | 2380 | 2530 | 2670 |
72 | 1710 | 1640 | 2220 | 2370 | 2520 | 2670 | 2820 |
74 | 1810 | 1730 | 2340 | 2500 | 2660 | 2820 | 2980 |
76 | 1910 | 1830 | 2470 | 2640 | 2810 | 2980 | 3150 |
78 | 2010 | 1920 | 2600 | 2780 | 2960 | 2140 | 3310 |
80 | 2120 | 2020 | 2740 | 2930 | 3110 | 3300 | 3490 |
