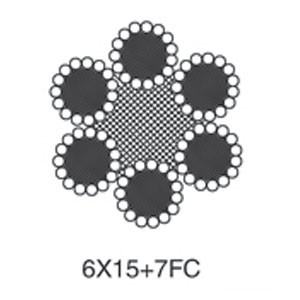

Bundling Galvanized Steel Wire Rope Round 6 X 15 + 7fc With High Flexibility

Product Description

High Flexibility Round Galvanized Steel Wire Ropes 6 x 15 for Bundling

Tips

Lack of wires(or running wires) refers to the phenomenon of less silk or silk running in the length or distance of a rope.

The lack of wires or running wires appears in the process of twisting the wire rope. In the twisting of the strand, the blind axis is broken, the steel wire is brittle and the wire is not enough to brake and patch in time.

This kind of defect occurs in the inner layer of the multi storey twining shares, with the feel of sunken in hand, sometimes in the shape of wave, the external wire is more obvious, the wire rope that is short of silk should make a claim to the wire rope manufacturer.

About Wire Rope

Wire rope is a machine with dozens–even hundreds– of individual wires which are formed and fabricated to move or operate at close tolerances to one another. When a wire rope bends, each of its many wires slides and adjusts to accommodate the differences in length between the inside and outside of the bend. The sharper the bend, the greater the movement.
Every wire has three basic components: the wires, strands and core. The core may be either fiber (FC) such as sisal, manila or jute, or an Independent Wire Rope Core (IWRC), which is actually a smaller wire rope within the strands of the outer wire rope.

The wires are predominantly constructed from high-carbon steel, but may also be formed from various metals such as iron, stainless steel, monel or bronze. Carbon steel wire rope is manufactured in various grades, including Improved Plow Steel (IPS), Extra Improved Plow Steel (EIPS) and Extra Extra Improved Plow Steel (EEIPS), which designate the nominal strength of the wire rope. EIPS is the most commonly used and manufactured grade today.

Wire rope generally comes with a "bright" or uncoated finish but several other options are available. A galvanized, zinc coating, a tin coating or a synthetic coating such as vinyl or nylon may also be applied to the rope's surface. Ropes with plastic coatings and plastic-filled interiors are also obtainable. It should be understood that these coatings can affect the characteristics and breaking strength of the wire rope.

Wire ropes are identified by classifications based upon the number of strands and nominal number of wires in each strand. A 6 x 19 classification for example, includes six strands with each strand consisting of 15-26 individual wires. The six strands of a 6 x 37 class wire rope are constructed of 27-49 individual wires. Other popular classifications include 19 x 7, 7 x 19 and 8 x 19.

Why LKS?

As a professional wholesaler and manufacturer for wire rope slings and assemblies, LKS has been the No.1 wire rope and sling supplier in SHANGHAI area. Our customers include ship building, military, construction and lifting service providers. With swaging machine up to size 120mm and experienced splicing workers, we provide strongest and safest wire rope slings. Also our sales staffs are professional with lifting equipment, and could provide with customer correct wire rope and slings for their equipment or lifting requirements.

Features

This construction is extremely flexible yet it has a considerably higher breaking strength than manila lines of equivalent diameter and considerrable amunt of fiber it should not be used where high strength or resistance to crushing is desired.

Applications

The principle applications of this type construction ar on draglines, logging ropes, rotary drill lines and cableway track lines..

Specifications

Product Show
