Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | LKS |
Certification: | CCS,ISO9001 |
Model Number: | 6 x 12+7FC |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1mtrs |
Price: | USD1800/tons |
Packaging Details: | Standard Seaworthy Packing or as request |
Delivery Time: | 15 days after the order confirmation |
Payment Terms: | L/C, T/T |
Supply Ability: | 100tons monthly |
Detail Information |
|||
Material: | Steel | Surface: | Galvanized |
---|---|---|---|
Length: | 500mtrs/1000mtrs/2000mtrs Available | Diameter: | 8mm-40mm |
Core: | 7FC | HS Code: | 73121000 |
Standard: | GB/DIN/BS/JIS/ASTM/RR-W-410/API/ISO | Packing: | Wooden Reel |
High Light: |
wire rope cable,steel rope cable |
Product Description

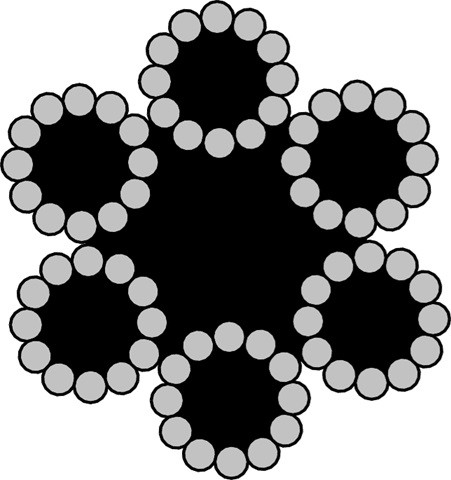

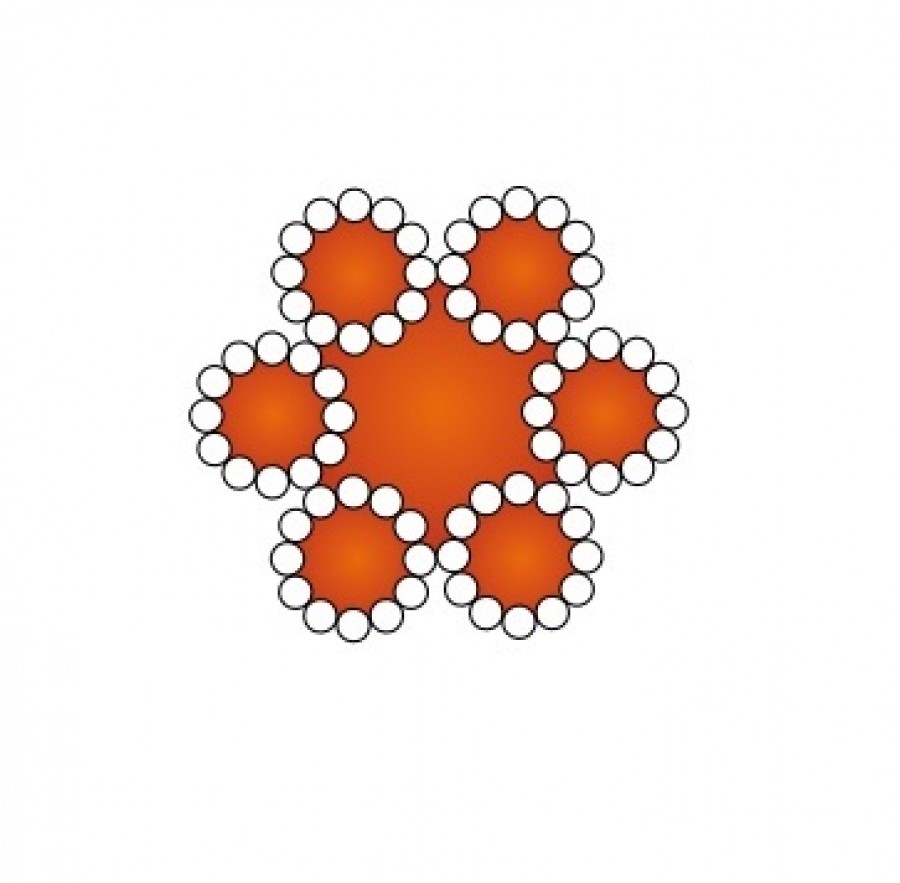

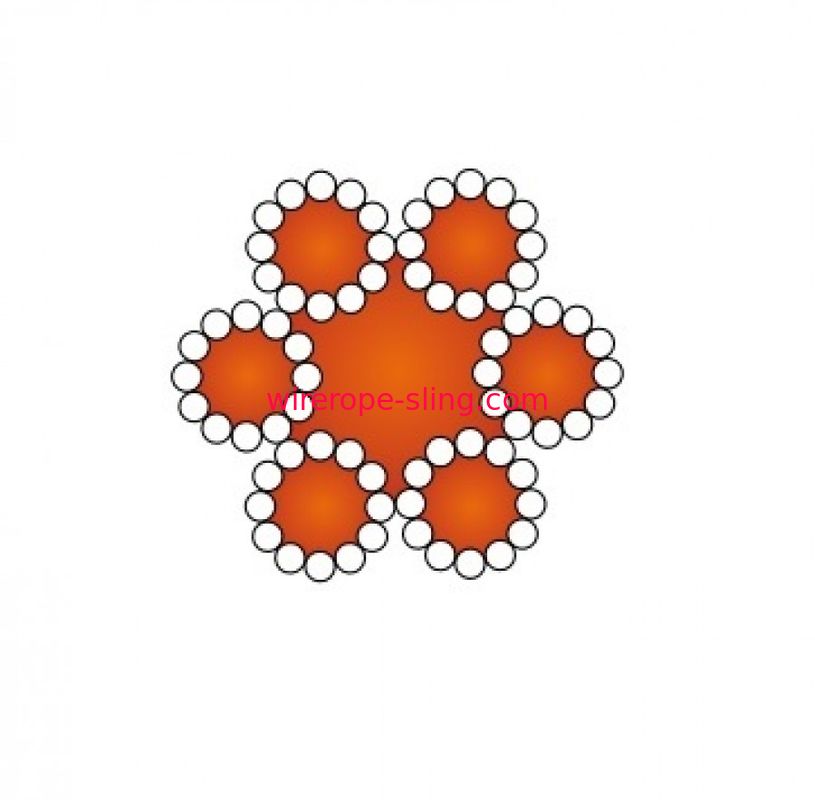

High Flexibility Steel Wire Ropes 6 x 12 for Bundling Ungalvanized / Galvanized
Tips(How to use wire rope clips correctly?)
The relationship between wire rope clips and wire rope is very close. It is widely used in hoisting and lifting work. What problems should we pay attention to in the process of using this product?
First, in the course of our use, we need to tighten the product's U-shaped bolts, and the internal steel wire needs to be pressed to 1/3. Because of the deformation in the process of being suppressed, we also need to make second tightening in the process of force, so that the firmness of the joint can be ensured.
Secondly, at the end of our fixed wire rope, there are two ways for us to choose and use. One is through double knot method, the other is single knot method.
What is a single knot? This method can be used at both ends of the product, and if it is a double knot, the rope ends must be fixed. The use of the clip must be suitable for the thickness of the product, and it can not make the adjustment of the net distance too large.
About Wire Rope
Wire rope is a machine with dozens–even hundreds– of individual wires which are formed and fabricated to move or operate at close tolerances to one another. When a wire rope bends, each of its many wires slides and adjusts to accommodate the differences in length between the inside and outside of the bend. The sharper the bend, the greater the movement.
Every wire has three basic components: the wires, strands and core. The core may be either fiber (FC) such as sisal, manila or jute, or an Independent Wire Rope Core (IWRC), which is actually a smaller wire rope within the strands of the outer wire rope.
The wires are predominantly constructed from high-carbon steel, but may also be formed from various metals such as iron, stainless steel, monel or bronze. Carbon steel wire rope is manufactured in various grades, including Improved Plow Steel (IPS), Extra Improved Plow Steel (EIPS) and Extra Extra Improved Plow Steel (EEIPS), which designate the nominal strength of the wire rope. EIPS is the most commonly used and manufactured grade today.
Wire rope generally comes with a "bright" or uncoated finish but several other options are available. A galvanized, zinc coating, a tin coating or a synthetic coating such as vinyl or nylon may also be applied to the rope's surface. Ropes with plastic coatings and plastic-filled interiors are also obtainable. It should be understood that these coatings can affect the characteristics and breaking strength of the wire rope.
Wire ropes are identified by classifications based upon the number of strands and nominal number of wires in each strand. A 6 x 19 classification for example, includes six strands with each strand consisting of 15-26 individual wires. The six strands of a 6 x 37 class wire rope are constructed of 27-49 individual wires. Other popular classifications include 19 x 7, 7 x 19 and 8 x 19.
Why LKS?
As a professional wholesaler and manufacturer for wire rope slings and assemblies, LKS has been the No.1 wire rope and sling supplier in SHANGHAI area. Our customers include ship building, military, construction and lifting service providers. With swaging machine up to size 120mm and experienced splicing workers, we provide strongest and safest wire rope slings. Also our sales staffs are professional with lifting equipment, and could provide with customer correct wire rope and slings for their equipment or lifting requirements.
Features
This construction is extremely flexible yet it has a considerably higher breaking strength than manila lines of equivalent diameter and considerrable amunt of fiber it should not be used where high strength or resistance to crushing is desired.
Applications
The principle applications of this type construction ar on draglines, logging ropes, rotary drill lines and cableway track lines..
Specifications
Nominal Diameter |
Approx. Weight | Nominal Tensile Strength | |||||||||||
D(mm) | NF | SF |
IWR/ IWS |
1570 | 1670 | 1770 | 1870 | 1960 | |||||
Minimium Breaking Load of Rope (KN) | |||||||||||||
kg/100m | FC |
IWR/ IWS |
FC |
IWR/ IWS |
FC |
IWR/ IWS |
FC |
IWR/ IWS |
FC |
IWR/ IWS |
|||
5 | 8.65 | 8.43 | 10 | 11.6 | 12.5 | 12.3 | 13.3 | 13.1 | 14.1 | 13.8 | 14.9 | 14.5 | 15.6 |
6 | 12.5 | 12.1 | 14.4 | 16.7 | 17 | 17.7 | 19.2 | 18.8 | 20.3 | 19.9 | 21.5 | 20.8 | 22.5 |
7 | 17 | 16.5 | 19.6 | 22.7 | 24.5 | 24.1 | 26.1 | 25.6 | 27.7 | 27 | 29.2 | 28.3 | 30.6 |
8 | 22.1 | 21.6 | 25.6 | 29.6 | 32.1 | 31.5 | 34.1 | 33.4 | 36.1 | 35.5 | 38.2 | 37 | 40 |
9 | 28 | 27.3 | 32.4 | 37.5 | 40.6 | 39.9 | 43.2 | 42.3 | 45.7 | 44.7 | 48.3 | 46.8 | 50.6 |
10 | 34.6 | 33.7 | 40 | 46.3 | 50.1 | 49.3 | 53.3 | 52.2 | 56.5 | 55.2 | 59.7 | 57.8 | 62.5 |
11 | 41.9 | 40.8 | 48.4 | 56 | 60.6 | 59.6 | 64.5 | 63.2 | 68.3 | 66.7 | 72.2 | 70 | 75.7 |
12 | 49.8 | 48.5 | 57.6 | 66.7 | 72.1 | 70.9 | 76.7 | 75.2 | 81.3 | 79.4 | 85.9 | 83.3 | 90 |
13 | 58.5 | 57 | 67.6 | 78.3 | 84.6 | 83.3 | 90 | 88.2 | 95.4 | 93.2 | 101 | 97.7 | 106 |
14 | 67.8 | 66.1 | 78.4 | 90.8 | 98.2 | 96.6 | 104 | 102 | 111 | 108 | 117 | 113 | 123 |
15 | 77.9 | 75.8 | 90 | 104 | 113 | 111 | 120 | 118 | 127 | 124 | 134 | 130 | 141 |
16 | 88.6 | 86.3 | 102 | 119 | 128 | 126 | 136 | 134 | 145 | 141 | 153 | 148 | 160 |
18 | 112 | 109 | 130 | 150 | 162 | 160 | 173 | 169 | 183 | 179 | 193 | 187 | 203 |
20 | 138 | 135 | 160 | 185 | 200 | 197 | 213 | 209 | 226 | 221 | 239 | 231 | 250 |
22 | 168 | 163 | 194 | 224 | 242 | 238 | 258 | 253 | 273 | 267 | 289 | 280 | 303 |
24 | 199 | 194 | 230 | 267 | 289 | 284 | 308 | 301 | 325 | 318 | 344 | 333 | 360 |
26 | 234 | 228 | 270 | 313 | 339 | 333 | 360 | 353 | 382 | 373 | 403 | 391 | 423 |
28 | 271 | 264 | 314 | 363 | 393 | 386 | 418 | 409 | 443 | 433 | 468 | 453 | 490 |
30 | 311 | 303 | 360 | 417 | 451 | 443 | 480 | 470 | 508 | 497 | 537 | 520 | 563 |
32 | 354 | 345 | 410 | 474 | 513 | 505 | 546 | 535 | 578 | 565 | 611 | 592 | 640 |
34 | 400 | 390 | 462 | 535 | 579 | 570 | 616 | 604 | 653 | 638 | 690 | 668 | 723 |
36 | 448 | 437 | 518 | 600 | 649 | 639 | 690 | 677 | 732 | 715 | 773 | 749 | 810 |
38 | 500 | 487 | 578 | 669 | 723 | 711 | 769 | 754 | 815 | 797 | 861 | 835 | 903 |
40 | 554 | 539 | 640 | 741 | 801 | 788 | 852 | 835 | 903 | 883 | 954 | 925 | 1000 |
42 | 610 | 595 | 706 | 817 | 884 | 869 | 940 | 921 | 996 | 973 | 1052 | 1020 | 1100 |
44 | 670 | 652 | 774 | 897 | 970 | 954 | 1031 | 1011 | 1093 | 1068 | 1155 | 1120 | 1210 |
46 | 732 | 713 | 846 | 980 | 1060 | 1040 | 1130 | 1100 | 1190 | 1170 | 1260 | 1220 | 1320 |
48 | 797 | 776 | 922 | 1070 | 1150 | 1140 | 1230 | 1200 | 1300 | 1270 | 1370 | 1330 | 1440 |
50 | 865 | 843 | 1000 | 1160 | 1250 | 1230 | 1330 | 1310 | 1410 | 1370 | 1490 | 1450 | 1560 |
52 | 936 | 911 | 1080 | 1250 | 1350 | 1330 | 1440 | 1410 | 1530 | 1490 | 1610 | 1560 | 1690 |
54 | 1010 | 983 | 1170 | 1350 | 1460 | 1440 | 1550 | 1520 | 1650 | 1610 | 1740 | 1690 | 1820 |
56 | 1090 | 1060 | 1250 | 1450 | 1570 | 1550 | 1670 | 1640 | 1770 | 1730 | 1870 | 1310 | 1960 |
58 | 1160 | 1130 | 1350 | 1560 | 1680 | 1660 | 1790 | 1760 | 1900 | 1860 | 2010 | 1950 | 2100 |
60 | 1250 | 1210 | 1440 | 1670 | 1800 | 1770 | 1920 | 1880 | 2030 | 1990 | 2150 | 2080 | 2250 |
62 | 1330 | 1300 | 1540 | 1780 | 1920 | 1890 | 2050 | 2010 | 2170 | 2120 | 2290 | 2220 | 2400 |
64 | 1420 | 1380 | 1640 | 1900 | 2050 | 2020 | 2180 | 2140 | 2310 | 2260 | 2440 | 2370 | 2560 |
66 | 1510 | 1470 | 1740 | 2020 | 2170 | 2150 | 2320 | 2270 | 2460 | 2400 | 2600 | 2520 | 2720 |
68 | 1600 | 1560 | 1850 | 2140 | 2320 | 2280 | 2460 | 2410 | 2610 | 2550 | 2760 | 2670 | 2890 |
70 | 1700 | 1650 | 1960 | 2270 | 2450 | 2410 | 2610 | 2560 | 2770 | 2700 | 2920 | 2830 | 3060 |
72 | 1790 | 1750 | 2070 | 2400 | 2600 | 2550 | 2760 | 2710 | 2930 | 2860 | 3090 | 3000 | 3240 |
74 | 1890 | 1850 | 2190 | 2540 | 2740 | 2700 | 2920 | 2860 | 3090 | 3020 | 3270 | 3170 | 3420 |
76 | 2000 | 1950 | 2310 | 2680 | 2890 | 2850 | 3080 | 3020 | 3260 | 3190 | 3450 | 3340 | 3610 |
78 | 2110 | 2050 | 2430 | 2820 | 3050 | 3000 | 3240 | 3180 | 3440 | 3360 | 3630 | 3520 | 3800 |
80 | 2210 | 2160 | 2560 | 2960 | 3200 | 3150 | 3410 | 3340 | 3610 | 3530 | 3820 | 3700 | 4000 |
85 | 2500 | 2430 | 2890 | 3350 | 3620 | 3560 | 3850 | 3770 | 4080 | 3990 | 4310 | 4180 | 4520 |
90 | 2800 | 2730 | 3240 | 3750 | 4060 | 3990 | 4320 | 4230 | 4570 | 4470 | 4830 | 4680 | 5060 |
95 | 3120 | 3040 | 3610 | 4180 | 4520 | 4450 | 4810 | 4710 | 5100 | 4980 | 5380 | 5220 | 5640 |
100 | 3460 | 3370 | 4000 | 4630 | 5000 | 4930 | 5330 | 5220 | 5650 | 5520 | 5970 | 5780 | 6250 |
105 | 3810 | 3720 | 4410 | 5110 | 5520 | 5430 | 5870 | 5760 | 6230 | 6080 | 6580 | 6370 | 6890 |
110 | 4190 | 4080 | 4840 | 5600 | 6060 | 5960 | 6450 | 6320 | 6830 | 6680 | 7220 | 7000 | 7570 |
115 | 4580 | 4460 | 5290 | 6130 | 6620 | 6520 | 7050 | 6910 | 7470 | 7300 | 7890 | 7650 | 8270 |
120 | 4980 | 4850 | 5760 | 6670 | 7210 | 7090 | 7670 | 7520 | 8130 | 7940 | 8590 | 8330 | 9000 |
