Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | LKS |
Certification: | CCS,ISO9001 |
Model Number: | 8x61 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1mtrs |
Price: | USD1800/tons |
Packaging Details: | Standard Seaworthy Packing or as request |
Delivery Time: | 15 days after the order confirmation |
Payment Terms: | L/C, T/T |
Supply Ability: | 100tons monthly |
Detail Information |
|||
Product Name: | Round Strand Steel Wire Rope 8x61 | Surface: | Galvanized/Ungalvanized |
---|---|---|---|
Length: | 500mtrs/1000mtrs/2000mtrs Available | Diameter: | 30mm-120mm |
Core: | FC/IWR | HS Code: | 73121000 |
Standard: | GB/DIN/BS/JIS/ASTM/RR-W-410/API/ISO | Packing: | Wooden Reel |
High Light: |
wire rope cable,steel rope cable |
Product Description
Wear Resistant Steel High Strength Wire Rope Round Strand 8x61
Tips(Requirements for the quality of wire rope)
The wire rope should be twisted and its strands should be twisted evenly. The strands should be smooth without bump. Many strands in the rope should be equal and uniform gaps between the stock and stock should be allowed.
There should be no steel wire rope broken, interlaced and bent steel wire, steel wire rope surface should not sag, rust, squash, bruise and other defects.
In the various strands of a wire rope, the steel wire of the same diameter shall be the same nominal diameter. The tensile strength of the steel wire with different tensile strength is allowed by the adjacent nominal tensile strength (except for the central wire).
In general, the use of steel wire in the wire rope should be the same. When the wire rope is used in the wire rope with different uses, the use of the wire rope should be based on the low grade steel wire used in the wire rope.
About Wire Rope
Wire rope is a machine with dozens–even hundreds– of individual wires which are formed and fabricated to move or operate at close tolerances to one another. When a wire rope bends, each of its many wires slides and adjusts to accommodate the differences in length between the inside and outside of the bend. The sharper the bend, the greater the movement.
Every wire has three basic components: the wires, strands and core. The core may be either fiber (FC) such as sisal, manila or jute, or an Independent Wire Rope Core (IWRC), which is actually a smaller wire rope within the strands of the outer wire rope.
The wires are predominantly constructed from high-carbon steel, but may also be formed from various metals such as iron, stainless steel, monel or bronze. Carbon steel wire rope is manufactured in various grades, including Improved Plow Steel (IPS), Extra Improved Plow Steel (EIPS) and Extra Extra Improved Plow Steel (EEIPS), which designate the nominal strength of the wire rope. EIPS is the most commonly used and manufactured grade today.
Wire rope generally comes with a "bright" or uncoated finish but several other options are available. A galvanized, zinc coating, a tin coating or a synthetic coating such as vinyl or nylon may also be applied to the rope's surface. Ropes with plastic coatings and plastic-filled interiors are also obtainable. It should be understood that these coatings can affect the characteristics and breaking strength of the wire rope.
Wire ropes are identified by classifications based upon the number of strands and nominal number of wires in each strand. A 6 x 19 classification for example, includes six strands with each strand consisting of 15-26 individual wires. The six strands of a 6 x 37 class wire rope are constructed of 27-49 individual wires. Other popular classifications include 19 x 7, 7 x 19 and 8 x 19.
Why LKS?
As a professional wholesaler and manufacturer for wire rope slings and assemblies, LKS has been the No.1 wire rope and sling supplier in SHANGHAI area. Our customers include ship building, military, construction and lifting service providers. With swaging machine up to size 120mm and experienced splicing workers, we provide strongest and safest wire rope slings. Also our sales staffs are professional with lifting equipment, and could provide with customer correct wire rope and slings for their equipment or lifting requirements.
Features

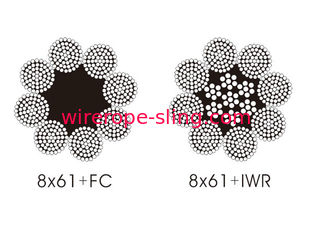

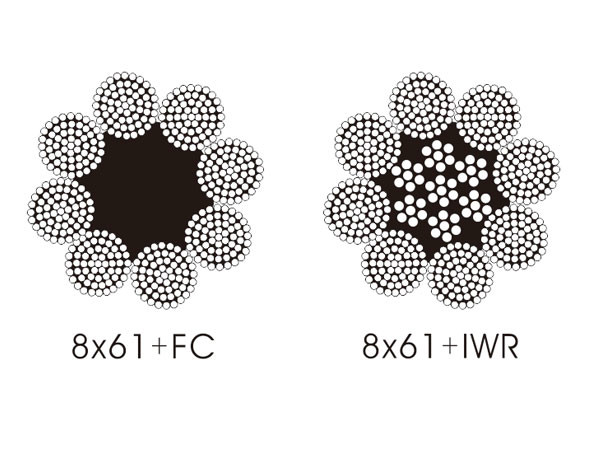

8x61Wire Rope
Premier Shovel Hoist Rope
All features of 8 strand
Plastic impregnated into the core
Reduced strand to strand and strand to core contact
Excellent resistance to fatique and wear
Excellent service life
Applications
Various equipment for hoisting, derricking, lifting and drawing.
Specifications
Nominal Diameter |
Approx.Weight | Nominal Tensile Strength of Rope (Mpa) | ||||||||||
1570 | 1670 | 1770 | 1870 | 1960 | ||||||||
Minimun Breaking Load of Rope | ||||||||||||
D | FC |
IWR/ IWS |
FC |
IWR/ IWS |
FC |
IWR/ IWS |
FC |
IWR/ IWS |
FC |
IWR/ IWS |
FC |
IWR/ IWS |
mm | kg/100 | (KN) | ||||||||||
30 | 320 | 380 | 370 | 440 | 390 | 470 | 420 | 490 | 440 | 520 | 460 | 550 |
32 | 360 | 430 | 420 | 500 | 450 | 530 | 470 | 560 | 500 | 590 | 520 | 620 |
34 | 410 | 490 | 470 | 560 | 500 | 600 | 530 | 630 | 560 | 670 | 590 | 700 |
36 | 460 | 540 | 530 | 630 | 560 | 670 | 600 | 710 | 630 | 750 | 660 | 790 |
38 | 510 | 610 | 590 | 700 | 630 | 750 | 670 | 790 | 700 | 840 | 740 | 880 |
40 | 570 | 670 | 660 | 780 | 700 | 830 | 740 | 880 | 780 | 930 | 820 | 970 |
42 | 630 | 740 | 720 | 860 | 770 | 910 | 810 | 970 | 860 | 1020 | 900 | 1070 |
44 | 690 | 810 | 790 | 940 | 840 | 1000 | 890 | 1060 | 940 | 1120 | 990 | 1180 |
46 | 750 | 890 | 870 | 1030 | 920 | 1100 | 1060 | 1260 | 1120 | 1340 | 1180 | 1400 |
48 | 820 | 970 | 940 | 1120 | 1000 | 1190 | 1060 | 1260 | 1120 | 1340 | 1180 | 1400 |
50 | 890 | 1050 | 1020 | 1220 | 1090 | 1290 | 1150 | 1370 | 1220 | 1450 | 1280 | 1520 |
52 | 960 | 1140 | 1110 | 1320 | 1180 | 1400 | 1250 | 1480 | 1320 | 1570 | 1380 | 1640 |
54 | 1040 | 1220 | 1190 | 1420 | 1270 | 1510 | 1350 | 1600 | 1420 | 1690 | 1490 | 1770 |
56 | 1120 | 1320 | 1290 | 1530 | 1370 | 1620 | 1450 | 1720 | 1530 | 1820 | 1600 | 1910 |
58 | 1200 | 1410 | 1380 | 1640 | 1470 | 1740 | 1550 | 1850 | 1640 | 1950 | 1720 | 2040 |
60 | 1280 | 1510 | 1480 | 1750 | 1570 | 1860 | 1660 | 1980 | 1760 | 2090 | 1840 | 2190 |
62 | 1370 | 1610 | 1580 | 1870 | 1680 | 1990 | 1780 | 2110 | 1880 | 2230 | 2970 | 2340 |
64 | 1460 | 1720 | 1680 | 1990 | 1790 | 2120 | 1890 | 2250 | 2000 | 2370 | 2100 | 2490 |
66 | 1550 | 1830 | 1780 | 2120 | 1900 | 2260 | 2010 | 2390 | 2130 | 2530 | 2230 | 2650 |
68 | 1650 | 1940 | 1890 | 2250 | 2020 | 2390 | 2140 | 2540 | 2260 | 2680 | 2370 | 2810 |
70 | 1740 | 2060 | 2010 | 2380 | 24140 | 2540 | 2260 | 2690 | 2390 | 2840 | 2510 | 2980 |
72 | 1850 | 2180 | 2120 | 2520 | 2260 | 2680 | 2390 | 2840 | 2530 | 3010 | 2650 | 3150 |
74 | 1950 | 2300 | 2240 | 2670 | 2390 | 2830 | 2530 | 3000 | 2670 | 3170 | 2800 | 3330 |
76 | 2060 | 2430 | 2370 | 2810 | 2520 | 2990 | 2670 | 3170 | 2820 | 3350 | 2950 | 3510 |
78 | 2170 | 2560 | 2490 | 2940 | 2650 | 3150 | 2810 | 3340 | 2970 | 3530 | 3110 | 3700 |
80 | 2280 | 2690 | 2620 | 3110 | 2790 | 3310 | 2960 | 3510 | 3120 | 3710 | 3270 | 3890 |
82 | 2390 | 2820 | 2760 | 3270 | 2930 | 3480 | 3110 | 3690 | 3280 | 3900 | 3440 | 4090 |
84 | 2510 | 2960 | 2890 | 3430 | 3080 | 3650 | 3260 | 3870 | 3440 | 4090 | 3610 | 4290 |
86 | 2630 | 3110 | 3030 | 3600 | 3220 | 3830 | 3420 | 4060 | 3610 | 4290 | 3780 | 4490 |
88 | 27460 | 3250 | 3170 | 3770 | 3380 | 4010 | 3580 | 4250 | 3780 | 4490 | 3960 | 4710 |
90 | 2880 | 3400 | 3320 | 3940 | 3530 | 4190 | 3740 | 4440 | 3950 | 4700 | 4140 | 4920 |
92 | 3010 | 3550 | 3470 | 4120 | 3690 | 4380 | 3910 | 4640 | 4130 | 4910 | 4330 | 5140 |
94 | 3150 | 3710 | 3620 | 4300 | 3850 | 4570 | 4080 | 4850 | 4310 | 5120 | 4520 | 5370 |
96 | 3280 | 3870 | 3780 | 4490 | 4020 | 4770 | 4260 | 5060 | 4500 | 5340 | 4710 | 5600 |
98 | 3420 | 4030 | 3940 | 4670 | 4190 | 4970 | 4440 | 5270 | 4690 | 5570 | 4910 | 5840 |
100 | 3560 | 4200 | 4100 | 4870 | 4360 | 5180 | 4620 | 5490 | 4880 | 5800 | 5120 | 6080 |
102 | 3700 | 4370 | 4260 | 5060 | 4530 | 5390 | 4810 | 5710 | 5080 | 6030 | 5320 | 6320 |
104 | 3850 | 4540 | 4430 | 5260 | 4710 | 5600 | 5000 | 5930 | 5280 | 6270 | 5530 | 6570 |
106 | 4000 | 4720 | 4600 | 5470 | 4900 | 5820 | 5190 | 6170 | 5480 | 6510 | 5750 | 6830 |
108 | 4150 | 4900 | 4780 | 5680 | 5080 | 6040 | 5390 | 6400 | 5690 | 6760 | 5970 | 7090 |
110 | 4310 | 5080 | 4960 | 5890 | 5270 | 6260 | 5590 | 6640 | 5910 | 7010 | 6190 | 7350 |
112 | 4470 | 5270 | 5140 | 6110 | 5470 | 6490 | 5790 | 6880 | 6120 | 7270 | 6420 | 7620 |
114 | 4630 | 5460 | 5330 | 6330 | 5660 | 6730 | 6000 | 7130 | 6340 | 7530 | 6650 | 7900 |
116 | 4790 | 5650 | 5510 | 6550 | 5870 | 6970 | 6220 | 7380 | 6570 | 7800 | 6880 | 8180 |
118 | 4960 | 5850 | 5710 | 6780 | 6070 | 7210 | 6430 | 7640 | 6800 | 8070 | 7120 | 8460 |
120 | 5130 | 3050 | 5900 | 7010 | 6280 | 7450 | 6650 | 7900 | 7030 | 8350 | 7370 | 8750 |

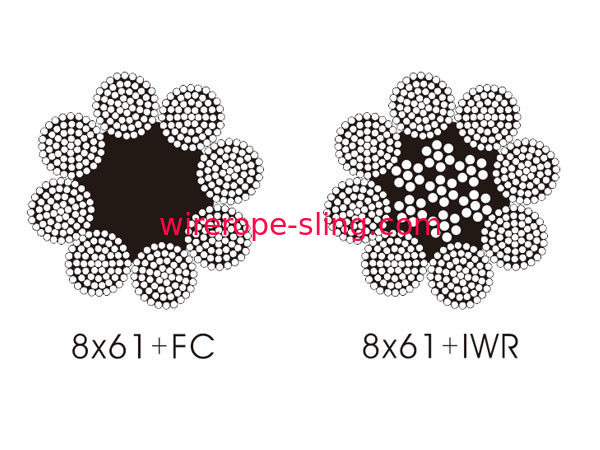

Product Show
