Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | LKS |
Certification: | CCS,ISO9001 |
Model Number: | 6x9W |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1mtrs |
Price: | USD1800/tons |
Packaging Details: | Standard Seaworthy Packing or as request |
Delivery Time: | 15 days after the order confirmation |
Payment Terms: | L/C, T/T |
Supply Ability: | 100tons monthly |
Detail Information |
|||
Product Name: | Round Strand Steel Wire Rope 6x9 | Surface: | Galvanized/Ungalvanized |
---|---|---|---|
Length: | 500mtrs/1000mtrs/2000mtrs Available | Diameter: | 2mm-50mm |
Core: | FC/IWS | HS Code: | 73121000 |
Standard: | GB/DIN/BS/JIS/ASTM/RR-W-410/API/ISO | Packing: | Wooden Reel |
High Light: |
wire rope cable,steel rope cable |
Product Description
Galvanized Steel Wire Ropes 6x9 for Bundling , Trawling 5mm wire rope
About Wire Rope
Wire rope is a machine with dozens–even hundreds– of individual wires which are formed and fabricated to move or operate at close tolerances to one another. When a wire rope bends, each of its many wires slides and adjusts to accommodate the differences in length between the inside and outside of the bend. The sharper the bend, the greater the movement.

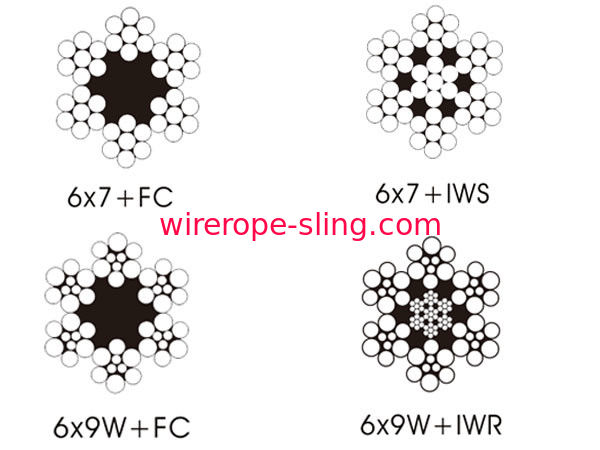

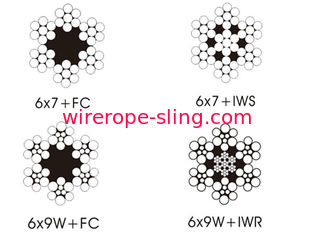

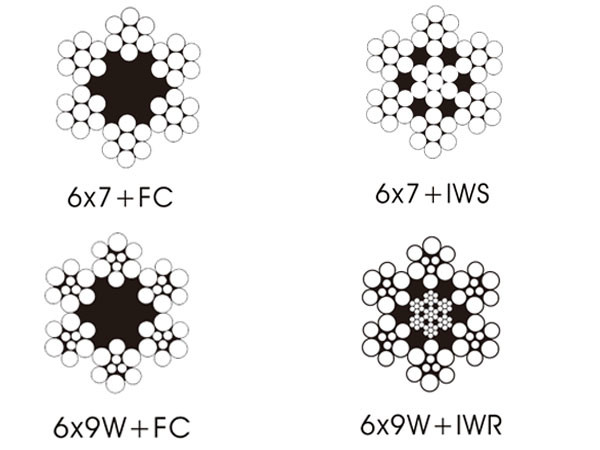

Every wire has three basic components: the wires, strands and core. The core may be either fiber (FC) such as sisal, manila or jute, or an Independent Wire Rope Core (IWRC), which is actually a smaller wire rope within the strands of the outer wire rope.
The wires are predominantly constructed from high-carbon steel, but may also be formed from various metals such as iron, stainless steel, monel or bronze. Carbon steel wire rope is manufactured in various grades, including Improved Plow Steel (IPS), Extra Improved Plow Steel (EIPS) and Extra Extra Improved Plow Steel (EEIPS), which designate the nominal strength of the wire rope. EIPS is the most commonly used and manufactured grade today.
Wire rope generally comes with a "bright" or uncoated finish but several other options are available. A galvanized, zinc coating, a tin coating or a synthetic coating such as vinyl or nylon may also be applied to the rope's surface. Ropes with plastic coatings and plastic-filled interiors are also obtainable. It should be understood that these coatings can affect the characteristics and breaking strength of the wire rope.
Wire ropes are identified by classifications based upon the number of strands and nominal number of wires in each strand. A 6 x 19 classification for example, includes six strands with each strand consisting of 15-26 individual wires. The six strands of a 6 x 37 class wire rope are constructed of 27-49 individual wires. Other popular classifications include 19 x 7, 7 x 19 and 8 x 19.
Why LKS?
As a professional wholesaler and manufacturer for wire rope slings and assemblies, LKS has been the No.1 wire rope and sling supplier in SHANGHAIarea. Our customers include ship building, military, construction and lifting service providers. With swaging machine up to size 120mm and experienced splicing workers, we provide strongest and safest wire rope slings. Also our sales staffs are professional with lifting equipment, and could provide with customer correct wire rope and slings for their equipment or lifting requirements.
Features
6x9 Wire Rope is categorized as marine grade galvanised wire products. This along with the special treatment that ropes receive in manufacture to prevent nicking and marking the zinc ensures a product that is highly resistant to corrosion. The product is popular for warps and bridles in trawling.
Applications
Various cable carriage, rope and belt conveyer, ropeway drawing, slope winch, etc.
Specifications
Nominal Diameter | Approx. Weight | Nominal Tensile Strength | |||||||||||
D(mm) | NF | SF | IWR/IWS | 1570 | 1670 | 1770 | 1870 | 1960 | |||||
Minimium Breaking Load of Rope (KN) | |||||||||||||
kg/100m | FC | IWR/IWS | FC | IWR/IWS | FC | IWR/IWS | FC | IWR/IWS | FC | IWR/IWS | |||
2 | 1.4 | 1.38 | 1.55 | 2.08 | 2.25 | 2.22 | 2.4 | 2.35 | 2.54 | 2.48 | 2.69 | 2.6 | 2.81 |
3 | 3.16 | 3.1 | 3.48 | 4.69 | 5.07 | 4.99 | 5.4 | 5.29 | 5.72 | 5.59 | 6.04 | 5.86 | 6.33 |
4 | 5.62 | 5.5 | 6.9 | 8.34 | 9.02 | 8.87 | 9.59 | 9.4 | 10.2 | 9.93 | 10.7 | 10.4 | 11.3 |
5 | 8.78 | 8.6 | 9.68 | 13 | 14.1 | 13.9 | 15 | 14.7 | 15.9 | 15.5 | 16.8 | 16.3 | 17.6 |
6 | 12.6 | 12.4 | 13.9 | 18.8 | 20.3 | 20 | 21.6 | 21.2 | 22.9 | 22.4 | 24.2 | 23.4 | 25.3 |
7 | 17.2 | 16.9 | 19 | 25.5 | 27.6 | 27.2 | 29.4 | 28.8 | 31.1 | 30.4 | 32.9 | 31.9 | 34.5 |
8 | 22.5 | 22 | 24.8 | 33.4 | 36.1 | 35.5 | 38.4 | 37.6 | 40.7 | 39.7 | 43 | 41.7 | 45 |
9 | 28.4 | 27.8 | 31.3 | 42.2 | 45.7 | 44.9 | 48.6 | 47.6 | 51.5 | 50.3 | 54.4 | 52.7 | 57 |
10 | 35.1 | 34.4 | 38.7 | 52.1 | 56.4 | 55.4 | 60 | 58.8 | 63.5 | 62.1 | 67.1 | 65.1 | 70.4 |
11 | 42.6 | 41.6 | 46.8 | 63.1 | 68.2 | 67.1 | 72.5 | 71.1 | 76.9 | 75.1 | 81.2 | 78.7 | 85.1 |
12 | 50.5 | 49.5 | 55.7 | 75.1 | 81.2 | 79.8 | 86.3 | 84.6 | 91.5 | 89.4 | 96.7 | 93.7 | 101 |
13 | 59.3 | 58.1 | 65.4 | 88.1 | 95.3 | 93.7 | 101 | 99.3 | 107 | 105 | 113 | 110 | 119 |
14 | 64.8 | 67.4 | 75.9 | 102 | 110 | 109 | 118 | 115 | 125 | 122 | 132 | 128 | 138 |
16 | 89.9 | 88.1 | 99.1 | 133 | 144 | 142 | 153 | 150 | 163 | 159 | 172 | 167 | 180 |
17 | 101 | 99.4 | 112 | 151 | 163 | 160 | 173 | 170 | 184 | 179 | 194 | 188 | 203 |
18 | 114 | 112 | 125 | 169 | 183 | 180 | 194 | 190 | 206 | 201 | 218 | 211 | 228 |
20 | 140 | 138 | 155 | 209 | 225 | 222 | 240 | 235 | 254 | 248 | 269 | 260 | 281 |
22 | 170 | 167 | 187 | 252 | 273 | 268 | 290 | 284 | 308 | 300 | 325 | 315 | 341 |
24 | 202 | 198 | 223 | 300 | 325 | 319 | 345 | 338 | 366 | 358 | 387 | 375 | 405 |
26 | 237 | 233 | 262 | 352 | 381 | 375 | 405 | 397 | 430 | 420 | 454 | 440 | 476 |
28 | 275 | 270 | 303 | 409 | 442 | 435 | 470 | 461 | 498 | 487 | 526 | 510 | 552 |
30 | 316 | 310 | 348 | 469 | 507 | 499 | 540 | 529 | 572 | 559 | 604 | 586 | 633 |
32 | 359 | 352 | 396 | 534 | 577 | 568 | 614 | 602 | 651 | 636 | 687 | 666 | 721 |
34 | 406 | 398 | 447 | 603 | 652 | 641 | 693 | 679 | 735 | 718 | 776 | 752 | 813 |
36 | 455 | 446 | 502 | 676 | 730 | 719 | 777 | 762 | 824 | 805 | 870 | 843 | 912 |
38 | 507 | 497 | 559 | 753 | 814 | 801 | 866 | 849 | 918 | 896 | 969 | 940 | 1020 |
40 | 562 | 550 | 619 | 834 | 902 | 887 | 959 | 940 | 1020 | 993 | 1070 | 1040 | 1130 |
42 | 619 | 607 | 683 | 919 | 994 | 978 | 1060 | 1040 | 1120 | 1100 | 1180 | 1150 | 1240 |
44 | 680 | 666 | 749 | 1010 | 1090 | 1070 | 1160 | 1140 | 1230 | 1200 | 1300 | 1260 | 1360 |
46 | 740 | 728 | 819 | 1100 | 1190 | 1170 | 1270 | 1240 | 1340 | 1310 | 1420 | 1380 | 1490 |
48 | 809 | 793 | 892 | 1200 | 1300 | 1280 | 1380 | 1350 | 1460 | 1430 | 1550 | 1500 | 1620 |
50 | 878 | 860 | 968 | 1300 | 1410 | 1390 | 1500 | 1470 | 1590 | 1550 | 1680 | 1630 | 1760 |
Product Show
