Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | LKS |
Certification: | CCS,ISO9001 |
Model Number: | QY110K-4V39 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1mtrs |
Price: | USD1800/tons |
Packaging Details: | Standard Seaworthy Packing or as request |
Delivery Time: | 15 days after the order confirmation |
Payment Terms: | L/C, T/T |
Supply Ability: | 100tons monthly |
Detail Information |
|||
Product Name: | Non-Rotating Wire Rope | Surface: | Galvanized/Ungalvanized |
---|---|---|---|
Length: | 500mtrs/1000mtrs/2000mtrs Available | Diameter: | 8mm-36mm |
Core: | FC/IWR | HS Code: | 73121000 |
Standard: | GB/DIN/BS/JIS/ASTM/RR-W-410/API/ISO | Packing: | Wooden Reel |
High Light: |
wire rope cable,steel rope cable |
Product Description
XZMP QY160K Performance characteristics
Excellent lifting and driving performance.
The U-shaped lifting arm has super lifting capacity.
Combination balance weight technology, self-loading and unloading, rapid assembly.
The load-sensitive system controlled by PLC bus has smooth control performance.
Special single cylinder bolt telescoping technology to improve the active safety of telescoping system.
The torque limiter controlled by digital bus has strong anti-interference ability.
The main structural parts adopt automatic welding technology with zero welding defects and high reliability.

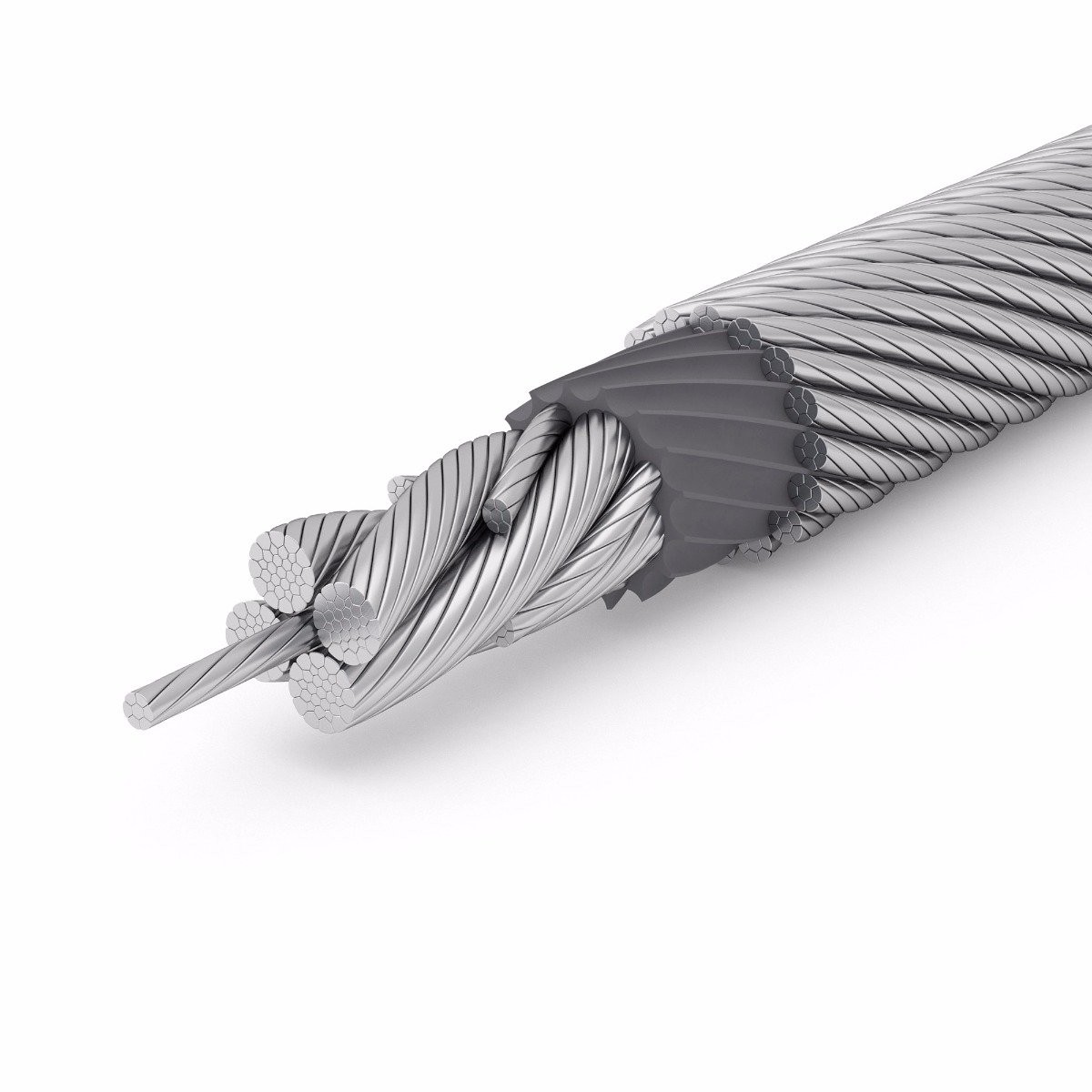

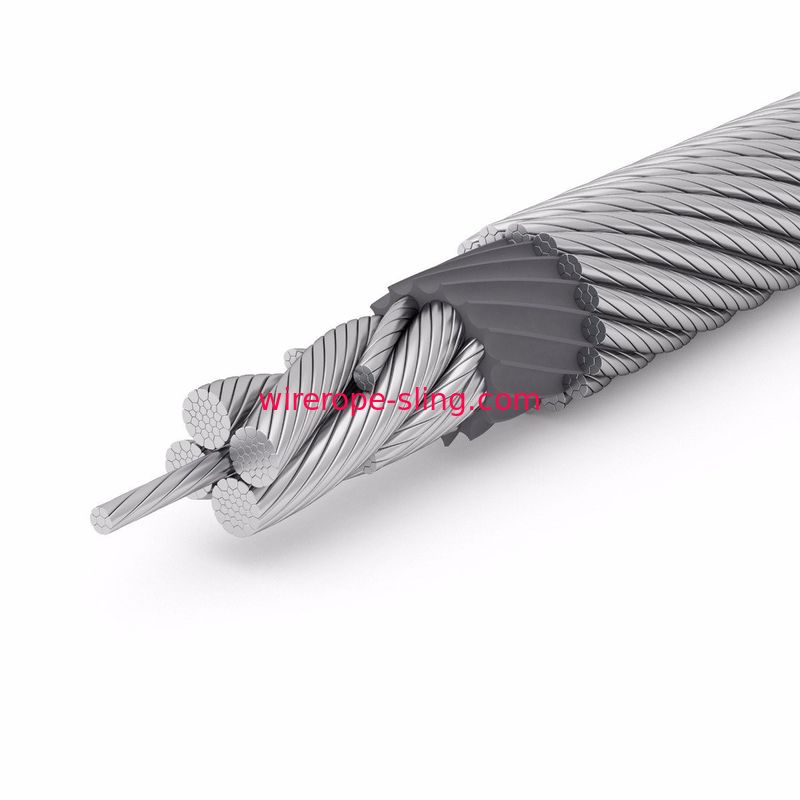

Four-sector non-rotating wire rope, also known as four-strand rope, is one of the forms of non-rotating wire rope. 4v39s_4 strand rope_4 strand non-rotating wire rope
Implementation criteria: GB/T8918-2006
Model of Non-rotating Wire Rope for XZMP QY160k 160-ton Crane
XZMP Crane Wire Rope | 4V*39S+5FC | 4V*48S+5FC | 35W*7 | 35W*K7 | 15*K7 |
Performance of wire rope | Slight non-rotation | Slight non-rotation | non-rotation | non-rotation | non-rotation |
Characteristics of strand/rope | 4strands,39 wires in each strands | 4strands,48 wires in each strands | 35strands,7 wires in each strands | ||
(Big Hook)Dia. of main hoisting wire rope | φ22mm | φ22mm | φ22mm | φ22mm | φ22mm |
(Big Hook)Length of main hoisting wire rope | 265mtrs | 265mtrs | 265mtrs | 265mtrs | 265mtrs |
(Small Hook)Dia. of Auxiliary hoisting wire rope | φ22mm | φ22mm | φ22mm | φ22mm | φ22mm |
(Small Hook)Length of Auxiliary hoisting wire rope | 165mtrs | 165mtrs | 165mtrs | 165mtrs | 165mtrs |
100mtrs weight | 200kg | 200kg | 220kg | 235kg | 235kg |
Specifications
Dia | Reference Weight | 1570 | 1670 | 1770 | 1870 | 1960 | 2160 |
mm | KG/100m | Minimum Breaking Load(KN) | |||||
8 | 26.2 | 36.2 | 38.5 | 40.8 | 43.1 | 45.2 | 49.8 |
10 | 41.0 | 56.5 | 60.1 | 63.7 | 67.3 | 70.6 | 77.8 |
12 | 59.0 | 81.4 | 86.6 | 91.8 | 96.9 | 102 | 112 |
14 | 80.4 | 111 | 118 | 125 | 132 | 138 | 152 |
16 | 105 | 145 | 154 | 163 | 172 | 181 | 199 |
18 | 133 | 183 | 195 | 206 | 218 | 229 | 252 |
20 | 164 | 226 | 240 | 255 | 269 | 282 | 311 |
22 | 198 | 274 | 291 | 308 | 326 | 342 | 376 |
24 | 236 | 326 | 346 | 367 | 388 | 406 | 448 |
26 | 277 | 382 | 406 | 431 | 455 | 477 | 526 |
28 | 321 | 443 | 471 | 500 | 528 | 553 | 610 |
30 | 369 | 509 | 541 | 573 | 606 | 635 | 610 |
32 | 420 | 579 | 616 | 652 | 689 | 723 | 700 |
34 | 474 | 653 | 695 | 737 | 778 | 816 | 796 |
36 | 531 | 732 | 779 | 826 | 872 | 914 | 899 |
