XZMP QY25K 25- Ton Stainless Wire Rope Mobile Crane Swaged Diameter 14mm

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,ISO9001
Model Number: QY25K5-SWR14
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1800/tons
Packaging Details: Standard Seaworthy Packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Product Name:Non-Rotating Wire RopeSurface:Galvanized/Ungalvanized
Length:500mtrs/1000mtrs/2000mtrs AvailableDiameter:8mm-36mm
Core:FC/IWRHS Code:73121000
Standard:GB/DIN/BS/JIS/ASTM/RR-W-410/API/ISOPacking:Wooden Reel
High Light:

wire rope cable

,

steel rope cable

Product Description




XZMP QY20K5 Performance characteristics


QY20K5 truck crane is an efficient, economical and applicable product developed by XZMP Group. It adopts three-bridge special chassis, eight gearbox, fully covered platform board design, five main lifting arms and one truss auxiliary lifting arm.

- Overall leading in lifting and driving performance

Double Pump Confluence Technology, Leading in Variable Amplitude and Lifting Operating Efficiency

New power platform with high power performance and low fuel consumption

New type radiator, good radiator performance

Improving system reliability in an all-round way

New upgraded appearance and humanized design, more comfortable driving control

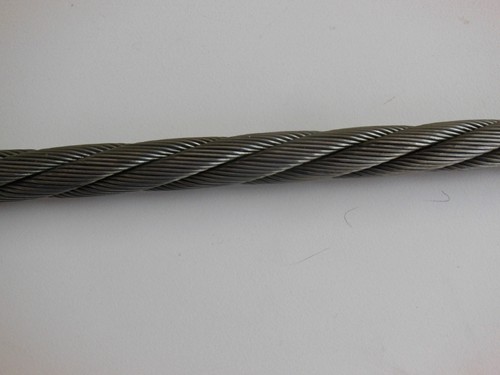

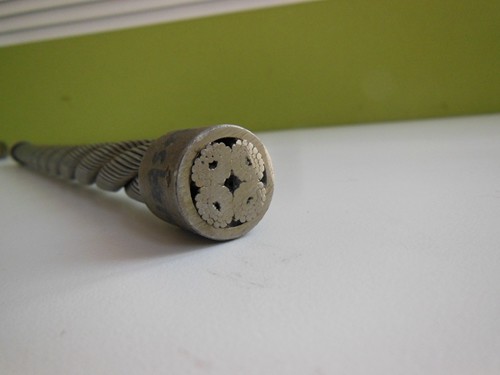

Four-sector non-rotating wire rope, also known as four-strand rope, is one of the forms of non-rotating wire rope. 4v39s_4 strand rope_4 strand non-rotating wire rope

  • Wire rope structure: 4V*39S+5FC, 4V*48S+5FC
  • Type of wire rope: four-stranded sector-stranded non-rotating wire rope
  • Product features: wire contact, strand helical contact in the wire rope. When the wire rope is stressed, the contact stress between strand and strand is small, its service life is long, and the interaction twist and backwash force of steel wire are small.
  • Main applications: shaft balance rope, shaft hoisting (for well construction), port loading and unloading and tower crane for construction, ship loading and unloading, hanging basket, etc.

Implementation criteria: GB/T8918-2006


Model of Non-rotating Wire Rope for XZMP QY20K5 25-tons Crane

XZMP QY25K 25- Ton Stainless Wire Rope Mobile Crane Swaged Diameter 14mm 0

Specification and Model of XZMP QY25K 25-ton mobile crane Steel Wire Rope



Wire Rope Construction 4V*39S+5FC 4V*48S+5FC 35W*7 35W*K7
Performance of wire rope Slight non-rotation Slight non-rotation non-rotation non-rotation
Characteristics of strand/rope 4strands,39 wires in each strands 4strands,48 wires in each strands 35strands,7 wires in each strands
(Big Hook)Dia. of main hoisting wire rope φ14mm φ14mm φ14mm φ14mm
(Big Hook)Length of main hoisting wire rope 165mtrs 165mtrs 165mtrs 165mtrs
(Small Hook)Dia. of Auxiliary hoisting wire rope φ14mm φ14mm φ14mm φ14mm
(Small Hook)Length of Auxiliary hoisting wire rope 105mtrs 105mtrs 105mtrs 105mtrs
100mtrs weight 80kg 80kg 90kg 95kg
QY25K Crane Wire Rope 4V*39S+5FC-14mm/4V*48S+5FC-14mm belongs to the sector strand forging wire rope. In the production process of the wire rope, the strand is generally not pre-deformed, and is directly produced by on-line forging or off-line forging; 35W*7-14mm/35W*K7-14mm can be treated by die drawing first, then the strand is closed; it can also be forged in the process of rope closing.
QY25 VS QAY25 QY25K is a truck crane. QAY25 is a ground crane. The difference between them is that QAY25 uses cross-country chassis and 4 wheels are suspended by oil and gas. QY25 is just an ordinary car chassis. QAY25 has better cross-country performance. Four wheel drive, four wheel steering. It can also turn four wheels in one direction and walk obliquely. But it is smaller and has shorter arms than ordinary car cranes.


Specifications

Dia Reference Weight 1570 1670 1770 1870 1960 2160
mm KG/100m Minimum Breaking Load(KN)
8 26.2 36.2 38.5 40.8 43.1 45.2 49.8
10 41.0 56.5 60.1 63.7 67.3 70.6 77.8
12 59.0 81.4 86.6 91.8 96.9 102 112
14 80.4 111 118 125 132 138 152
16 105 145 154 163 172 181 199
18 133 183 195 206 218 229 252
20 164 226 240 255 269 282 311
22 198 274 291 308 326 342 376
24 236 326 346 367 388 406 448
26 277 382 406 431 455 477 526
28 321 443 471 500 528 553 610
30 369 509 541 573 606 635 610
32 420 579 616 652 689 723 700
34 474 653 695 737 778 816 796
36 531 732 779 826 872 914 899
