Harbor Crane Compacted Galvanized Wire Rope GT8PZ 8- Strand Inner Plastified

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,ISO9001
Model Number: GT8PZ
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1800/tons
Packaging Details: Standard Seaworthy Packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Product Name:Compacted Wire RopeSurface:Galvanized/Ungalvanized
Length:500mtrs/1000mtrs/2000mtrs AvailableDiameter:6mm-60mm
Core:IWRHS Code:73121000
Standard:GB/DIN/BS/JIS/ASTM/RR-W-410/API/ISOPacking:Wooden Reel
High Light:

wire rope cable

,

steel rope cable

Product Description



Harbor Crane Compacted Steel Wire Rope GT8PZ 8-Strand • Inner Plastified

Compacted • 8-Strand • Inner Plastified Wire ropes

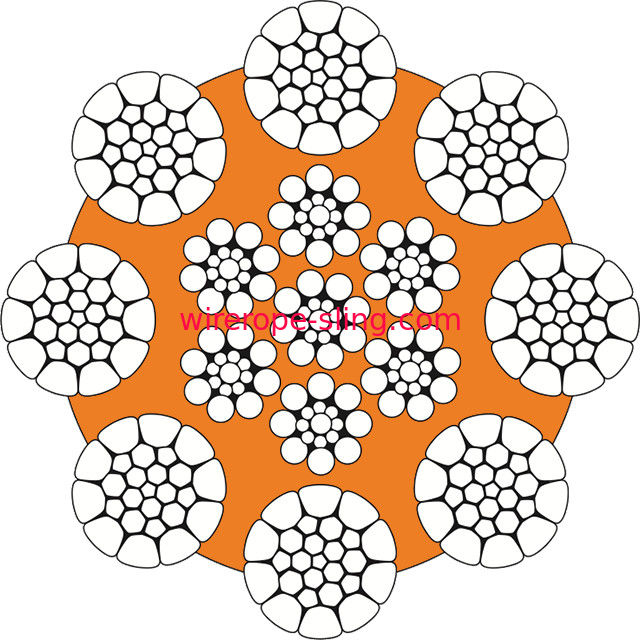

This wire rope belongs in the non rotation resistant classification but its strands are compacted and it is used mainly as luffing wire rope on high efficiency ship & harbour mobile cranes, container bridge cranes, overhead travelling hoists, mineral loading cranes.Harbor Crane Compacted Galvanized Wire Rope GT8PZ 8- Strand Inner Plastified 0

It is an 8-strand construction, very flexible and suitable for use on many crane brands installed on board.

These wire ropes are usually produced as drawn galvanized and internally and externally lubricated, which makes them corrosion resistant and durable against the various harsh marine environment factors.

Additionally, these ropes are produced with an extruded inner plastic layer, which ensures water impermeability and elimination of point contact between wires & strands of the inner and outer layers.

This extra protection from corrosion and inner contact, prolongs the useful service life of the ropes.

Attention must be paid in the installation of the new rope on board, its running-in (bedding in) period and load and the inspection before and after every usage.

Diligent production processes, raw material selection and quality control in all stages of production ensure a long and trouble free service life.

Compacting technology reduces the size and increases the breaking strength.

Main advantages



  • Extremely resistant & flexible 8­-strand ordinary lay or Lang's lay rope with inner plastification, suited as luffing & hoisting rope.

  • Long service life due to inner plastification and reduced rope abrasion, resulting from the smooth rope surface, also exhibiting excellent flexural fatigue properties

  • Resistance against corrosion due to galvanized wires , the permanent lubrication and inner plastification

  • Reliability and safety in operation as a result of the highest breaking forces, especially provided by the compaction technology

  • Exceptional resistance against shock loads and vibrations due to the radial­ & elastic structured rope and inner plastification

  • Optimal spooling characteristics due to high resistance against radial deformations

  • Reduced maintenance effort due to intensive lubrication in each production step

  • Trouble­-free operation

Advantages of compacted wire ropes

  • Higher flexibility

  • Bigger metallic area

  • Higher breaking load thus allowing for smaller diameter 15-20%

  • Larger surface contact area

  • Lower contact pressure

  • Increased resistance to abrasion

  • Increased resistance to corrosion (due to outer sealing of the strand)

  • Increased resistance to mechanical damages / vibrations

  • Increased resistance to shock loading and whipping

  • Reduction of mechanical stress on both the rope and the sheave, thus extending the life of both the sheave and the winch drum

  • Decrease of damages between the neighboring wraps in multilayer spooling – Better winding on drums

  • Significant Cost Reduction due to reduced rope abrasion and increased service life with less maintenance expense

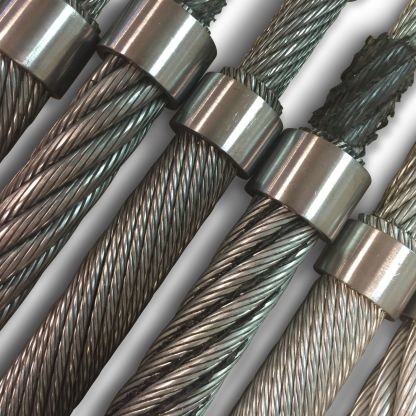

Harbor Crane Compacted Galvanized Wire Rope GT8PZ 8- Strand Inner Plastified 1

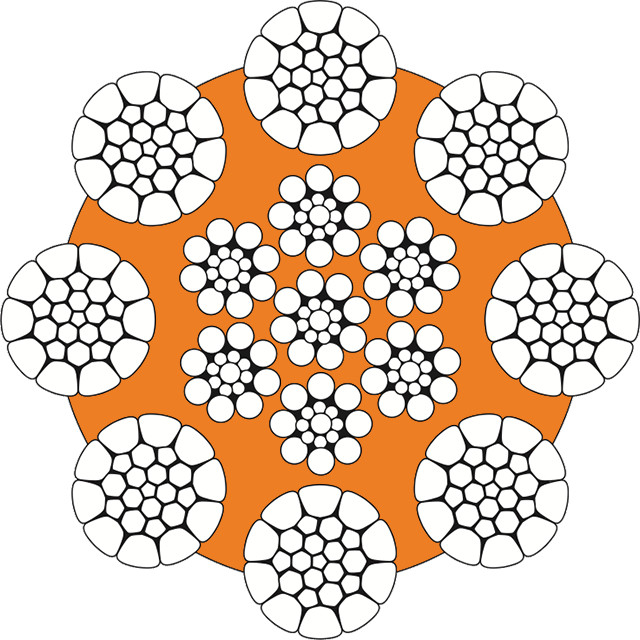

Harbor Crane Compacted Galvanized Wire Rope GT8PZ 8- Strand Inner Plastified 2



Technical Data
Nominal diameter Approx. weight Minimum breaking load
1770N/mm² 1960N/mm² 2160N/mm²
mm Kg/m kN
10 0.46 79 87 96
11 0.55 95 105 115
12 0.69 114 126 139
13 0.81 137 152 168
14 0.93 159 176 194
15 1.06 182 201 222
16 1.20 206 229 252
17 1.35 233 258 284
18 1.55 260 288 318
19 1.71 294 326 359
20 1.89 324 359 395
21 2.15 363 401 442
22 2.34 396 439 484
23 2.54 433 480 529
24 2.75 462 512 564
25 2.97 508 562 620
26 3.19 546 605 667
27 3.51 588 651 717
28 3.76 640 708 781
28.6 3.90 659 730 804
29 4.03 682 755 832
30 4.30 740 819 903
32 4.90 842 932 1027
34 5.59 936 1036 1142
36 6.26 1055 1168 1287
38 6.96 1195 1323 1458
40 7.71 1312 1453 1601
42 8.45 1449 1604 1768
44 9.27 1573 1742 1920





Here is some recommand for harbour crane wire ropes FROM LKS;
