Special LKS - F4E Ungalvanized Steel Wire Rope , Durable 10mm Wire Rope

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,ISO9001
Model Number: LKS-F4E
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1800/tons
Packaging Details: Standard Seaworthy Packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Product Name:Compacted Wire RopeSurface:Galvanized/Ungalvanized
Length:500mtrs/1000mtrs/2000mtrs AvailableDiameter:6.5mm-13mm
Core:Electrical Conductor CableHS Code:73121000
Standard:GB/DIN/BS/JIS/ASTM/RR-W-410/API/ISOPacking:Wooden Reel
High Light:

wire rope cable

,

steel rope cable

Product Description

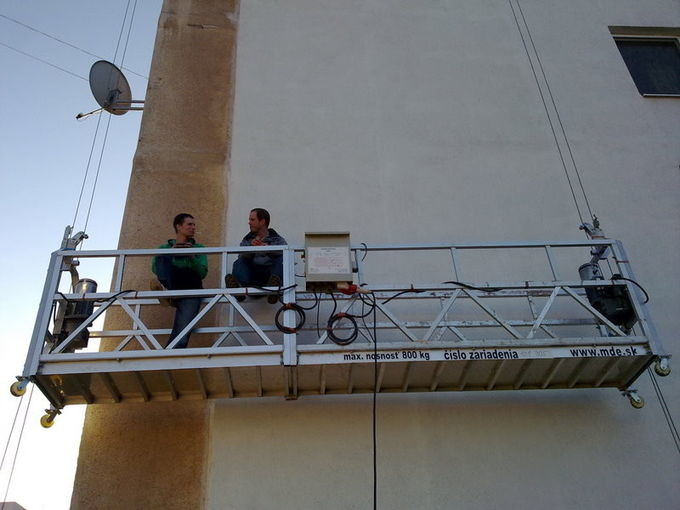

 Special LKS-F4E Steel Wire Rope With Electrical conductor for Maintenance Platforms



The technical design of maintenance platforms requires special ropes with one or more electrical conductors.

These electrical conductors perform steering, working or communication functions. Based on our many years of experience and the patented production process, we succeeded in developing durable and robust rope constructions.

Today, we are one of the leading producers of steel wire ropes with electrical conductors globally. We are proud to say that LKS design is used in all major cities in the world.

For performing steering or work functions these ropes include one or more electrical conductors.



Properties

  • galvanized
  • long service life
  • high number of bending cycles
  • syntetic fiber core

Special LKS - F4E Ungalvanized Steel Wire Rope , Durable 10mm Wire Rope 0

Technical DATA

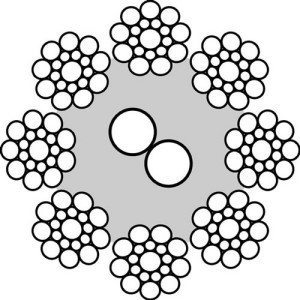

Construction: 152 wires Seale (8 x 19), regular lay

Technical terms of delivery to DIN EN 12385, ISO 4344

Standard number of conductors: 2

Number of load-bearing wires in the outer strands: 152

Tensile grade 1770 N/mm², steel wire galvanized

Permissible tolerance on nominal rope diameter: no load – 0 + 3 %



nom. rope dia. (mm) calculated mass (kg/m) min. breaking load (kN) electr. conductor (cross-section mm²)
6,5 0,163 21,9 2 x 0,60
6,5 0,163 21,9 3 x 0,60
7 0,198 26,1 2 x 0,60
7 0,198 26,1 2 x 0,96
8 0,254 33,2 2 x 0,96
8 0,254 33,2 3 x 0,96
8 0,254 33,2 2 x 0,60
9 0,311 42,3 3 x 0,96
10 0,374 51,9 3 x 0,96
12 0,572 80,4 3 x 0,96
13 0,657 93,1 3 x 0,96
9* 0,311 42,3 2 x 0,96
10* 0,374 51,9 2 x 0,96
12* 0,572 80,4 2 x 0,96
13* 0,657 93,1 2 x 0,96
*Special construction
