Special LKS - F5E Steel Wire Rope With Electrical Conductor For Maintenance Platforms

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,ISO9001
Model Number: LKS-F5E
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1800/tons
Packaging Details: Standard Seaworthy Packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Product Name:Lifting Wire RopeSurface:Galvanized/Ungalvanized
Length:500mtrs/1000mtrs/2000mtrs AvailableDiameter:6.5mm-10mm
Core:Electrical Conductor CableHS Code:73121000
Standard:GB/DIN/BS/JIS/ASTM/RR-W-410/API/ISOPacking:Wooden Reel
High Light:

wire rope cable

,

steel rope cable

Product Description





 Special LKS-F5E Steel Wire Rope With Electrical conductor for Maintenance Platforms

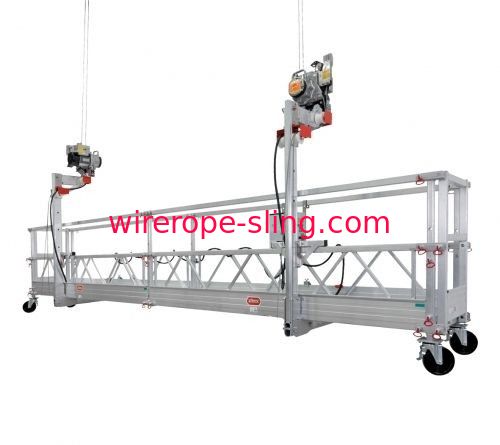

The technical design of maintenance platforms requires special ropes with one or more electrical conductors.

These electrical conductors perform steering, working or communication functions. Based on our many years of experience and the patented production process, we succeeded in developing durable and robust rope constructions.

Today, we are one of the leading producers of steel wire ropes with electrical conductors globally. We are proud to say that LKS design is used in all major cities in the world.



Special LKS - F5E Steel Wire Rope With Electrical Conductor For Maintenance Platforms 0

Special LKS - F5E Steel Wire Rope With Electrical Conductor For Maintenance Platforms 1



For performing steering or work functions these ropes include one or more electrical conductors.

Properties

  • galvanized
  • low stretch
  • long service life
  • high number of bending cycles
  • syntetic fiber core



Technical DATA

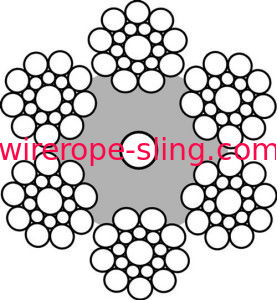

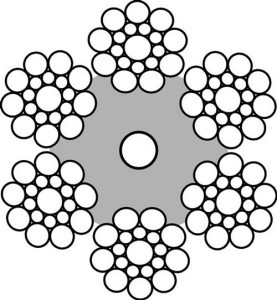

Construction: 114 wires Seale (6 x 19), regular lay

Technical terms of delivery to DIN EN 12385, ISO 4344

Standard number of conductors: 1

Number of load bearing wires in the outer strands: 114

Tensile grade 1770 N/mm², steel wire galvanized




nom. rope dia. (mm)
calculated mass (kg/m) min. breaking load (kN) electr. conductor (cross-section mm²)
6,5 0,155 24,7 0,96
7 0,179 29,6 0,96
8 0,234 38,2 0,96
9 0,296 48,2 0,96
10 0,366 61,95 0,96

LKS group prides itself on its leading position in the wire rope manufacturing sector, providing industry with some of the most durable and pioneering technologies available. As a company, we are constantly looking to challenge the boundaries of innovation, not only to exceed customer expectations but also to develop our business into wider markets and geographies.
