Gantry Crane Hoisting 10mm Wire Rope LKS 6-2 CP Outer Strands Compacted

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,ISO9001
Model Number: LKS 6-2 CP
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1800/tons
Packaging Details: Standard Seaworthy Packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Product Name:Crane Wire RopeSurface:Galvanized/Ungalvanized
Length:500mtrs/1000mtrs/2000mtrs AvailableDiameter:6mm-60mm
Core:Plastic Padding Wire RopeHS Code:73121000
Standard:GB/DIN/BS/JIS/ASTM/RR-W-410/API/ISOPacking:Wooden Reel
High Light:

wire rope cable

,

steel rope cable

Product Description

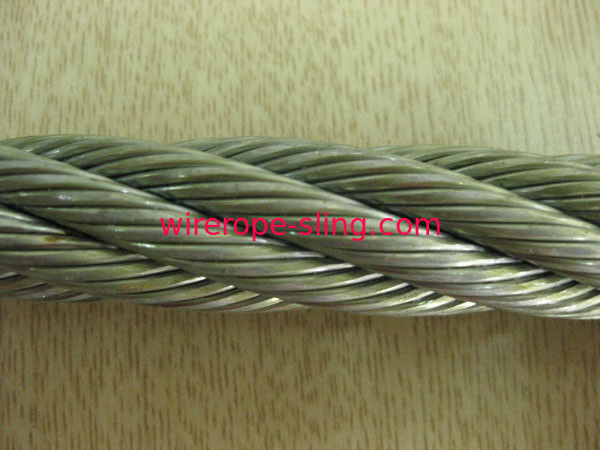

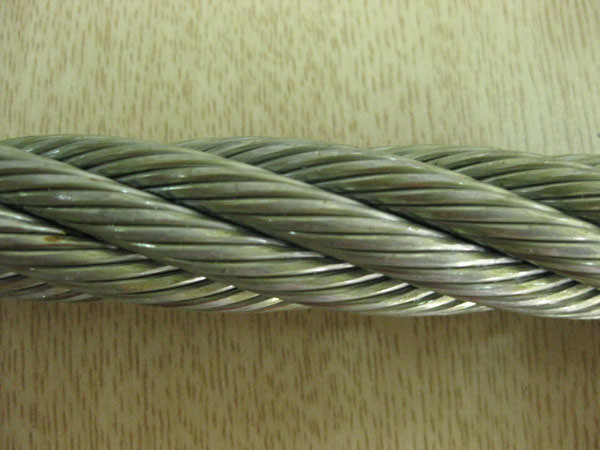

Gantry Crane Hoisting Steel Wire Rope LKS 6-2 CP Outer strands compacted

6x36 Compacted is a flexible general engineering wire rope readily available in galvanised, ungalvanised and marine grade stainless steel. The wire rope has an equal lay construction (warrington seale) and achieves a superior breaking load to the 6x19 construction range. The construction has been designed to give a flexible rope with a good fatigue life. A 6x36 wire rope is available with either FC (fibre core) or IWRC (independent wire rope core) and is used for a wide range of applications, examples of which are shown below:

  • Applications
  • Holding and closing ropes for grab cranes
  • General engineering applications
  • Wire rope slings
  • Winch ropes
  • Crane ropes
  • Hoist rope
  • Wire rope rigging applications
  • Lifeboat falls
  • Luffing ropes
  • Pursing wires
  • Mooring ropes
  • Tow ropes



Gantry Crane Hoisting 10mm Wire Rope LKS 6-2 CP Outer Strands Compacted 0



  • Rope category number (RCN) 09 according to ISO 4309
  • Ordinary lay
  • Zinc-coated class B standard
  • Should not used with a swivel
  • Special lubrication
  • Outer strands compacted
  • Plastic padding


The LKS 6-2 CP is a non-rotation-resistant hoisting rope with 6 compacted outer strands and additional plastic padding. This rope features high breaking forces.

ATTRIBUTES

Plastic padding ​Fettung Compressed


APPLICATIONS

Bridge crane - Hoisting rope Gantry crane (RTG/RMG) - Hoisting rope Container crane (STS) - Hoisting rope Rotating tower crane - Boom pendant rope and adjusting rope Grab bucket/Scrapers - Haulage rope







Technical Data



Nominal diameter Approx. weight Minimum breaking load
1960N/mm²
mm Kg/m KN
6.0 0.17 30.9
6.4 0.19 34.7
7.9 0.28 53.3
8.0 0.29 53.8
9.0 0.37 65.5
9.5 0.41 78.3
10.0 0.45 84
11.0 0.55 102
11.1 0.56 106
12.0 0.65 122
12.7 0.73 136
14.0 0.89 167
14.3 0.93 172
16.0 1.16 210
18.0 1.47 267
19.0 1.64 301
20.0 1.82 335
22.0 2.20 402
22.2 2.24 411
24.0 2.62 485
25.4 2.93 540
26.0 3.07 560
28.0 3.56 650
28.6 3.72 670
30.0 4.09 750
31.8 4.59 830
32.0 4.65 850
34.0 5.25 980
35.0 5.57 1050
36.0 5.89 1120









 CRANE TYPES AND WIRE ROPES





BRIDGE CRANE

Gantry Crane Hoisting 10mm Wire Rope LKS 6-2 CP Outer Strands Compacted 9

orange = hoisting rope
green = trolley rope



TELESCOPING CRANEGantry Crane Hoisting 10mm Wire Rope LKS 6-2 CP Outer Strands Compacted 10

orange = hoisting rope
green = telescope rope



GANTRY CRANE (RTG/RMG)Gantry Crane Hoisting 10mm Wire Rope LKS 6-2 CP Outer Strands Compacted 11

orange = hoisting rope
green = trolley rope



STRADDLE CARRIER

Gantry Crane Hoisting 10mm Wire Rope LKS 6-2 CP Outer Strands Compacted 12

orange = hoisting rope







LATTICE BOOM CRANE

Gantry Crane Hoisting 10mm Wire Rope LKS 6-2 CP Outer Strands Compacted 13

orange = hoisting rope
yellow = auxiliary hoisting rope
blue = boom pendant rope and adjusting rope

HARBOUR CRANE

Gantry Crane Hoisting 10mm Wire Rope LKS 6-2 CP Outer Strands Compacted 14

orange = hoisting rope
blue = boom pendant rope and adjusting rope





OFFSHORE CRANE

Gantry Crane Hoisting 10mm Wire Rope LKS 6-2 CP Outer Strands Compacted 15

orange = hoisting rope
blue = boom pendant rope and adjusting rope

MOBILE CRANE

Gantry Crane Hoisting 10mm Wire Rope LKS 6-2 CP Outer Strands Compacted 16

orange = hoisting rope
blue = boom pendant rope and adjusting rope

REVOLVING TOWER CRANE

Gantry Crane Hoisting 10mm Wire Rope LKS 6-2 CP Outer Strands Compacted 17

orange = hoisting rope
blue = boom pendant rope and adjusting rope
green = assembly rope

EXCAVATING BUCKET / SCRAPERSGantry Crane Hoisting 10mm Wire Rope LKS 6-2 CP Outer Strands Compacted 18

orange = hoisting rope
blue = boom pendant rope and adjusting rope
green = backhaul rope

GRABBING CRANE

Gantry Crane Hoisting 10mm Wire Rope LKS 6-2 CP Outer Strands Compacted 19

orange = hoisting rope
blue = boom pendant rope and adjusting rope
yellow = closing rope





Crane wire ropes play an important role in ensuring a smooth conduct of work processes in harbors, off-shore platforms or various other applications where cranes are needed. Whether you need tower crane ropes or offshore crane ropes, galvanized or stainless steel ropes, you will find the optimal solution in our company.
