Telescopic Crane Trolley Steel Wire Rope LKS 8-1 P Should Not Use With Swivel

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,ISO9001
Model Number: LKS 8-1 P
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1800/tons
Packaging Details: Standard Seaworthy Packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Product Name:Crane Wire RopeSurface:Galvanized/Ungalvanized
Length:500mtrs/1000mtrs/2000mtrs AvailableDiameter:6mm-60mm
Swivel:Should Not Used With A SwivelHS Code:73121000
Standard:GB/DIN/BS/JIS/ASTM/RR-W-410/API/ISOPacking:Wooden Reel
High Light:

wire rope cable

,

steel rope cable

Product Description



Telescopic Crane Trolley Steel Wire Rope LKS 8-1 P Should not used with a swivel

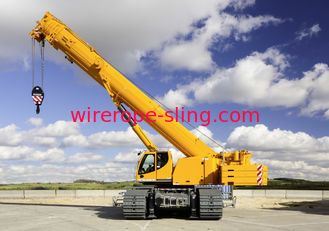

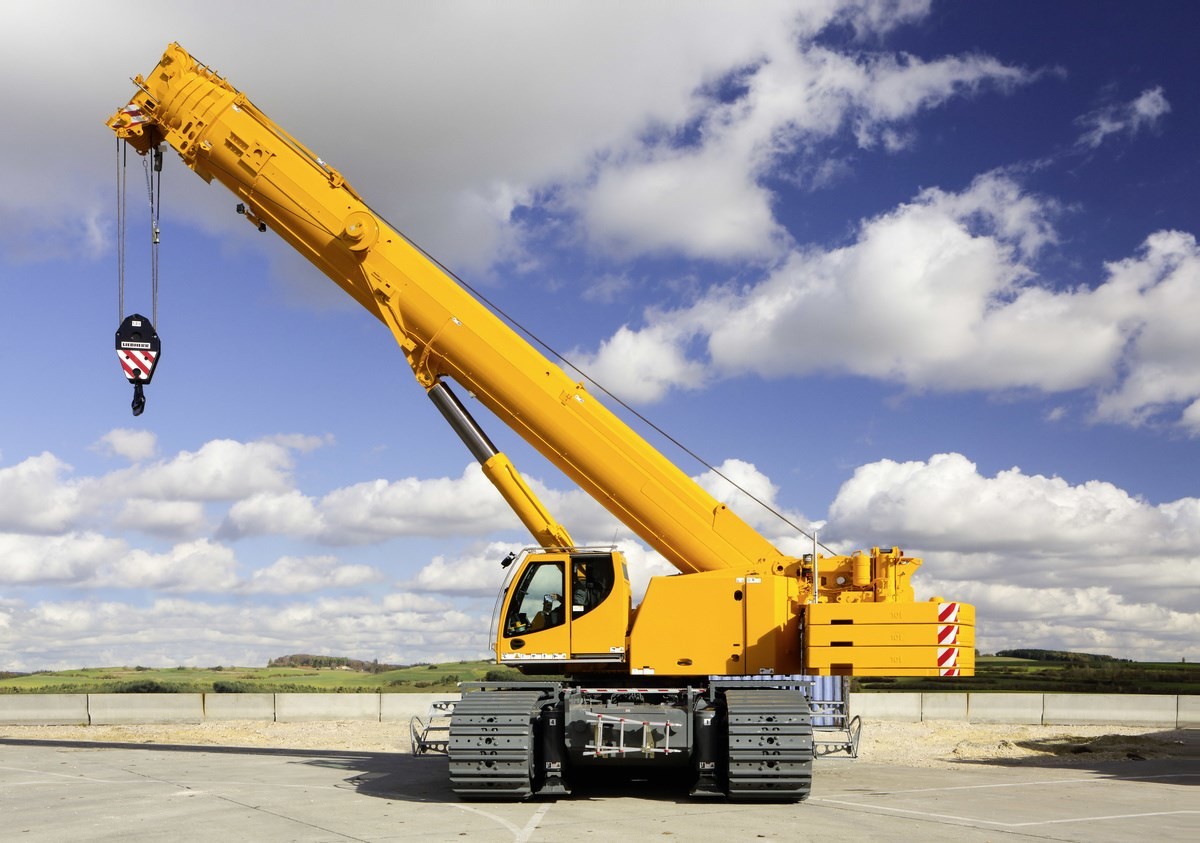

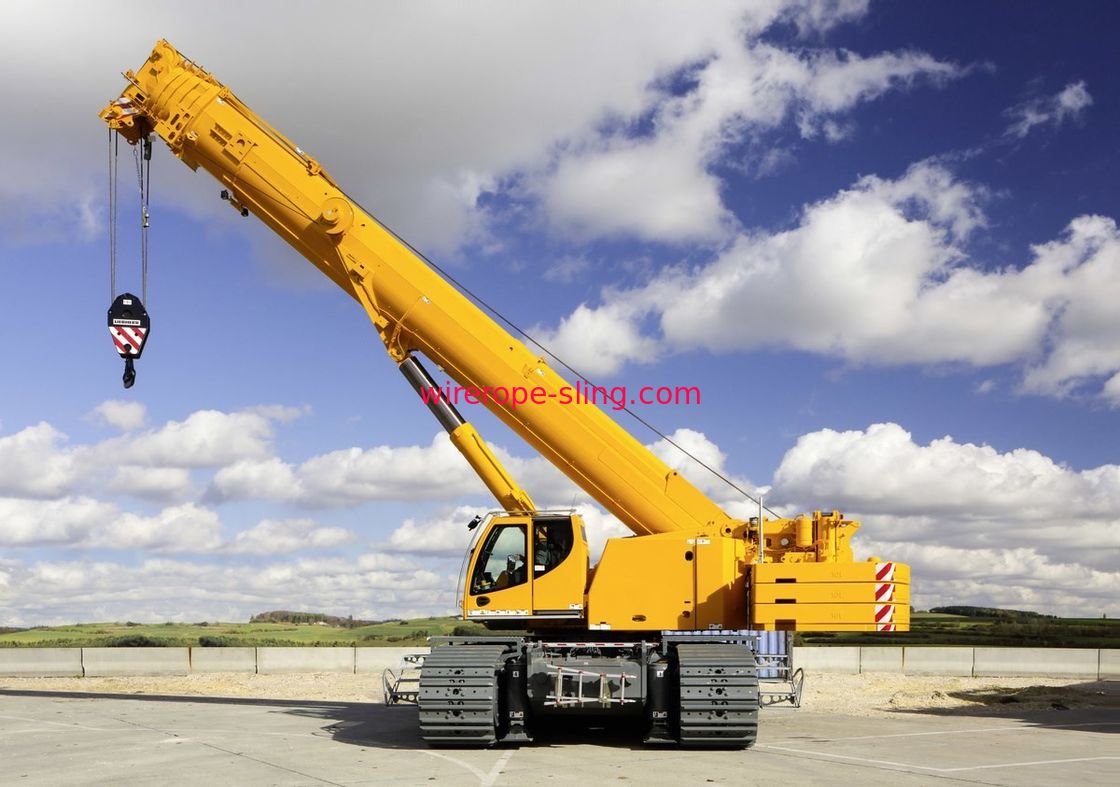

Telescopic cranes are mobile in the sense that they transport goods and items in aflexible manner. Also since telescopic cranes are further equipped with height adjustments, when itcomes to hauling and transferring the goods from one place to another, the problems related to height arecompletely eradicated.

General and High Performance Wire Rope. The use of wire rope worldwide has undoubtedly changedwhat the lifting and rigging industry is today. Wire rope is used for crane ropes, mooring lines, drill lines, hoist ropes, drag lines, and boom lines to name a few applications.



Telescopic Crane Trolley Steel Wire Rope LKS 8-1 P Should Not Use With Swivel 0

  • Rope category number (RCN) 09 according to ISO 4309
  • Ordinary lay
  • Zinc-coated class B standard
  • Should not used with a swivel
  • Special lubrication
  • Plastic padding

Our LKS 8-1 P is a non-rotation- resistant hoisting rope with plastic padding and 8 strands in the outer layer.

ATTRIBUTES

Plastic padding ​Fettung


APPLICATIONS

Bridge crane - Hoisting rope Telescopic crane - Trolley rope Gantry crane (RTG/RMG) - Hoisting rope Container crane (STS) - Hoisting rope Lattice boom crane - Boom pendant rope and adjusting rope Harbour crane - Boom pendant rope and adjusting rope Offshore crane - Boom pendant rope and adjusting rope Mobile crane - Boom pendant rope and adjusting rope Rotating tower crane - Boom pendant rope and adjusting rope Grab bucket/Scrapers - Haulage rope Gripper crane - Boom pendant rope and adjusting rope







Technical Data




Ø   Weight Metallic
cross-section
MBK 1770 MBK 1960
mm   kg/100m mm2 kN kN
10   42.6 47.9 74.8 82.9
11   51.6 57.9 90.5 100
12   61.4 69.0 108 119
13   72.0 80.9 126 140
14   83.5 93.9 147 162
15   95.9 108 168 186
16   109 123 192 212
18   138 155 242 268
20   170 192 299 331
22   206 232 362 401
24   245 276 431 477
26   288 324 506 560
28   334 375 587 650
30   384 431 673 746
32   436 490 766 848
34   493 554 865 958
36   552 621 970 1074
38   612 688 1075 1191
40   679 762 1191 1319
42   748 841 1313 1454
44   821 922 1441 1596
46   894 1005 1570 1739
48   974 1094 1710 1893
50   1075 1187 1855
52   1143 1284 2006




































































































CRANE TYPES AND WIRE ROPES



BRIDGE CRANE

Telescopic Crane Trolley Steel Wire Rope LKS 8-1 P Should Not Use With Swivel 14

orange = hoisting rope
green = trolley rope



TELESCOPING CRANETelescopic Crane Trolley Steel Wire Rope LKS 8-1 P Should Not Use With Swivel 15

orange = hoisting rope
green = telescope rope



GANTRY CRANE (RTG/RMG)Telescopic Crane Trolley Steel Wire Rope LKS 8-1 P Should Not Use With Swivel 16

orange = hoisting rope
green = trolley rope



STRADDLE CARRIER

Telescopic Crane Trolley Steel Wire Rope LKS 8-1 P Should Not Use With Swivel 17

orange = hoisting rope







LATTICE BOOM CRANE

Telescopic Crane Trolley Steel Wire Rope LKS 8-1 P Should Not Use With Swivel 18

orange = hoisting rope
yellow = auxiliary hoisting rope
blue = boom pendant rope and adjusting rope

HARBOUR CRANE

Telescopic Crane Trolley Steel Wire Rope LKS 8-1 P Should Not Use With Swivel 19

orange = hoisting rope
blue = boom pendant rope and adjusting rope





OFFSHORE CRANE

Telescopic Crane Trolley Steel Wire Rope LKS 8-1 P Should Not Use With Swivel 20

orange = hoisting rope
blue = boom pendant rope and adjusting rope

MOBILE CRANE

Telescopic Crane Trolley Steel Wire Rope LKS 8-1 P Should Not Use With Swivel 21

orange = hoisting rope
blue = boom pendant rope and adjusting rope

REVOLVING TOWER CRANE

Telescopic Crane Trolley Steel Wire Rope LKS 8-1 P Should Not Use With Swivel 22

orange = hoisting rope
blue = boom pendant rope and adjusting rope
green = assembly rope

EXCAVATING BUCKET / SCRAPERSTelescopic Crane Trolley Steel Wire Rope LKS 8-1 P Should Not Use With Swivel 23

orange = hoisting rope
blue = boom pendant rope and adjusting rope
green = backhaul rope

GRABBING CRANE

Telescopic Crane Trolley Steel Wire Rope LKS 8-1 P Should Not Use With Swivel 24

orange = hoisting rope
blue = boom pendant rope and adjusting rope
yellow = closing rope





There are many types of cranes which require the use of wire ropes, there are also many types of rope constructions with varying properties, which means there are many things to consider when purchasing new crane ropes.

Overhead cranes, mobile cranes, all terrain cranes, crawler cranes, tower cranes, gantry cranes, off-shore pedestal cranes, dredger cranes, piling cranes, harbour cranes, and container cranes all use wire crane ropes, some cranes use more than one.
