Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | LKS |
Certification: | CCS,DNV,BV,CE |
Model Number: | LKS-WRA |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 50sets |
Price: | USD15/SET |
Packaging Details: | Standard export carton |
Delivery Time: | 5-8 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 8000sets monthly |
Detail Information |
|||
Steel Grade: | Stainless Steel | Application: | Construction |
---|---|---|---|
Alloy Or Not: | Non-alloy | Standard: | GB,DIN,ASTM,AISI,BS |
Type: | Galvanized And Stainless Steel | Special Use: | Free Cutting Steel |
Customized: | Available | HS Code: | 73121000 |
High Light: |
steel wire rope fittings,wire cable assemblies |
Product Description
Production Details

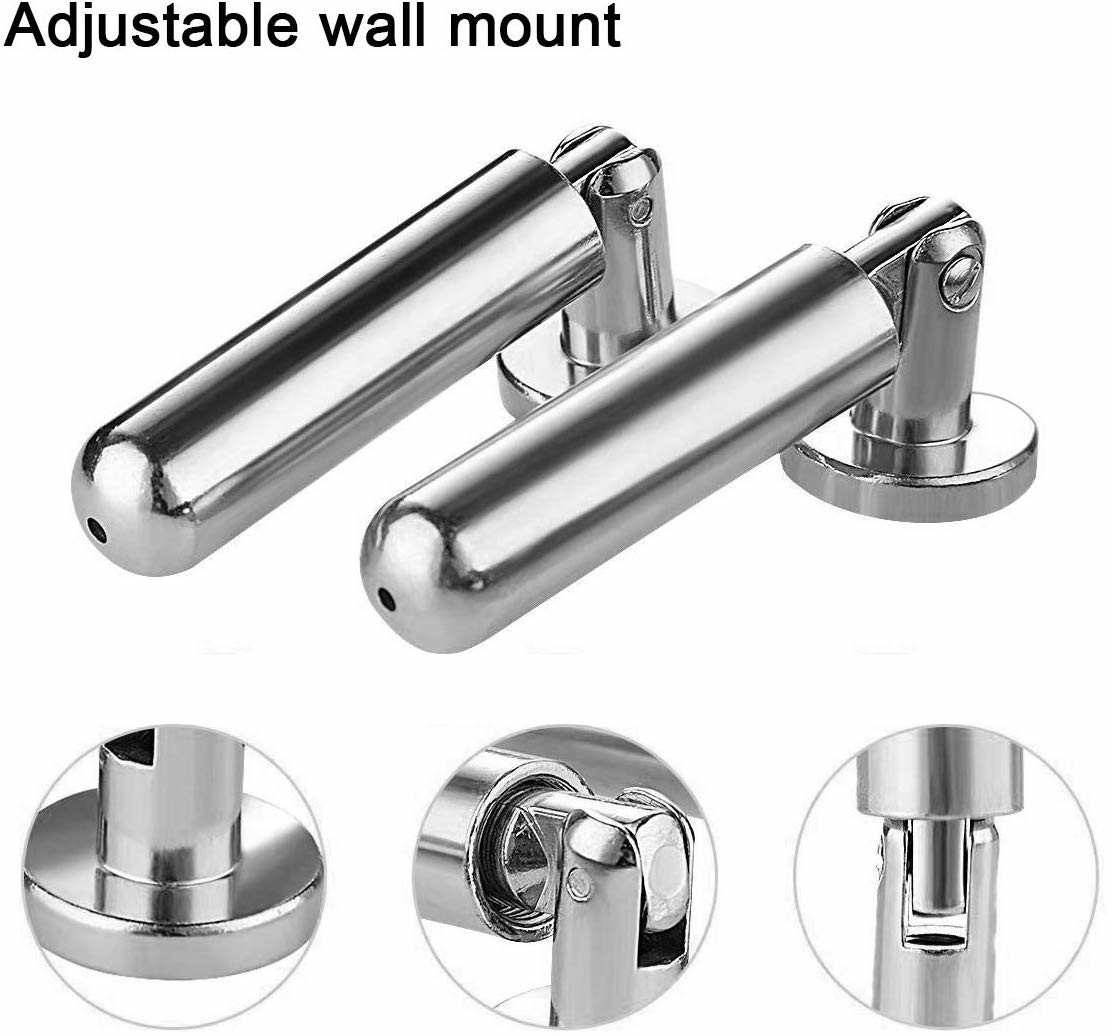

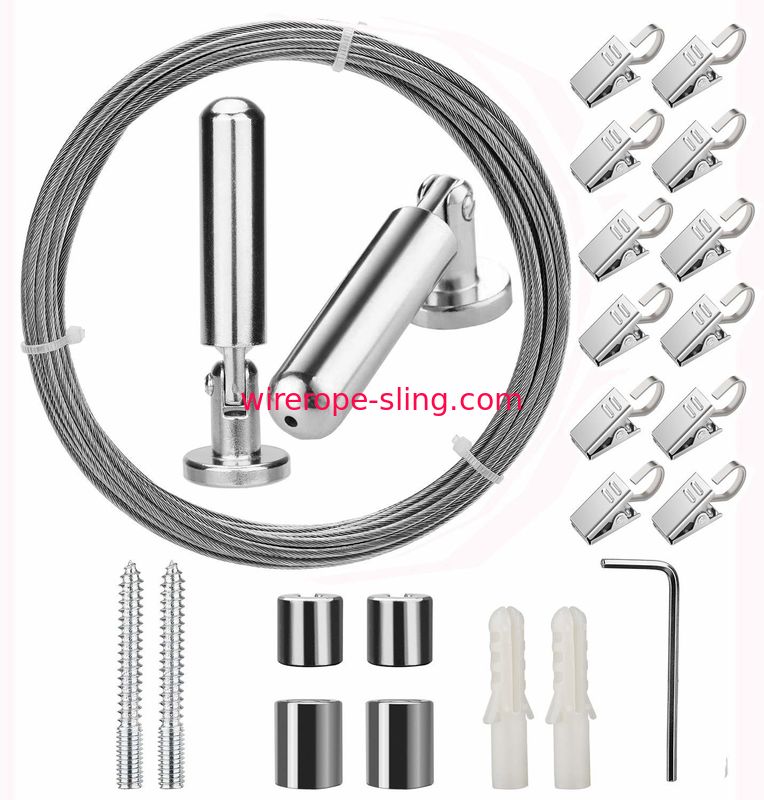

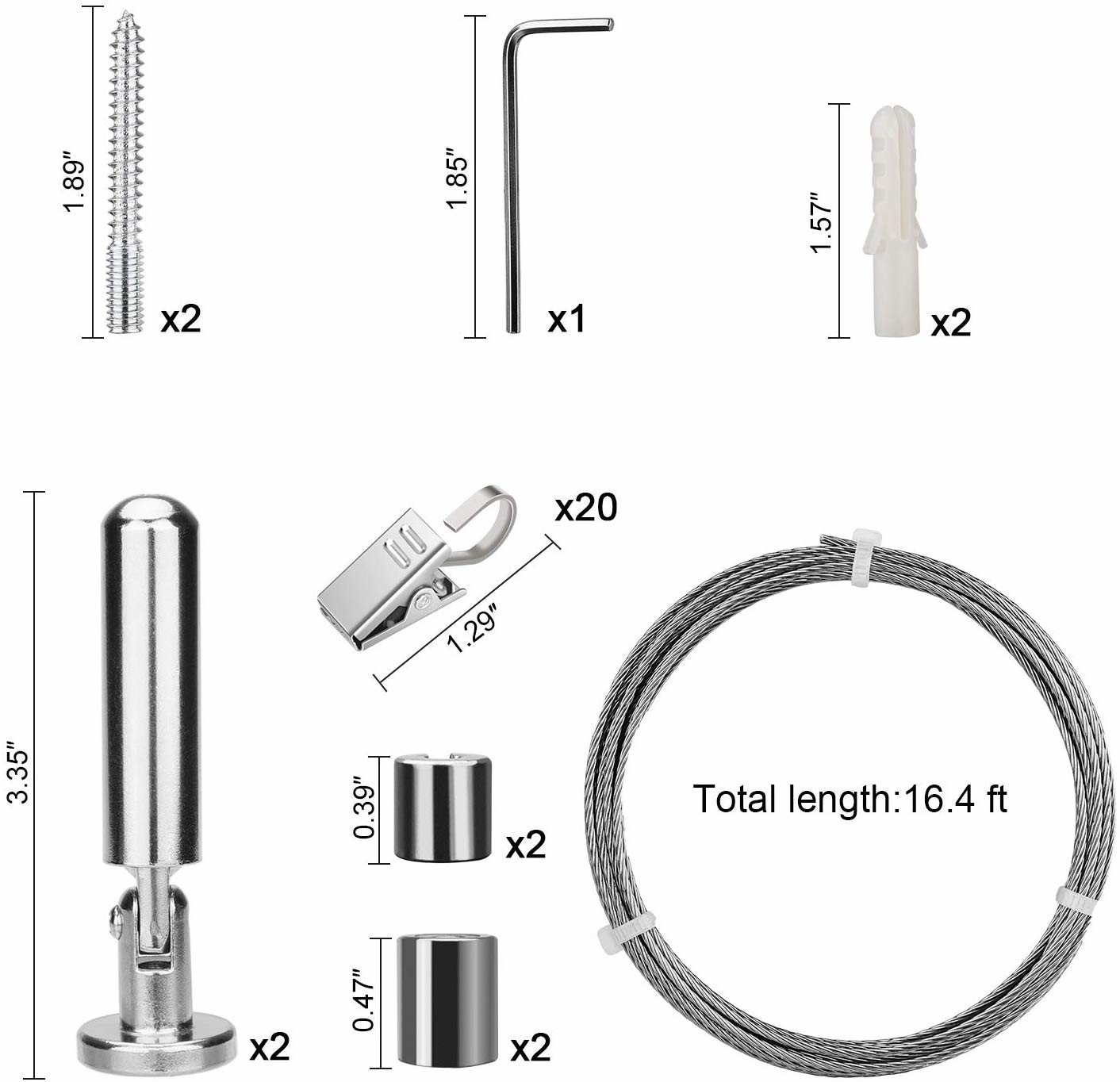

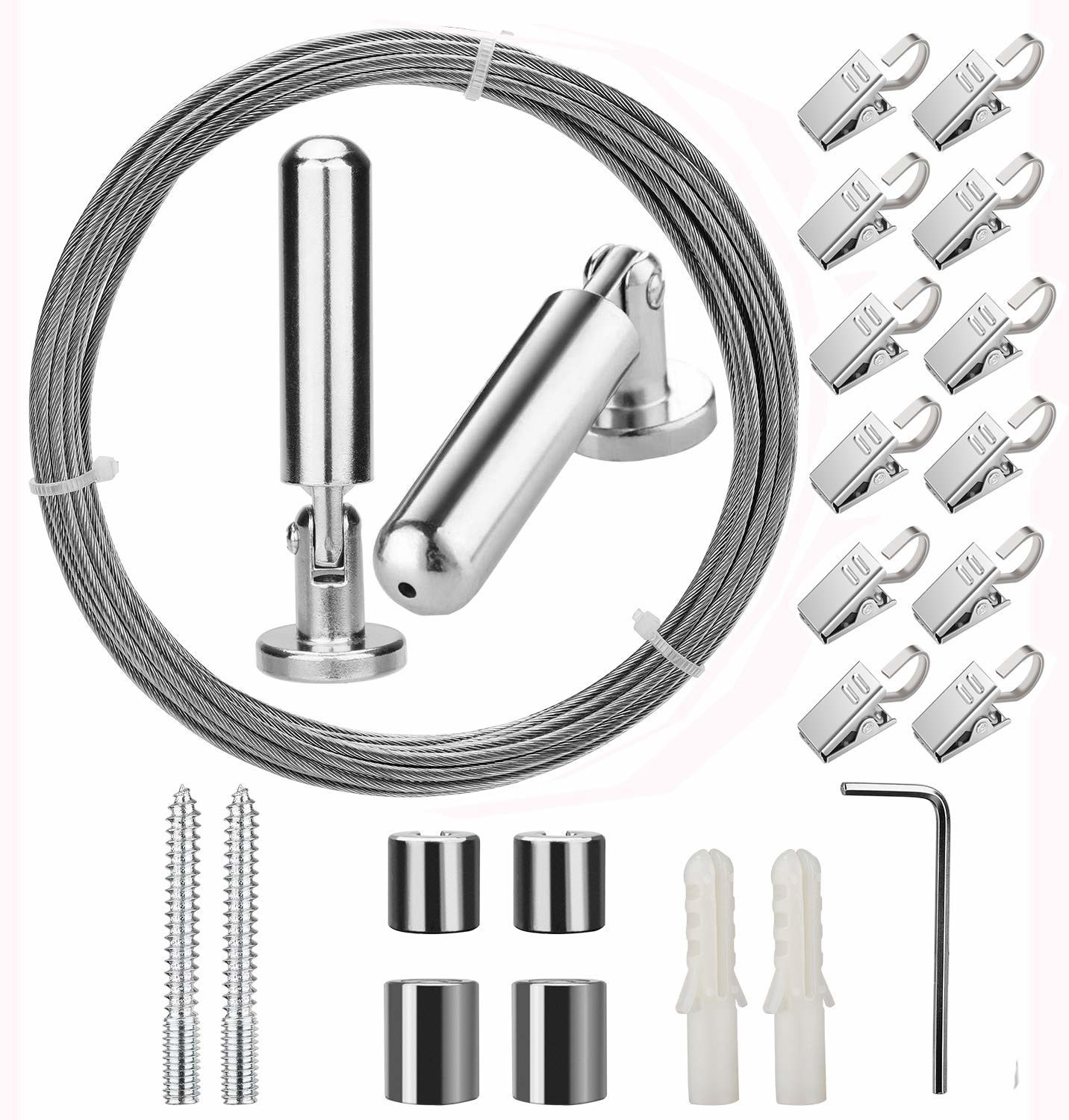

LKS Wall Mount Art Projects Display Curtain Wire Rod Set (5 Meters) with 20 Clips - Stainless Steel Photo Hanging Wire Clothesline Wire Window Curtain Tension Wire Multi-Purpose Crafts Organizer

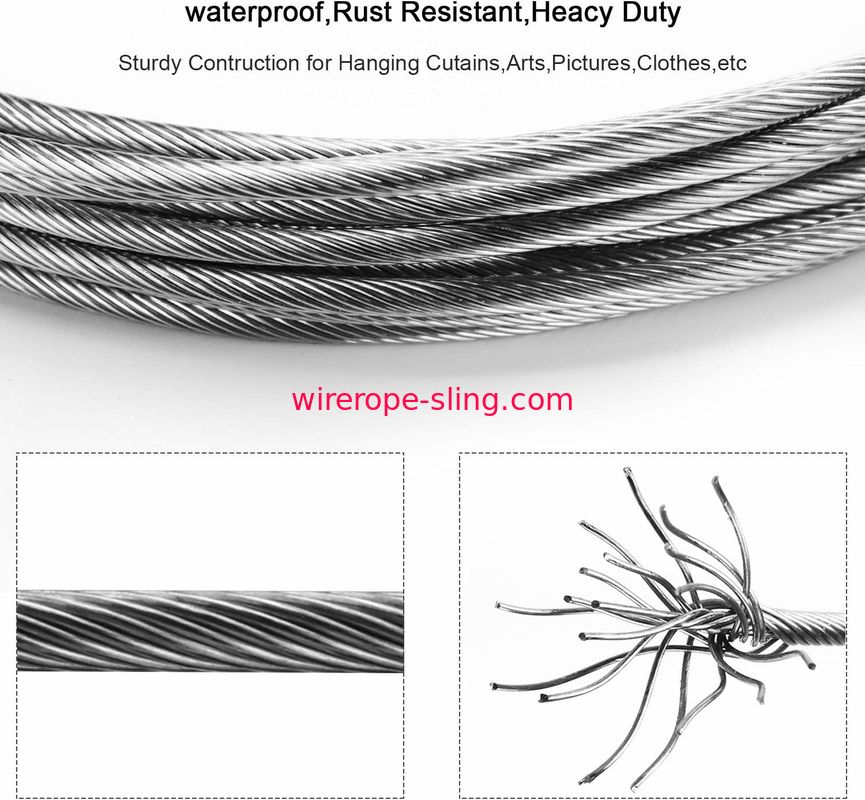

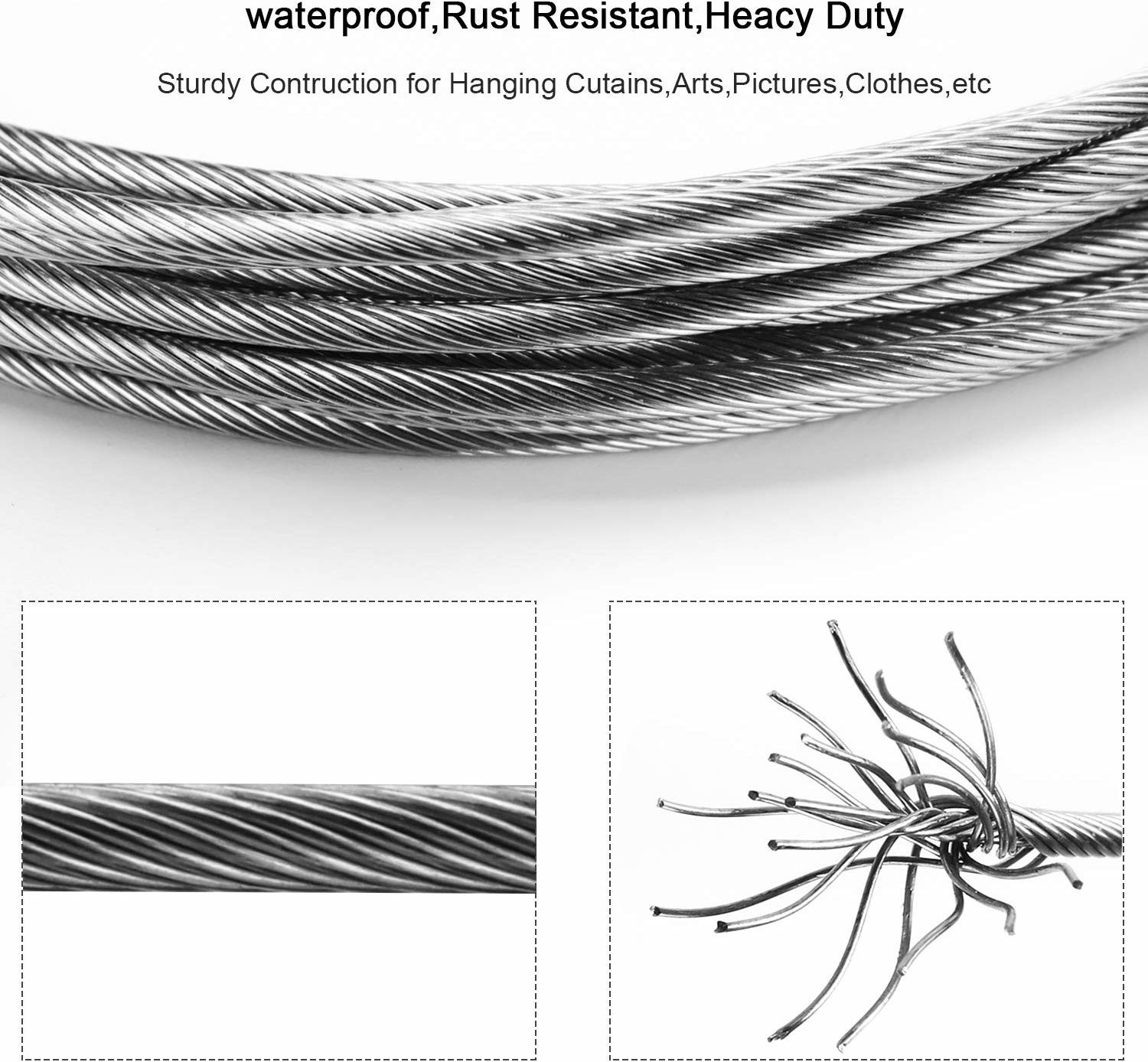

7x7 AISI316 stainless steel wire rope is used for a wide range of applications. More flexible than 1x19 but more rigid than 7x19, the 7x7 construction is often used where 1x19 lacks enough flexibility for an application or where 7x19’s weaker breaking load is too low for an application. Used extensively throughout the marine industry as well as for general engineering applications, 7x7’s excellent breaking load and flexibility in the smaller diameters make it a favourite for control cable and a variety of marine rigging applications, examples of which are shown below:
Breaking Loads | |||
---|---|---|---|
Nominal Diameter | Approximate Mass | Minimum breaking loads - 1570 Mpa | |
[mm] | [kg/m] | [kN] | [Kg] |
1 | 0.004 | 0.59 | 60 |
2.0
|
0.016
|
2.37 | 241 |
2.5
|
0.023
|
3.71 | 378 |
3.0
|
0.034
|
5.34 | 544 |
4.0
|
0.060
|
9.49 | 967 |
5.0
|
0.095
|
14.80 | 1,509 |
6.0
|
0.136
|
21.40 | 2,182 |
7.0
|
0.185
|
29.10 | 2,967 |
8.0
|
0.242
|
38.00 | 3,874 |
10.0
|
0.378
|
59.30 | 6,046 |
12.0
|
0.545
|
85.40 | 8,708 |
14.0
|
0.741
|
117.00 | 11,930 |
Product Show
There are some customers telling us they need stainless steel items, but have no idea about the difference between stainless steel 304 and 316. We would like to give a briefly explanation:
1. SS316 is more expensive than SS304
2. SS316 is better than SS304 in corrosion resistance, so if the application areas are bad, like near sea, we highly recommend you choose SS316.
3. Chemical Composition:
MATERIAL SS304 |
C | Si | Mn | P | S | Cr | Ni | Mo |
≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 18.0-20.0 | 8.0-10.0 | - |
MATERIAL SS316 |
C | Si | Mn | P | S | Cr | Ni | Mo |
≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 16.0-18.0 | 10.0-12.0 | 2.0-3.0 |
