China Wire Rope Sling manufacturer

7 X 19 Copper Coating 8mm Stainless Steel Wire Rope

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: LKS-WRSC
Payment & Shipping Terms:
Minimum Order Quantity: 500sets
Price: $0.80 - $2.00 / Meters
Packaging Details: Standard export carton
Delivery Time: 10-15 days
Payment Terms: L/C, T/T
Supply Ability: 20tons monthly

Detail Information

Type:Galvanized,steel Wire Rope,Drawn Wire,cable Suspending Kits,SpringSteel Grade:Galvanized,Carbon Steel 45# 60# 70#
Alloy Or Not:Non-alloyApplication:Rope,Manufacturing
Wire Gauge:1-50MMStandard:GB,ASTM,DIN,AISI,BS
Special Use:Free Cutting SteelTensile Strength:1570Mpa-1960Mpa
Material:45# /60#/70# High Carbon Steel,Stainless Steel 316/304 Or Carbon
High Light:

wire rope cable

,

steel rope cable

Product Description

Wire rope is several strands of metal wire twisted into a helix forming a composite "rope", in a pattern known as "laid rope". Larger diameter wire rope consists of multiple strands of such laid rope in a pattern known as "cable laid".

In stricter senses, the term "wire rope" refers to a diameter larger than 3/8 inch (9.52 mm), with smaller gauges designated cable or cords.[1] Initially wrought iron wires were used, but today steel is the main material used for wire ropes.

Historically, wire rope evolved from wrought iron chains, which had a record of mechanical failure. While flaws in chain links or solid steel bars can lead to catastrophic failure, flaws in the wires making up a steel cable are less critical as the other wires easily take up the load. While friction between the individual wires and strands causes wear over the life of the rope, it also helps to compensate for minor failures in the short run.

Wire ropes were developed starting with mining hoist applications in the 1830s. Wire ropes are used dynamically for lifting and hoisting in cranes and elevators, and for transmission of mechanical power. Wire rope is also used to transmit force in mechanisms, such as a Bowden cable or the control surfaces of an airplane connected to levers and pedals in the cockpit. Only aircraft cables have WSC (wire strand core). Also, aircraft cables are available in smaller diameters than wire rope. For example, aircraft cables are available in 3/64 in. diameter while most wire ropes begin at a 1/4 in. diameter.[2] Static wire ropes are used to support structures such as suspension bridges or as guy wires to support towers. An aerial tramway relies on wire rope to support and move cargo overhead.

Supply Ability
Supply Ability:
100000 Meter/Meters per Month
Packaging & Delivery
Packaging Details
In rolls
Port
Shanghai, Ningbo
Lead Time :
Quantity(Meters) 1 - 2000 2001 - 10000 >10000
Est. Time(days) 20 30 To be negotiated

Product Description
Material Copper coated/brass coated steel wire
Constuction 1x7, 1x19, 6x7, 7x7, 6x19, 7x19, etc
Place of Origin Jiangsu, China
Sample We can provide reference samples if available in stock, but the sample delivery cost should be borne by customer.
Product Show

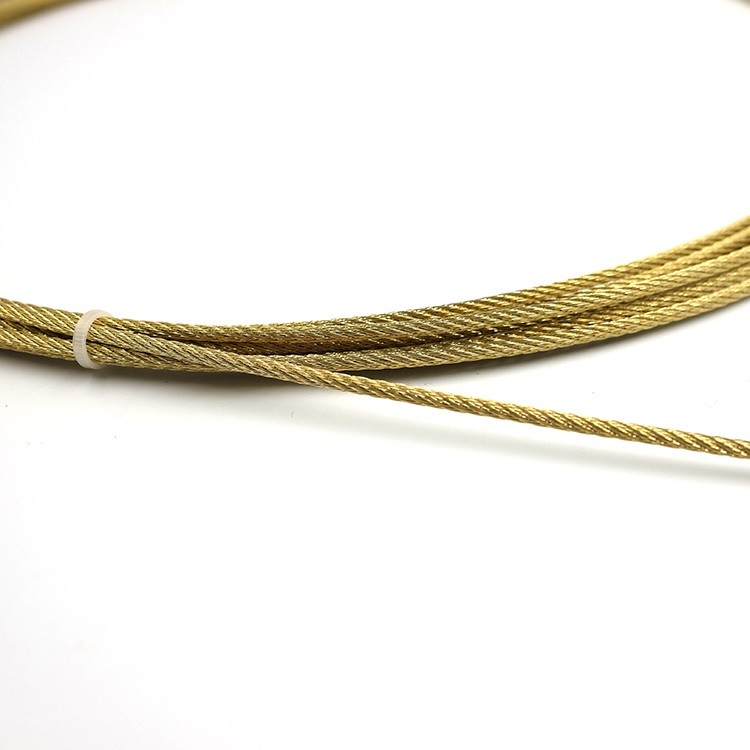

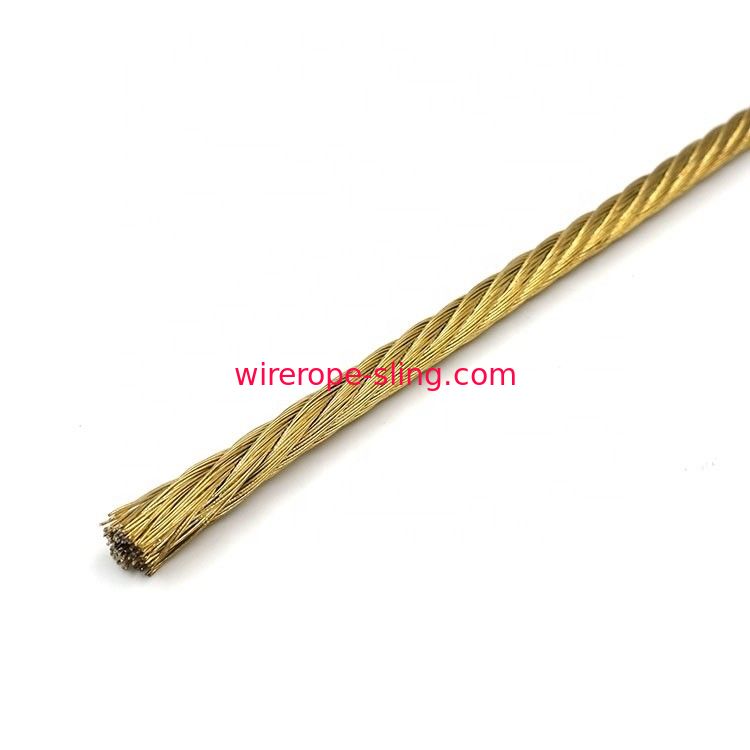

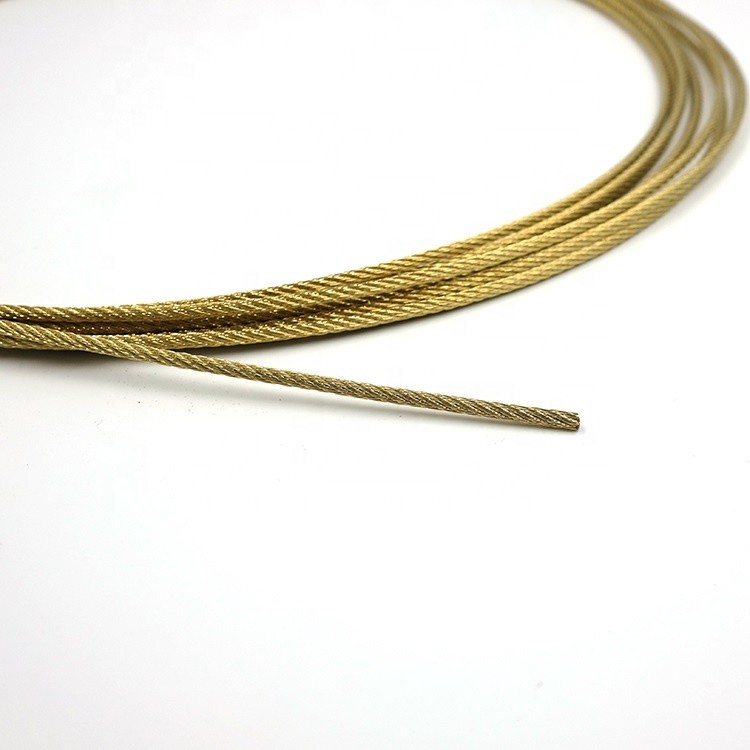

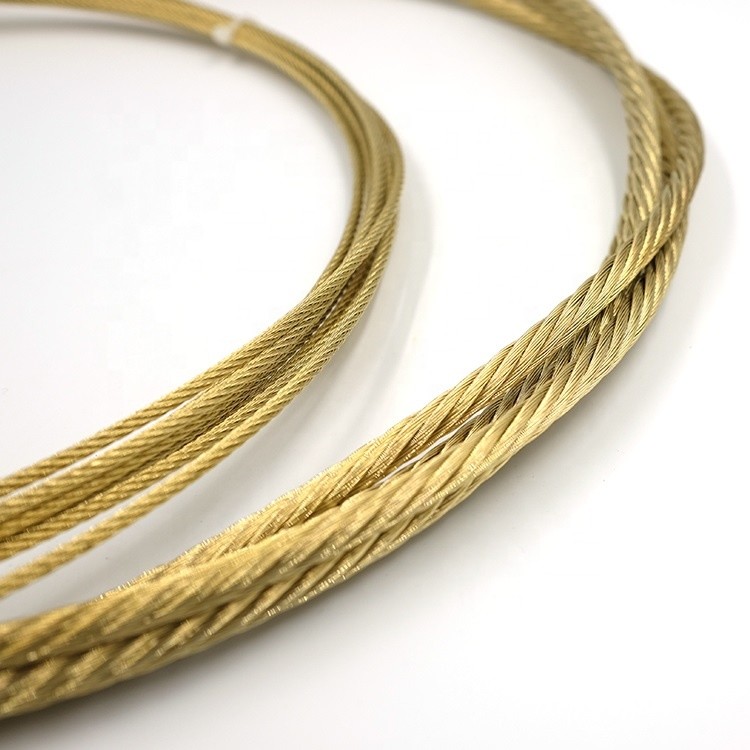

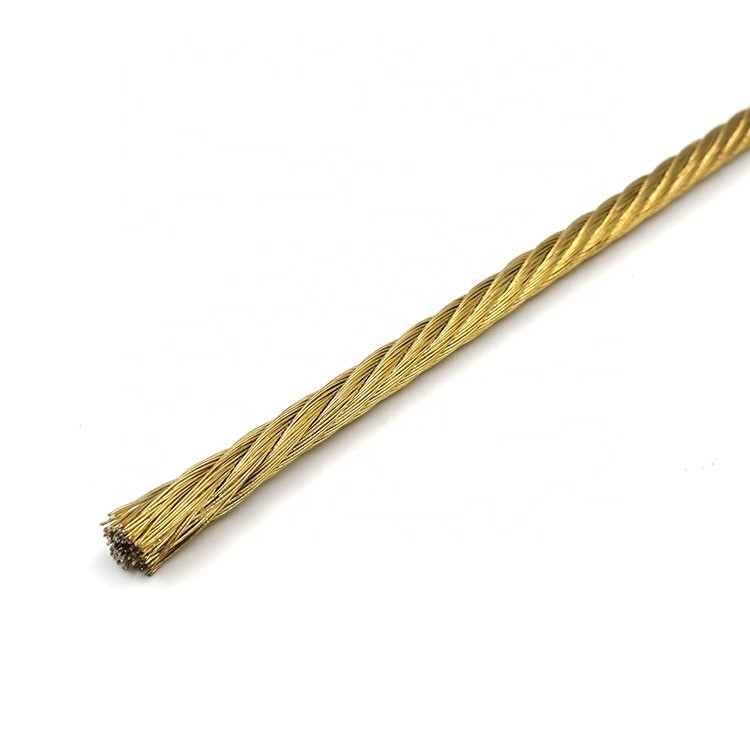

7x19 steel wire rope with copper coating

FAQ:

Q: Manufacturer or Trader?
A: We are manufacturer in wire industry for more than 20 years.

Q: Producing Capacity?
A: The producing capacity totally is 9, 000 tons per month. The producing capacity of this product is 1,500 tons per month.

Q: Main Market?
A: Our main market is foreign customers. 80% of the products are for exporting. The main countries are Japan, South Korea, South Asian area, Europe, America, Canada, and South America etc.

Q: What information should I provide when inquiring?
A: The diameter before pvc coating; after pvc coating, the requirement of the core wire like zinc coating, tensile strength, packing, colour

Q: What is the MOQ?
A: For quality checking, we accept small quantity order like one coil. For normal cooperation, we prefer FCL container quantity to ensure the safety of goods in transportation.

Q: What is the payment term?
A: T/T; L/C; D/P etc

Q: Free sample available?
A: Yes. Free sample within 2kg is available

Q: Third Party Inspection available?
A: Yes, available. The charges are on the buyer.
