Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | CCS,DNV,BV |
| Model Number: | LKS-SSWR1.6-7X7 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 500sets |
| Price: | USD0.5-1.5PER SET |
| Packaging Details: | Safety export wooden/plastic reel/as the requirement of customer. |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000pcs/week |
|
Detail Information |
|||
| Type: | Stainless Steel,steel Wire Rope,cable Suspending Kits | Steel Grade: | Carbon Steel 45# 60# 70#,Low Carbon Steel |
|---|---|---|---|
| Alloy Or Not: | Non-alloy | Application: | Rope,Construction,Manufacturing,vineyard,clothline |
| Wire Gauge: | 1.0mm-8mm | Standard: | GB,ASTM,DIN,AISI,BS |
| Special Use: | Free Cutting Steel | Tensile Strength: | 1570Mpa-1960Mpa |
| Material: | 45# /60#/70# High Carbon Steel,Stainless Steel 316/304 Or Carbon | Twist Direction: | RHRL,RHLL,LHRL,LHLL |
| High Light: |
wire rope cable,steel rope cable |
||
Product Description
【Specifications:】

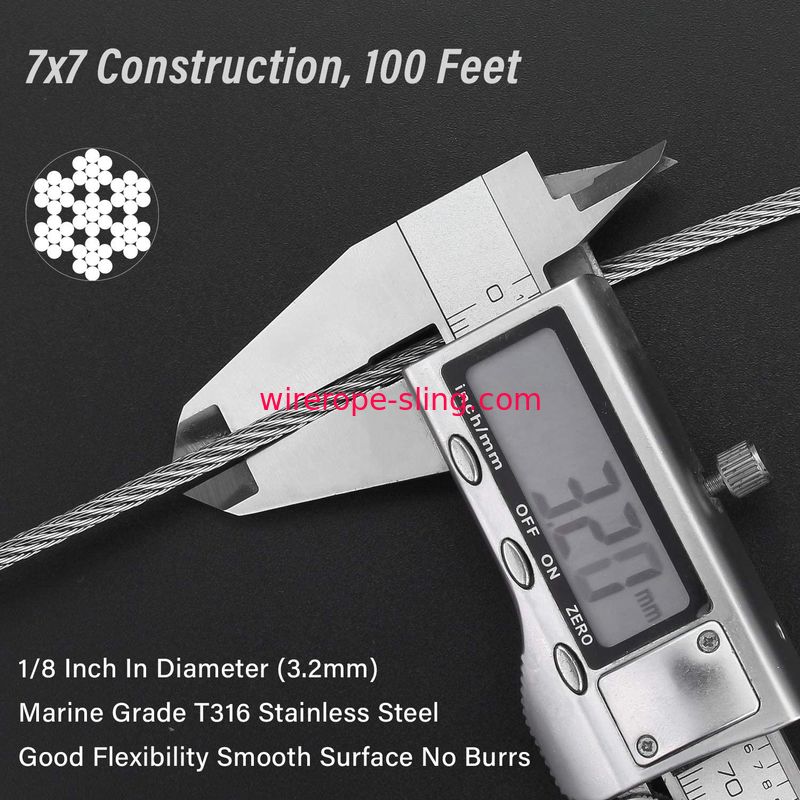

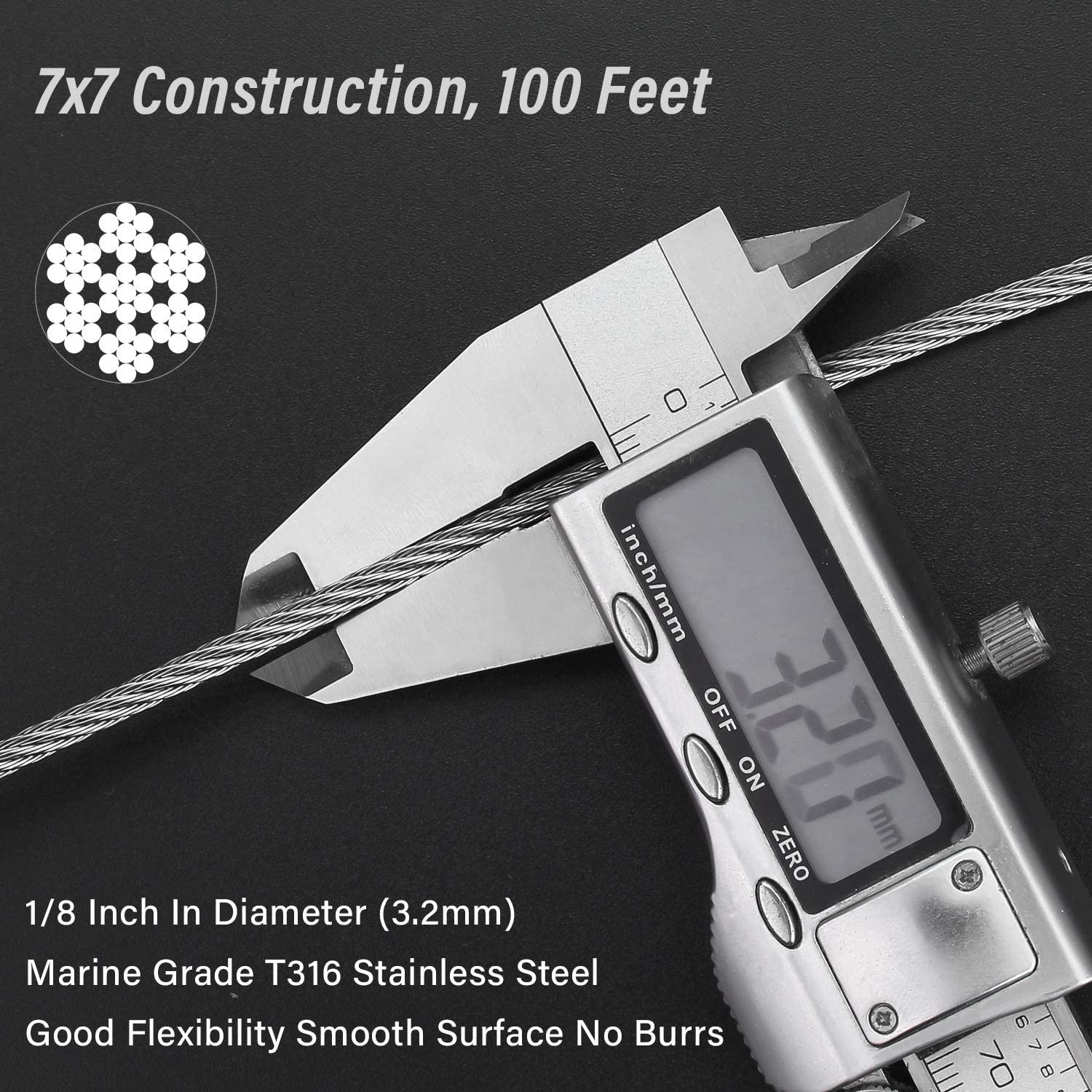

- Diameter: 1/8"
- Length: 100 Feet
- Construction: 7 x 7
- Breaking strength: 1780 LB

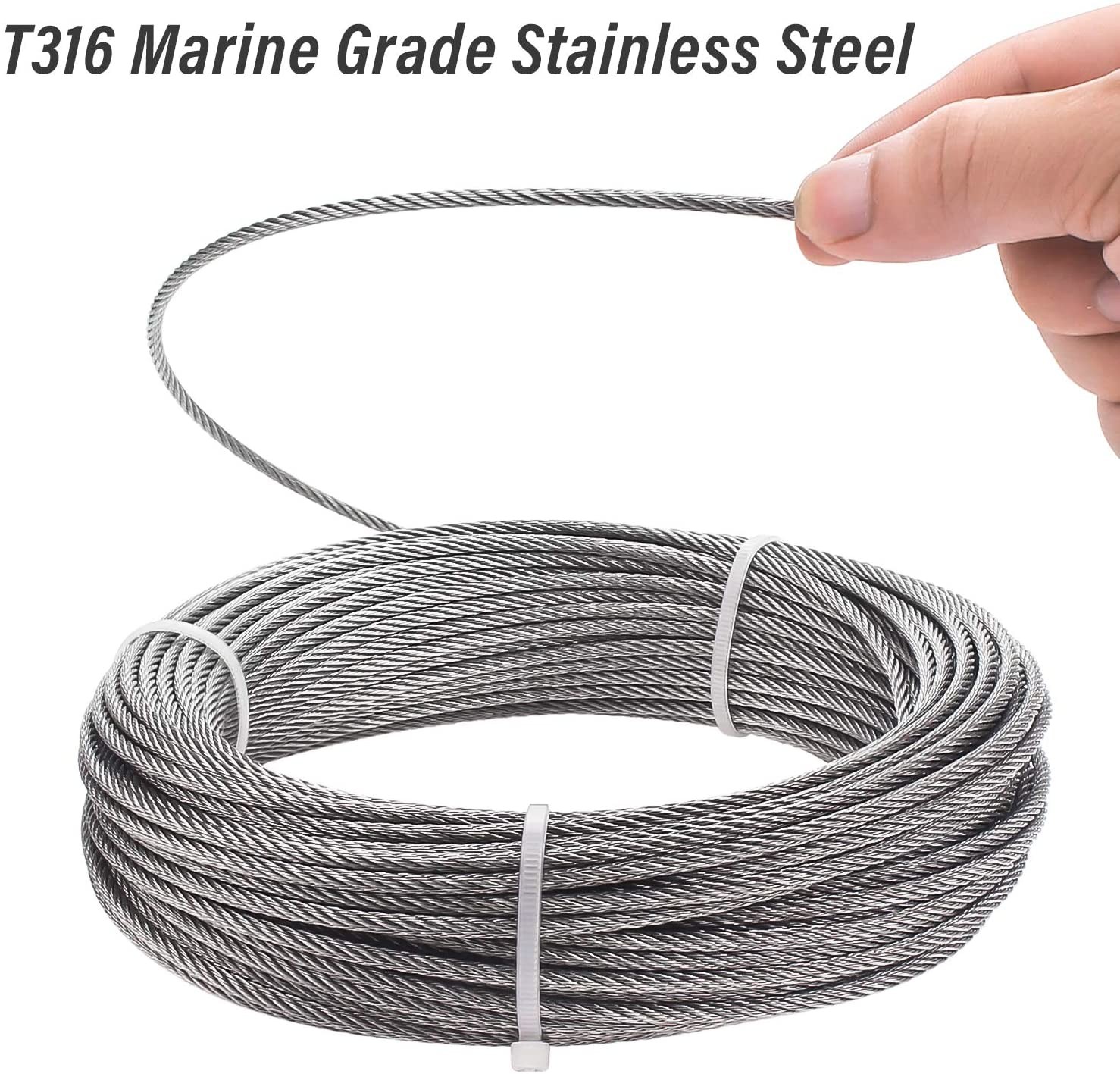

- Material: T316 Marine Grade Stainless steel
【Features:】

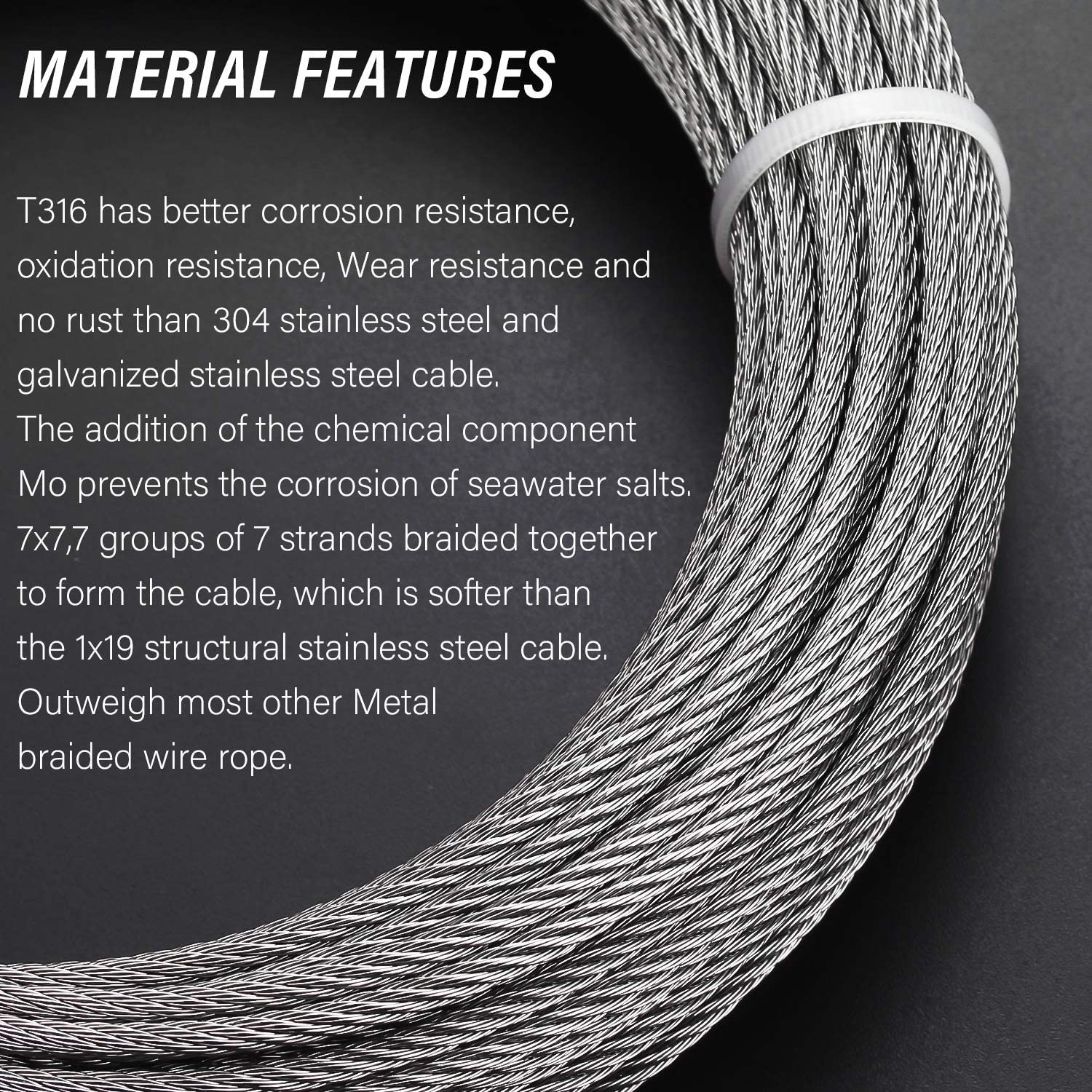

1, Made of Marine Grade T316 Stainless Steel (Better than 304 Stainless Steel), Wear resistance, Weather protection.
2, 7x7 Construction, 7 groups of 7 strands braided together to form the cable, which is softer than the 1x19 structural stainless steel cable. Outweigh most other Metal braided wire rope.
3, Perfect for both outdoor and indoor cable railing project, widely used for industrial and marine applications, for traction, tensioning, strapping, landscape and architectural use, DIY deck cable railing Balustrade handrail systems.
【Package Included:】

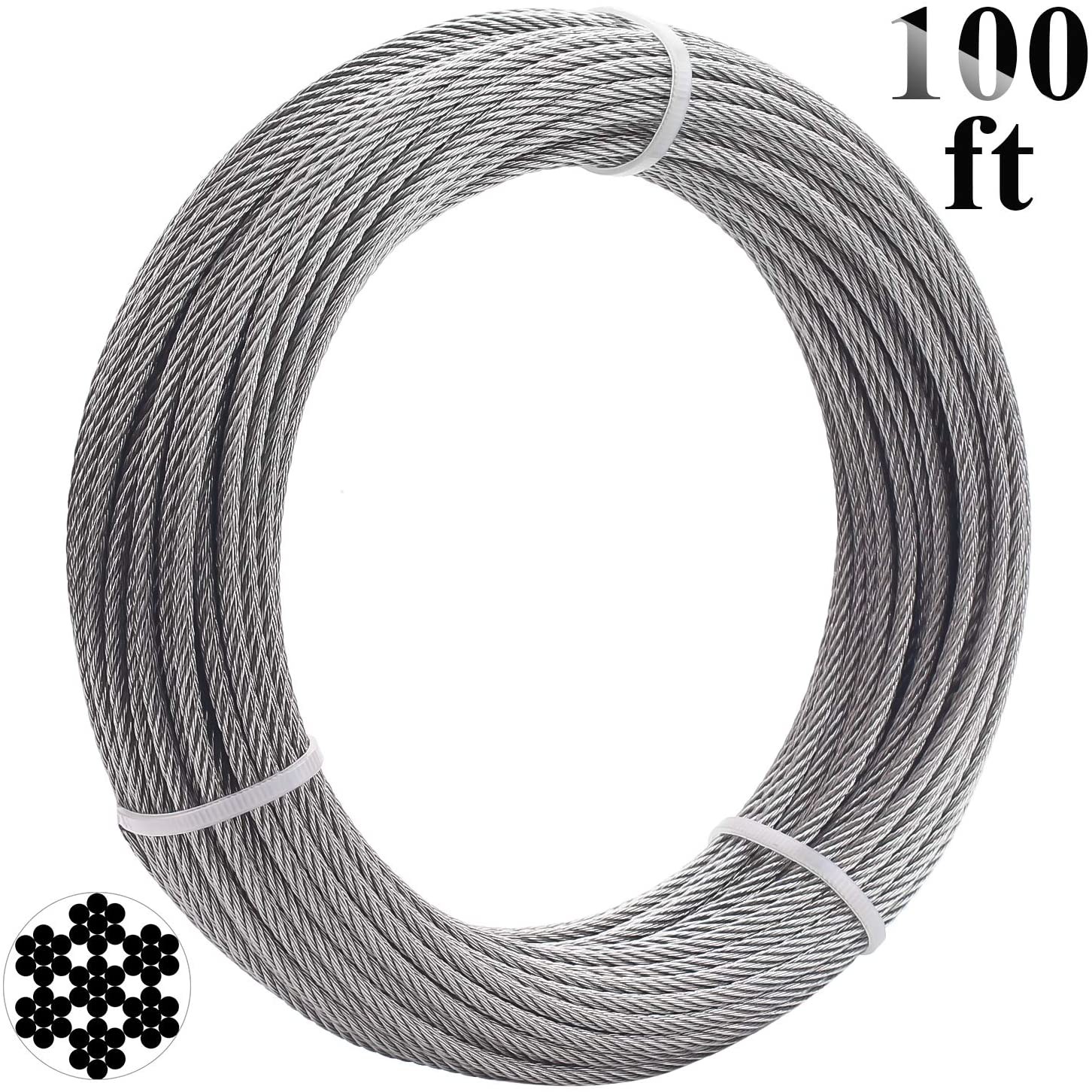

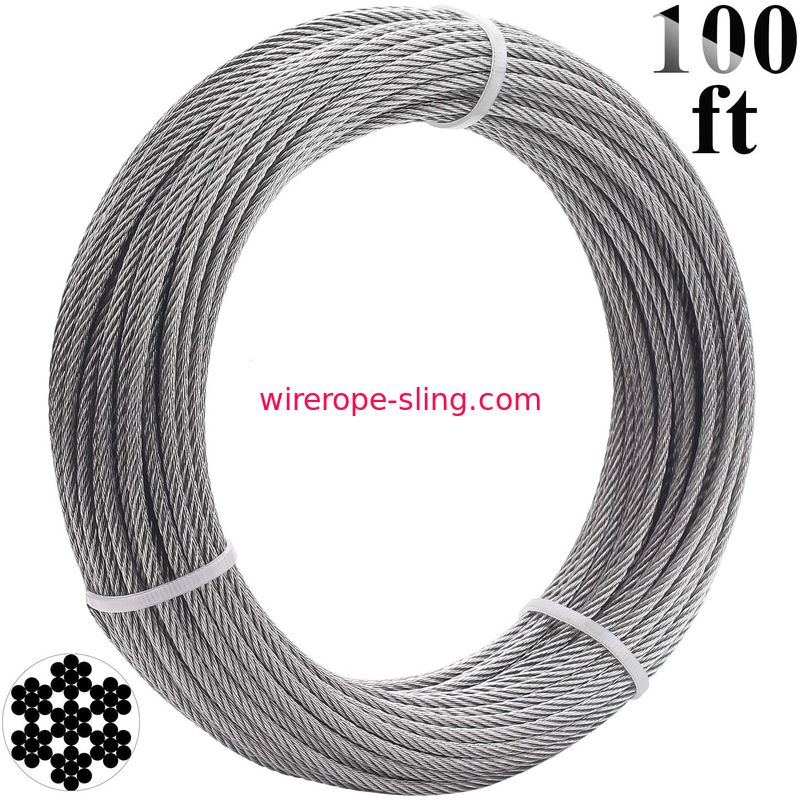

1 x T316 Marine Grade Stainless Steel Aircraft Wire Rope Cable 1/8 inch 7 x 7 construction, 100 Feet
What is the specification of our Stainless Steel Wire Rope?
| Diameter | Weight | Nominal Tensile Strength N/mm2 | ||||
| 1470 | 1570 | 1670 | 1770 | 1960 | ||
| mm | kg/100m | Minimum Breaking Force kN | ||||
| 0.45 | 0.08 | 0.107 | 0.114 | 0.122 | 0.129 | 0.143 |
| 0.5 | 0.10 | 0.132 | 0.141 | 0.150 | 0.159 | 0.176 |
| 0.6 | 0.14 | 0.191 | 0.203 | 0.216 | 0.229 | 0.254 |
| 0.7 | 0.20 | 0.259 | 0.277 | 0.295 | 0.312 | 0.346 |
| 0.8 | 0.26 | 0.339 | 0.362 | 0.385 | 0.408 | 0.452 |
| 0.9 | 0.32 | 0.429 | 0.458 | 0.487 | 0.516 | 0.572 |
| 1 | 0.40 | 0.529 | 0.565 | 0.601 | 0.637 | 0.706 |
| 1.2 | 0.58 | 0.762 | 0.814 | 0.866 | 0.918 | 1.016 |
| 1.5 | 0.90 | 1.191 | 1.272 | 1.353 | 1.434 | 1.588 |
| 1.6 | 1.02 | 1.355 | 1.447 | 1.539 | 1.631 | 1.806 |
| 1.8 | 1.30 | 1.715 | 1.831 | 1.948 | 2.065 | 2.286 |
| 2 | 1.60 | 2.117 | 2.261 | 2.405 | 2.549 | 2.822 |
| 2.4 | 2.30 | 3.048 | 3.256 | 3.463 | 3.670 | 4.064 |
| 3 | 3.60 | 4.763 | 5.087 | 5.411 | 5.735 | 6.350 |
| 3.2 | 4.10 | 5.419 | 5.788 | 6.156 | 6.525 | 7.225 |
| 3.5 | 4.90 | 6.483 | 6.924 | 7.365 | 7.806 | 8.644 |
| 4 | 6.40 | 8.467 | 9.043 | 9.619 | 10.195 | 11.290 |
| 4.5 | 8.10 | 10.716 | 11.445 | 12.174 | 12.903 | 14.288 |
| 5 | 10.00 | 13.230 | 14.130 | 15.030 | 15.930 | 17.640 |
| 6 | 14.40 | 19.051 | 20.347 | 21.643 | 22.939 | 25.402 |
| 8 | 25.60 | 33.869 | 36.173 | 38.477 | 40.781 | 45.158 |
| 10 | 40.00 | 52.920 | 56.520 | 60.120 | 63.720 | 70.560 |
| 12 | 57.60 | 76.205 | 81.389 | 86.573 | 91.757 | 101.606 |
wrapped with hard strong plywood spool , reel , bobbin . covered with waterproof paper and clear plastic to aovid water or dirt. 1000m/reel 1500m/reel 2000m/reel 2500m/reel 3000m/reel and other length for your choice
