Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | CCS,DNV,BV |
| Model Number: | LKS-SSWR1.6-7X7 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 500sets |
| Price: | USD0.5-1.5PER SET |
| Packaging Details: | Safety export wooden/plastic reel/as the requirement of customer. |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000pcs/week |
|
Detail Information |
|||
| Type: | Stainless Steel,steel Wire Rope,cable Suspending Kits | Steel Grade: | Carbon Steel 45# 60# 70#,Low Carbon Steel |
|---|---|---|---|
| Alloy Or Not: | Non-alloy | Application: | Rope,Construction,Manufacturing,vineyard,clothline |
| Wire Gauge: | 1.0mm-8mm | Standard: | GB,ASTM,DIN,AISI,BS |
| Special Use: | Free Cutting Steel | Tensile Strength: | 1570Mpa-1960Mpa |
| Material: | 45# /60#/70# High Carbon Steel,Stainless Steel 316/304 Or Carbon | Twist Direction: | RHRL,RHLL,LHRL,LHLL |
| High Light: |
wire rope cable,steel rope cable |
||
Product Description
If You Are Looking for A Long-lasting Solution for A Deck Railing Or Other DIY Projects, HOSOM 1/8 Stainless Steel Cable Will Get The Job Done.
Reasons for Choosing LKS Wire Cable Railing
Give a nice clean look to your deck railing.
The size 1/8" makes wire cable very easy to work with, more light weight, and remains very strong.
Deck Cable Railing can be used outdoors without worry of rusting.
Easy to work with for intended DIY cable rail/fence project.
LKS Stainless Steel Cable Railing
Great Corrosion Resistant
Strong Antioxidation
Good Wear-resistance
Excellent Welding Property
Remarkable Bearing Temperature
Flux Weakening
Features

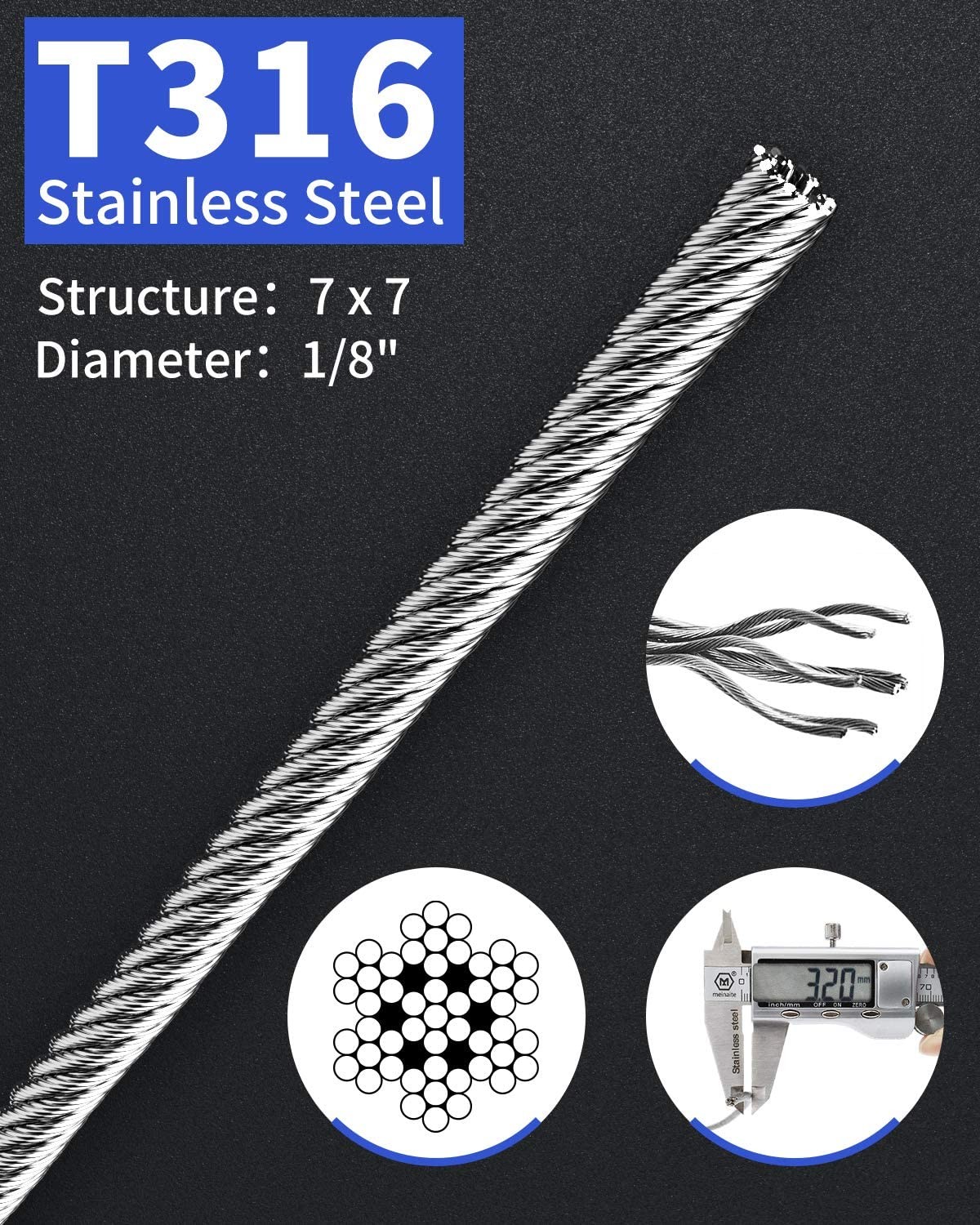

Materials: T316 Stainless Steel
Construction: 7x7 strand
Diameter: 1/8’’(3.2mm)

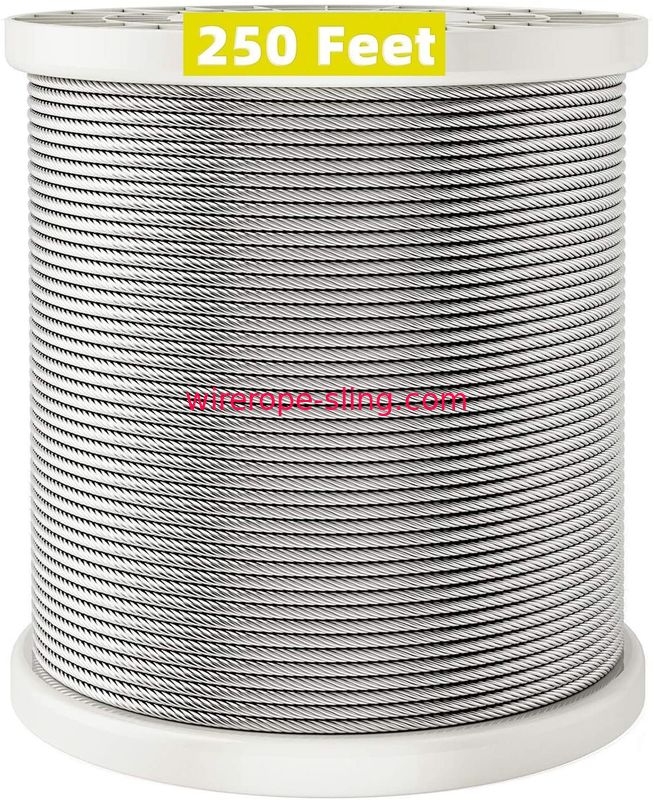

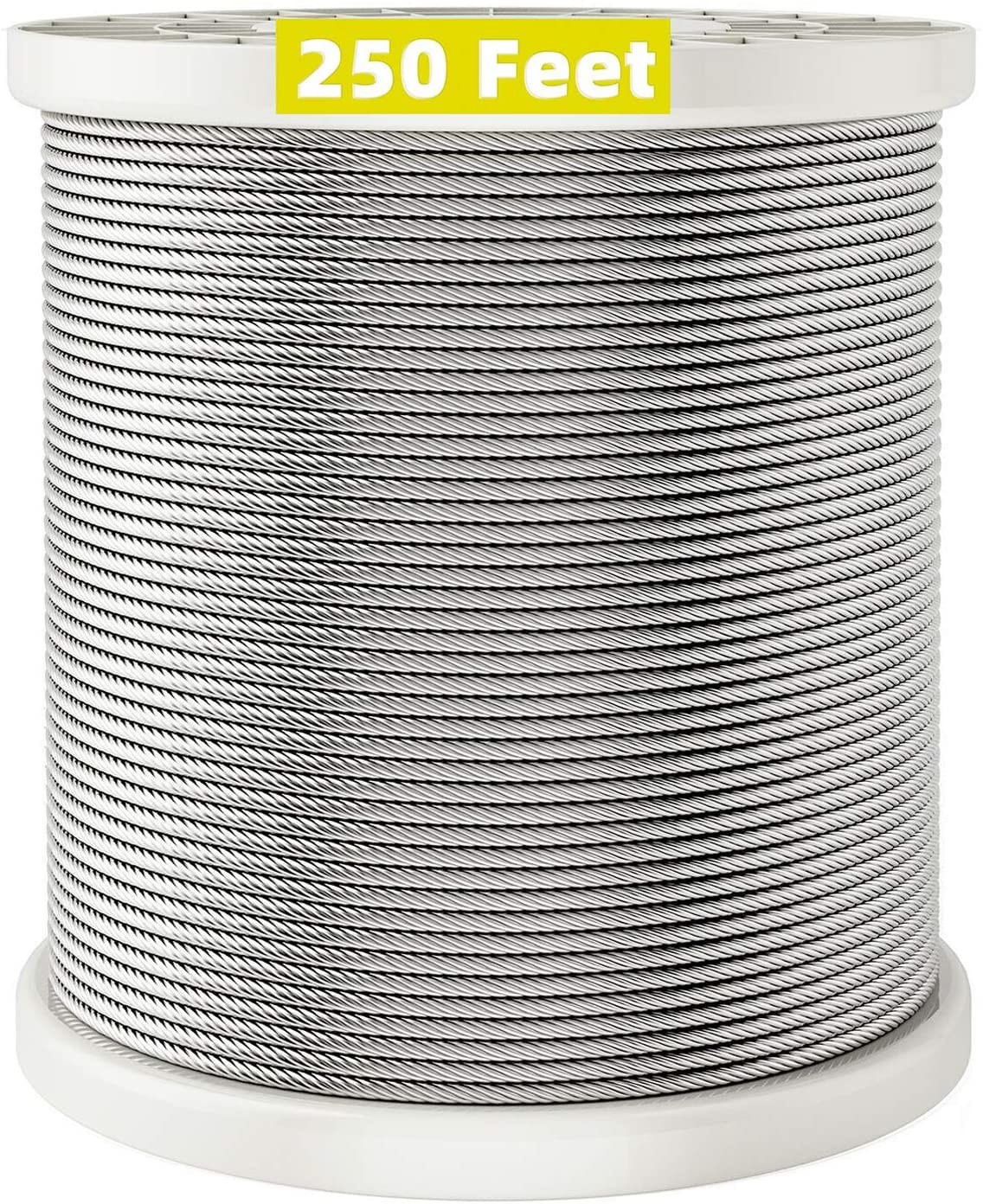

Length: 250ft
Breaking Strength: 1800lbs
Stainless Wire Rope Specifications
| Product Name | Stainless Wire Rope |
| Grade | 316 |
| Construction | 7x7 |
| Diameter | 3.2mm |
| Lay | Right Hand Regular Lay or Right Hand Ordinary Lay |
| Finish | Bright |
| Tensile Strength | 1570 N/mm2 |
| Packing | Hard Strong Plywood Reel |
| Length | 2500 meters |
| Diameter | Weight | Nominal Tensile Strength N/mm2 | ||||
| 1470 | 1570 | 1670 | 1770 | 1960 | ||
| mm | kg/100m | Minimum Breaking Force kN | ||||
| 0.45 | 0.08 | 0.107 | 0.114 | 0.122 | 0.129 | 0.143 |
| 0.5 | 0.10 | 0.132 | 0.141 | 0.150 | 0.159 | 0.176 |
| 0.6 | 0.14 | 0.191 | 0.203 | 0.216 | 0.229 | 0.254 |
| 0.7 | 0.20 | 0.259 | 0.277 | 0.295 | 0.312 | 0.346 |
| 0.8 | 0.26 | 0.339 | 0.362 | 0.385 | 0.408 | 0.452 |
| 0.9 | 0.32 | 0.429 | 0.458 | 0.487 | 0.516 | 0.572 |
| 1 | 0.40 | 0.529 | 0.565 | 0.601 | 0.637 | 0.706 |
| 1.2 | 0.58 | 0.762 | 0.814 | 0.866 | 0.918 | 1.016 |
| 1.5 | 0.90 | 1.191 | 1.272 | 1.353 | 1.434 | 1.588 |
| 1.6 | 1.02 | 1.355 | 1.447 | 1.539 | 1.631 | 1.806 |
| 1.8 | 1.30 | 1.715 | 1.831 | 1.948 | 2.065 | 2.286 |
| 2 | 1.60 | 2.117 | 2.261 | 2.405 | 2.549 | 2.822 |
| 2.4 | 2.30 | 3.048 | 3.256 | 3.463 | 3.670 | 4.064 |
| 3 | 3.60 | 4.763 | 5.087 | 5.411 | 5.735 | 6.350 |
| 3.2 | 4.10 | 5.419 | 5.788 | 6.156 | 6.525 | 7.225 |
| 3.5 | 4.90 | 6.483 | 6.924 | 7.365 | 7.806 | 8.644 |
| 4 | 6.40 | 8.467 | 9.043 | 9.619 | 10.195 | 11.290 |
| 4.5 | 8.10 | 10.716 | 11.445 | 12.174 | 12.903 | 14.288 |
| 5 | 10.00 | 13.230 | 14.130 | 15.030 | 15.930 | 17.640 |
| 6 | 14.40 | 19.051 | 20.347 | 21.643 | 22.939 | 25.402 |
| 8 | 25.60 | 33.869 | 36.173 | 38.477 | 40.781 | 45.158 |
| 10 | 40.00 | 52.920 | 56.520 | 60.120 | 63.720 | 70.560 |
| 12 | 57.60 | 76.205 | 81.389 | 86.573 | 91.757 | 101.606 |
