High tensile strength 4×31SW+FC Steel Wire Rope for Suspended Platform

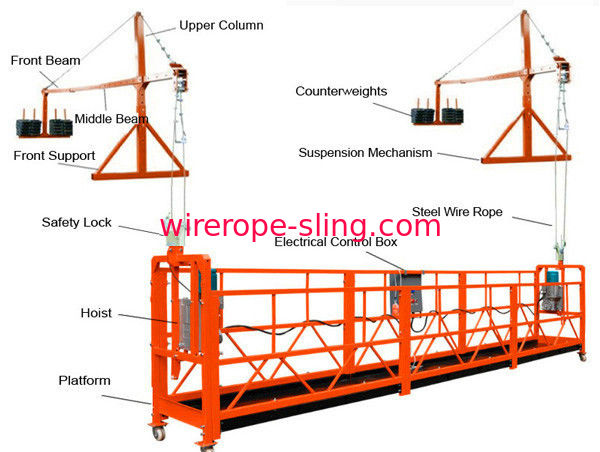

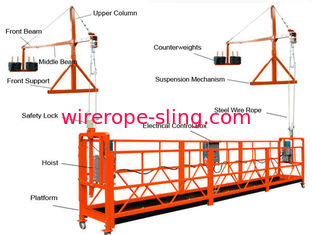

Suspended Platform And Working Platform are widely used for repairing work, maintenance of a building, installing the billboards on high rise towers, welding, cleaning and painting for large ships and more. Jaypee India uses high quality materials like stainless steel and aluminium to manufacture these suspended rope platform hoists. A stringent quality check is done to ensure the strength parameters and provide just the very best to the customers.

• Repairing, checking, maintenance and cleaning for the external wall of the high-rise building
• Construction, repairing and maintenance for large-scale projects such as large tank, chimney, dams, bridges, derrick
• Welding, cleaning and painting for large ships
• Installing billboard for the high-rise buildings

Safety Features:

Anti-Tilting Safety Lock for Rope Breakage.Electrical Control System.High Quality Steel Wire Rope.Optional Overload Sensor.3-8 Degree Cable Locking Angle.Advanced Suspension Mechanism

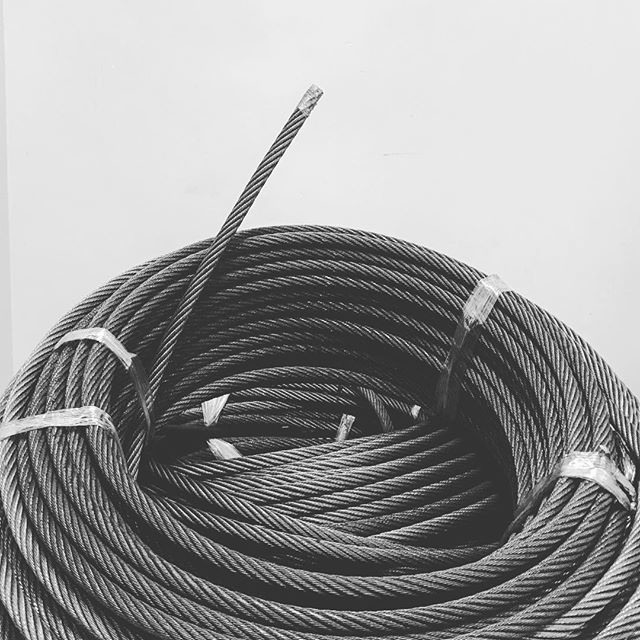

Suspended Platform Wire Rope



Suspended platform, a kind of temporary suspended access equipment, also known as suspended cradle or gondola, so this wire rope also called as cradle wire rope or gondola rope.

Application
Gondola Ropes are cables that are utilized in the temporary installation of suspended access equipment, window cleaning scaffolding, and manual hoisting equipment.

Characteristic
1. Made from high tensile strength steel wire.
2. Parallel construction, small diameter tolerance and highly flexible.

Product Structure

• 4×25Fi+FC
• 4×31SW+FC
• 6×19W-IWS
• 6×19S-IWRC



Specifications

4×25Fi+FC,4×31SW+FC
Nominal Diam(mm)	Nominal Tensile Strength.Mpa						Approximate Weight(kg/100m)
	1870	1960	2060	2160	2260	2360
	Min.Breaking Load.KN
8	41	43	45.2	47.4	49.6	51.8	24.3
8.3	44.2	46.3	48.7	51	53.4	55.8	26.4
8.6	47.1	49.3	51.9	54.4	56.9	59.4	28.3
9	51.3	53.8	54.5	59.3	61	64.8	32
9.5	57.3	60.1	63.1	66.2	69.3	72.3	35.5
10	63.6	66.7	70.1	73.5	76.9	80.3	39



6×19W+IWS,6×19S+IWR
Nominal Diam(mm)	Nominal Tensile Strength.Mpa						Approximate Weight(kg/100m)
	1870	1960	2060	2160	2260	2360
	Min.Breaking Load.KN
8	49.4	51.8	54.4	57.1	59.7	62.3	27
8.3	53	55.5	58.3	61.2	64	66.8	29.6
8.6	56.7	59.5	62.5	65.5	68.6	71.6	32.5
9	64.2	67.3	70.7	74.1	77.6	81	34.1
9.5	69.3	72.6	76.3	80	83.8	87.5	37.5
10	78.9	82.7	86.9	91.1	95.4	99.6	41.6
