China Wire Rope Sling manufacturer

Galvanised Compacted Wire Rope High Breaking Forces Fatigue Resistance

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE, CCS, Lloyd’s, ABS,DNV
Model Number: 16 x K7-PIWRC (K)
Payment & Shipping Terms:
Minimum Order Quantity: 1000mtrs
Price: USD1200 per Ton
Packaging Details: Wooden Reel or as request
Delivery Time: 10-15days
Payment Terms: L/C, T/T
Supply Ability: 1000tons monthly

Detail Information

Lay:RHOL,LHOL,RHLL,LHLLStandard:ASTM, BS, GB, JIS
Tensile Strength:1570,1670,1770,1870,1960MPALength:500mtrs/1000mtrs/2000mtrs Available
Packing:Wooden Reel,Steel ReelMaterial:Steel
Surface:Galvanized Or UngalvanizedAlloy Or Not:Non-alloy
High Light:

galvanized cable wire

,

galvanized steel wire rope

Product Description

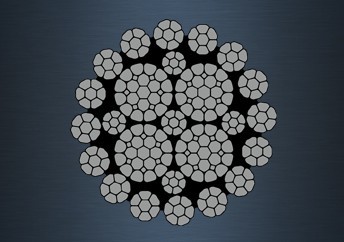

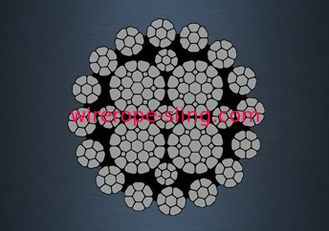

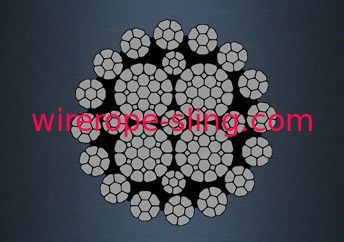

16 x K7-PIWRC (K) - Compacted Galvanized Steel Wire Rope for All Terrain Crane





Product Details





16 x K7-PIWRC (K) - Compacted Galvanized Steel Wire Rope features - due to its structure - optimum all-round characteristics combined with extremely high breaking forces. EVOLUTION TK17 was designed specific ally for use in challenging multilayer spooling conditions, especially also for small drum diameters.



►MULTILAYER SPOOLING

►SUPERFILL®

►PLASTFILL®





Specifications



  • 16 x K7-PIWRC (K), RCN 23-2
  • Lang‘s lay (also available as ordinary lay rope), right or left lay



Applications



  • Tower Crane
  • Crawler Crane
  • All Terrain Crane

.

Weight calculation and reference for steel wire rope of tower crane


There are many kinds of wire ropes for tower crane. The 6*37+FC wire rope was used as the main rope to lift the rope. With the development of the wire rope technology and the improvement of the production level of the wire rope, the wire rope of the tower crane has developed in the direction of resistance to fatigue and wear resistance and high breaking tension. Line contact wire rope structure 6*29Fi+IWR more, common wire rope specification 6*29Fi+IWRC-11mm, 12.5mm, 14mm; also useful for forging steel wire rope 4V*39S+5FC-12mm, 13mm, 14mm; the choice tower crane without rotating steel rope with 35W*7 and 18*7+FC over 50 meters, 35W*7 this structure is better than 18*7+FC, steel wire in the middle of steel. Wire update, more suitable for softness; common 5012/5013/5015 tower crane uses 35W*7-14mm structure; 6*29Fi+IWR tower crane wire rope weight such as 12.5mm 65kg; 35W*7-13MM wire rope 100 meters weight 78kg; all wire rope weight is only a reference value, not the actual weight of the wire rope, because of steel. The influence of wire rope diameter, rope rope core and oil immersion rate on the weight of wire rope of tower crane is up and down.




Technical Table



Galvanised Compacted Wire Rope High Breaking Forces Fatigue Resistance 0

Breaking Loads
Nominal Diameter Weight Minimum Breaking Loads
1770 Mpa 1960 Mpa 2160 Mpa
[mm] [kg/m] [kN] [Kg] [kN] [Kg] [kN] [Kg]
10 0.48 82 8,362 91 9,279 98 9,993
11 0.61 100 10,197 111 11,319 118 12,033
12 0.72 120 12,237 133 13,562 144 14,684
13 0.86 141 14,378 156 15,908 170 17,335
14 0.97 163 16,621 181 18,457 197 20,088
15 1.11 188 19,171 208 21,210 226 23,046
16 1.26 214 21,822 236 24,065 257 26,207
17 1.42 241 24,575 267 27,226 286 29,164
18 1.61 271 27,634 300 30,591 325 33,141
19 1.78 302 30,795 334 34,059 362 36,914
20 2.02 338 34,466 374 38,137 401 40,891
21 2.23 373 38,035 413 42,114 444 45,275
22 2.44 408 41,604 452 46,091 487 49,660
23 2.62 445 45,377 493 50,272 533 54,351
24 2.83 483 49,252 535 54,555 580 59,144
25 3.11 524 53,433 580 59,144 624 63,630
26 3.34 567 57,818 614 62,611 677 69,035
27 3.58 609 62,101 674 68,729 725 73,929
28 3.89 655 66,791 725 73,929 780 79,538
29 4.14 701 71,482 777 79,232 835 85,146
30 4.49 749 76,377 830 84,636 893 91,061
32 4.98 852 86,880 944 96,261 1016 103,603
34 5.62 958 97,689 1061 108,192 1141 116,350
