Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | CE / ISO9001:2008 |
| Model Number: | 6x36 (14/7+7/7/1) - IWRC |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1mtrs |
| Price: | USD5000/TON |
| Packaging Details: | Seaworthy packing or as request |
| Delivery Time: | 15 days after the order confirmation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100tons monthly |
|
Detail Information |
|||
| Steel Grade: | SAE1006,SAE1008,Q195,Q235 | Standard: | AISI, ASTM, BS, DIN, GB, JIS |
|---|---|---|---|
| Wire Gauge: | 0.2-14MM | Type: | Drawn Wire,Carbon Steel Wire |
| Alloy Or Not: | Non-alloy | Service: | OEM/ODM |
| Special Use: | Free Cutting Steel | Packaging: | In Coil And Pallet |
| High Light: |
coated stainless steel cable,stainless steel cable |
||
Product Description

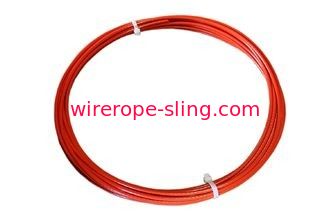

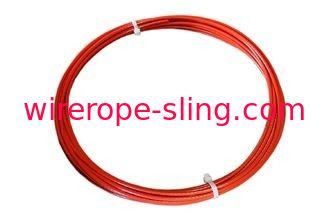

Cableware Division 302/304 Stainless Steel Braided Rope Nylon Coated 7x19 Strand Core
Nylon coated stainless & galvanised wire ropes & miniature wire ropes can be used for all non-aerospace applications & come in a variety of sizes & colours supplied with test certification. Nylon coating is quite easy to strip & can be coloured with almost any base colour (subject to quantity required). Nylon coating is suitable for working over sheaves - cable & coating life is very dependent upon the material, diameter & profile of the sheaves over which it runs.
Features;
Technical Date
| Bare Cable Diameter | Coated Cable Diameter | Galvanized Min. rated breaking strength |
Galvanized Nylon weight per 1,000 ft. |
Stainless Steel Min. rated breaking strength |
Stainless Steel Nylon weight per 1,000 ft. |
| 3/64' | 1/16” | 270lbs | 5.2lbs | ||
| 1/16" | 3/32” | 480lbs | 10.1lbs | 480lbs | 10.2lbs |
| 1/16" | 1/8” | 480lbs | 13.0lbs | 480lbs | 13.0lbs |
| 3/32' | 1/8” | 1000lbs | 20.0lbs | 920lbs | 20.0lbs |
| 3/32" | 5/32” | 1000lbs | 23.8lbs | 920lbs | 23.8lbs |
| 3/32" | 3/16” | 1000lbs | 28.3lbs | 920lbs | 28.3lbs |
| 1/8" | 5/32” | 2000lbs | 34.7lbs | 1760lbs | 34.7lbs |
| 1/8" | 3/16” | 2000lbs | 39.3lbs | 1760lbs | 39.3lbs |
| 5/32" | 7/32” | 2800lbs | 58.1lbs | 2400lbs | 58.1lbs |
| 3/16' | 1/4” | 4200lbs | 81.1lbs | 3700lbs | 81.1lbs |
| 3/16" | 5/16” | 4200lbs | 96.1lbs | 3700lbs | 96.1lbs |
| 7/32" | 9/32” | 5600lbs | 105.4lbs | 5000lbs | 105.4lbs |
| 1/4" | 5/16” | 7000lbs | 132.9lbs | 6400lbs | 132.9lbs |
| 1/4" | 7/16" | 7000lbs | 172.8lbs | 6400lbs | 172.8lbs |
| 5/16" | 3/8” | 9800lbs | 203.7lbs | 9000lbs | 203.7lbs |
| 5/16" | 7/16" | 9800lbs | 225.3 | 9000lbs | 225.3lbs |
| 3/8" | 7/16” | 14400lbs | 282.6lbs | 12000lbs | 282.6lbs |
| 3/8" | 1/2” | 14400lbs | 307.5lbs | 12000lbs | 307.5lbs |
RR-W-410
