Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | CE / ISO9001:2008 |
| Model Number: | 7x19 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1mtrs |
| Price: | USD5000/TON |
| Packaging Details: | Seaworthy packing or as request |
| Delivery Time: | 15 days after the order confirmation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100tons monthly |
|
Detail Information |
|||
| Steel Grade: | SAE1006,SAE1008,Q195,Q235 | Standard: | AISI, ASTM, BS, DIN, GB, JIS |
|---|---|---|---|
| Wire Gauge: | 0.2-14MM | Type: | Drawn Wire,Carbon Steel Wire |
| Alloy Or Not: | Non-alloy | Service: | OEM/ODM |
| Special Use: | Free Cutting Steel | Packaging: | In Coil And Pallet |
| High Light: |
coated stainless steel cable,stainless steel cable |
||
Product Description

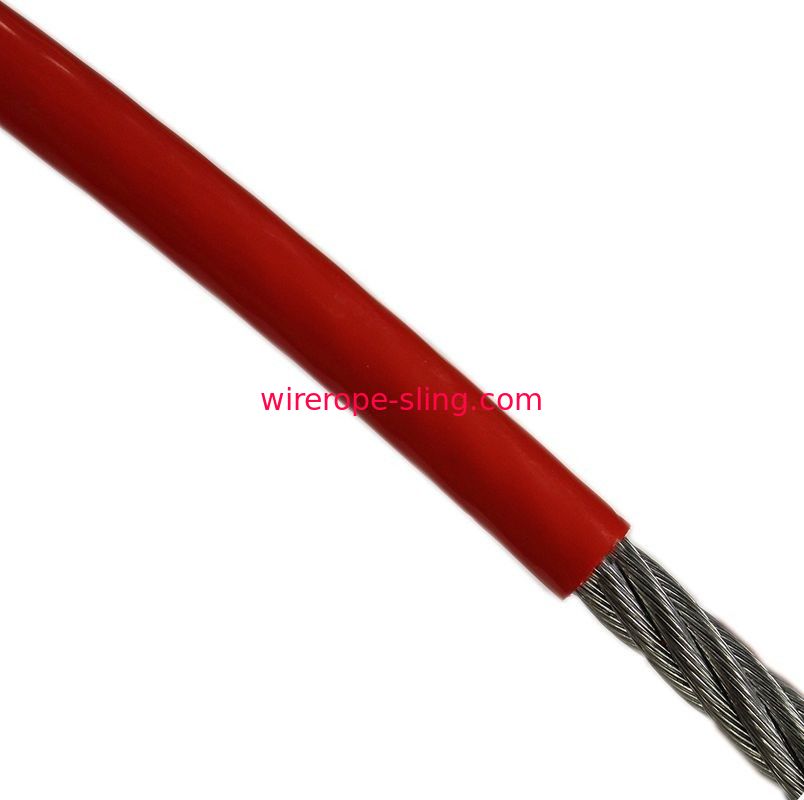

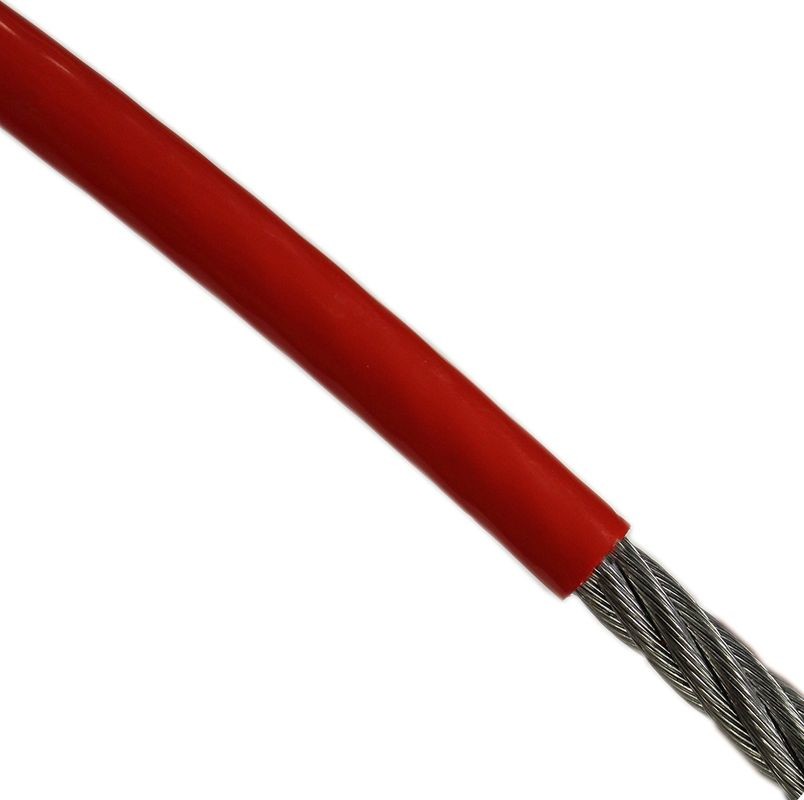

Metal Red nylon coated stainless steel wire rope 302/304 7x19 Strand Core

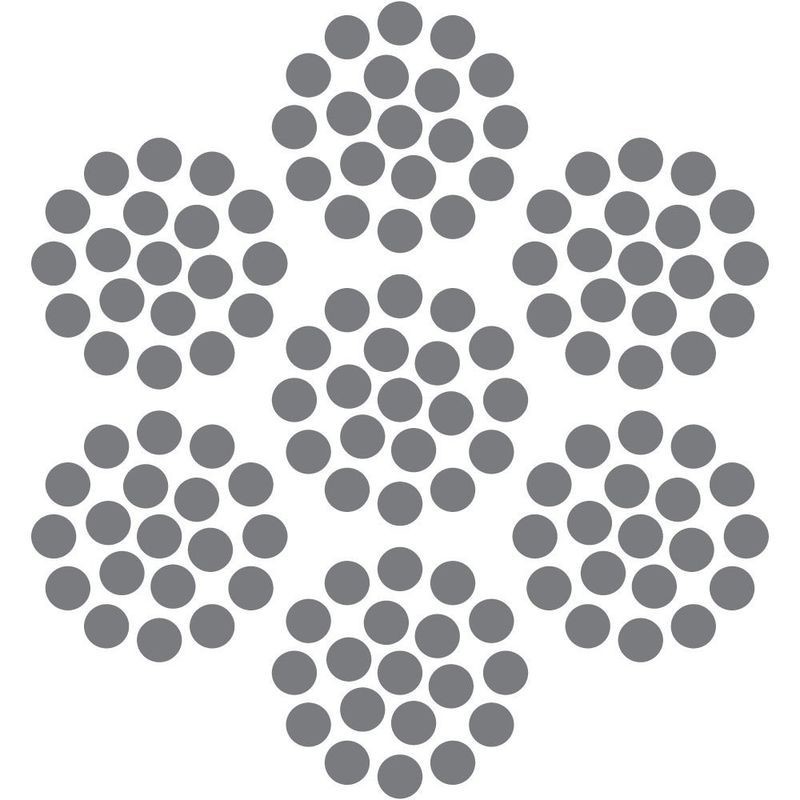

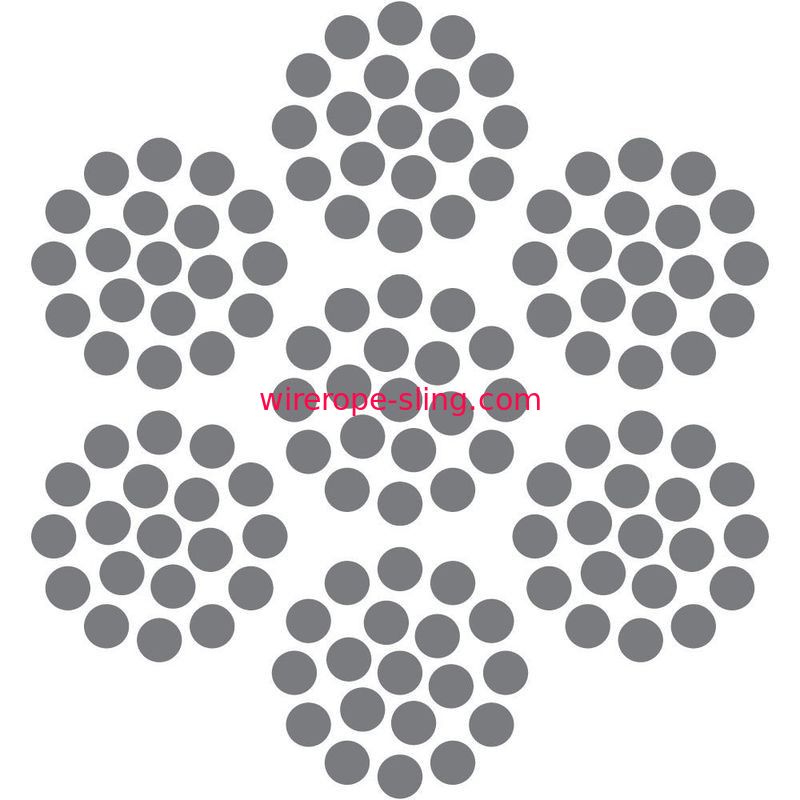

Nylon-coated, stainless steel wire rope with 7x19 standard construction can be used over pulleys, rigging, winches, in exercise equipment, garage door mechanics, and for yachting ropes and control cables. This wire rope is red-colored for ease of recognition. Stainless steel 304, also called 18-8, is corrosion-resistant, resists scaling, and withstands high temperatures for a wide range of operation. Stainless steel is a versatile material, commonly used in a wide variety of applications, and in saline atmospheres. Nylon coating is very strong, lightweight, and flexible, has excellent abrasion-resistance, and resists crushing and cracking. 7x19 strand core has seven strands of wire rope with nineteen wires in each strand formed helically around a strand core. 7x19 strand core is more flexible and fatigue-resistant than 7x7 class construction.
Features
.
Technical Data
| Bare Cable Diameter | Coated Cable Diameter | Galvanized Min. rated breaking strength |
Galvanized Nylon weight per 1,000 ft. |
Stainless Steel Min. rated breaking strength |
Stainless Steel Nylon weight per 1,000 ft. |
| 3/64' | 1/16” | 270lbs | 5.2lbs | ||
| 1/16" | 3/32” | 480lbs | 10.1lbs | 480lbs | 10.2lbs |
| 1/16" | 1/8” | 480lbs | 13.0lbs | 480lbs | 13.0lbs |
| 3/32' | 1/8” | 1000lbs | 20.0lbs | 920lbs | 20.0lbs |
| 3/32" | 5/32” | 1000lbs | 23.8lbs | 920lbs | 23.8lbs |
| 3/32" | 3/16” | 1000lbs | 28.3lbs | 920lbs | 28.3lbs |
| 1/8" | 5/32” | 2000lbs | 34.7lbs | 1760lbs | 34.7lbs |
| 1/8" | 3/16” | 2000lbs | 39.3lbs | 1760lbs | 39.3lbs |
| 5/32" | 7/32” | 2800lbs | 58.1lbs | 2400lbs | 58.1lbs |
| 3/16' | 1/4” | 4200lbs | 81.1lbs | 3700lbs | 81.1lbs |
| 3/16" | 5/16” | 4200lbs | 96.1lbs | 3700lbs | 96.1lbs |
| 7/32" | 9/32” | 5600lbs | 105.4lbs | 5000lbs | 105.4lbs |
| 1/4" | 5/16” | 7000lbs | 132.9lbs | 6400lbs | 132.9lbs |
| 1/4" | 7/16" | 7000lbs | 172.8lbs | 6400lbs | 172.8lbs |
| 5/16" | 3/8” | 9800lbs | 203.7lbs | 9000lbs | 203.7lbs |
| 5/16" | 7/16" | 9800lbs | 225.3 | 9000lbs | 225.3lbs |
| 3/8" | 7/16” | 14400lbs | 282.6lbs | 12000lbs | 282.6lbs |
| 3/8" | 1/2” | 14400lbs | 307.5lbs | 12000lbs | 307.5lbs |
RR-W-410
