Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | CE / ISO9001:2008 |
| Model Number: | 1x19 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1mtrs |
| Price: | USD5000/TON |
| Packaging Details: | Seaworthy packing or as request |
| Delivery Time: | 15 days after the order confirmation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100tons monthly |
|
Detail Information |
|||
| Service: | OEM/ODM | Special Use: | Free Cutting Steel |
|---|---|---|---|
| Wire Gauge: | 0.2-14MM | Type: | Drawn Wire,Carbon Steel Wire |
| Alloy Or Not: | Non-alloy | Steel Grade: | SAE1006,SAE1008,Q195,Q235 |
| Standard: | AISI, ASTM, BS, DIN, GB, JIS | Packaging: | In Coil And Pallet |
| High Light: |
coated stainless steel cable,stainless steel cable |
||
Product Description

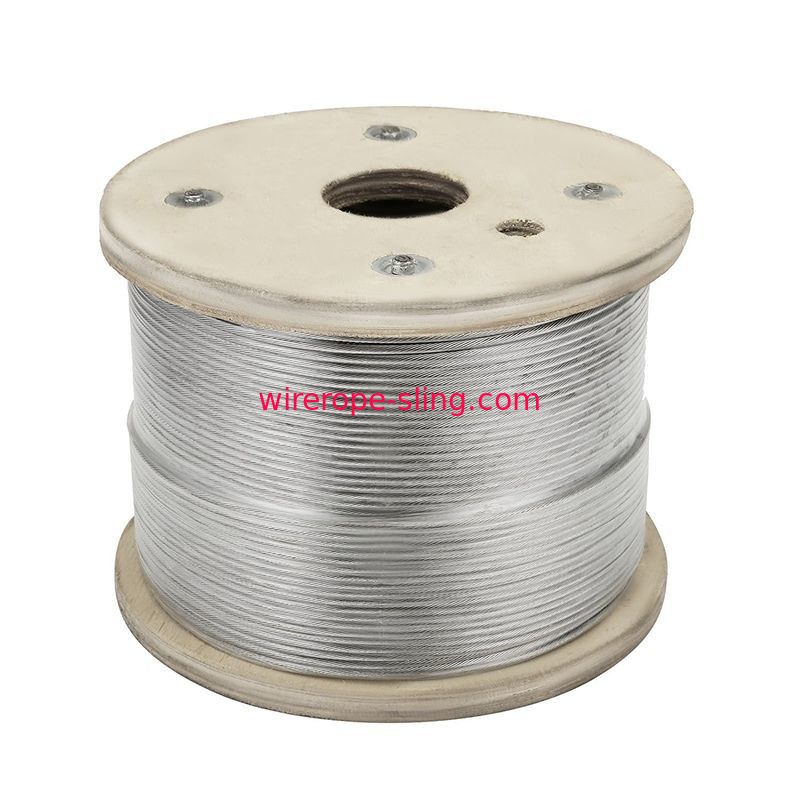

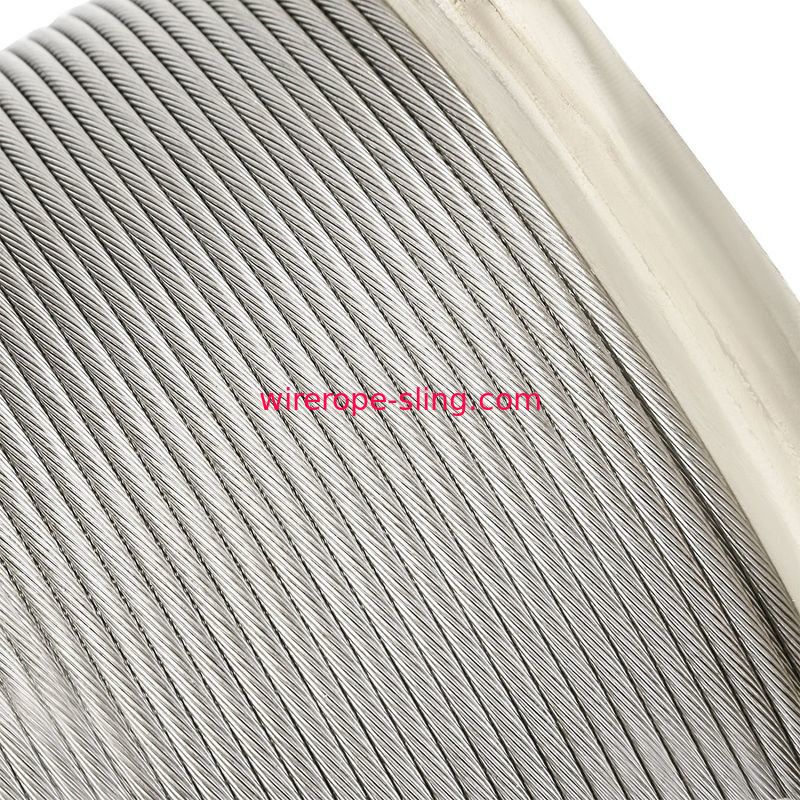

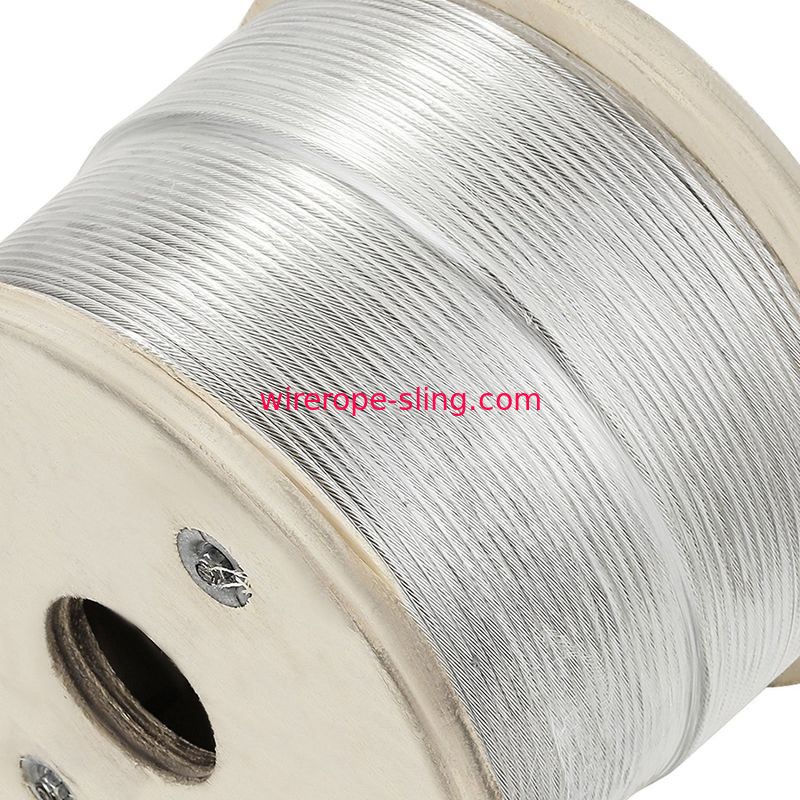

Cable Railing 1000ft Stainless Steel Wire Rope 1/8" Stranded 1x19 aircraft cable
1x19 AISI316 stainless steel strand is a very popular stainless steel construction. Used heavily throughout the marine industry, 1x19’s excellent breaking load and low stretch characteristics along with its’ aesthetic appeal make it a favourite for marine, structural and balustrade applications as well as many others, examples of which are shown below:
1000 Ft 1/8" 1x19 Cable Rail Wire Stainless Steel 316
Easy to install, prefabricated cable assemblies are inexpensive, attractive and easy to maintain alternative to commonly used metal and wood picket infill. Assemblies use 1/8" diameter high-strength, weather durable type 316 stainless steel cable and come in a wide range of standard lengths that can be quickie trimmed to size in the field. Each assembly includes a special, easy-to-use Threaded Terminal and Quick-Connect SS end fittings that remain concealed in your end posts, a washer-nut and two flat washers. The end result" an extremely durable, virtually invisible railing infill that leaves the view clear and unimpeded
Feature:
Cable is T316 marine grade stainless steel for maximum durability, strength and weather protection
Stainless Steel T316 commercial marine grade, superior strength & rust resistance over grade 304
1x19 strand core offers abrasion-resistance and is minimally flexible
11.14KN/2506lbs breaking strength; 1T/2204lbs working load limit
This type of cable is recommended for 1/8" cable railing fittings
The best type of cable for handrailings, fences and boat rigging
Not for aircraft use
Application:
Stainless steel wire rope use ornaments (necklaces, bracelets) with ultra-soft, non-soft, high-strength steel wire rope, motorcycle, bicycle, stainless steel wire rope, Rust wire rope and so on
Item Specification:
Material:316 Stainless Steel
1/8'' Diameter x 1000 Feet
Construction: 1x19 ; Minimum breaking strength: 2900 LBS
Please note:Do not exceed working load limit or 20% of the product's breaking strength
Packing size: 12X12X9inch/30X30X22cm
G.W.: 42lbs/19kg
Package Content
1 X T316 Stainless Steel Wire Rope 1/8", 1x19
Technical Table
| Breaking Loads | |||
| Nominal Diameter | Approximate Mass | Minimum breaking loads - 1570 Mpa | |
| [mm] | [kg/m] | [kN] | [Kg] |
| 2 | 0.019 | 3.14 | 320 |
| 2.5 | 0.03 | 4.9 | 499 |
| 3 | 0.043 | 7.06 | 719 |
| 4 | 0.078 | 12.6 | 1,284 |
| 5 | 0.122 | 19.6 | 1,998 |
| 6 | 0.176 | 28.2 | 2,875 |
| 7 | 0.239 | 34.8 | 3,548 |
| 8 | 0.312 | 45.5 | 4,639 |
| 9 | 0.395 | 57.6 | 5,873 |
| 10 | 0.488 | 71.1 | 7,250 |
| 11 | 0.591 | 86 | 8,769 |
| 12 | 0.703 | 102 | 10,401 |
| 14 | 0.957 | 139 | 14,174 |
| 16 | 1.25 | 182 | 18,558 |
| 19 | 1.76 | 212 | 21,617 |
| 22 | 2.36 | 285 | 29,061 |
| 26 | 3.3 | 398 | 40,584 |
