Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | CE / ISO9001:2008 |
| Model Number: | 7x7 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1mtrs |
| Price: | USD5000/TON |
| Packaging Details: | Seaworthy packing or as request |
| Delivery Time: | 15 days after the order confirmation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100tons monthly |
|
Detail Information |
|||
| Steel Grade: | SAE1006,SAE1008,Q195,Q235 | Standard: | AISI, ASTM, BS, DIN, GB, JIS |
|---|---|---|---|
| Wire Gauge: | 0.2-14MM | Type: | Drawn Wire,Carbon Steel Wire |
| Alloy Or Not: | Non-alloy | Service: | OEM/ODM |
| Special Use: | Free Cutting Steel | Packaging: | In Coil And Pallet |
| High Light: |
coated stainless steel cable,stainless steel cable |
||
Product Description

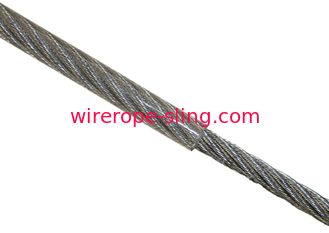

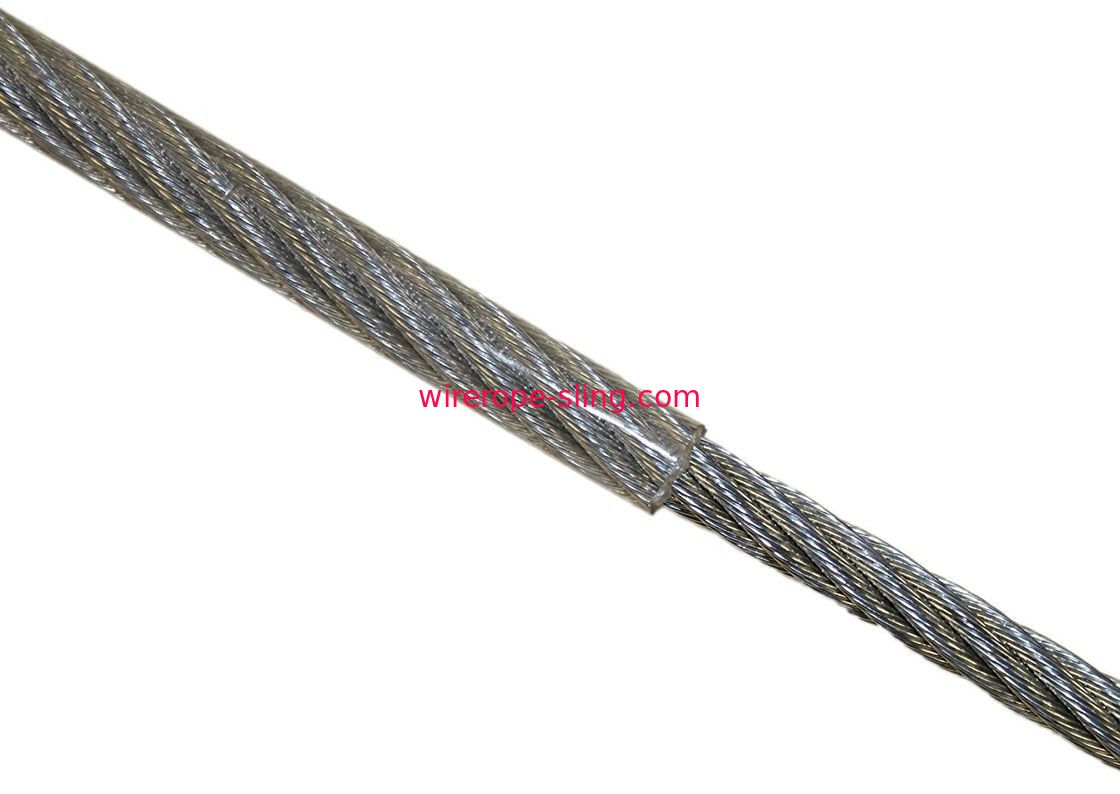

302/304 7x7 stainless steel wire rope 1/16" Bare OD-1/8" Coated OD Clear Vinyl Coated
Manufactruring extrudes a variety of jacketing types for strand, aircraft cable and wire rope. We manufacture custom coatings to specific diameters in a wide range of colors to meet your specific demands. Adding a jacket to your cable or wire rope provides extra durability and helps increase the lifespan of the cable or wire rope. Sandin Manufacturing has the capability to extrude bare cable from .014" diameter to .625" diameter.
Coated cable is available in various types of nylon, UV resistant vinyl, polyethylene, polypropylene, and hytrel. Custom color matching is available for the different coatings.
Stainless steel 304, uncoated wire rope, with 7x7 standard construction, is used in pulleys, and in aircraft and automotive controls. Stainless steel 304, also called 18-8, is corrosion-resistant, and withstands high temperatures for a wide range of operation. Stainless steel 304 is a versatile material, commonly used in a wide variety of applications, and in saline atmospheres. Vinyl, also called Polyvinyl Chloride (PVC), is corrosion-resistant, lightweight, and has high strength. It resists reactions with acids, gasolines, alcohol, and hydrocarbons. It is flexible, and is resistant to weather and ultra-violet (UV) rays. Vinyl coating is a hard, durable plastic that resists most chemicals, has excellent dimensional stability, and can be sterilized. It resists oil, has absorbs low levels of moisture, and is non-conductive. 7x7 strand core has seven strands of wire rope with seven wires in each strand, formed helically around a strand core. 7x7 strand core is stronger but less flexible than 6x19 and 6x36 class constructions.
| Bare Cable Diameter | Coated Cable Diameter | Galvanized Min. rated breaking strength |
Galvanized PVC weight per 1,000 ft. |
Stainless Steel Min. rated breaking strength |
Stainless Steel PVC weight per 1,000 ft. |
| 1/32" | 3/64” | 110lbs | 2.3lbs | 110lbs | 2.3lbs |
| 3/64" | 1/16” | 270lbs | 5.2lbs | 270lbs | 5.2lbs |
| 1/16" | 3/32” | 480lbs | 10.1lbs | 480lbs | 10.1lbs |
| 1/16" | 1/8” | 480lbs | 13.0lbs | 480lbs | 13.0lbs |
| 3/32" | 1/8” | 920lbs | 20.0lbs | 920lbs | 20.0lbs |
| 3/32" | 5/32” | 920lbs | 23.8lbs | 920lbs | 23.8lbs |
| 3/32" | 3/16” | 920lbs | 28.3lbs | 920lbs | 28.3lbs |
| 1/8" | 5/32” | 1700lbs | 34.2lbs | 1700lbs | 34.2lbs |
| 1/8" | 3/16" | 1700lbs | 38.8lbs | 1700lbs | 38.8lbs |
| 1/8" | 1/4” | 1700lbs | 50.4lbs | 1700lbs | 50.4lbs |
| 5/32" | 7/32” | 2600lbs | 56.1lbs | 2600lbs | 56.1lbs |
| 3/16" | 1/4" | 3700lbs | 78.1lbs | 3700lbs | 78.1lbs |
| 3/16" | 5/16” | 3700lbs | 93.1lbs | 3700lbs | 93.1lbs |
| 1/4" | 5/16" | 6100lbs | 128.9lbs | 6100lbs | 128.9lbs |
RR-W-410
