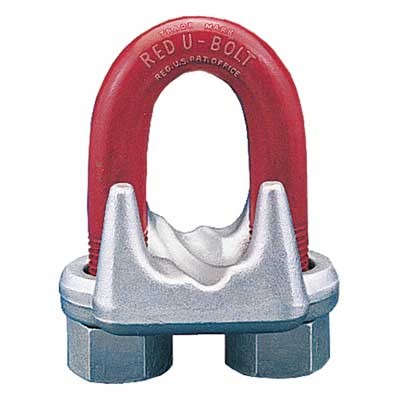

US G450 Wire Rope Clamps Clips Red Painted Endurable Corrode Steel Color

• The best-known wire rope clip in the industry
• Each base has a Product Identification Code (PIC) for material traceability, the name CROSBY or CG, and its size forged into it
• Achieves 80% efficiency of published wire rope breaking strength
• Entire clip is galvanized to resist corrosion
• Each is clip is bagged or tagged with proper identification information
• Satisfies ASME B30.26 requirements
• Meets Federal Specification FF-C-450 Type I, Class 1

Proper use of Wire Rope Clips

1. Refer to the illustration below in following these instructions. Turn back specified amount of rope from thimble or loop. Apply first clip on base width from dead end of rope. Apply U-bolt over dead end of wire rope – live end rests in saddle. Tighten nuts evenly, alternate from one nut to the other until reaching the recommended torque.
2. When two clips are required, apply the second clip as near the thimble or loop as possible. Tighten nuts evenly, alternating until reaching the recommended torque. When more than two clips are required, apply the second clip as near the loop or thimble as possible, turn nuts on second clip firmly, but do not tighten. Proceed to Step 3.
3. When three or more clips are required, space additional clips equally between the first two – take up rope slack – tighten nuts on each U-bolt evenly, alternating from one nut to the other until reaching the recommended torque.
4. Apply initial load equal to loads expected in use. Inspect for proper orientation and spacing of clips and retighten the nuts to recommended torque.
