Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | CE / ISO9001:2008 |
| Model Number: | 1x19 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1mtrs |
| Price: | USD5000/TON |
| Packaging Details: | Seaworthy packing or as request |
| Delivery Time: | 15 days after the order confirmation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100tons monthly |
|
Detail Information |
|||
| Steel Grade: | 300 Series | Standard: | AISI, ASTM, BS, DIN, GB, JIS |
|---|---|---|---|
| Wire Gauge: | 0.6mm-10mm | Type: | Drawn Wire,Carbon Steel Wire |
| Alloy Or Not: | Non-alloy | Special Use: | Cold Heading Steel |
| Certificate: | ISO, SGS | Packaging: | In Coil And Pallet |
| High Light: |
coated stainless steel cable,stainless steel cable |
||
Product Description

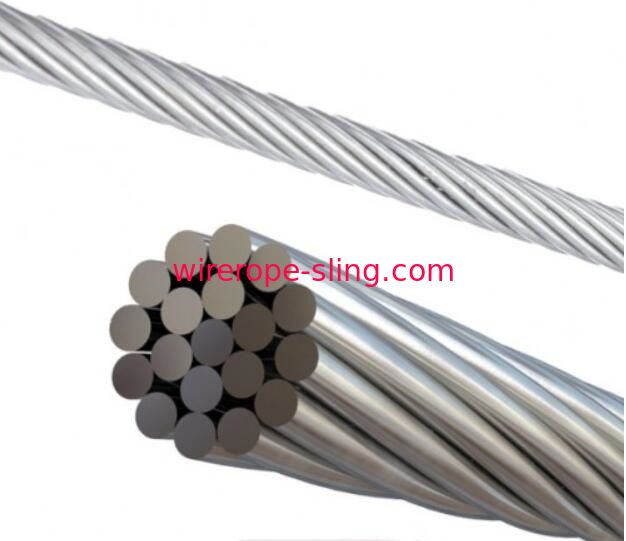

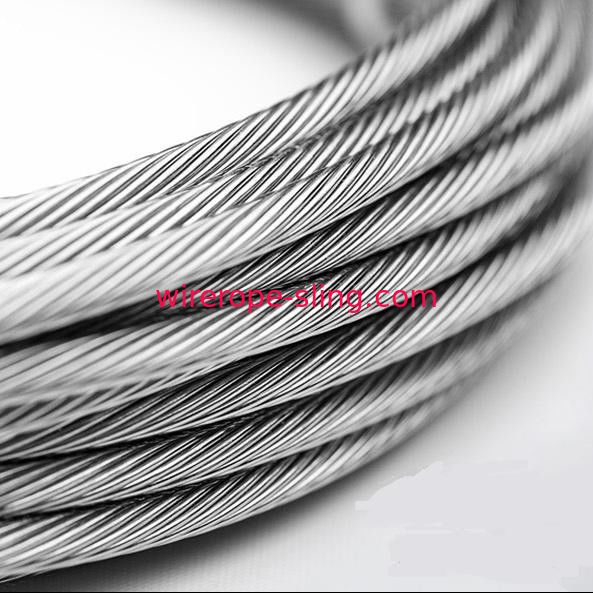

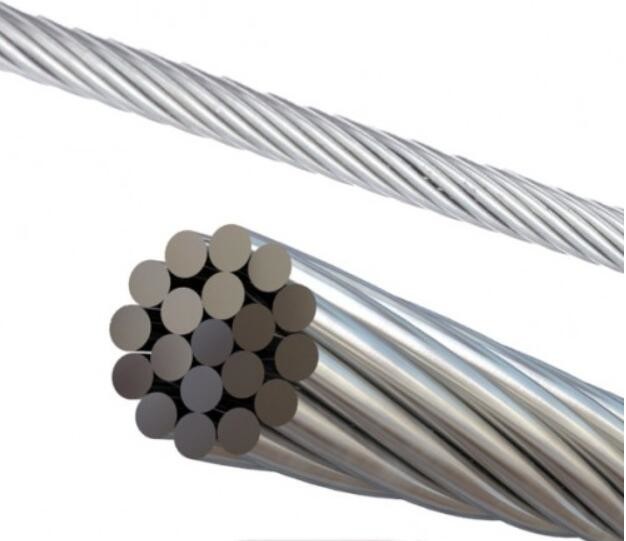

LKS supplies an ultra-high quality 316 marine grade Stainless Steel Wire Rope produced by a single manufacturer with over 40 years of experience. 1 x 19 strand stainless steel wire rope is the least flexible, multi-purpose wire rope with a braided surface and bright finish, suitable for most applications including shade structures, shade umbrellas and sail, wire balustrades, architectural rigging and green-walls or cable trellis. 1 x 19 Wire Rope ends should be swaged with a hydraulic swage press.
LKS stocks a range of wire rope that comes in a variety of sizes from 1.2mm – 16.0mm and are constructed and supplied in 7 x 7, 7 x 19 or 1 x 19. Wire Rope can be purchased by the meter or in 305-metre rolls. LKS also supplies a limited range of 1000 meter rolls.
supply ability:500 Ton/Tons per Month
Packaging Details
Export packaging, or according to customer requirements
Port
Shanghai
Lead Time :
Shipped in 30 days after payment
2018 Bestselling stainless steel 1x19 wire rope
Main Feature:
1. Material: Stainless steel.
2. Standard: DIN, GB, EN12385-4, AISI, BS, ASTM, JIS etc
3. T/S: 1470MPA, 1570MPA
4. Application: Crane, lifting, hoist, marine, etc.
5.Certification: ISO and SGS.
6.Diameter:1mm to 50mm
Main Product:
Stainless steel wire, stainless steel wire rope, PVC/Nylon/PE coated stainless steel wire rope.
| Chemical Composition of common Stainless Steel | ||||||||
| % | ||||||||
| Component | C | Si | Mn | P | S | Cr | Ni | Mo |
| 304 | MAX 0.08 | MAX 1.00 | MAX 2.00 | MAX 0.045 | MAX 0.03 | 17.00-19.00 | 8.00-10.00 | |
| 304L | MAX 0.03 | MAX 1.00 | MAX 2.00 | MAX 0.045 | MAX 0.03 | 18.00-20.00 | 8.00-10.00 | |
| 316 | MAX 0.08 | MAX 1.00 | MAX 2.00 | MAX 0.045 | MAX 0.03 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 |
| 316L | MAX 0.03 | MAX 1.00 | MAX 2.00 | MAX 0.045 | MAX 0.03 | 16.00-18.00 | 12.00-15.00 | 2.00-3.00 |
| Breaking Loads | |||
|---|---|---|---|
| Nominal Diameter | Approximate Mass | Minimum breaking loads - 1570 Mpa | |
| [mm] | [kg/m] | [kN] | [Kg] |
|
2.0
|
0.019
|
3.14 | 320 |
|
2.5
|
0.030
|
4.90 | 499 |
|
3.0
|
0.043
|
7.06 | 719 |
|
4.0
|
0.078
|
12.6 | 1,284 |
|
5.0
|
0.122
|
19.6 | 1,998 |
|
6.0
|
0.176
|
28.2 | 2,875 |
|
7.0
|
0.239
|
34.8 | 3,548 |
|
8.0
|
0.312
|
45.5 | 4,639 |
|
9.0
|
0.395
|
57.6 | 5,873 |
|
10.0
|
0.488
|
71.1 | 7,250 |
|
11.0
|
0.591
|
86.0 | 8,769 |
|
12.0
|
0.703
|
102.0 | 10,401 |
|
14.0
|
0.957
|
139.0 | 14,174 |
|
16.0
|
1.250
|
182.0 | 18,558 |
|
19.0
|
1.760
|
212.0 | 21,617 |
| 22.0 | 2.360 | 285.00 | 29,061 |
| 26.0 | 3.300 | 398.00 | 40,584 |
