304 / 316 Stainless Steel Cable Wire Rope 7x19 Flexible For Goods Shelf / Pet Cage

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE / ISO9001:2008
Model Number: 7X19
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD5000/TON
Packaging Details: Seaworthy packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Steel Grade:300 SeriesStandard:AISI, ASTM, BS, DIN, GB, JIS
Wire Gauge:0.6mm-10mmType:Drawn Wire,Carbon Steel Wire
Alloy Or Not:Non-alloySpecial Use:Cold Heading Steel
Certificate:ISO, SGSPackaging:In Coil And Pallet
High Light:

coated stainless steel cable

,

stainless steel cable

Product Description



304 / 316 Stainless Steel Wire Rope 7x19 Flexible For Goods Shelf / Pet Cage

Product Details





Quick Detail:



Grade: 304 stainless steel wire rope

Structure: 7*19S+Fc/7*19S+IWR/7*19W+ISR

Diameter: 1- 50mm

Standard: DIN, GB, EN12385-4, AISI, BS, ASTM, JIS etc

T/S: 1570MPA, 1670MPA, 1770MPA, 1870MPA, 1960MPA

304 / 316 Stainless Steel Cable Wire Rope 7x19 Flexible For Goods Shelf / Pet Cage 0

ROPE COMPONENTS

WIRE

The smallest component of a rope.

STRAND

The element of a rope that is composed of a construction of wires which are helically stranded in the same direction in one or more layers around a core.

304 / 316 Stainless Steel Cable Wire Rope 7x19 Flexible For Goods Shelf / Pet Cage 1

CORE

The element in the middle of a round rope, around which the strands of a stranded rope or the ropes of a cable laid rope are helically stranded.

Fibre core FC

  • Natural fibre core NFC
  • Synthetic fibre core SFC

Steel core WC

  • Wire strand core WSC
  • Independent wire rope core IWRC
ROPE

Combination of core and strands.

304 / 316 Stainless Steel Cable Wire Rope 7x19 Flexible For Goods Shelf / Pet Cage 2

1 - Rope
2 - Core strand/rope
3 - Strand
4 - Wire

CLASSIFICATION ACCORDING TO INTENDED USE

RUNNING ROPES

Ropes that run over rollers, discs or reels and thus assume their bend.
Examples: hoisting ropes, crane ropes, lift ropes, scraper ropes and haulage ropes for cable cars.

STANDING ROPES

Ropes which are for the most part firmly clamped and not moved over rollers.
Examples: anchoring ropes for masts and booms and guide cables for lifts.

CARRYING ROPES

Ropes on which rolls of conveying devices run.
Examples: carrying ropes for cable cars, cable cranes and gravity return scrapers.

LIFTING SLINGS

Description:



Stainless steel wire rope:


1. Standard: DIN, GB, EN12385-4, AISI, BS, ASTM, JIS etc
2. Diameter: from 1 mm to 32mm
3. T/S: 1570MPA, 1670MPA, 1770MPA, 1870MPA, 1960MPA

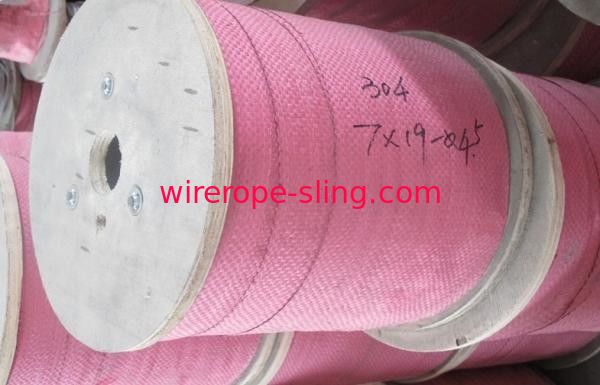

4. Packing: Wooden box and bagging, or according to customers' request.
5. Delivery date: 30days after the order confirmation.

6. We have ISO and SGS certificates

Stainless steel wire rope Mainly used for decoration, chemical metallurgy, petroleum machinery, port machinery, nuclear industry, the coal, metallurgy, chemicals, shipbuilding, bridges, electricity, rubber, military, tourism, water, light industry, aviation and aerospace industry.



Applications:



With bright surface, slight magnetism and no cracks on forming, is widely used in crane, bicycle fittings, kitchen and sanitation tools, goods shelf, pet cages, gill racks, decorative handles and baskets, food and medical machinery accesses, etc.



Specifications:


Diameter (mm) Min.Breaking Load (KN) Approx.Weight Kg/100m
0.75 0.392 0.231
1.0 0.660 0.410
1.2 1.010 0.590
1.5 1.570 0.923
2.0 2.650 1.6
2.5 4.02 2.5
3.0 5.3 3.6
4.0 9.4 6.4
5.0 14.7 10
6.0 28.8 14.4
8.0 37.6 25.6
10 52.1 40.0
12 75 57.6
14 102 78.4
16 133 102.4
18 169 129.6
20 208 160.0
22 252 193.6
24 300 230.4
26 352 270.4
28 409 313.6
32 534 409.6


Competitive Advantage:



1, It features ultra-high corrosion resistance,
2, surface quality, high brightness, strong corrosion resistance,
3, tensile strength and fatigue strength.
4, In particular, 316, and high corrosion resistance,
5, 316 stainless steel wire rope widest range of uses,
6, mainly for the food industry and surgical equipment.
