China Wire Rope Sling manufacturer

Stainless Steel Wire Rope Adjustable Angle 1/8" Cable Railing Kit/Hardware for Wood Post

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: LKS-CKT001
Payment & Shipping Terms:
Minimum Order Quantity: 500sets
Price: US$2.2-8.0 per set
Packaging Details: Standard export carton
Delivery Time: 10-15 days
Payment Terms: L/C, T/T, MoneyGram, Western Union
Supply Ability: 5000 sets per month

Detail Information

TypeGalvanized,Wire Rope SlingMaterialSteel,High Carbon Steel,PVC+Gal Wire,PVC Or PE Coated
Steel GradeStainless Steel,High Carbon SteelAlloy Or NotNon-alloy
End PartsReinforced Loop,steelyard HookServiceODM/OEM
High Light:

wire rope slings with hooks


steel wire sling

Product Description

  • The angle of this professional cable railing hardware 0 to180 degrees could be free adjusted;So they can be used to all kinds of complex cable railing system:railing of stairs,deck railing and Garden fence…

  • This railing kit made of high quality Marine Grade T316-Stainless Steel,It is anti-rust、 durable and easy to maintain;

  • It applies to standard 1/8" inch cable, Hydraulic crimper is needed to connect this kit with the cable and 4-6# dies is suitable;

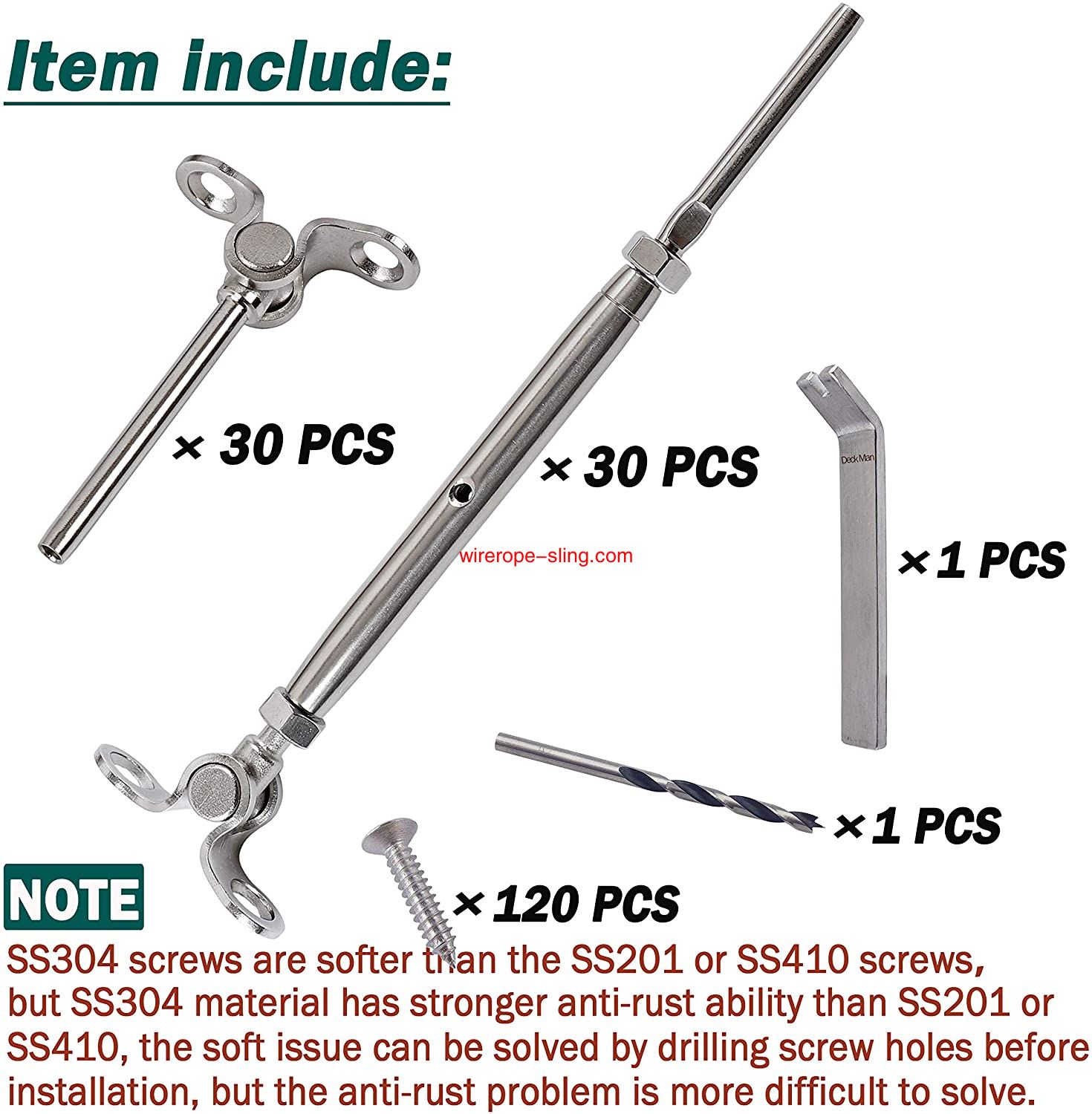

  • Max expanding size of the Swage Turnbuckle is 10 inch and it can be retract to 7 inch; this item include 120 Pcs 304-stainless steel countersunk screws and 1 pcs drill bit for wooden post, length of screws is 1.2inch;

  • Under strict process control and with advanced technology, our products have high quality and excellent workmanship. We believe that you will like this kit.

You might question why we choose to install cable railing? Simple is more:the cable railing is not only easy to install、looks great

but also never blocks your view when you rest on the deck;

Cable railing hardware

Cable railing hardware

It can be easily used for horizontal railing and stair railing,

almost can be used to all kinds of complex cable railing system with wood posts.

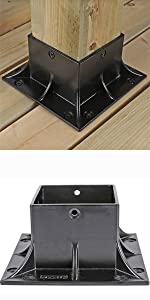

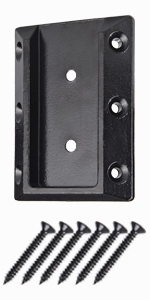

SleeveCableR&Lpost anchorConnector

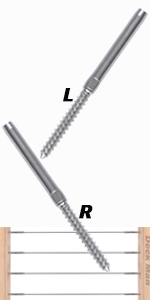

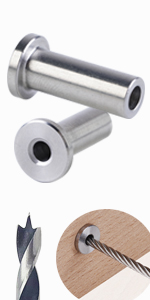

1/8'' T316 SS Cable Sleeves1/8'' T316 SS Cable(500FT)1/8'' R&L Handed Thread Lag ScrewsWood Post AnchorStainless Steel Handrail Connector
Stainless Steel Grade316316316304304


Cable railing fittings’ details

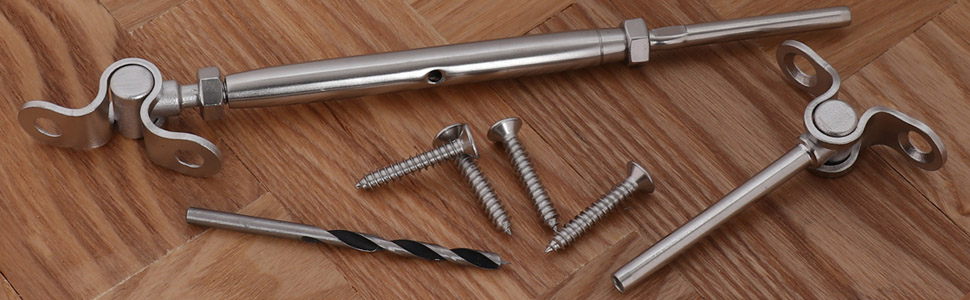

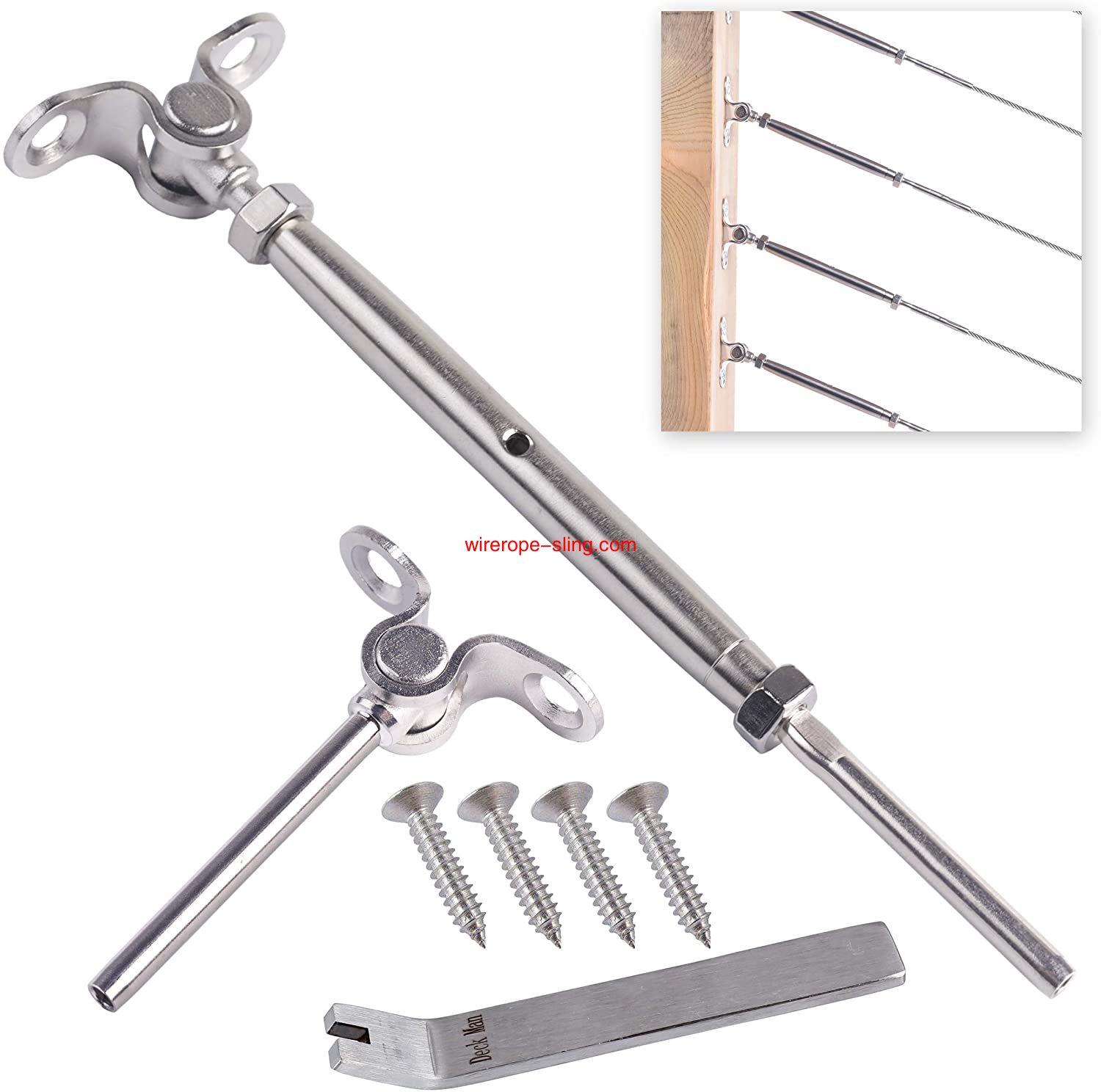

180° adjustable angle cable railing fitting

Parts of fitting:

1. Adjustable angle base:be installed on square posts;

2. T-shape ball head: it can be swung through 180 degrees;

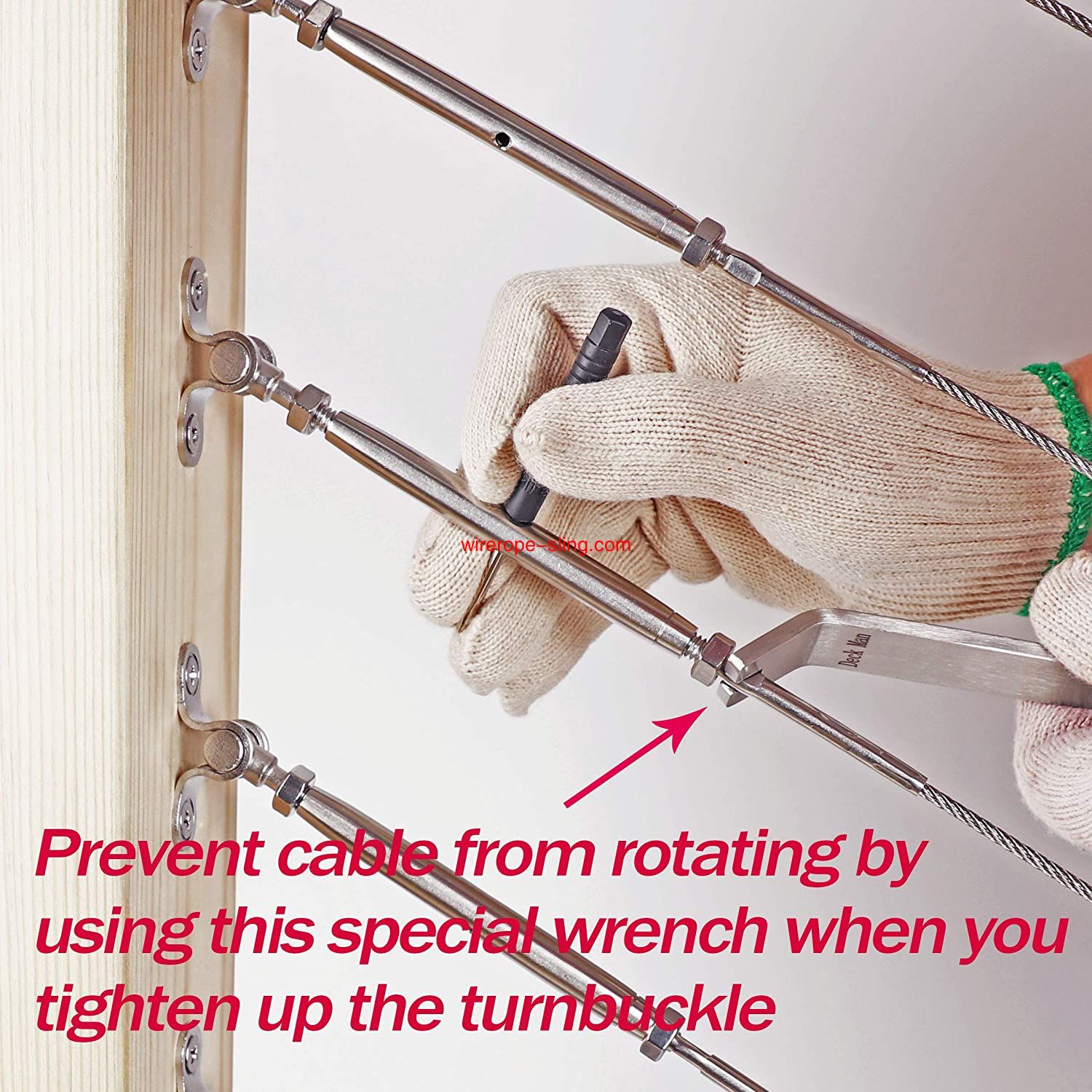

3. Turnbuckle:used for adjusting the tightness of cable;

4. Connecting tube:used for connecting cable by hydraulic crimper;

5. Anchor nuts: locking turnbuckle tube.

Cut and check cable length

quick check cable length

Quick check cable length

Several points need to notice by this method:

1.tighten up the turnbuckle;

2.make sure the cable is straight when you check the length;

3.It is easier to finish this by two people.

We think cutting a right length cable is most important step for your cable railing project.

Installation Notes

Drilling screw hole

Standard size cable

Choosing right hydraulic crimper

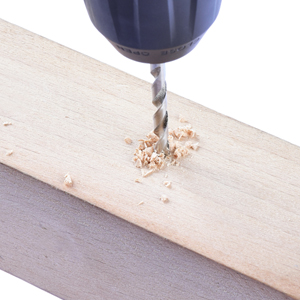

Drilling screw holes before installation

Why did we choose softer SS304 screws instead of the harder SS201 or 410 screws?

Because SS304 material has stronger anti-rust ability than SS201 or SS410, the soft issue can be solved by drilling screw holes before installation (this item include a right drill bit), but the anti-rust problem is more difficult to solve.

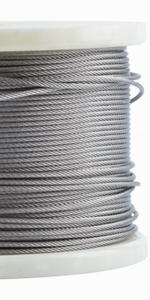

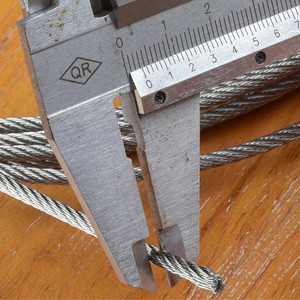

Choosing standard 1/8'' T316 SS Cable

  1. structure 7*7 of cable is appropriate hard, and applicable to cable railing;

  2. We strongly recommend that you choose 316 marine grade stainless steel cable when your railing is installed outdoor or by the sea;

  3. Please choose a quality cable cutter to ensure that the cable head won’t be loose after you cut it, If the cable head loosed, it will be difficult to insert the cable into the fitting's tube.

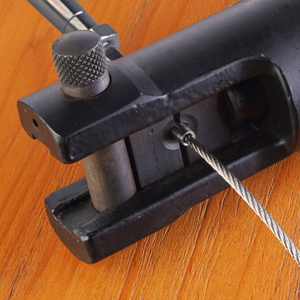

Choosing hydraulic crimper which with 4# dies

Usually 1/8" fitting only requires 3 times press when it is fixed between the both dies of the hydraulic crimper, the more pressing won’t make the connection stronger but will damage the tool and fittings.
