China Wire Rope Sling manufacturer

7*7 High tension 1mm 1.8mm galvanized braided steel wire rope from China

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: LKS-WRS1182
Payment & Shipping Terms:
Minimum Order Quantity: 500sets
Price: US$2.2-8.0 per set
Packaging Details: Standard export carton
Delivery Time: 10-15 days
Payment Terms: L/C, T/T, MoneyGram, Western Union
Supply Ability: 5000 sets per month

Detail Information

Steel GradeGalvanizedStandardGB/T8918
Place of OriginChinaTypegalvanized
ApplicationCommercialAlloy Or NotNon-Alloy
Special UseCold Heading Steel, Cold Heading SteelProduct nameSteel Wire Rope
High Light:

steel wire rope weight calculator

,

steel wire rope tensile strength

Product Description

 7*7 High tension 1mm 1.8mm galvanized braided steel cable

7*7 High tension 1mm 1.8mm galvanized braided steel cable7*7 High tension 1mm 1.8mm galvanized braided steel cable





Technical Data

Model Number

7*7

Type

Galvanized

Wire Gauge

1.2mm - 6.0mm

Special Use

Cold Heading Steel

Alloy Or Not

Non-alloy

steel wirerope

for auto spare part

Steel Grade

Sha Steel, Bao steel 45#, 55#, 60#, 65#, 70#, 75#

Standard

AISI, ASTM, BS, DIN, GB, JIS

Application:

Cable seal, Rope, used for window regulator, hanger


Construction

Specification

Minium Breaking Load(KN)

Approx Weight  (Kg/100m)

7*7

0.30

0.0539

0.036

0.36

0.0833

0.05184

0.45

0.1421

0.081

0.54

0.2058

0.11664

0.60

0.2156

0.144

0.72

0.3626

0.20736

0.80

0.4606

0.256

0.90

0.539

0.324

1.0

0.637

0.40

1.2

0.882

0.576

1.6

2.10

1.024

1.8

2.254

1.296

2.0

2.94

1.60

2.4

4.10

2.304

2.5

4.40

2.50

3.0

6.37

3.60

3.5

7.64

4.90

4.0

9.5

6.40

5.0

14.7

10.0

6.0

18.6

14.4



Shipping



1, We support sea, land and air transportation.

2, We can choose plywood or carton packing according to customer's requirement.

3, We package wire and cable for customed packaging, on the one hand to ensure the convenience of

transportation, on the other hand to protect the safety of the goods in the transit, avoid scratches.

EPE foam and bubble film packed twice

FCL: Full Container Loading

LCL: Less Container Loading


Galvanized Wire Ropes - Stronger & Corrosion Resistant

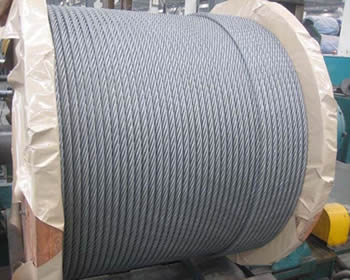

A coil of galvanized steel wire rope

Galvanized steel wire rope

Galvanized steel wire ropes are constructed of galvanized wires which are dipped in the tank containing molten zinc to form a thick layer of zinc coating before the wire is drawing through dies. Then these galvanized wires are drawn to reduce diameter and increase tensile strength. At the same time, zinc coating bonding to steel wires is compressed to form a more excellent layer to protect the steel form corroding.

Feature:

  • Cheaper than stainless steel wire ropes.

  • Higher break strength than stainless steel.

  • Greater fatigue strength.

  • Excellent corrosion resistant.

  • Less wear than other materials.

  • Galvanized coating serves as lubricant to reduce friction.

  • Remain ductile over long periods of working.

  • Easier to inspect for corrosion damage.

Application

  • Winch ropes.

  • Garage door cable.

  • Security cable.

  • Catenary wire rope.

  • Various general engineering applications.

Details

  • Standard: DIN, EN, ASTM, BS, JIS, etc.

  • Diameter: from 0.15mm to 50mm.

  • T/S: 1570, 1670, 2770, 1870 or 1970Mpa.

  • Packing: wooden box, bagging or other custom packing.
