6XK7+FC 6TX7+FC Steel Wire Rope Good Fatigue Resistance And Extrusion Resistance

Product Description

The type 6*K7+FC of the surface contact wire rope is also called 6T*7, the diameter of the rope is 16mm, and the reference weight of 100 meters is 105kg.

The wire rope is marked as 6*K7+FC-16mm and 6T*7+FC-16mm

Surface contact wire rope 6*K7+FC-16mm nominal tensile strength 1570MPa corresponding wire rope minimum breaking force is 151Kn;

Surface contact wire rope 6*K7+FC-16mm nominal tensile strength 1670MPa corresponding wire rope minimum breaking force is 160Kn;

Surface contact wire rope 6*K7+FC-16mm nominal tensile strength 1770MPa corresponding wire rope minimum breaking force is 170Kn;

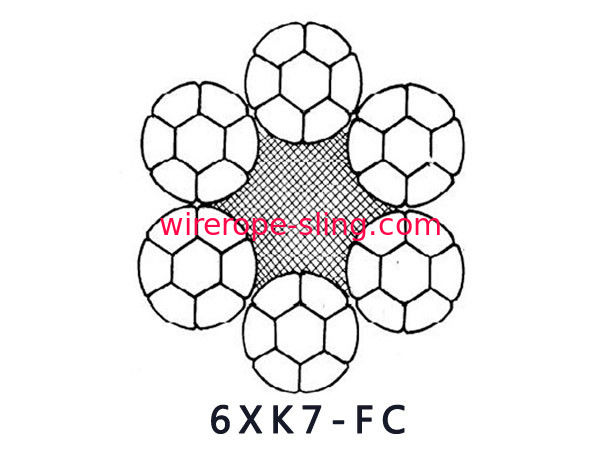

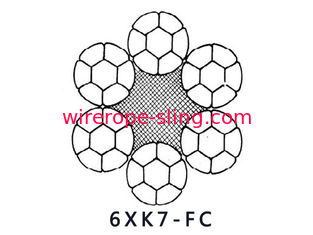

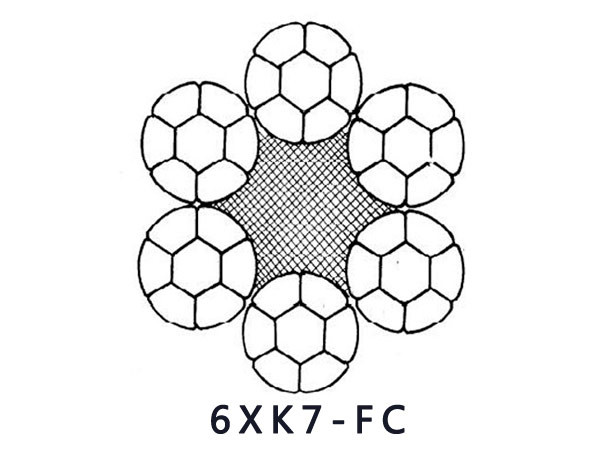

Wire Rope Cross Section;

Features;

1. Compacted  wire rope

2. The high tensile strength of wire rope

3. has good wear resistance

4. has good fatigue resistance and extrusion resistance

5. has certain anti-rotation performance

The service life of 6*K7+FC steel rope is 2 to 3 times of that of 6*19S and 6*19 mining wire rope, especially in mines with relatively high sulfur content.

Applications: inclined shaft hoisting (winch), cableway traction, endless rope ropeway, wire rope belt conveyor.

Technical Table
