Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | CCS,ISO9001 |
| Model Number: | 6xV30+FC |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1mtrs |
| Price: | USD1800/tons |
| Packaging Details: | Standard Seaworthy Packing or as request |
| Delivery Time: | 15 days after the order confirmation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100tons monthly |
|
Detail Information |
|||
| Material: | Steel | Surface: | Galvanized Or Ungalvanized |
|---|---|---|---|
| Tensile Strength: | 1770N/mm2,1870N/mm2,1960N/mm2 | Diameter: | 16mm-36mm |
| Core: | Fiber | Processing: | Compacted |
| Length: | 500mtrs/1000mtrs/2000mtrs Available | Packing: | Wooden Reel |
| High Light: |
wire rope cable,steel rope cable |
||
Product Description
LKS manufacture mine wire rope, oil wire rope, provide oil wire rope specification type, mining wire rope technical parameters. Mine wire rope, mainly coal mine, copper mine, nickel ore, limestone mine, and so on, is generally a heavy-duty hoist, usually with vertical shaft, inclined shaft, inclined well with coarse wire rope, and the outer layer silk, wear-resistant, thin inner layer, reduce the force of the wire rope in the pulley operation, reduce the force, to reduce the internal force inside the wire rope. Fatigue breaking. The main factors affecting the strength decline of hoisting wire rope during mine use are wear, corrosion and fatigue breaking. In general, these three factors come into being simultaneous. Because of different mine conditions, the main factors are different. Therefore, different types of wire ropes should be selected rationally according to the conditions and experience of the mine and the characteristics of all kinds of wire ropes.
Here is a table for your reference when you choose a right wire rope for the mining industry.
|
Application |
Mine condition |
Section |
Construction |
Note |
|
Vertical shaft |
Mines with large drenched water, high acid, and alkali, serious corrosion or difficult oil painting. |
Special-shaped wire rope |
6V×21,6V×30,6V×33,6V×36,6V×37S,6V×43,6Q×19＋6V×21,6Q×33＋6V×21 |
Galvanized |
|
Round wire rope |
6×19S,6×21W,6×25Fi,6×29Fi,6×26SW,6×31SW,6×36SW,6×41SW |
|||
|
A mine with light rust and wear |
Special-shaped wire rope |
6V×21,6V×30,6V×33,6V×36,6V×37S,6V×43,6Q×19＋6V×21,6Q×33＋6V×21 |
|
|
|
Round wire rope |
6×19W,6×25Fi,6×29Fi,6×36SW |
|||
|
Friction wheel hoist mine |
Special-shaped wire rope |
6V×21,6V×30,6V×37S,6Q×19＋6V×21 |
Galvanized |
|
|
Drilling rope for shaft sinking |
Special-shaped wire rope |
6Q×19＋6V×21,6Q×33＋6V×21 |
If the extrusion deformation is serious, use steel core. |
|
|
multilayer Wire Rope |
17×7,18×7,34×7,36×7, |
|||
|
Compact Wire Rope |
6T×19W,6T×19S,6T×25Fi |
|||
|
Balance tail rope |
multilayer Wire Rope |
17×7,18×7,34×7,36×7, |
Regular lay |
|
|
Canister rope |
|
Sealing wire rope ,6V×18,6×7,6×7+IWS |
See the standard of sealed wire rope. The rest structure should be galvanized wire rope. |
|
|
inclined shaft |
A mine with serious corrosion and friction |
Special-shaped wire rope |
6V×18 |
Galvanized |
|
Round wire rope |
6×7,6×19S,6×9 |
|||
|
Compact Wire Rope |
6T×7,6T×19S, |
|||
|
A mine with more rust than light wear |
Special-shaped wire rope |
6V×18 |
|
|
|
Round wire rope |
6×7,6×19S,6×9W |
|||
|
Compact Wire Rope |
6T×7,6T×19Si |
|||
|
Corrosion and wear are all lighter, and broken wires develop faster in mines. |
Special-shaped wire rope |
6V×18,6V×21 |
|
|
|
Round wire rope |
6×19S,6×25Fi |
|||
|
Compact Wire Rope |
6T×19S,6T×25Fi |
Features;

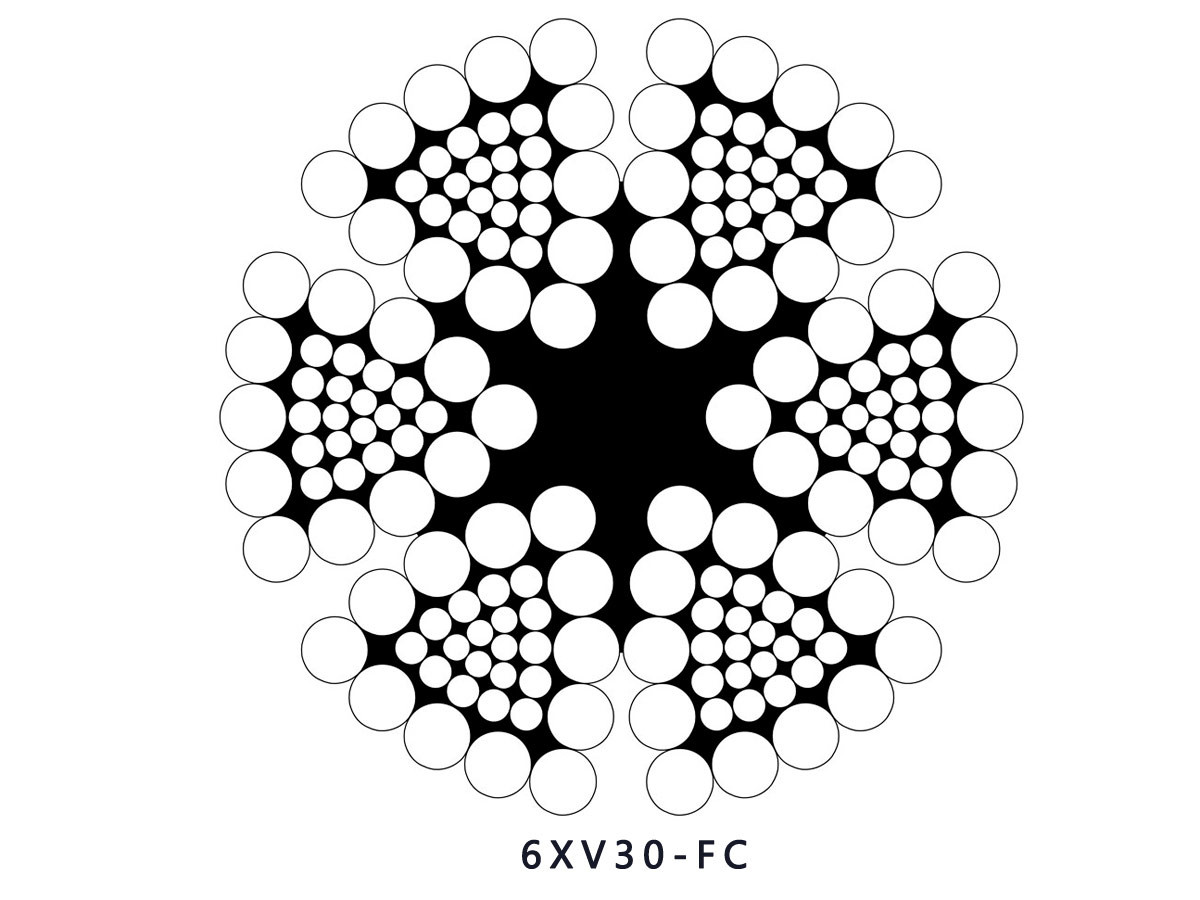

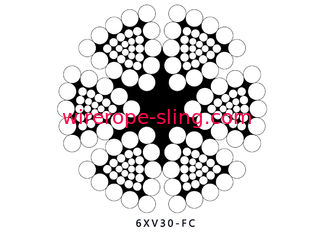

6VX30
| Dia(mm) | Weight(kg/m) | MBL(kN) | |||||
| Sisal core | FC | Steel Core | 1770MPA | 1960MPA | |||
| FC | IWR | FC | IWR | ||||
| 28 | 3.180 | 3.110 | 3.360 | 500 | 530 | 553 | 587 |
| 30 | 3.640 | 3.570 | 3.860 | 573 | 609 | 635 | 674 |
| 32 | 4.150 | 4.070 | 4.390 | 652 | 692 | 723 | 767 |
| 34 | 4.680 | 4.590 | 4.960 | 737 | 782 | 816 | 866 |
| 36 | 5.250 | 5.150 | 5.560 | 826 | 876 | 914 | 970 |
| 38 | 5.850 | 5.730 | 6.190 | 920 | 976 | 1,020 | 1,080 |
| 40 | 6.480 | 6.350 | 6.860 | 1,020 | 1,080 | 1,130 | 1,200 |
| 42 | 7.140 | 7.000 | 7.570 | 1,120 | 1,190 | 1,240 | 1,320 |
| 44 | 7.840 | 7.690 | 8.310 | 1,230 | 1,310 | 1,370 | 1,450 |
| 46 | 8.570 | 8.400 | 9.080 | 1,350 | 1,430 | 1,490 | 1,580 |
| 48 | 9.330 | 9.150 | 9.880 | 1,470 | 1,560 | 1,630 | 1,730 |
| 50 | 10.100 | 9.930 | 10.700 | 1,590 | 1,690 | 1,760 | 1,870 |
| 52 | 11.000 | 10.700 | 11.600 | 1,720 | 1,830 | 1,910 | 2,020 |
| 54 | 11.800 | 11.600 | 12.500 | 1,860 | 1,970 | 2,060 | 2,180 |
| 56 | 12.700 | 12.400 | 13.500 | 2,000 | 2,120 | 2,210 | 2,350 |
| 58 | 13.600 | 13.400 | 14.400 | 2,140 | 2,270 | 2,370 | 2,520 |
