IWRC Pfv Wire Rope , Rotation Resistant Rope 8 X 36 WS Solid Polymer Filled

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,ISO9001
Model Number: 8x36WS+IWRC-PFV
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1800/tons
Packaging Details: Standard Seaworthy Packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Packing:Wooden ReelLength:500mtrs/1000mtrs/2000mtrs Available
Tensile Strength:1960N/mm2Diameter:45mm-73mm
Surface:Galvanized Or UngalvanizedMaterial:Steel
High Light:

wire rope cable


steel rope cable

Product Description

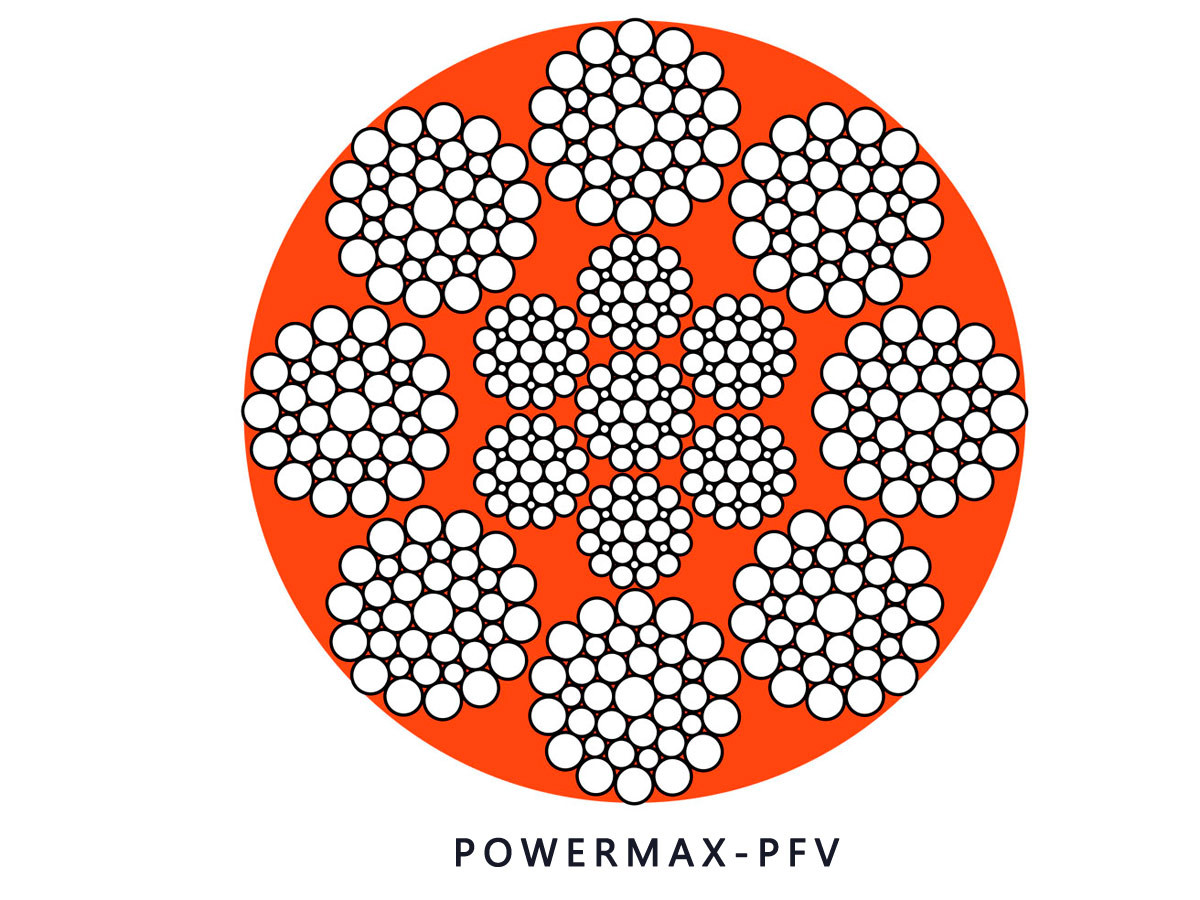

8x36WS+IWRC-PFV Solid polymer filled Steel Wire Rope for towing and lifting


When the port wire rope is used as the lifting use, the steel wire rope structure we usually use is 8*36WS+IWR, 8*31WS+IWR, 6*36WS+IWR, and the port hoisting wire rope has a high load intensity because of the frequent load operation.
It is a multi-layer winding on the reel, which determines the characteristics of the port lifting wire rope, which requires better fatigue resistance, wear resistance and impact resistance, and has a high breaking tensile force. So in recent years, it has been gradually overloaded with compacted strand wire ropes, which we often recommend to customers for 6*K36WS+IWR, 8*K 36WS+IWR, we do not recommend the use of fiber core (core),
because metalcore (steel core) with the outer layer of rope share better support, steel rope is not easy to deform.
For the port hoisting wire rope, it often has the problem of customer consultation deformation failure, through our team investigation, this is because the ratio of steel wire rope and steel wire outer layer steel wire is too small. In general, we suggest that the diameter of the roller and pulley should not be less than 400, and the ratio of the roller or pulley to the steel wire in the outer layer should not be less than 1200 under the condition of frequent and rapid operation.


IWRC Pfv Wire Rope , Rotation Resistant Rope 8 X 36 WS Solid Polymer Filled 0


Key Specifications/Special Features:


*Steel wire rope with excellent performance for towing and lifting.

*Provide excellent performance.

*The plastic polymer injected by high pressure forms a cushion between the stock and the stock to disperse the internal pressure and can
*Lock the lubricating oil and prevent the external impurities and contaminants from entering the steel rope.
*This plastic polymer is stable in performance and does not become soft or melted at normal operating temperatures and can resist sunlight and low-temperature environment.

*6 steel wire rope has better fatigue resistance and larger surface contact area.


Technical Table


Weight(kg/m) Minimum Breaking Load(kN)
(inch) (mm)
2 3/8 60.3 15.624 2,440
2 1/2 63.5 17.41 2,690
2 5/8 66.7 19.195 2,950
2 3/4 69.9 20.981 3,210
2 7/8 73 22.915 3,490
3 76.2 24.998 3,780
3 1/8 79.4 27.082 4,080
3 1/4 82.6 29.314 4,380
3 3/8 85.7 31.694 4,710
3 1/2 88.9 34.075 5,020
3 5/8 92.1 36.456 5,360
3 3/4 95.3 38.986 5,700
