Corrosion Resistance Steel Wire Rope Safety 1770N / mm2 Tensile Strength
Corrosion Resistance Steel Wire Rope Safety 1770N / mm2 Tensile Strength Corrosion Resistance Steel Wire Rope Safety 1770N / mm2 Tensile Strength

Corrosion Resistance Steel Wire Rope Safety 1770N / mm2 Tensile Strength

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,ISO9001
Model Number: 8x25Fi
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1800/tons
Packaging Details: Standard Seaworthy Packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly
Contact Now

Detail Information
Processing:Liner ContactSurface:Galvanized Or Ungalvanized
Tensile Strength:1770N/mm2,1870N/mm2,1960N/mm2Diameter:10mm-60mm
Core:Fiber/IWRCMaterial:Steel
Length:500mtrs/1000mtrs/2000mtrs AvailablePacking:Wooden Reel
High Light:

wire rope cable

,

steel rope cable

Product Description



8x25Fi+IWRC High performance Liner Steel Wire Rope for Barge anchored Line



The type of wire rope used for barge anchoring can be selected 6*36WS+IWRC. With the introduction of the 400 type 36 disk wire rope twisting equipment and the improvement of the wire rope production process, 8*41WS+IWRC gradually becomes a 6*36WS+IWRC substitute. First, under the same wire rope specification, the 8x25Fi+IWRC is more than the 6*36WS+IWRC wire, and it is softer and 8 strands. The wire rope is more compact; the common port ship wire rope specification (barge anchored) has 6*36WS+IWRC-52MM/64MM/72MM.



Corrosion Resistance Steel Wire Rope Safety 1770N / mm2 Tensile Strength 0





Special Features



  • Class 8X19 Liner Steel Wire Rope has better flexibility and fatigue resistance than the corresponding 6 strand wire rope.
  • Class 8X19 Liner Steel Wire Rope mainly includes 8X19S, 8X19W, 8X25FI and 8X26WS. The most suitable steel rope structure must be selected according to different application conditions.
  • Under the same steel rope diameter, with the increase of the number of steel wires per share, its wear resistance and extrusion resistance will decrease, and its fatigue resistance will increase.


Technical Table



Dia.(mm)

Weight(kg/m)

MBL(kN)

FC

I

1770MPA

1960MPA

2160MPA

FC

IWR

FC

IWR

FC

IWR

10

0.35

0.446

52.0

63.0

57.0

69.8

62.8

76.9

11

0.42

0.540

62.0

76.2

69.0

84.4

76.0

93.0

12

0.5

0.642

74

91

82

100

90

111

13

0.59

0.754

87

106

97

118

108

130

14

0.68

0.874

102

124

112

137

123

151

16

0.89

1.142

133

161

147

179

162

197

18

1.12

1.445

168

204

186

226

205

249

19

1.25

1.610

187

227

207

252

228

278

20

1.39

1.784

207

252

230

279

254

308

22

1.68

2.159

251

305

278

338

307

372

24

1.99

2.569

299

363

331

402

364

443

26

2.34

3.015

351

426

388

472

428

520

28

2.71

3.497

407

494

450

547

496

603

32

3.55

4.567

531

645

588

715

648

787

36

4.49

5.780

672

817

744

904

819

997

40

5.54

7.136

830

1,008

919

1,116

1,014

1,230

44

6.7

8.635

1,000

1,220

1,110

1,351

1,223

1,489

48

7.98

10.276

1,190

1,452

1,320

1,608

1,455

1,772

52

9.36

12.060

1,397

1,704

1,549

1,887

1,707

2,079

56

10.86

13.987

1,620

1,976

1,797

2,188

1,980

2,411

60

12.47

16.056

1,860

2,268

2,063

2,512

2,273

2,768

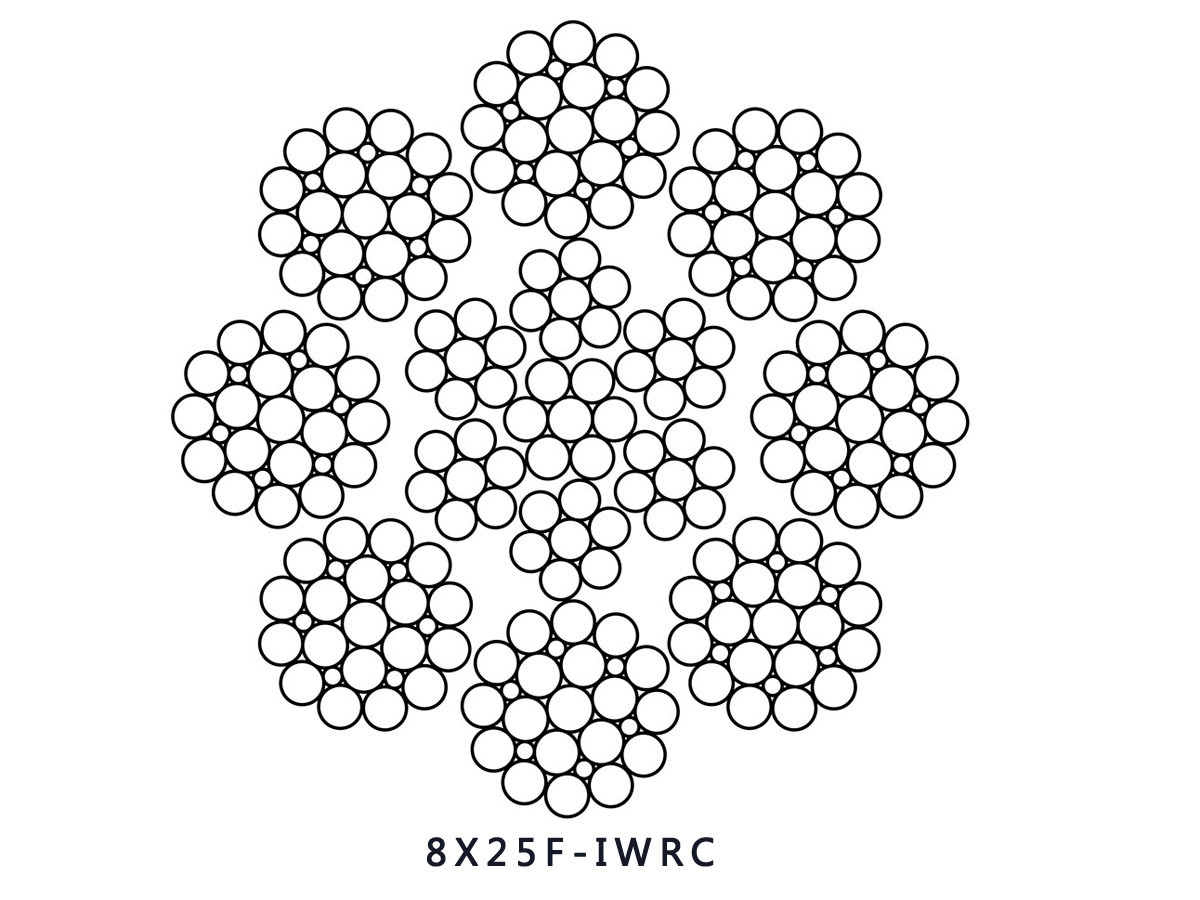

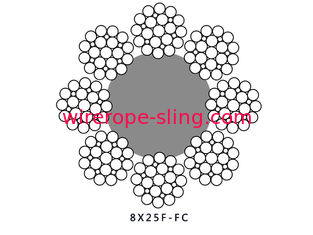

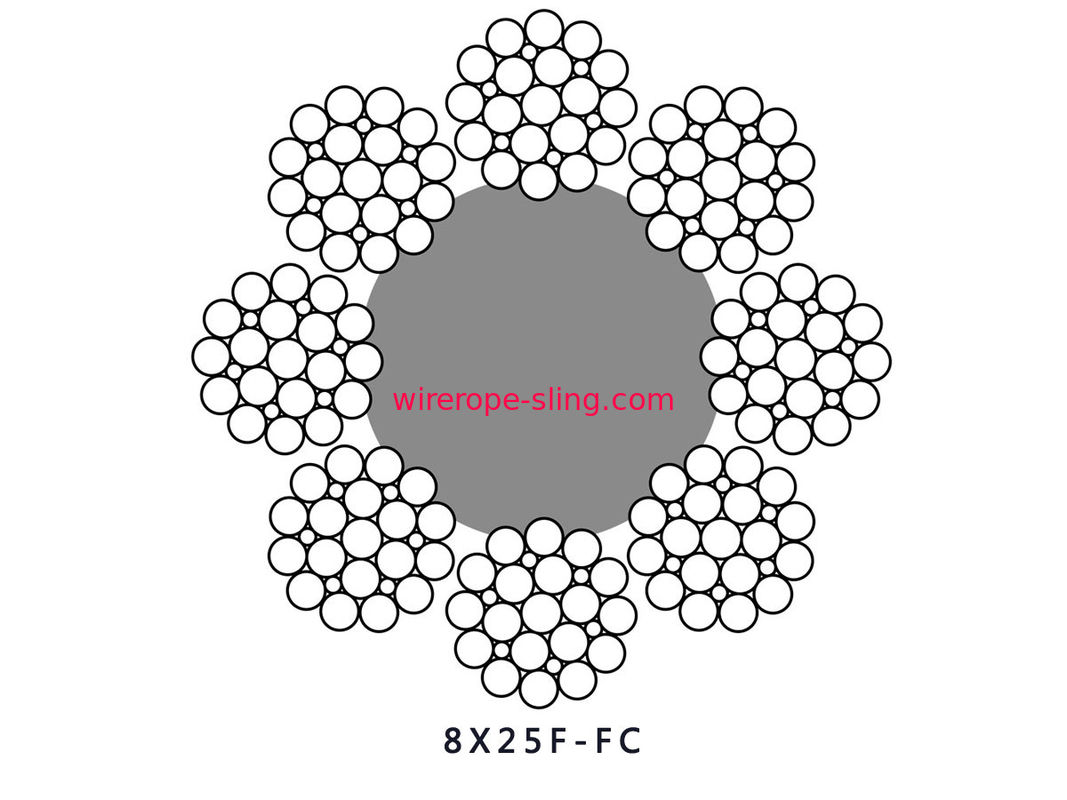

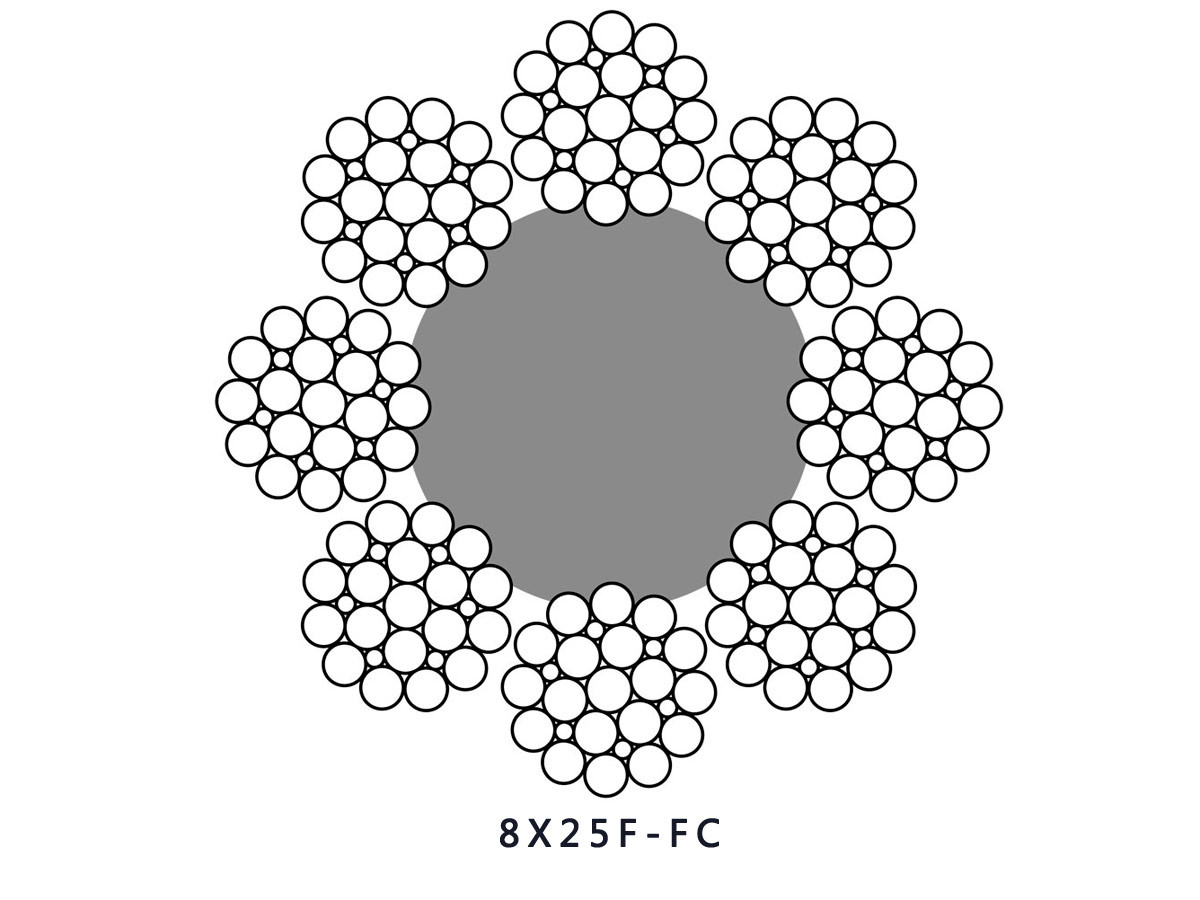

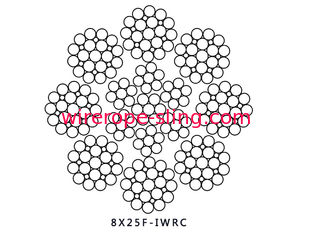

Wire Rope Cross Section;



Corrosion Resistance Steel Wire Rope Safety 1770N / mm2 Tensile Strength 1
