Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | CE / ISO 9001 : 2008 |
| Model Number: | 7x19PVC |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1mtrs |
| Price: | USD1580/TONS |
| Packaging Details: | Wooden Reel |
| Delivery Time: | 15 days after the order confirmation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100tons monthly |
|
Detail Information |
|||
| Steel Grade: | A2-70/A4-80 | HS Code: | 7312100000 |
|---|---|---|---|
| Length: | ,500m/reel,1000m/reel Or As Request | Vinyl Coated: | Yes |
| Colour: | As Request | Standard: | AISI, ASTM, DIN, GB, JIS |
| Material: | Steel | Wire Gauge: | 0.9mm-50mm |
| High Light: |
vinyl coated wire rope,nylon coated wire rope |
||
Product Description

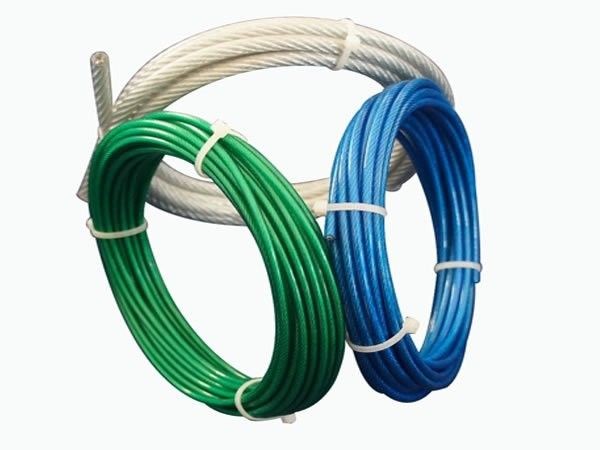

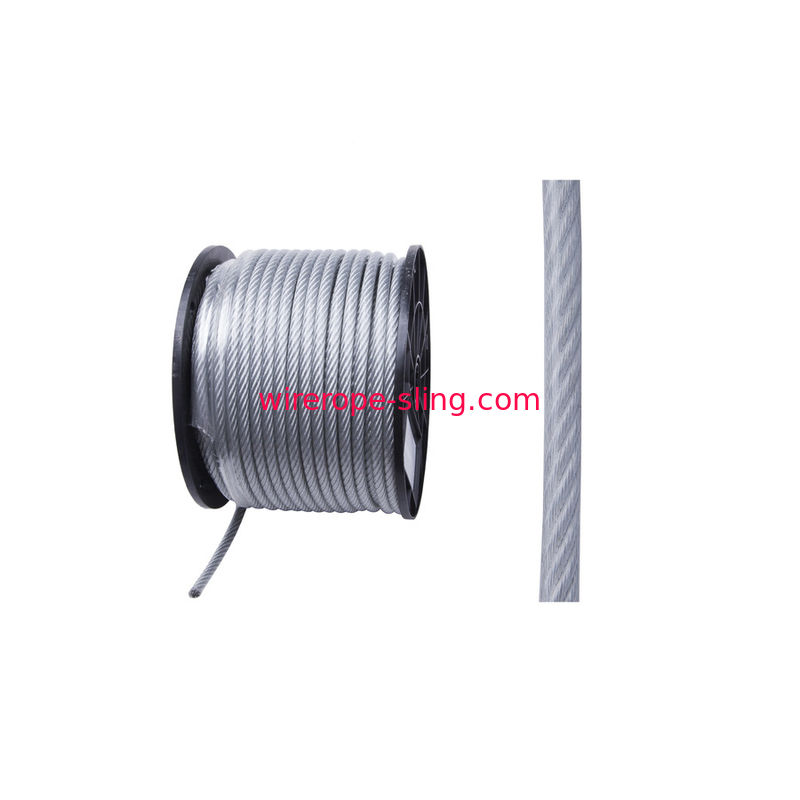

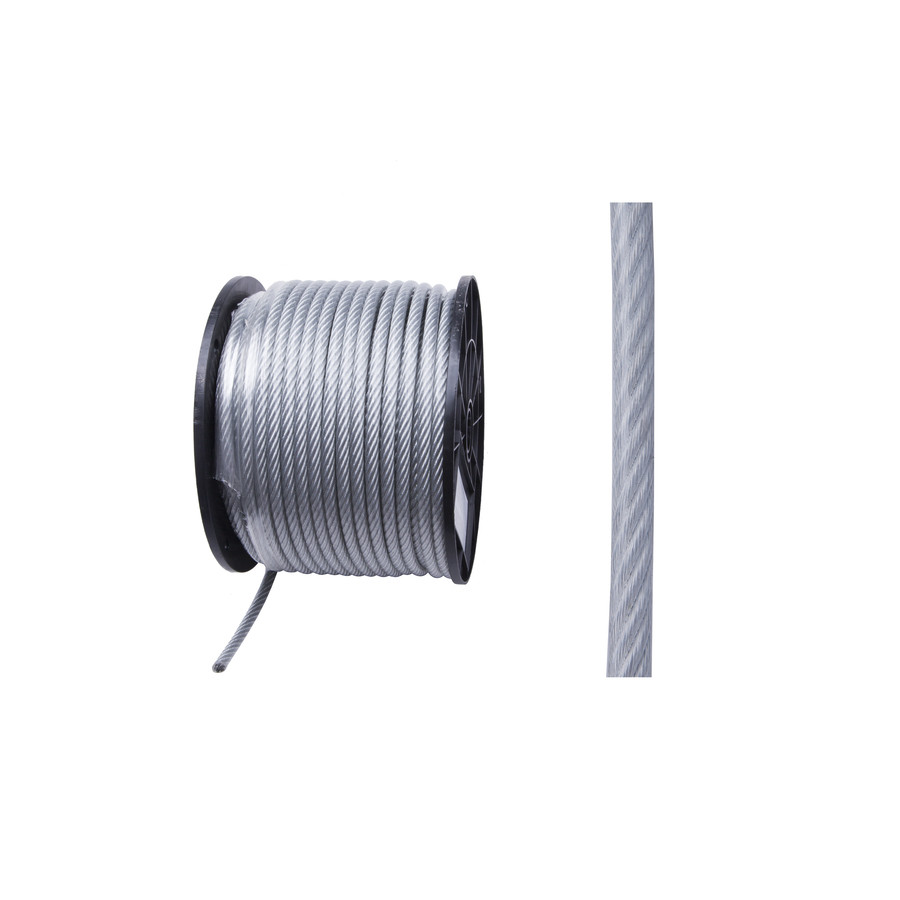

Aircraft Vinyl Coated Steel Cable , 7x7 Galvanized Steel Wire Rope For Fall Protection
Most common two constructions for PVC coating are 7x7, 7x19 and upon special request we can supply 1x7, 1x19, 6x19 Class and 6x37 Class. Typical PVC coated diameters are 3/64 thru 5/8. We coat using strictly virgin PVC resin. Our PVC is UV stabilized depending on color and application and we can accommodate phthalate-free requests. The outside diameter is laser micrometer inspected during extrusion. Our extrusion line is equipped with a black ink printer capable of printing onto the PVC coating. Our PVC extrusion tooling is cleaned on a regular basis to improve the coating quality.
Our usual steel wire rope packages are in wooden reels, plastic reels, wooden case, cartons, and soft coils, etc. We can also provide unique packing for our clients, such as in blister, pp bags, hard plastic, corrugated package, and according to clients' request, bar code, brand or other pattern and words can also be printed in the package to meet the need of sales in supermarket or shops.
| Bare Cable Diameter | Coated Cable Diameter | Galvanized Min. rated breaking strength |
Galvanized PVC weight per 1,000 ft. |
Stainless Steel Min. rated breaking strength |
Stainless Steel PVC weight per 1,000 ft. |
| 1/32" | 3/64” | 110lbs | 2.3lbs | 110lbs | 2.3lbs |
| 3/64" | 1/16” | 270lbs | 5.2lbs | 270lbs | 5.2lbs |
| 1/16" | 3/32” | 480lbs | 10.1lbs | 480lbs | 10.1lbs |
| 1/16" | 1/8” | 480lbs | 13.0lbs | 480lbs | 13.0lbs |
| 3/32" | 1/8” | 920lbs | 20.0lbs | 920lbs | 20.0lbs |
| 3/32" | 5/32” | 920lbs | 23.8lbs | 920lbs | 23.8lbs |
| 3/32" | 3/16” | 920lbs | 28.3lbs | 920lbs | 28.3lbs |
| 1/8" | 5/32” | 1700lbs | 34.2lbs | 1700lbs | 34.2lbs |
| 1/8" | 3/16" | 1700lbs | 38.8lbs | 1700lbs | 38.8lbs |
| 1/8" | 1/4” | 1700lbs | 50.4lbs | 1700lbs | 50.4lbs |
| 5/32" | 7/32” | 2600lbs | 56.1lbs | 2600lbs | 56.1lbs |
| 3/16" | 1/4" | 3700lbs | 78.1lbs | 3700lbs | 78.1lbs |
| 3/16" | 5/16” | 3700lbs | 93.1lbs | 3700lbs | 93.1lbs |
| 1/4" | 5/16" | 6100lbs | 128.9lbs | 6100lbs | 128.9lbs |
RR-W-410
F.A.Q
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Q9:You are trade company or manufacturer ?
A:We are manufacturer of cables.
Q10:will you stop produce when government check environment ?
A:No. our company has passed environmental audit .
Our service
1. OEM Manufacturing welcome: Product, Package...
2. Sample free
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
