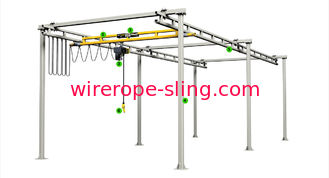

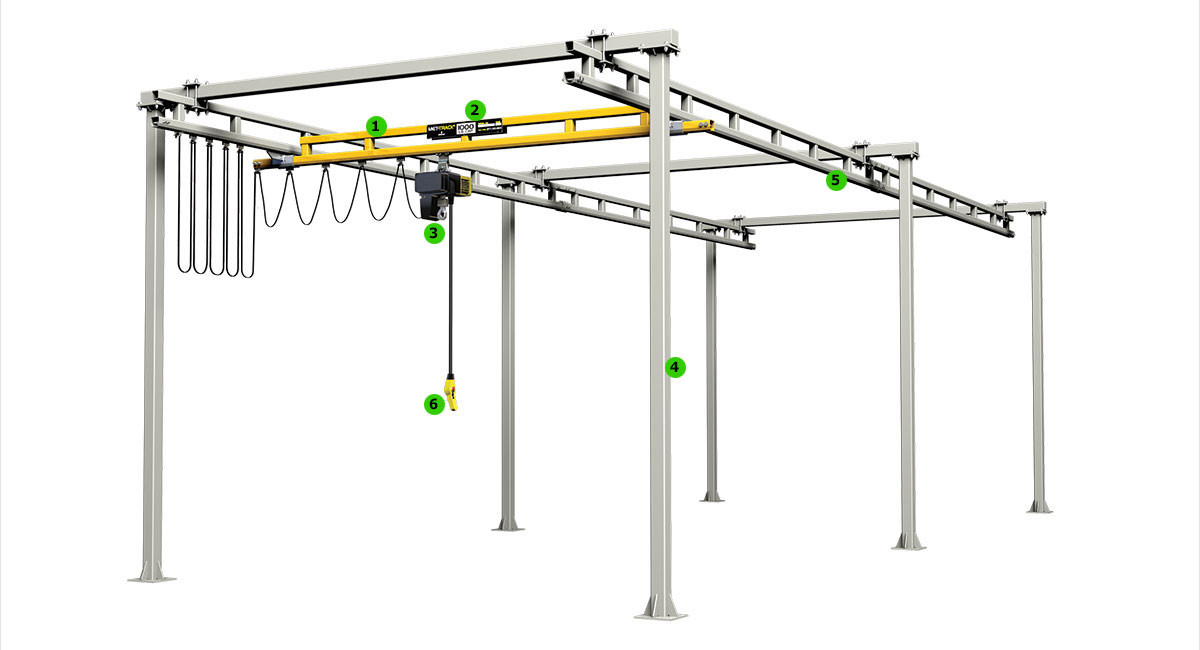

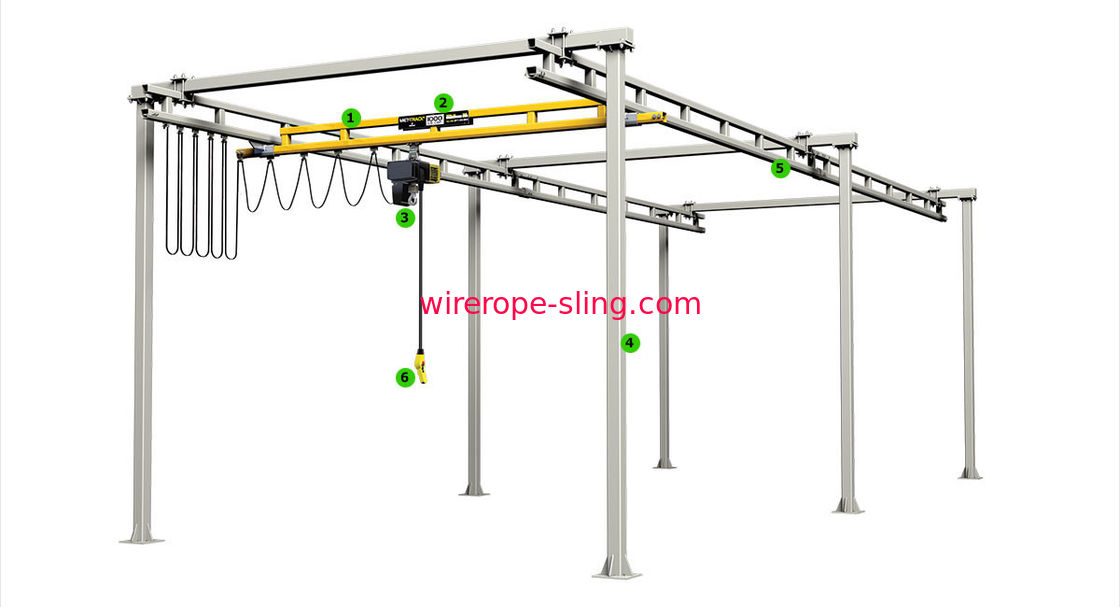

Bridge Crane Hoisting Steel Wire Rope LKS 6-1 P Zinc Coated Class B Standard
Bridge Crane Hoisting Steel Wire Rope LKS 6-1 P Zinc Coated Class B Standard Bridge Crane Hoisting Steel Wire Rope LKS 6-1 P Zinc Coated Class B Standard

Bridge Crane Hoisting Steel Wire Rope LKS 6-1 P Zinc Coated Class B Standard

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,ISO9001
Model Number: LKS 6-1 P
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1800/tons
Packaging Details: Standard Seaworthy Packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly
Contact Now

Detail Information
Product Name:Crane Wire RopeSurface:Galvanized/Ungalvanized
Length:500mtrs/1000mtrs/2000mtrs AvailableDiameter:6mm-60mm
Core:Plastic Padding Wire RopeHS Code:73121000
Standard:GB/DIN/BS/JIS/ASTM/RR-W-410/API/ISOPacking:Wooden Reel
High Light:

wire rope cable

,

steel rope cable

Product Description



Bridge Crane Hoisting Steel Wire Rope LKS 6-1 P Zinc-coated class B standard

Bridge cranes are optimum for transporting heavy loads outdoors, such as for factories, and for loading and unloading heavy loads between a freighter and the dock. They can be built for trolley, hoist, and other applications.

General and High Performance Wire Rope. The use of wire rope worldwide has undoubtedly changedwhat the lifting and rigging industry is today. Wire rope is used for crane ropes, mooring lines, drill lines, hoist ropes, drag lines, and boom lines to name a few applications.



Bridge Crane Hoisting Steel Wire Rope LKS 6-1 P Zinc Coated Class B Standard 0

  • Rope category number (RCN) 09 according to ISO 4309
  • Ordinary lay
  • Zinc-coated class B standard
  • Should not used with a swivel
  • Special lubrication
  • Plastic padding

The LKS 6-1 P is a non-rotation-resistant hoisting rope with 6 outer strands and additional plastic padding.

ATTRIBUTES

Plastic padding ​Fettung


APPLICATIONS

Bridge crane - Hoisting rope Telescopic crane - Trolley rope Gantry crane (RTG/RMG) - Hoisting rope Container crane (STS) - Hoisting rope Lattice boom crane - Boom pendant rope and adjusting rope Harbour crane - Boom pendant rope and adjusting rope Offshore crane - Boom pendant rope and adjusting rope Mobile crane - Boom pendant rope and adjusting rope Rotating tower crane - Boom pendant rope and adjusting rope Grab bucket/Scrapers - Haulage rope Gripper crane - Boom pendant rope and adjusting rope







Technical Data

Ø   Weight Metallic
cross-section		 MBK 1770 MBK 1960 MBK 2160
mm   kg/100m mm2 kN kN kN
8   26.5 29.9 43.4 48.0 51.7
9   33.5 37.8 54.9 60.8 65.4
10   41.3 46.7 67.8 75.1 80.7
11   50.0 56.5 82.0 90.8 97.7
12   59.5 67.3 97.6 108 116
13   69.9 78.9 115 127 136
14   81.0 91.5 133 147 158
15   93.0 105 153 169 182
16   106 120 174 192 207
18   134 151 220 243 262
20   165 187 271 300 323
22   200 226 328 363 391
24   238 269 390 432 465
26   279 316 458 507 546
28   324 366 531 589 633
30   372 420 610 676 726
32   423 478 694 769 826
34   478 540 784 868 933
36   536 605 879 973 1046
38   597 674 979 1084 1165
40   661 747 1085 1201 1291
42   729 824 1196 1324 1424
44   800 904 1312 1453
46   875 988 1434 1588
48   952 1076 1562 1730
50   1033 1168 1695 1877
52   1118 1263 1833

 CRANE TYPES AND WIRE ROPES





BRIDGE CRANE

Bridge Crane Hoisting Steel Wire Rope LKS 6-1 P Zinc Coated Class B Standard 14

orange = hoisting rope
green = trolley rope


TELESCOPING CRANEBridge Crane Hoisting Steel Wire Rope LKS 6-1 P Zinc Coated Class B Standard 15

orange = hoisting rope
green = telescope rope


GANTRY CRANE (RTG/RMG)Bridge Crane Hoisting Steel Wire Rope LKS 6-1 P Zinc Coated Class B Standard 16

orange = hoisting rope
green = trolley rope


STRADDLE CARRIER

Bridge Crane Hoisting Steel Wire Rope LKS 6-1 P Zinc Coated Class B Standard 17

orange = hoisting rope






LATTICE BOOM CRANE

Bridge Crane Hoisting Steel Wire Rope LKS 6-1 P Zinc Coated Class B Standard 18

orange = hoisting rope
yellow = auxiliary hoisting rope
blue = boom pendant rope and adjusting rope
HARBOUR CRANE

Bridge Crane Hoisting Steel Wire Rope LKS 6-1 P Zinc Coated Class B Standard 19

orange = hoisting rope
blue = boom pendant rope and adjusting rope




OFFSHORE CRANE

Bridge Crane Hoisting Steel Wire Rope LKS 6-1 P Zinc Coated Class B Standard 20

orange = hoisting rope
blue = boom pendant rope and adjusting rope
MOBILE CRANE

Bridge Crane Hoisting Steel Wire Rope LKS 6-1 P Zinc Coated Class B Standard 21

orange = hoisting rope
blue = boom pendant rope and adjusting rope
REVOLVING TOWER CRANE

Bridge Crane Hoisting Steel Wire Rope LKS 6-1 P Zinc Coated Class B Standard 22

orange = hoisting rope
blue = boom pendant rope and adjusting rope
green = assembly rope
EXCAVATING BUCKET / SCRAPERSBridge Crane Hoisting Steel Wire Rope LKS 6-1 P Zinc Coated Class B Standard 23

orange = hoisting rope
blue = boom pendant rope and adjusting rope
green = backhaul rope
GRABBING CRANE

Bridge Crane Hoisting Steel Wire Rope LKS 6-1 P Zinc Coated Class B Standard 24

orange = hoisting rope
blue = boom pendant rope and adjusting rope
yellow = closing rope





Crane wire ropes play an important role in ensuring a smooth conduct of work processes in harbors, off-shore platforms or various other applications where cranes are needed. Whether you need tower crane ropes or offshore crane ropes, galvanized or stainless steel ropes, you will find the optimal solution in our company.
