Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | ISO9001 |
| Model Number: | WC 1B |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 100sets |
| Price: | US$1-US$20 per Set |
| Packaging Details: | Polyster bag+ Standard Export Carton |
| Delivery Time: | 5-15 Working Days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000Sets Monthly |
|
Detail Information |
|||
| Name: | Whipcheck Safety Cable | Standard: | AISI, ASTM, BS, DIN, GB |
|---|---|---|---|
| Alloy Or Not: | Non-alloy | Diameter: | 1mm-5mm,or As Your Requirement |
| Process: | Die Casting,punching | Application: | Use Of Whip Checks |
| Keyword: | Hose Safety Cable | Steel Grade: | Carbon Steel & Stainless Steel |
| High Light: |
wire rope slings with hooks,steel wire sling |
||
Product Description

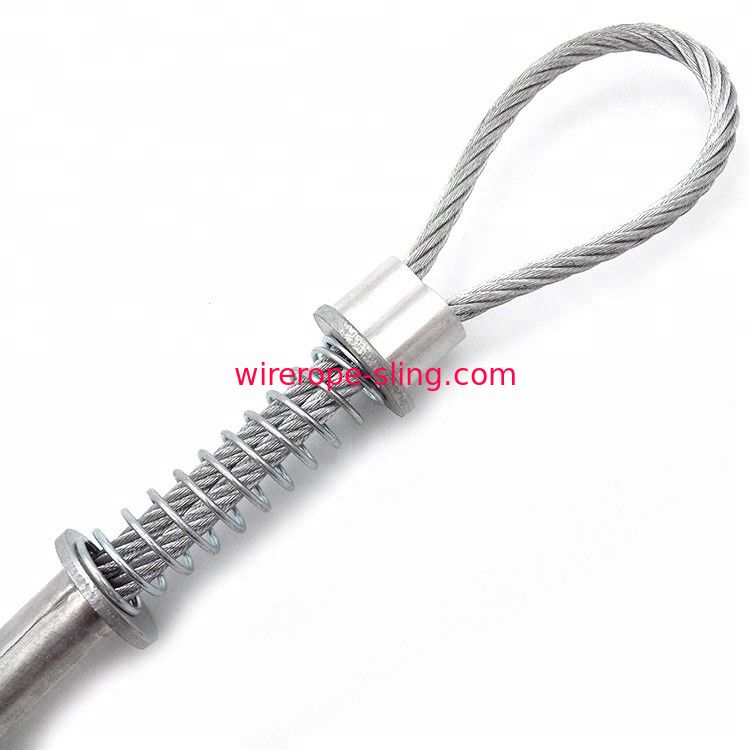

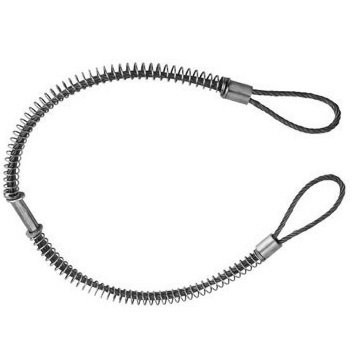

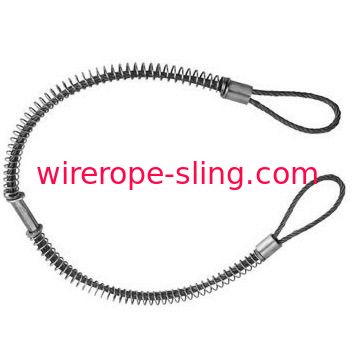

1/8" Glavanized hose to hose safety whipcheck Cable
1: Sizes:
(1): 1/8" for hose1/2" (13mm) to 1-1/4"(32mm) outside diameter
(2): 1/4" for hose1-1/2" (40mm) to 3" (75mm) outside diameter
| Size | Hose | Length |
| 1/8" | 1/2"--1-1/4" | 20-1/4" |
| 1/4" | 1-1/2"--3" | 38" |
2: Usage:
Safety cables should be used on all blast hose and air hose connections to reduce the danger caused by hose coupling failure. Safety cables are available from blast line in two sizes: [1/8 dia - 20 1/4 lengths, 1/4 dia - 38 lengths] designed for 1/2" to 1 1/4" od hose and for 1 1/2 to 3" od hose
When hose, couplings or clamps fail, or there is an accidental seperation of the assembly, King safety cables minimize damage to equipment and injuries to operators. King safety cable reaches across the hose fittings to provide standby safety for hose. Spring-loaded loops in the cable ends open easily to pass over the couplings for a firm grip on the hose. Thoroughly tested with years of service. A positive safeguard for air hose connections-helps you meet today's safety standards. King safety clamps must be installed in the extended position (no slack).
3:Other sizes:
Size: 3/16" Hose I.D.:1/2" to 2" Length:28".
Size: 3/8" Hose I.D.:4" Length:44"
Product features
|
New. Package of 20 - WC-1 Cable Hose Restraints 1/8" Hose to hose for 1/2" thru 1-1/4" diameter hoses
| HOSE TO HOSE | ||||
| PART NUMBER | HOSE ID(IN.) | CABLE(IN.) | LENGTH(IN.) | MAX. WORK.PRESS.(PSI) |
| WB1 | 1/2"-1-1/4" | 1/8" | 20-1/4" | 200 |
| WB3 | 1/2"-2" | 3/16" | 28" | 200 |
| WA2 | 1-1/2"-3" | 1/4" | 38-1/4" | 200 |
| WA4 | 4" | 3/8" | 44" | 200 |
1. How do you design a whip check safety cable ?
Of course ,we have to know your application firstly and a number of factors have to be considered, such as work load, safety abrasion, environment ,cycle life, flexibility, cost, When we design the whip check safety cable
2. How to place an order?
We produce according to customers’ specifications,so you’d better give us complete information as specified below:
Material,Diameter,Construction,Coating,Length,Packing,Quantity, Remarks
3. Are your products of good quality? How can I trust you?
Yes. We are a professional manufacturer of wire assemblies with 15 years producing experience in China .We have always been cooperating with domestic and overseas customers and partners with the first- class quality and service to make great achievements. If this is your first time to contact us, please trust us, we’ll not let you down.
4. What’s the lead time of my order?
It was largely depend on the size of your order .normally ,15days . if you are in urgent need of it ,we will try my best to met your requirement.
