China Wire Rope Sling manufacturer

Swageless Eye Terminal Stainless Steel Wire Rope Slings

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: LKS-WRS2002
Payment & Shipping Terms:
Minimum Order Quantity: 500sets
Price: US$2.2-3.0 per set
Packaging Details: Standard export carton
Delivery Time: 10-15 days
Payment Terms: L/C, T/T, MoneyGram, Western Union
Supply Ability: 5000 sets per month

Detail Information

Type:Stainless,Wire Rope SlingMaterial:Steel,High Carbon Steel,PVC+Gal Wire,PVC Or PE Coated
Application:Industrial,facility,equipment,liftingName:Single Leg Wire Rope Sling
Steel Grade:Stainless Steel,High Carbon SteelAlloy Or Not:Non-alloy
End Parts:Reinforced Loop,steelyard HookService:ODM/OEM
High Light:

wire rope slings with hooks

,

steel wire sling

Product Description

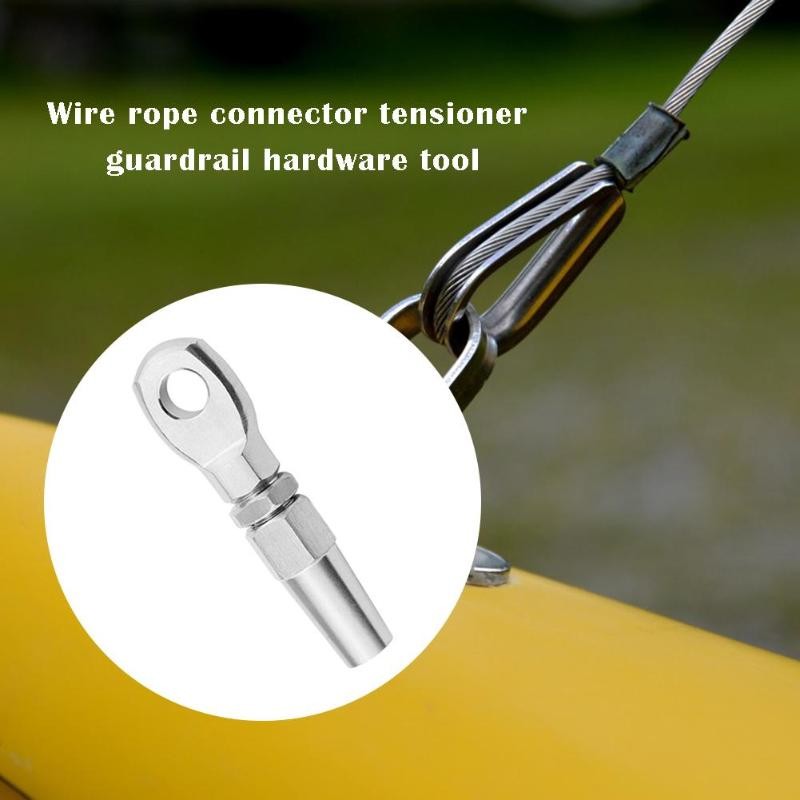

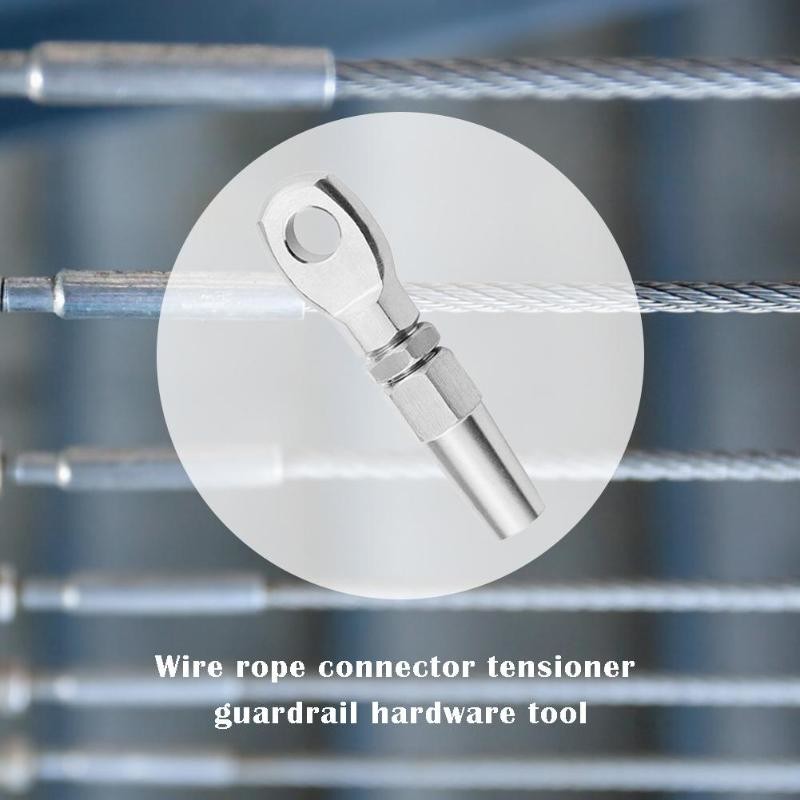

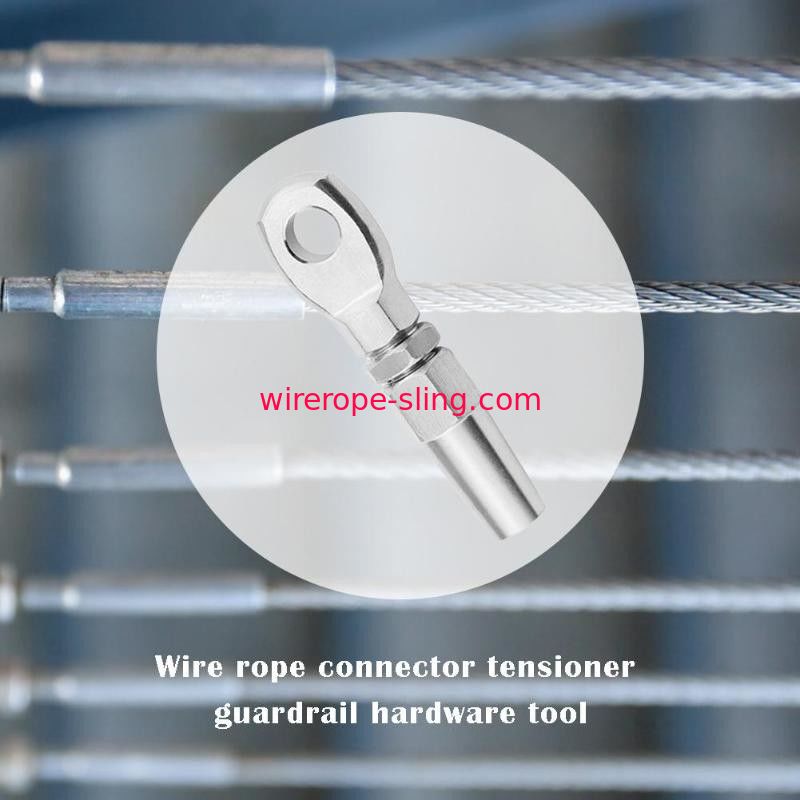

stainless steel Swageless Eye Terminal Wire rope connector Balustrade kit Guardrail lock cable holder DIY Hardware Fitting

Features:
1. High quality 316 stainless steel, strong and durable
2. Easy installation without special tools
3. Suitable for wire rope with diameter of 4mm, 5mm and 6mm
4. Suitable for balcony, corridor and other railings

Specifications:
Material: stainless steel
Weight: 160g
Size: 110 * 30 * 30 mm/4.33*1.18*1.18"
Application: used for wire rope connection, suitable for family guardrail and railing

Notes:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3cm measuring deviation due to manual measurement.

Package included

Swageless Eye Terminal Stainless Steel Wire Rope Slings 0

Swageless Eye Terminal Stainless Steel Wire Rope Slings 1

Swageless Eye Terminal Stainless Steel Wire Rope Slings 2

Swageless Eye Terminal Stainless Steel Wire Rope Slings 3

Swageless Eye Terminal Stainless Steel Wire Rope Slings 4

Swageless Eye Terminal Stainless Steel Wire Rope Slings 5

Swageless Eye Terminal Stainless Steel Wire Rope Slings 6

Swageless Eye Terminal Stainless Steel Wire Rope Slings 7





how to choose material:1stain1.1.1.

1. stainless steel :

providing good corrosion resistance and strength comparable to galvanized carbon steel grades.

2. galvanized steel:

Zinc coated carbon steel offers some corrosion resistance. It remains ductile over long periods of working. Usually higher break strengths than stainless steels.

Diameter construction weight(100m) Minimum Breaking load(N)
1.0mm 1*19 0.495 950(95kg)
  7*7 0.393 650 (65kg)
1.2mm 1*19 0.713 1440(144kg)
  7*7 0.566 950(95kg)
1.5mm 1*19 1.114 2200(220kg)
  7*7 0.884 1500(150kg)
1.8mm 1*19 1.604 3200(320kg)
  7*7 1.273 2100(210kg)
2.0mm 1*19 1.98 3900(390kg)
  7*7 1.527 2650(265kg)
2.4mm 1*19 2.851 5650(565kg)
  7*7 2.264 3800(380)kg
2.5mm 1*19 3.094 6100(610kg)
  7*7 2.381 4100(410kg)
3.2mm 7*7 4.024 6850(685kg)
  7*19 3.901 6800(680kg)
3.8mm 7*19 5.675 9650(965kg)
  7*7 5.502 9600(960kg)
4.0mm 7*19 6.609 12500(1250kg)
4.2mm 7*7 6.933 13000(1300kg)
4.5mm 7*7 7.958 13500(1350kg)
4.8mm 7*19 8.778 15300(1530kg)
6.0mm 7*19 8.716 23900(2390kg)



FAQ

1. What is your MOQ?

100pcs/size.

2. How do you control quality?

By setting up quality control points and inspecting at each production process with strict standards, the defective products will be eliminated before packaging and delivery. For partner factories, we use a comprehensive system of quality standards to evaluate the
production line. Also our professional QC team will implement the onsite check and finish product check before delivery.

3. How can we get a sample?

For new customers, we will charge samples fee/express fee. But it will be refund after order.

4. How do I pay?

We accept 30% TT as deposit, the balance to be paid upon shipping documents.

5. How do I receive the goods?

With our professional transport agents, we are capable of delivery products to most ports all over the world.

Door-to-door service is also supported.

FOB, CIF are most commonly used trade terms.
