China Wire Rope Sling manufacturer

Large Safety Factor Galvanized Wire Rope Operation Stability For General Engineering

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE, CCS, Lloyd’s, ABS,DNV
Model Number: 6×37 (18/12/6/1)
Payment & Shipping Terms:
Minimum Order Quantity: 1000mtrs
Price: USD1200 per Ton
Packaging Details: Wooden Reel or as request
Delivery Time: 10-15days
Payment Terms: L/C, T/T
Supply Ability: 1000tons monthly

Detail Information

Packing:Wooden Reel,Steel ReelSurface:Galvanized
Tensile Strength:1570,1670,1770,1870,1960MPALength:500mtrs/1000mtrs/2000mtrs Available
Material:SteelLay:RHOL,LHOL,RHLL,LHLL
High Light:

galvanized cable wire

,

galvanized steel wire rope

Product Description

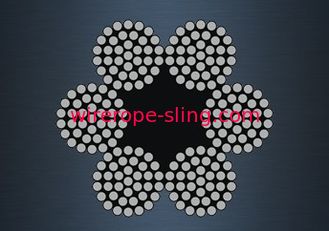

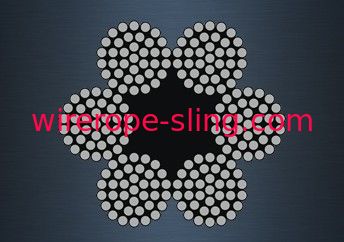

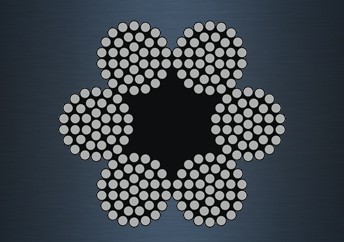

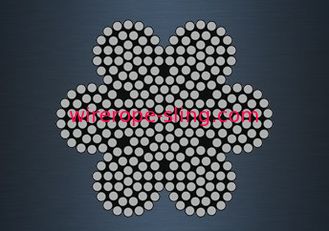

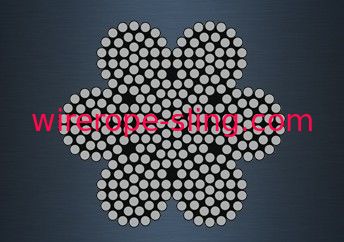

6×37 (18/12/6/1) – IWRC Galvanized Steel Wire Rope for general engineering





6×37 is a cross laid construction used for general engineering applications. 6×37 is also available with IWRC (independent wire rope core). In the China 6×36 is a far more popular construction, whilst on the European mainland, vast quantities of 6×37 are used for a variety of applications.

Applications



2.1.10
wire tensile strength grade
R
level of requirement of tensile strength of a wire and its corresponding range, designated by the value according to the lower limit of tensile strength and used when specifying wire and when determining the calculated minimum breaking force or calculated minimum aggregate breaking force of a rope
Note 1 to entry: It is expressed in newtons per square millimetre.

2.1.11
measured wire tensile strength
Rm
ratio between the maximum force obtained in a tensile test and the nominal cross-sectional area of the test piece
Note 1 to entry: It is expressed in newtons per square millimetre





Large Safety Factor Galvanized Wire Rope Operation Stability For General Engineering 0



  • General engineering applications
  • Crane ropes
  • Hoist rope



Breaking Loads

Nominal Diameter

Approximate Mass

Minimum Breaking Loads

1770 Mpa

1960 Mpa

[mm]

[kg/m]

[kN]

[Kg]

[kN]

[Kg]

12

0.549

81.3

8,293

90.0

9,183

13

0.644

95.4

9,733

105.7

10,777

14

0.747

110.7

11,288

122.5

12,499

16

0.975

144.5

14,743

160.1

16,326

18

1.234

182.9

18,659

202.6

20,662

20

1.524

225.9

23,036

250.1

25,509

22

1.844

273.3

27,874

302.6

30,866

24

2.195

325.2

33,173

360.1

36,734

26

2.576

381.7

38,932

422.7

43,111

28

2.987

442.7

45,152

490.2

49,999

30

3.429

508.2

51,833

562.7

57,397

32

3.901

578.2

58,974

640.2

65,305

34

4.404

652.7

66,576

722.8

73,723

36

4.938

731.8

74,639

810.3

82,651

38

5.502

815.3

83,163

902.8

92,090

40

6.096

903.4

92,147

1000.4

102,039

42

6.721

996.0

101,592

1102.9

112,498

44

7.376

1093.1

111,498

1210.5

123,467

46

8.062

1194.8

121,865

1323.0

134,946

48

8.778

1300.9

132,692

1440.6

146,936
