1x19 Galvanized Wire Rope Garage Door Cables High - Tensile Strength RHOL Lay

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE, CCS, Lloyd’s, ABS,DNV
Model Number: 1x19 (12/6/1)
Payment & Shipping Terms:
Minimum Order Quantity: 1000mtrs
Price: USD1200 per Ton
Packaging Details: Wooden Reel or as request
Delivery Time: 10-15days
Payment Terms: L/C, T/T
Supply Ability: 1000tons monthly

Detail Information

Tensile Strength:Upto,1960MPASurface:Galvanized
Alloy Or Not:Non-alloyLength:500mtrs/1000mtrs/2000mtrs Available
Packing:Wooden Reel,Steel ReelLay:RHOL,LHOL
High Light:

galvanized cable wire

,

galvanized steel wire rope

Product Description



1x19 (12/6/1) Galvanized Steel Wire Rope for Garage door cables



Product Details



1x19 galvanised steel strand is a very poplar construction. 1x19’s excellent breaking load and low stretch characteristics along with its’ aesthetic appeal make it a favourite for small diameter applications, examples of which are shown below:

  • Applications
  • General engineering applications
  • Small diameter wire rope slings
  • Stay wires
  • Fencing rope
  • Catenary wire
  • Garage door cables
  • Standing rigging
  • Hanging signs
  • Ski-lifts

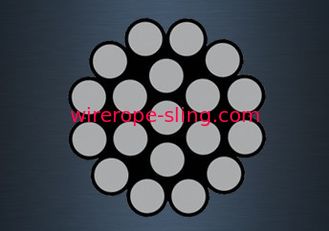

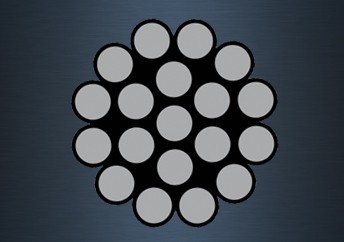

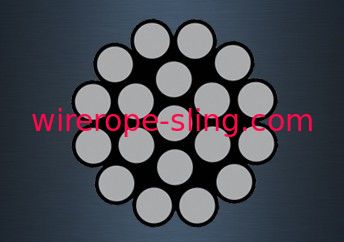

Cross Section Show

1x19 (12/6/1) Galvanized Steel Wire Rope

1x19 Galvanized Wire Rope Garage Door Cables High - Tensile Strength RHOL Lay 0


When should you replace the wire rope?

As an expendable product, the wire rope used on any occasion needs to be replaced regularly. But there is no fixed standard for how long it takes to change. This is mainly due to the different use occasions, different intensity of use, the product can maintain normal service life is different. Experienced workers can accurately judge whether they need to be replaced, and the novice can judge according to the following characteristics.

The first is to measure the diameter of a wire rope. Each product has a specific specification, which is the diameter. Most of the cables are mainly subjected to tensile stress, and the deformation is mainly caused by the increase of length and the reduction of diameter. Therefore, it is very important to measure the diameter of ropes regularly. Once some parts of the diameter change exceeds the specification requirements, it is necessary to replace them in time.

The second way is to see the degree of smoothness in general. This kind of rope is usually made of special knitting methods. If you find some parts of the phenomenon of wire removal, we must be vigilant, it is best to replace immediately.



Breaking Loads
Nominal Diameter Approximate Mass Minimum Breaking Loads
1770 Mpa 1960 Mpa
[mm] [kg/m] [kN] [Kg] [kN] [Kg]
1 0.005 0.93 95 1.03 105
1.2 0.007 1.34 136 1.48 151
1.5 0.011 2.09 213 2.32 236
1.8 0.016 3.01 307 3.33 340
2 0.02 3.72 379 4.12 420
2.3 0.026 4.92 501 5.44 555
2.5 0.031 5.81 592 6.43 656
3 0.045 8.36 853 9.26 944
4 0.079 14.87 1,516 16.46 1,678
5 0.124 23.23 2,368 25.73 2,622
6 0.178 33.5 3,410 37 3,776
7 0.243 45.5 4,642 50.4 5,140
8 0.317 59.5 6,062 65.9 6,713
9 0.401 75.3 7,673 83.3 8,496
10 0.495 92.9 9,472 102.9 10,489
11 0.599 112.4 11,462 124.5 12,692
12 0.713 133.8 13,640 148.2 15,105
14 0.97 182.1 18,566 201.7 20,559
16 1.267 237.9 24,250 263.4 26,853
19 1.787 335 34,196 371 37,866
22 2.396 450 45,847 498 50,768
26 3.346 628 64,034 696 70,908
